آنتن های RF
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | RF Family/Standard | گروه فرکانس | فرکانس (مرکز/باند) | محدوده فرکانس | نوع آنتن | تعداد باندها | VSWR | ضرر برگشتی | به دست آوردن | قدرت - حداکثر | ویژگی ها | فسخ | حفاظت از ورود | درجه | صلاحیت | نوع نصب | ارتفاع (حداکثر) | برنامه های کاربردی |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BMYD757K-DPRF ANT 772.5MHZ YAGI N TYP F POL |
9 |
|
برگه مشخصات |
- | Box | Active | General ISM | UHF (300MHz ~ 1GHz) | 772.5MHz | 757MHz ~ 788MHz | Yagi, 7-Element | 1 | 1.5 | 14dB | 12dBi | 200 W | - | N Type Female | - | - | - | Pole Mount | 37.000" (939.80mm) | ISM, LoRa, LPWAN |
|
BOA7465RF ANT 766.5MHZ WHIP N TYP F BRK |
10 |
|
برگه مشخصات |
- | Box | Active | WiFi | UHF (300MHz ~ 1GHz) | 766.5MHz | 746MHz ~ 787MHz | Whip, Straight | 1 | 1.5 | - | 5.1dBi | 250 W | - | N Type Female | - | - | - | Bracket Mount | 55.000" (139.70cm) | Wi-Fi |
|
BOA9025RF ANT 915MHZ WHIP STR N TYPE |
7 |
|
برگه مشخصات |
BOA | Tube | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 928MHz | Whip, Straight | 1 | 1.5 | - | 5.1dBi | 250 W | - | N Type Female | - | - | - | Mast Mount | 55.000" (139.70cm) | ISM, LoRa, LPWAN |
|
BOA-LCMGPS-PTNMRF ANT 1.575GHZ WHP N TYP M POLE |
5 |
|
برگه مشخصات |
- | Box | Active | Cellular, Navigation | Wide Band | 1.575GHz, 1.695GHz | 690MHz ~ 2.7GHz | Whip, Straight | 2 | 1.5, 2 | - | 2dBi | 50 W | Cable - 1.2m, LNA | N Type Male | IP54 | - | - | Pole Mount | 20.000" (508.00mm) | 2G, 3G, 5G, Cellular, GPS, LTE |
|
A09-F8NF-MRF ANT 900MHZ WHIP STR N FEM 65" |
18 |
|
برگه مشخصات |
- | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 900MHz | - | Whip, Straight | 1 | - | - | 8.1dBi | - | - | N Type Female | - | - | - | Bracket Mount | 65.000" (165.10cm) | - |
|
AQHA.11.A.101111TORPEDO AQHA.11.A ACTIVE GNSS EX |
5 |
|
برگه مشخصات |
- | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.575GHz, 1.6016GHz | - | Dome | 3 | - | - | 0.7dBi, 1dBi, 1dBi | - | Cable - 1m, LNA | SMA Male | IP67 | - | - | Panel Mount | 4.724" (120.00mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|
PCT-RSA-160RF ANT 160MHZ MOD N TYP F STUD |
3 |
|
برگه مشخصات |
PCT-RSA | Box | Active | - | VHF (f < 300MHz) | 160MHz | 158MHz ~ 162MHz | Module | 1 | 1.5 | - | 2dBi | 100 W | - | N Type Female | - | - | - | Stud, Through Hole | 4.291" (109.00mm) | TETRA/P25 |
|
BOA8905HNFOMNIDIRECTIONAL STATION ANTENNA |
5 |
|
برگه مشخصات |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
BOA5G2X2L125PTNMRF ANT 788.5MHZ DIRECT N TYP M |
25 |
|
برگه مشخصات |
- | Box | Active | Cellular | Wide Band | 788.5MHz, 2.205GHz, 3.7GHz, 5.45GHz | 617MHz ~ 960MHz, 1.71GHz ~ 2.7GHz, 3.2GHz ~ 4.2GHz, 4.9GHz ~ 6GHz | Directional Antenna | 4 | 2 | - | 3.5dBi, 4dBi, 4.5dBi, 3.5dBi | 50 W | - | N Type Male | IP54 | - | - | Collar Mount | 22.571" (573.30mm) | 2G, 3G, 4G, 5G, Cellular, GSM, LTE |
|
PCT-RSABD-DPRF ANT 5.4GHZ MOD QMA F STUD/TH |
3 |
|
برگه مشخصات |
- | Box | Active | - | SHF (f > 4GHz) | 5.4GHz | 4.9GHz ~ 5.9GHz | Module | 1 | 2 | - | 10dBi, 13dBi | - | - | QMA Female | IP56 | - | - | Stud, Through Hole | 3.346" (85.00mm) | Bluetooth, Wi-Fi |
|
|
GL125-DLTEMIMOCOACH II -PERMANENT MOUNT |
24 |
|
برگه مشخصات |
Coach™ II | Box | Active | - | Wide Band | 1.22GHz, 1.5575GHz | 1.15GHz ~ 1.29GHz, 1.5GHz ~ 1.615GHz | Module | 2 | 2:1 | - | 28dBi | 25 W | LNA, Filter | - | IP67 | - | - | - | 3.622" (92.00mm) | BeiDou, Bluetooth, Cellular, Galileo, GLONASS, GNSS, GPS, Wi-Fi |
|
|
GL125-DLTEMIMO-SMCOACH II 5G CELLULAR GNSS MULTI |
15 |
|
برگه مشخصات |
Coach™ II | Box | Active | Cellular, Navigation, WiFi | Wide Band | 649MHz, 750MHz, 892MHz, 1.955GHz, 2.45GHz, 2.495GHz, 3.6GHz, 5.4125GHz | 600MHz ~ 698MHz, 698MHz ~ 802MHz, 824MHz ~ 960MHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.5GHz, 2.4GHz ~ 2.69GHz, 3.4GHz ~ 3.8GHz, 4.9GHz ~ 5.925GHz | Module | 1 | 3 | - | 5.1dBi | 25 W | Filter | SMA | IP67 | - | - | Stud | 3.622" (92.00mm) | BeiDou, Bluetooth, Cellular, Galileo, GLONASS, GNSS, GPS, Wi-Fi |
|
BOA2177RF ANT 219.5MHZ WHIP N TYP F BRK |
3 |
|
برگه مشخصات |
- | Tube | Active | - | VHF (f < 300MHz) | 219.5MHz | 217MHz ~ 222MHz | Whip, Straight | 1 | 2 | - | 7.1dBi | 250 W | - | N Type Female | - | - | - | Bracket Mount | 150.984" (383.50cm) | - |
|
|
AC31700-01BANT BOOSTER 5G 4G LTE SMD CHIP |
800 |
|
برگه مشخصات |
- | Tape & Reel (TR) | Active | Cellular | Wide Band | 700MHz, 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.4GHz, 3.5GHz, 5GHz | 698MHz ~ 803MHz, 791MHz ~ 894MHz, 1.695GHz ~ 2.2GHz, 2.3GHz ~ 2.69GHz | Chip | 4 | 4.5, 5, 3.5, 3.4 | -3.9dB, -3.5dB, -5.1dB, -5.3dB | 1dBi, 0.5dBi, 3dBi, 5dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.118" (3.00mm) | 4G, 5G, Cat-M1, CDMA, Cellular, GSM, LTE, LTE-M, NB-IoT, UMTS |
|
|
L9000090-01ANTENNA 2.4GHZ METAL STAMP THM |
0 |
|
برگه مشخصات |
* | Bag | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

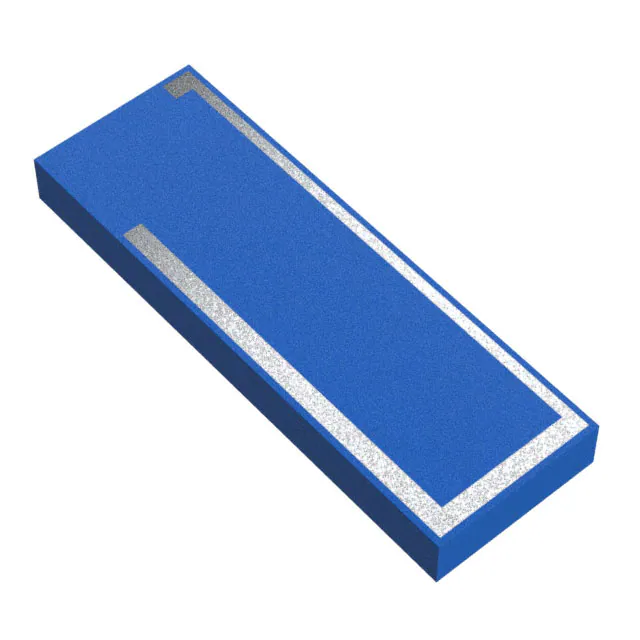

ANT1204LL16R0870ARF ANT 870MHZ CHIP SOLDER SMD |
1,000 |
|
برگه مشخصات |
1204 | Tape & Reel (TR) | Active | General ISM | UHF (300MHz ~ 1GHz) | 870MHz | - | Chip | 1 | - | 6.49dB | 1.05dBi | 1 W | - | Solder | - | - | - | Surface Mount | 0.047" (1.20mm) | ISM |
|
ANT-868-CPARF ANT 868MHZ PATCH ISM 25X25 |
0 |
|
برگه مشخصات |
CPA | Tray | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz | 863MHz ~ 876MHz | Ceramic Patch | 1 | 9.5 | -1.8dB | -5.9dBi | 8 W | - | Pin | - | - | - | Adhesive | 0.200" (4.00mm) | ISM, LPWA |
|
W3333RF ANT 895MHZ/2.4GHZ PCB TRACE |
324 |
|
برگه مشخصات |
- | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz) | 895MHz, 2.4GHz | 863MHz ~ 928MHz, 2.4GHz ~ 2.5GHz | PCB Trace | 2 | - | -15dB | 4dBi | 3 W | - | Solder | - | - | - | Surface Mount | 0.031" (0.80mm) | Bluetooth, WLAN, Zigbee™ |
|
|
FXUB16.07.0150AQWIDEBAND CELLULAR 90X15MM FLEX P |
79 |
|
برگه مشخصات |
Maximus | Bag | Active | Cellular, WiFi | Wide Band | 657.5MHz, 761MHz, 892MHz, 1.472GHz, 1.955GHz, 2.495GHz, 4.15GHz, 5.537GHz | 617MHz ~ 698MHz, 698MHz ~ 824MHz, 824MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 5GHz, 5.15GHz ~ 5.925GHz | Flat Patch | 8 | - | - | -0.17dBi, 0.5dBi, -0.52dBi, -1.54dBi, 3dBi, 4.1dBi, 6.05dBi, 6.32dBi | 2 W | Cable - 150mm | I-PEX MHFI | - | - | - | Adhesive | 0.009" (0.24mm) | 2G, 3G, 4G, 5G, Cat-M, IoT, LTE, NB-IoT, NR, Wi-Fi |
|
|
2372105-1LTE ANTENNA COTS PCB ASSEMBLY 15 |
455 |
|
برگه مشخصات |
- | Bag | Active | Cellular | Wide Band | 829MHz, 1.94GHz, 2.5GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.7GHz | Flat Patch | 3 | 3 | - | 2.5dB, 2.5dB, 2.5dB | - | Cable - 150mm | - | - | - | - | Adhesive | 0.039" (1.00mm) | LTE, UMTS, WCDMA |
