آنتن های RF
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | RF Family/Standard | گروه فرکانس | فرکانس (مرکز/باند) | محدوده فرکانس | نوع آنتن | تعداد باندها | VSWR | ضرر برگشتی | به دست آوردن | قدرت - حداکثر | ویژگی ها | فسخ | حفاظت از ورود | درجه | صلاحیت | نوع نصب | ارتفاع (حداکثر) | برنامه های کاربردی |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AN110505-02C-160-MHF1RF ANT ISM915/2400/5800 3G 4G 5G |
78 |
|
برگه مشخصات |
AN110505 | Bulk | Active | 802.15.4, Bluetooth, Cellular, General ISM | UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 880MHz, 2.4475GHz, 5.5375GHz | 832MHz ~ 928MHz, 2.4GHz ~ 2.495GHz, 5.15GHz ~ 5.925GHz | PCB Trace | 3 | 1.93, 2.32, 2.62 | -10dB, -7dB, -8dB | 1.8dBi, 4.3dBi, 5dBi | 10 W | Cable - 160mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive, Bracket | 0.031" (0.80mm) | 5G, IoT, ISM, LP-WAN, LTE, RFID, Smart Meters |
|
|
SZK-C-1W09-100-012.4GHz, 5GHz, 6GHz 802.11ax, 802 |
75 |
|
برگه مشخصات |
WOLF | Bulk | Active | Bluetooth, WiFi | Wide Band | 2.4GHz, 5GHz, 6GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Flat Patch | 3 | 1.8, 2.2, 2.6 | -10dB, -8.5dB, -7dB | 1.85dBi, 5.5dBi, 3.4dBi | 3 W | Cable - 100mm | IPEX MHF1, U.FL (UMCC) | - | - | - | Adhesive | 0.008" (0.20mm) | 802.11ax, 802.15.4, Bluetooth, Wi-Fi, Wi-Fi 4, Wi-Fi 5, Wi-Fi 6, Wi-Fi 6E |
|
SZP-C-2L145G ANT 617-5000MHZ SMD CHIP |
100 |
|
برگه مشخصات |
- | Tape & Reel (TR) | Active | Cellular | Wide Band | 788.5MHz, 1.4725GHz, 1.955GHz, 2.35GHz, 2.595GHz, 3.75GHz | 617MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.4GHz, 2.5GHz ~ 2.69GHz, 3.3GHz ~ 4.2GHz | Chip | 6 | - | - | 1.47dBi, 0.01dBi, 2.82dBi, 3.69dBi, 3.26dBi, 5.91dBi | 5 W | - | Solder | - | - | - | Surface Mount | 0.130" (3.30mm) | 2G, 3G, 4G, 5G, LTE |
|
SZC-N-0G07RF ANT 1.575/1.602GHZ CER PATCH |
95 |
|
برگه مشخصات |
ARIETISb | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.602GHz | 1.572GHz ~ 1.578GHz, 1.597GHz ~ 1.607GHz | Ceramic Patch | 1 | 2.35, 2.9 | -10dB | 2.5dBi, 2dBi | - | - | Solder | - | - | - | Surface Mount | 0.157" (4.00mm) | Galileo, GLONASS, GNSS, GPS |
|
|
ATLTE-20144-2.0BT4G/3G/2G TERMINAL ANTENNA 2DB |
35 |
|
برگه مشخصات |
ATLTE | Bulk | Active | Cellular | Wide Band | 704MHz, 824MHz, 960MHz, 1.71GHz, 1.88GHz, 2.17GHz, 2.3GHz, 2.5GHz, 2.7GHz | 700MHz ~ 960MHz, 1.71GHz ~ 2.7GHz | Blade, Tilt | 2 | 3.5, 4 | - | 2dBi | - | SMA Male | - | - | - | - | Connector Mount | 5.669" (144.00mm) | 2G, 3G, 4G, GSM, LTE |
|
ANT-ELE-S01-008RF ANT 892MHZ/1.85GHZ WHIP STR |
81 |
|
برگه مشخصات |
MAG | Bulk | Active | - | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 800MHz, 850MHz, 900MHz, 1.7GHz, 1.8GHz, 1.9GHz | 824MHz ~ 960MHz, 1.71GHz ~ 1.99GHz | Whip, Straight | 2 | 2 | - | - | - | - | M5 | - | - | - | Magnetic | 12.750" (323.85mm) | - |
|
ATIGG1040-1RF ANT GNSS/GPS CER PATCH IPEX |
68 |
|
برگه مشخصات |
ATIGG | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.6085GHz | 1.574GHz ~ 1.576GHz, 1.602GHz ~ 1.615GHz | Ceramic Patch | 2 | 2 | - | -3dBi | - | Cable - 60mm, LNA, Filter | I-PEX MHF | - | - | - | Surface Mount | 0.157" (4.00mm) | GLONASS, GPS |
|
|
AT5G-25167-4.0BT5G/4G LTE TERMINAL ANTENNA 4DB |
35 |
|
برگه مشخصات |
AT5G | Bulk | Active | Cellular | Wide Band | 704MHz, 960MHz, 1.71GHz, 2.7GHz, 3.3GHz, 5GHz, 5.85GHz | 704MHz ~ 960MHz, 1.71GHz ~ 2.7GHz, 3.3GHz, 5GHz ~ 5.85GHz | Blade, Tilt | 4 | 2, 3, 3.5, 4 | - | 4dBi | - | SMA Male | - | - | - | - | Connector Mount | 6.575" (167.00mm) | 2G, 3G, 4G, 5G, LTE |
|
PE51RD10155DBI RBR DUCK 2400-2500MHZ RPSMA |
96 |
|
برگه مشخصات |
- | Bag | Active | Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Blade, Tilt/Swivel | 1 | 2 | - | 4.52dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 7.700" (195.58mm) | Bluetooth, ISM, Wi-Fi, WLAN |
|
|
H2P13APAXB0100GNSS 1560-1606 MHZ ULTRA WIDE BA |
85 |
|
برگه مشخصات |
- | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.561GHz, 1.602GHz | 1.598GHz ~ 1.606GHz | Ceramic Patch | 3 | 2 | - | 1.6dBi, 1.9dBi, 4.2dBi | - | - | Pin | - | - | - | Surface Mount | 0.157" (4.00mm) | GLONASS, GPS |
|
SZK-C-1L145G ANT FLAT PATCH IPEX |
100 |
|
برگه مشخصات |
ARCTURUS | Bag | Active | Cellular | Wide Band | 788.5MHz, 1.5435GHz, 1.955GHz, 2.35GHz | 617MHz ~ 960MHz, 1.427GHz ~ 1.66GHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.4GHz | PCB Trace | 4 | 1.3, 2.3, 4, 5.9 | -3dB, -4.4dB, -8dB, -17dB | 2.8dBi, 1.2dBi, 2.9dBi, 3.2dBi | 5 W | Cable - 180mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.008" (0.20mm) | 2G, 3G, 4G, 5G |
|
|
1001044GPS CERAMIC PATCH ANTENNA |
74 |
|
برگه مشخصات |
- | Box | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.572GHz ~ 1.578GHz | Ceramic Patch | 1 | 2 | - | 0.3dBic | - | - | - | - | - | - | Adhesive | 0.264" (6.70mm) | GPS |
|
RST-W5C9-195013-22M-GE-001RF ANT 2.4GHZ/5.8GHZ WHIP TILT |
86 |
|
برگه مشخصات |
RST | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.8GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz | Whip, Tilt | 2 | 2, 2 | - | 4.5dBi, 5dBi | - | - | SMA Male | IP65 | - | - | Connector Mount | 7.677" (195.00mm) | 802.15.4, Bluetooth, Wi-Fi |
|

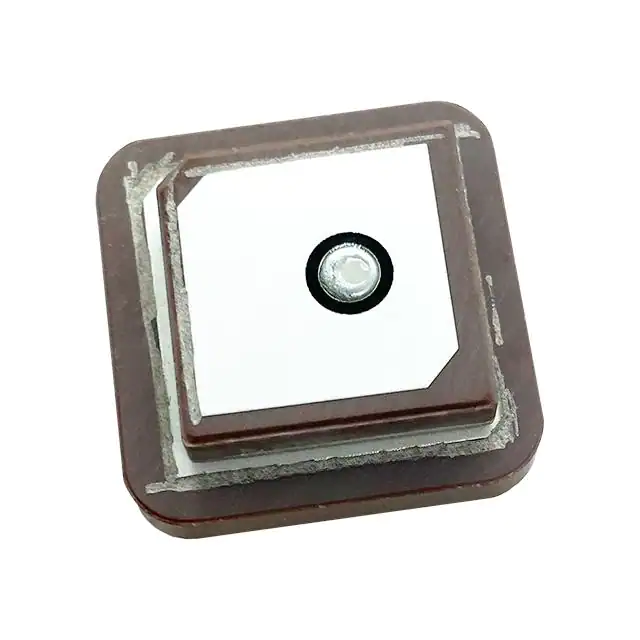

ATPGGBL5R2580ARF ANT GPS L1+L5/GLONASS/BEIDOU |
44 |
|
برگه مشخصات |
ATPGGBL5 | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.176GHz, 1.561GHz, 1.575GHz, 1.577GHz, 1.602GHz | 1.164GHz ~ 1.188GHz, 1.559GHz ~ 1.563GHz, 1.574GHz ~ 1.576GHz, 1.591GHz ~ 1.563GHz, 1.597GHz ~ 1.607GHz | Ceramic Patch | 5 | 1.8 | - | 0.5dBi, 2.4dBi, 0.6dBi, 0.6dBi, 3.4dBi | - | - | Pin | - | - | - | Adhesive | 0.315" (8.00mm) | Beidou, GLONASS, GPS |
|
|
JCG401-1RUBBER ANTENNA WITH SMA MALE CON |
82 |
|
برگه مشخصات |
- | Bag | Active | Cellular | Wide Band | 859MHz, 920MHz, 1.94GHz | 824MHz ~ 894MHz, 880MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Whip, Straight | 3 | 2.5 | - | 2dBi, 2dBi, 2dBi | - | - | SMA Male | - | - | - | Connector Mount | 2.319" (58.90mm) | GSM |
|
|
JCG401RUBBER ANTENNA 824~894/1710~2170 |
38 |
|
برگه مشخصات |
- | Bag | Active | Cellular | Wide Band | 859MHz, 920MHz, 1.94GHz | 824MHz ~ 894MHz, 880MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Whip, Straight | 3 | 2.5 | - | 2dBi, 2dBi, 2dBi | - | - | SMA Male | - | - | - | Connector Mount | 2.102" (53.40mm) | GSM |
|
1513472-1UAM ASSEMBLY |
54 |
|
برگه مشخصات |
- | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.44GHz, 5.51GHz | 2.4GHz ~ 2.4835GHz, 5.15GHz ~ 5.875GHz | Module | 2 | 3 | - | 3dBi | 10 W | Cable - 595mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Panel Mount | 0.394" (10.00mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
AN.5G.INT1.100.IP45G INTERNAL ANTENNA Mini-profile |
58 |
|
برگه مشخصات |
- | Bulk | Active | Cellular | UHF (3GHz ~ 4GHz) | 3.4GHz | 800MHz ~ 6GHz | Flat Patch | 1 | - | - | 2.5dBi | - | Cable - 100mm | I-PEX4 | - | - | - | Surface Mount | - | 3G, 4G, 5G, LTE, Wi-Fi |
|
PE51RD10212DBI RBR DUCK 2400-2500MHZ SMA |
91 |
|
برگه مشخصات |
- | Bag | Active | Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Whip, Straight | 1 | 2 | - | 2dBi | 2 W | - | RP-SMA Male | - | - | - | Magnetic | 2.950" (74.93mm) | Bluetooth, ISM, Wi-Fi, WLAN |
|
|
ASGP.1575.25B.4.A.01RF ANT |
0 |
|
برگه مشخصات |
- | Tape & Reel (TR) | Obsolete | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | - | Ceramic Patch | 1 | - | - | 1.5dBi | - | - | SMA Female | - | - | - | Surface Mount | 0.266" (6.75mm) | GPS |
