آنتن های RF
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | RF Family/Standard | گروه فرکانس | فرکانس (مرکز/باند) | محدوده فرکانس | نوع آنتن | تعداد باندها | VSWR | ضرر برگشتی | به دست آوردن | قدرت - حداکثر | ویژگی ها | فسخ | حفاظت از ورود | درجه | صلاحیت | نوع نصب | ارتفاع (حداکثر) | برنامه های کاربردی |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PIS-0387LORA ANT PEAK 5.8DBI 470MHZ SMA |
20 |
|
برگه مشخصات |
- | Bulk | Obsolete | General ISM | UHF (300MHz ~ 1GHz) | 895MHz | 860MHz ~ 930MHz | Whip, Straight | 1 | - | - | 5.8dBi | 20 W | - | N Type Male | - | - | - | Bracket Mount | 31.496" (800.00mm) | LoRa |
|
|
PIS-0392LORA ANT PEAK 5.8DBI 470MHZ IPEX |
18 |
|
برگه مشخصات |
- | Bulk | Obsolete | General ISM | UHF (300MHz ~ 1GHz) | 895MHz | 860MHz ~ 930MHz | Whip, Straight | 1 | - | - | 5.8dBi | 20 W | - | N Type Male | - | - | - | Bracket Mount | 31.496" (800.00mm) | LoRa |
|
|
HG914YE-NFANT YAGI 824-960MHZ 14DBI |
3 |
|
برگه مشخصات |
HG | Bag | Obsolete | Cellular, General ISM | UHF (300MHz ~ 1GHz) | 892MHz | 824MHz ~ 960MHz | Yagi | 1 | - | - | 14dBi | - | - | N Type Female | - | - | - | Bracket Mount | 55.118" (1400.00mm) | GSM, ISM, LoRa, RFID, WLAN |
|
3971D-HRRF ANT 1.575GHZ DOME TNC BRKT MT |
14 |
|
برگه مشخصات |
- | Bulk | Obsolete | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.565GHz ~ 1.585GHz | Dome | 1 | - | - | 3dBic, -2dBic | - | LNA, Filter | TNC | IP67 | - | - | Bracket Mount, Through Hole | 0.827" (21.00mm) | GNSS, GPS |
|
|
PIS-0390LORA ANT PEAK 5.8DBI 923MHZ SMA |
13 |
|
برگه مشخصات |
- | Bulk | Obsolete | General ISM | UHF (300MHz ~ 1GHz) | 895MHz | 860MHz ~ 930MHz | Whip, Straight | 1 | - | - | 5.8dBi | 20 W | - | N Type Male | - | - | - | Bracket Mount | 31.496" (800.00mm) | LoRa |
|
|
2J2124BA-B17HTWINS 4GLTE/3G/2G ARRAY WALL M |
10 |
|
برگه مشخصات |
- | Bag | Active | Cellular | Wide Band | 829MHz, 1.94GHz, 2.6GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.5GHz ~ 2.7GHz | Whip, Straight | 3 | 1.4, 1.5, 2.4 | -16.8dB, -14.7dB, -8.6dB | 2.2dBi, 3dBi, 0.4dBi | 25 W | Cable - 3m | SMA Male | IP67 | - | - | Wall Mount | 8.661" (220.00mm) | 2G, 3G, 4G, LTE |
|
|
PE51YA1009900 MHz 9 dBi Al Yagi Antenna |
10 |
|
برگه مشخصات |
- | Retail Package | Active | Cellular, General ISM | UHF (300MHz ~ 1GHz) | 892MHz | 824MHz ~ 960MHz | Yagi | 1 | 1.5 | - | 9dBi | 100 W | Cable - 381mm | N Type Female | - | - | - | Bracket Mount | 27.400" (695.96mm) | GSM, IoT, ISM, LoRa, LPWAN, M2M, RFID, WLAN |
|
AN.UWB.INT4.433.10000.SMA5G High gain UWB plate antenna |
23 |
|
برگه مشخصات |
- | Bulk | Active | 802.15.4, Bluetooth, Cellular, WiFi | Wide Band | 5.5165GHz | 433MHz ~ 10.6GHz | - | 1 | - | - | 9dBi | - | - | SMA Female | - | - | - | - | - | 3G, 4G, 5G, Bluetooth, GSM, LoRa, UWB, Wi-Fi, Zigbee™ |
|
|
PIS-0394LORA ANT PEAK 5.8DBI 915MHZ IPEX |
2 |
|
برگه مشخصات |
- | Bulk | Obsolete | General ISM | UHF (300MHz ~ 1GHz) | 895MHz | 860MHz ~ 930MHz | Whip, Straight | 1 | - | - | 5.8dBi | 20 W | - | N Type Male | - | - | - | Bracket Mount | 31.496" (800.00mm) | LoRa |
|
|
M1575HCT-15A-SMA/100-00028-07Helical L1 Active GPS Antenna |
5 |
|
برگه مشخصات |
- | Tape & Box (TB) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | - | Whip, Straight | 1 | - | - | 28dBic | - | LNA, Filter | SMA | IP67 | - | - | Screw | 1.648" (41.85mm) | GPS |
|
PE51MP10002DBI VEHICULAR 108-520MHZ NMO |
12 |
|
برگه مشخصات |
- | Bag | Active | - | VHF (f < 300MHz), UHF (300MHz ~ 1GHz) | 150MHz, 450MHz, 450MHz | 142.5MHz ~ 157.5MHz, 425MHz ~ 475MHz, 400MHz ~ 500MHz | Whip, Straight | 3 | 1.5, 2 | - | 2dBi | 150 W | - | NMO | - | - | - | Magnetic | 29.000" (736.60mm) | General Purpose |
|
|
2J4950PGFEAGLE 3IN1 4GLTE/3G/2G MIMO WIFI |
10 |
|
برگه مشخصات |
- | Bag | Active | 802.15.4, Bluetooth, Cellular, General ISM, Navigation, WiFi | Wide Band | 829MHz, 1.575GHz, 1.602GHz, 1.94GHz, 2.45GHz, 2.6GHz, 5.422GHz | 698MHz ~ 960MHz, 1.598GHz ~ 1.606GHz, 1.71GHz ~ 2.17GHz, 2.5GHz ~ 2.7GHz | Module | 7 | 1.3, 1.4, 1.5, 1.6 | -19dB, -18.5dB, -15dB, -14.3dB, -14.1dB, -13.1dB | 5.1dBi, 28dBi, 28dBi, 5dBi, 5.8dBi, 4.2dBi, 6.3dBi | 25 W | Cable - 3m, Filter | SMA Male | IP67, IP69 | - | - | Adhesive | 0.720" (18.30mm) | 2G, 3G, 4G, Bluetooth, Galileo, GLONASS, GNSS, GPS, ISM, LTE, QZSS, Wi-Fi, Zigbee™ |
|
|
2J4941PGFAEAGLE 3IN1 4GLTE/3G/2G MIMO GNSS |
10 |
|
برگه مشخصات |
- | Bag | Active | Cellular, Navigation | Wide Band | 829MHz, 1.575GHz, 1.602GHz, 1.94GHz, 2.6GHz | 698MHz ~ 960MHz, 1.598GHz ~ 1.606GHz, 1.71GHz ~ 2.17GHz, 2.5GHz ~ 2.7GHz | Module | 5 | 1.4, 1.5, 2.3, 2.6 | -16.8dB, -15dB, -10.1dB, -9.5dB | 2.3dBi, 28dBi, 28dBi, 1.9dBi, 2.4dBi | 25 W | Cable - 3m, Filter | SMA Male | IP67, IP69 | - | - | Adhesive | 0.720" (18.30mm) | 2G, 3G, 4G, Galileo, GLONASS, GNSS, GPS, LTE, QZSS |
|
2108853-1ACTIVE ANT.,MHF,100MM,L1+G1 & L2 |
8 |
|
برگه مشخصات |
- | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.225GHz, 1.5845GHz | 1.194GHz ~ 1.255GHz, 1.559GHz ~ 1.61GHz | Flat Patch | 2 | 1.3 | - | 23.2dBic ~ 32.7dBic, 30.7dBic ~ 33.5dBic | - | LNA, Filter | RP-SMA Male | - | - | - | Adhesive | 0.512" (13.00mm) | GNSS |
|
|
PEANMOB1003-NM136-940MHz, 4.5 dBi Gain, Omni-d |
11 |
|
برگه مشخصات |
- | Retail Package | Active | General ISM | Wide Band | 538MHz | 136MHz ~ 940MHz | Whip, Straight | 1 | 1.5 | - | 4.5dBi | 30 W | Cable - 3.05m | N Type Male | - | - | - | Magnetic | 3.700" (93.98mm) | General Purpose |
|

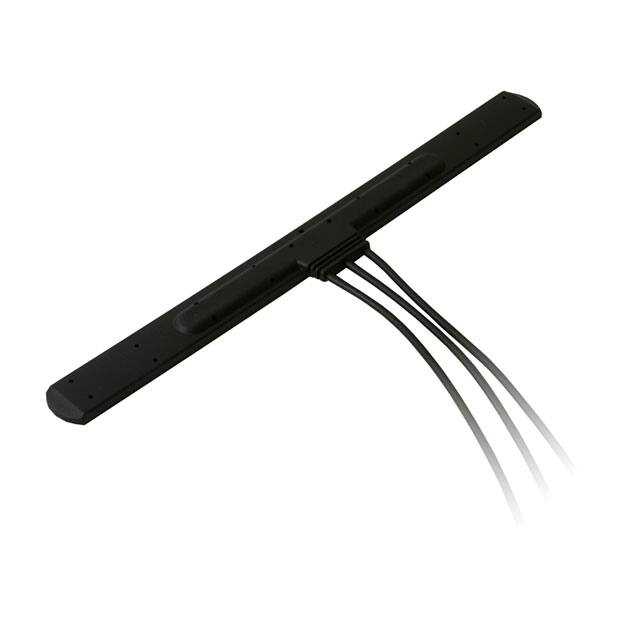

MT-14B-AS-LKWE015GNR / LTE AND WIFI ANTENNA |
18 |
|
- |
14 | Bulk | Active | Cellular, WiFi | Wide Band | 761MHz, 892MHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.4GHz, 2.495GHz, 5.8GHz | 698MHz ~ 824MHz, 824MHz ~ 960MHz, 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.92GHz ~ 2.17GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 3.8GHz | Flat Bar | 9 | 2, 3 | -6dB, -10dB | 3.24dBi, 3.66dBi, 2.87dBi, 4.64dBi, 4.64dBi, 3.97dBi, 4.21dBi, 4.31dBi, 4.91dBi, 4.07dBi, 4.63dBi, 3.98dBi, 3, 84dBi, 4.01dBi | - | Cable - 3m | - | - | - | - | Adhesive | 0.297" (7.55mm) | 5G, DCS, GSM, LTE, PCS, UMTS, Wi-Fi |
|
LP800SMAANT 0.806-0.96 BLACK SMA 17FT |
20 |
|
برگه مشخصات |
Antenna | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 883MHz | 806MHz ~ 960MHz | Dome | 1 | 2.1 | - | 2.14dBi | 100 W | Cable - 5.18m | SMA Male | - | - | - | Panel Mount | 1.220" (31.00mm) | ISM |
|
ANT8001Digiwave HD FM Outdoor Antenna |
6 |
|
- |
- | Box | Active | - | VHF (f < 300MHz) | 97.75MHz | 87.5MHz ~ 108MHz | Yagi | 1 | - | - | 3dBi | - | - | F Type | - | - | - | Bracket Mount | 2.800" (71.12mm) | - |
|
|
33-3372-01-01-0000HIGH GAIN 40 DB W/ PREFILTER TNC |
20 |
|
برگه مشخصات |
- | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.59GHz | 1.575GHz ~ 1.606GHz | Dome | 1 | 1.8 | - | 40dB | - | - | TNC Female | IP67 | - | - | Pole Mount | 1.870" (47.50mm) | GLONASS, GPS |
|
SZDV-C-0G01CENTAURI GNSS Active EVK |
20 |
|
برگه مشخصات |
- | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.5845GHz | 1.559GHz ~ 1.61GHz | Chip | 1 | 1.9 | - | 0.1dBi | - | LNA | Solder | - | - | - | Surface Mount | 0.059" (1.50mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
