آنتن های RF
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | RF Family/Standard | گروه فرکانس | فرکانس (مرکز/باند) | محدوده فرکانس | نوع آنتن | تعداد باندها | VSWR | ضرر برگشتی | به دست آوردن | قدرت - حداکثر | ویژگی ها | فسخ | حفاظت از ورود | درجه | صلاحیت | نوع نصب | ارتفاع (حداکثر) | برنامه های کاربردی |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PEWAN159-10NFWR159 GAIN HRN 4.9-7.05GHZ 10DBI |
8 |
|
برگه مشخصات |
- | Tape & Box (TB) | Active | - | Wide Band | 5.975GHz | 4.9GHz ~ 7.05GHz | Horn | 1 | 1.3 | - | 10dBi | - | Cable - 305mm, Cable - 3.048m, Cable - 7.62m | N Type Female | - | - | - | Waveguide Mount | 1.940" (49.28mm) | General Purpose |
|
|
PEWAN028-10KFWR28 GAIN HRN 26.5-40GHZ 10DBI |
16 |
|
برگه مشخصات |
- | Bulk | Active | - | SHF (f > 4GHz) | 33.25GHz | 26.5GHz ~ 40GHz | Horn | 1 | 1.3 | - | 10dBi | - | - | 2.92mm Female | - | - | - | Waveguide Flange Mount | 1.403" (35.64mm) | - |
|
|
PEWAN028-20KFWR28 GAIN HRN 26.5-40GHZ 15DBI |
18 |
|
برگه مشخصات |
- | Bulk | Active | - | SHF (f > 4GHz) | 33.25GHz | 26.5GHz ~ 40GHz | Horn | 1 | 1.3 | - | 20dBi | - | - | 2.92mm Female | - | - | - | Waveguide Flange Mount | 3.556" (90.32mm) | - |
|

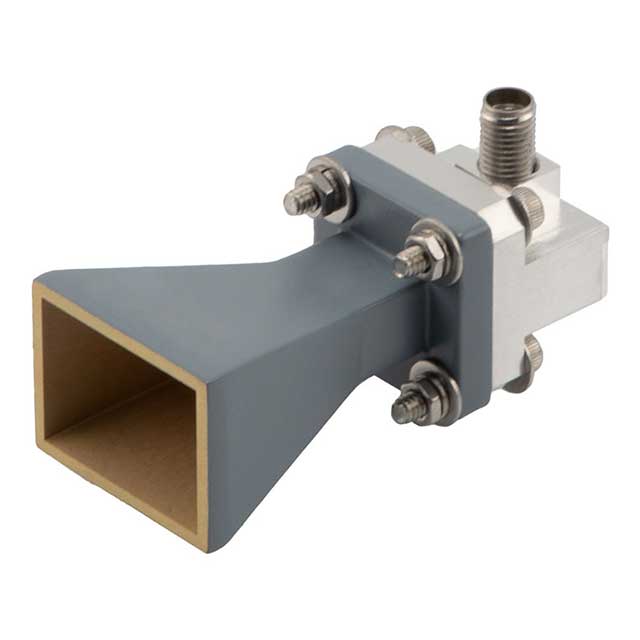

PEWAN034-15KFWR34 GAIN HORN 22-33GHZ 15DBI |
10 |
|
برگه مشخصات |
- | Case | Active | - | SHF (f > 4GHz) | 27.5GHz | 22GHz ~ 33GHz | Horn | 1 | 1.4 | - | 15dBi | - | - | 2.92mm Female | - | - | - | Waveguide Flange Mount | 2.635" (66.93mm) | - |
|
|
PE9851B-20WR-34 Waveguide Standard Gain Ho |
4 |
|
برگه مشخصات |
- | Retail Package | Active | General ISM | SHF (f > 4GHz) | 27.5GHz | 22GHz ~ 33GHz | Horn | 1 | 1.5 | - | 20dBi | - | - | - | - | - | - | Waveguide Mount | 1.492" (37.90mm) | General Purpose |
|
|
PE51068GPS Passive Dual Band Antenna Op |
4 |
|
برگه مشخصات |
- | Retail Package | Active | Navigation | UHF (2GHz ~ 3GHz) | 1.4GHz | 1.22GHz ~ 1.58GHz | Dome | 1 | - | - | 6dBi | - | - | N Type Female | - | - | - | Panel Mount | 5.470" (138.93mm) | GPS |
|
|
PEWAN051-15SFWR51 GAIN HRN 15-22GHZ 15DBI |
2 |
|
برگه مشخصات |
- | Tape & Box (TB) | Active | - | Wide Band | 18.5GHz | 15GHz ~ 22GHz | Horn | 1 | 1.25 | - | 15dBi | - | Cable - 305mm, Cable - 3.048m, Cable - 7.62m | SMA Female | - | - | - | Waveguide Mount | 0.994" (25.25mm) | General Purpose |
|
|
FM9862B-20-CPRGWG ANTENNA WR-229 3.3-4.9 GHZ |
2 |
|
- |
- | Bag | Active | General ISM | Wide Band | 4.1GHz | 3.3GHz ~ 4.9GHz | Horn | 1 | 1.5 | - | 20dBi | - | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | Screw-Mount | - | - | - | Waveguide Mount | 8.460" (214.88mm) | General Purpose |
|
AOC4700BTFG44700 MHZ OMNI ANTENNA |
10 |
|
برگه مشخصات |
- | Box | Active | - | - | 4.7GHz | 4.4GHz ~ 5GHz | - | 1 | 2.1 | - | 4dBi | - | - | TNC Male | - | - | - | Connector Mount | - | - |
|
|
PEWAN1014WR-12 Waveguide Standard Gain Ho |
2 |
|
برگه مشخصات |
- | Retail Package | Active | General ISM | SHF (f > 4GHz) | 75GHz | 60GHz ~ 90GHz | Horn | 1 | 1.15 | - | 15dBi | - | - | - | - | - | - | Waveguide Mount | 0.750" (19.05mm) | General Purpose |
|
|
PEWAN284-10SFWR284 GAIN HRN 2.6-3.95GHZ 10DBI |
2 |
|
برگه مشخصات |
- | Bulk | Active | - | UHF (2GHz ~ 3GHz) | 3.275GHz | 2.6GHz ~ 3.95GHz | Horn | 1 | 1.25 | - | 10dBi | - | - | SMA Female | - | - | - | Waveguide Flange Mount | 8.958" (227.53mm) | - |
|
|
PE9857B/SF-10WR-102 WAVEGUIDE STANDARD GAIN H |
23 |
|
برگه مشخصات |
- | Retail Package | Active | General ISM | SHF (f > 4GHz) | 9GHz | 7GHz ~ 11GHz | Horn | 1 | 1.25 | - | 10dBi | - | - | SMA Female | - | - | - | Waveguide Mount | 1.170" (29.72mm) | General Purpose |
|
|
AOC2425GPSFHDSA2425MHZ/GPS OMNI SPRING BASE ANT |
10 |
|
برگه مشخصات |
- | Box | Active | - | - | 1.575GHz, 2.5GHz | - | - | 2 | 2.1 | - | 3dBic, 6.5dBic | - | - | SMA Male | - | - | - | Connector Mount | - | - |
|
|
PE9850B/2F-10WR-28 Waveguide Standard Gain Ho |
6 |
|
برگه مشخصات |
- | Retail Package | Active | General ISM | Wide Band | 33.25GHz | 26.5GHz ~ 40GHz | Horn | 1 | 1.4 | - | 10dBi | - | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | 2.92mm Female | - | - | - | Waveguide Mount | - | General Purpose |
|
|
FM9861B/NF-20WG ANTENNA WG COAX ADAPT WR-187- |
2 |
|
برگه مشخصات |
- | Bag | Active | General ISM | Wide Band | 4.9GHz | 3.95GHz ~ 5.85GHz | Horn | 1 | 1.3 | - | 20dBi | - | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | N Type Female | - | - | - | Waveguide Mount | 6.530" (165.86mm) | General Purpose |
|
|
PE9861B/NF-15WR-187 Standard Gain Horn Antenn |
5 |
|
برگه مشخصات |
- | Retail Package | Active | General ISM | Wide Band | 4.9GHz | 3.95GHz ~ 5.85GHz | Horn | 1 | 1.3 | - | 15dBi | - | - | N Type Female | - | - | - | Waveguide Mount | 11.910" (302.51mm) | General Purpose |
|
|
PEANOM1143500 MHz to 6000 MHz Electronic W |
3 |
|
برگه مشخصات |
- | Retail Package | Active | General ISM | Wide Band | 3.25GHz | 500MHz ~ 6GHz | Module | 1 | 3 | - | 4dBi | 200 W | - | N Type Female | - | - | - | - | 4.060" (103.12mm) | General Purpose |
|
|
PE9864B/SF-10WR-430 Standard Gain Horn Antenn |
6 |
|
برگه مشخصات |
- | Retail Package | Active | General ISM | Wide Band | 2.15GHz | 1.7GHz ~ 2.6GHz | Horn | 1 | 1.3 | - | 10dBi | - | - | SMA Female | - | - | - | Waveguide Mount | 13.750" (349.25mm) | General Purpose |
|
|
PE9863B/SF-10WR-284 Waveguide Standard Gain H |
3 |
|
برگه مشخصات |
- | Retail Package | Active | General ISM | Wide Band | 3.275GHz | 2.6GHz ~ 3.95GHz | Horn | 1 | 1.25 | - | 10dBi | - | - | SMA Female | - | - | - | Waveguide Mount | 10.740" (272.80mm) | General Purpose |
|
|
PE9864B/NF-10WR-430 Standard Gain Horn Antenn |
6 |
|
برگه مشخصات |
- | Retail Package | Active | General ISM | Wide Band | 2.15GHz | 1.7GHz ~ 2.6GHz | Horn | 1 | 1.3 | - | 10dBi | - | - | N Type Female | - | - | - | Waveguide Mount | 13.750" (349.25mm) | General Purpose |
