آنتن های RF
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | RF Family/Standard | گروه فرکانس | فرکانس (مرکز/باند) | محدوده فرکانس | نوع آنتن | تعداد باندها | VSWR | ضرر برگشتی | به دست آوردن | قدرت - حداکثر | ویژگی ها | فسخ | حفاظت از ورود | درجه | صلاحیت | نوع نصب | ارتفاع (حداکثر) | برنامه های کاربردی |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PEANED10072 Folded Dipole antenna, 380 MHz |
5 |
|
برگه مشخصات |
- | Retail Package | Active | General ISM | UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz) | 425MHz | 380MHz ~ 470MHz | Module | 1 | 1.5 | - | 7.6dBi | 100 W | - | N Type Female | - | - | - | Bracket Mount | 62.992" (1600.00mm) | General Purpose |
|
|
PEANED10062 Folded Dipole antenna, 380 MHz |
5 |
|
برگه مشخصات |
- | Retail Package | Active | General ISM | UHF (300MHz ~ 1GHz) | 425MHz | 380MHz ~ 470MHz | Module | 1 | 1.5 | - | 7dBi | 100 W | - | N Type Female | - | - | - | - | 62.992" (1600.00mm) | General Purpose |
|
|
PEANED10102 Folded Dipole antenna, 406 MHz |
5 |
|
برگه مشخصات |
- | Retail Package | Active | General ISM | UHF (300MHz ~ 1GHz) | 459MHz | 406MHz ~ 512MHz | Module | 1 | 1.8 | - | 7dBi | 100 W | - | N Type Female | - | - | - | - | 59.055" (150.00cm) | General Purpose |
|
|
PEWAN1052WR-10 Waveguide Conical Gain Hor |
4 |
|
برگه مشخصات |
- | Retail Package | Active | General ISM | SHF (f > 4GHz) | 93.5GHz | 87GHz ~ 100GHz | Horn | 1 | 1.15 | - | 25dBi | - | - | - | - | - | - | Waveguide Mount | 2.910" (73.91mm) | General Purpose |
|
|
PEWAN1044WR-12 Waveguide Conical Gain Hor |
3 |
|
برگه مشخصات |
- | Retail Package | Active | General ISM | SHF (f > 4GHz) | 72.5GHz | 68GHz ~ 77GHz | Horn | 1 | 1.15 | - | 25dBi | - | - | - | - | - | - | Waveguide Mount | 4.000" (101.60mm) | General Purpose |
|
|
PEWAN1008WR-19 Waveguide Standard Gain Ho |
3 |
|
برگه مشخصات |
- | Retail Package | Active | General ISM | SHF (f > 4GHz) | 50GHz | 40GHz ~ 60GHz | Horn | 1 | 1.15 | - | 25dBi | - | - | - | - | - | - | Waveguide Mount | 4.700" (119.38mm) | General Purpose |
|
|
PEWAN1036WR-19 Waveguide Conical Gain Hor |
2 |
|
برگه مشخصات |
- | Retail Package | Active | General ISM | SHF (f > 4GHz) | 54GHz | 50GHz ~ 58GHz | Horn | 1 | 1.15 | - | 25dBi | - | - | - | - | - | - | Waveguide Mount | 6.000" (152.40mm) | General Purpose |
|
PEWAN051-10WR51 GAIN HORN 15-22GHZ 10DBI |
2 |
|
برگه مشخصات |
- | Bulk | Active | Waveguide | Ku-K Band (12GHz ~ 27GHz) | 18.3GHz | 15GHz ~ 22GHz | Horn | 1 | 1.3 | - | 10dBi | - | - | - | - | - | - | Waveguide Flange Mount | - | - |
|
|
PEWAN062-20SMWR62 GAIN HRN 12.4-18GHZ 20DBI |
10 |
|
برگه مشخصات |
- | Tape & Box (TB) | Active | - | Wide Band | 15.2GHz | 12.4GHz ~ 18GHz | Horn | 1 | 1.2 | - | 20dBi | - | Cable - 305mm, Cable - 3.048m, Cable - 7.62m | SMA Male | - | - | - | Waveguide Mount | 2.257" (57.33mm) | General Purpose |
|
PEWAN102-15WR102 GAIN HORN 7-11GHZ 15DBI |
3 |
|
برگه مشخصات |
- | Bulk | Active | Waveguide | C-X Band (4GHz ~ 12GHz) | 9GHz | 7GHz ~ 11GHz | Horn | 1 | 1.3 | - | 15dBi | - | - | - | - | - | - | Waveguide Flange Mount | - | - |
|
|
PE9857B-20WR-102 Waveguide Standard Gain H |
2 |
|
برگه مشخصات |
- | Retail Package | Active | General ISM | SHF (f > 4GHz) | 9GHz | 7GHz ~ 11GHz | Horn | 1 | 1.5 | - | 20dBi | - | - | - | - | - | - | Waveguide Mount | 9.140" (232.16mm) | General Purpose |
|
|
PEWAN028-10KMWR28 GAIN HRN 26.5-40GHZ 15DBI |
4 |
|
برگه مشخصات |
- | Bulk | Active | - | SHF (f > 4GHz) | 33.25GHz | 26.5GHz ~ 40GHz | Horn | 1 | 1.29 | - | 10dBi | - | - | 2.92mm Male | - | - | - | Waveguide Flange Mount | 1.593" (40.46mm) | - |
|
PEWAN075-10WR75 GAIN HORN 10-15GHZ 10DBI |
6 |
|
برگه مشخصات |
- | Bulk | Active | Waveguide | X-Ku Band (8GHz ~ 18GHz) | 12.5GHz | 10GHz ~ 15GHz | Horn | 1 | 1.3 | - | 10dBi | - | - | - | - | - | - | Waveguide Flange Mount | - | - |
|
PEWAN090-10WR90 GAIN HORN 8.2-12.4GHZ 10DBI |
5 |
|
برگه مشخصات |
- | Bulk | Active | Waveguide | X Band (8GHz ~ 12GHz) | 10.3GHz | 8.2GHz ~ 12.4GHz | Horn | 1 | 1.3 | - | 10dBi | - | - | - | - | - | - | Waveguide Flange Mount | - | - |
|
PEWAN062-10WR62 GAIN HORN 12.4-18GHZ 10DBI |
15 |
|
برگه مشخصات |
- | Bulk | Active | Waveguide | Ku Band (12GHz ~ 18GHz) | 15.2GHz | 12.4GHz ~ 18GHz | Horn | 1 | 1.3 | - | 10dBi | - | - | - | - | - | - | Waveguide Flange Mount | - | - |
|

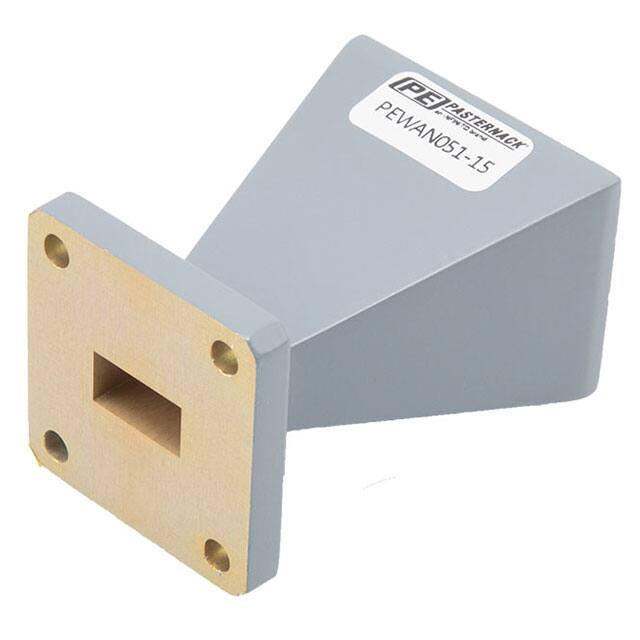

PEWAN051-15WR51 GAIN HORN 15-22GHZ 15DBI |
5 |
|
برگه مشخصات |
- | Bulk | Active | Waveguide | Ku-K Band (12GHz ~ 27GHz) | 18.3GHz | 15GHz ~ 22GHz | Horn | 1 | 1.3 | - | 15dBi | - | - | - | - | - | - | Waveguide Flange Mount | - | - |
|
PEWAN034-15WR34 GAIN HORN 22-33GHZ 15DBI |
10 |
|
برگه مشخصات |
- | Bulk | Active | Waveguide | K-Ka Band (18GHz ~ 40GHz) | 27.4GHz | 22GHz ~ 33GHz | Horn | 1 | 1.3 | - | 15dBi | - | - | - | - | - | - | Waveguide Flange Mount | - | - |
|
|
PE9853B-10WR-51 Waveguide Standard Gain Ho |
7 |
|
برگه مشخصات |
- | Retail Package | Active | General ISM | SHF (f > 4GHz) | 18.5GHz | 15GHz ~ 22GHz | Horn | 1 | 1.5 | - | 10dBi | - | - | - | - | - | - | Waveguide Mount | 1.420" (36.07mm) | General Purpose |
|
|
PEWAN1132WR-34 Waveguide Probe Antenna Op |
3 |
|
برگه مشخصات |
- | Retail Package | Active | Cellular | SHF (f > 4GHz) | 27.5GHz | 22GHz ~ 33GHz | Horn | 1 | 2 | - | 6.5dBi | - | - | - | - | - | - | Waveguide Mount | 3.400" (86.36mm) | 5G |
|
|
PEWAN1129WR-19 Waveguide Probe Antenna Op |
3 |
|
برگه مشخصات |
- | Retail Package | Active | General ISM | SHF (f > 4GHz) | 50GHz | 40GHz ~ 60GHz | Horn | 1 | 2 | - | 6.5dBi | - | - | - | - | - | - | Waveguide Mount | 2.000" (50.80mm) | General Purpose |
