آنتن های RF
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | RF Family/Standard | گروه فرکانس | فرکانس (مرکز/باند) | محدوده فرکانس | نوع آنتن | تعداد باندها | VSWR | ضرر برگشتی | به دست آوردن | قدرت - حداکثر | ویژگی ها | فسخ | حفاظت از ورود | درجه | صلاحیت | نوع نصب | ارتفاع (حداکثر) | برنامه های کاربردی |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PEWAN187-20SFWR187 GAIN HORN 3.95-5.85GHZ 20D |
4 |
|
برگه مشخصات |
- | Case | Active | - | UHF (3GHz ~ 4GHz), SHF (f > 4GHz) | 4.9GHz | 3.95GHz ~ 5.85GHz | Horn | 1 | 1.3 | - | 20dBi | - | - | SMA Female | - | - | - | Waveguide Flange Mount | 20.796" (528.22mm) | - |
|
PEWAN187-20NFWR187 GAIN HORN 3.95-5.85GHZ 20D |
4 |
|
برگه مشخصات |
- | Case | Active | - | UHF (3GHz ~ 4GHz), SHF (f > 4GHz) | 4.9GHz | 3.95GHz ~ 5.85GHz | Horn | 1 | 1.3 | - | 20dBi | - | - | N Type Female | - | - | - | Waveguide Flange Mount | 20.856" (529.74mm) | - |
|
PEWAN159-20SFWR159 GAIN HRN 4.9-7.05GHZ 20DBI |
4 |
|
برگه مشخصات |
- | Tape & Box (TB) | Active | - | Wide Band | 5.975GHz | 4.9GHz ~ 7.05GHz | Horn | 1 | 1.3 | - | 20dBi | - | Cable - 305mm, Cable - 3.048m, Cable - 7.62m | SMA Female | - | - | - | Waveguide Mount | 5.769" (146.53mm) | General Purpose |
|
|
PEWAN102-20SFWR102 GAIN HRN 7-11GHZ 20DBI |
2 |
|
برگه مشخصات |
- | Tape & Box (TB) | Active | Waveguide | Wide Band | 9GHz | 7GHz ~ 11GHz | Horn | 1 | 1.25 | - | 20dBi | - | - | SMA Female | - | - | - | Waveguide Mount | 3.701" (94.01mm) | - |
|
|
PEWAN075-20ELSFWR75 GAIN HRN 10-15GHZ 20DBI |
18 |
|
برگه مشخصات |
- | Tape & Box (TB) | Active | - | Wide Band | 12.5GHz | 10GHz ~ 15GHz | Horn | 1 | 1.4 | - | 20dBi | - | Cable - 305mm, Cable - 3.048m, Cable - 7.62m | SMA Female | - | - | - | Waveguide Mount | 2.721" (69.11mm) | General Purpose |
|
|
PEWAN062-20SFWR62 GAIN HRN 12.4-18GHZ 20DBI |
10 |
|
برگه مشخصات |
- | Tape & Box (TB) | Active | - | Wide Band | 15.2GHz | 12.4GHz ~ 18GHz | Horn | 1 | 1.25 | - | 20dBi | - | Cable - 305mm, Cable - 3.048m, Cable - 7.62m | SMA Female | - | - | - | Waveguide Mount | 2.257" (57.33mm) | General Purpose |
|
|
PEWAN062-20ELSFWR62 GAIN HRN 12.4-18GHZ 20DBI |
10 |
|
برگه مشخصات |
- | Tape & Box (TB) | Active | - | Wide Band | 15.2GHz | 12.4GHz ~ 18GHz | Horn | 1 | 1.4 | - | 20dBi | - | Cable - 305mm, Cable - 3.048m, Cable - 7.62m | SMA Female | - | - | - | Waveguide Mount | 2.257" (57.33mm) | General Purpose |
|
|
PEWAN062-20NFWR62 GAIN HRN 12.4-18GHZ 20DBI |
10 |
|
برگه مشخصات |
- | Tape & Box (TB) | Active | - | Wide Band | 15.2GHz | 12.4GHz ~ 18GHz | Horn | 1 | 1.4 | - | 20dBi | - | Cable - 305mm, Cable - 3.048m, Cable - 7.62m | N Type Female | - | - | - | Waveguide Mount | 2.257" (57.33mm) | General Purpose |
|
|
PEWAN062-20NMWR62 GAIN HRN 12.4-18GHZ 20DBI |
7 |
|
برگه مشخصات |
- | Tape & Box (TB) | Active | - | Wide Band | 15.2GHz | 12.4GHz ~ 18GHz | Horn | 1 | 1.4 | - | 20dBi | - | Cable - 305mm, Cable - 3.048m, Cable - 7.62m | N Type Male | - | - | - | Waveguide Mount | 2.257" (57.33mm) | General Purpose |
|
|
PE9855B-15WR-75 Waveguide Standard Gain Ho |
7 |
|
برگه مشخصات |
- | Retail Package | Active | General ISM | SHF (f > 4GHz) | 12.5GHz | 10GHz ~ 15GHz | Horn | 1 | 1.5 | - | 15dBi | - | - | - | - | - | - | Waveguide Mount | 4.690" (119.13mm) | General Purpose |
|
PEWAN159-20WR159 GAIN HORN 4.9-7.05GHZ 20DB |
6 |
|
برگه مشخصات |
- | Bulk | Active | Waveguide | C Band (4GHz ~ 8GHz) | 5.9GHz | 4.9GHz ~ 7.05GHz | Horn | 1 | 1.3 | - | 20dBi | - | - | - | - | - | - | Waveguide Flange Mount | - | - |
|
|
PEWAN137-20NFWR137 GAIN HRN 5.85-8.2GHZ 20DBI |
7 |
|
برگه مشخصات |
- | Case | Active | WiFi | Wide Band | 7.025GHz | 5.85GHz ~ 8.2GHz | Horn | 1 | 1.3 | - | 20dBi | - | - | N Type Female | - | - | - | Waveguide Mount | 4.965" (126.10mm) | General Purpose |
|
|
PE9858B-10-CPRGWR-112 Waveguide Standard Gain H |
2 |
|
برگه مشخصات |
- | Retail Package | Active | General ISM | SHF (f > 4GHz) | 8.525GHz | 7.05GHz ~ 10GHz | Horn | 1 | 1.5 | - | 10dBi | - | - | - | - | - | - | Waveguide Mount | 2.240" (56.90mm) | General Purpose |
|
|
PEWAN159-20NFWR159 GAIN HRN 4.9-7.05GHZ 20DBI |
6 |
|
برگه مشخصات |
- | Tape & Box (TB) | Active | - | Wide Band | 5.975GHz | 4.9GHz ~ 7.05GHz | Horn | 1 | 1.3 | - | 20dBi | - | Cable - 305mm, Cable - 3.048m, Cable - 7.62m | N Type Female | - | - | - | Waveguide Mount | 5.769" (146.53mm) | General Purpose |
|

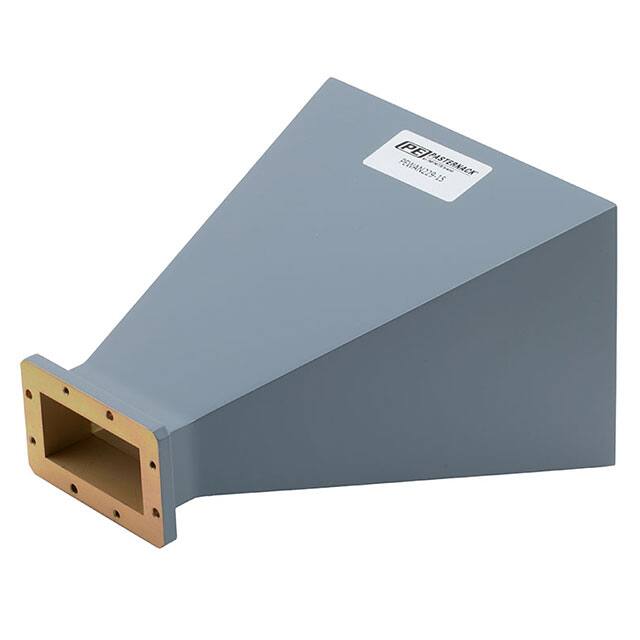

PEWAN229-15WR229 GAIN HORN 3.3-4.9GHZ 15DBI |
3 |
|
برگه مشخصات |
- | Bulk | Active | Waveguide | S-C Band (2GHz ~ 8GHz) | 4.1GHz | 3.3GHz ~ 4.9GHz | Horn | 1 | 1.3 | - | 15dBi | - | - | - | - | - | - | Waveguide Flange Mount | - | - |
|
|
PE9851B-15WR-34 Waveguide Standard Gain Ho |
6 |
|
برگه مشخصات |
- | Retail Package | Active | General ISM | SHF (f > 4GHz) | 27.5GHz | 22GHz ~ 33GHz | Horn | 1 | 1.5 | - | 15dBi | - | - | - | - | - | - | Waveguide Mount | 1.960" (49.78mm) | General Purpose |
|
|
PEWAN062-20ELNFWR62 GAIN HRN 12.4-18GHZ 20DBI |
4 |
|
برگه مشخصات |
- | Tape & Box (TB) | Active | - | Wide Band | 15.2GHz | 12.4GHz ~ 18GHz | Horn | 1 | 1.4 | - | 20dBi | - | Cable - 305mm, Cable - 3.048m, Cable - 7.62m | N Type Female | - | - | - | Waveguide Mount | 2.257" (57.33mm) | General Purpose |
|
PEWAN034-10KFWR34 GAIN HORN 22-33GHZ 10DBI |
3 |
|
برگه مشخصات |
- | Case | Active | - | SHF (f > 4GHz) | 27.5GHz | 22GHz ~ 33GHz | Horn | 1 | 1.4 | - | 10dBi | - | - | 2.92mm Female | - | - | - | Waveguide Flange Mount | 2.084" (52.93mm) | - |
|
|
PEWAN102-15ELNFWR102 GAIN HRN 7-11GHZ 15DBI |
2 |
|
برگه مشخصات |
- | Tape & Box (TB) | Active | - | Wide Band | 9GHz | 7GHz ~ 11GHz | Horn | 1 | 1.25 | - | 15dBi | - | Cable - 305mm, Cable - 3.048m, Cable - 7.62m | N Type Female | - | - | - | Waveguide Mount | 1.989" (50.52mm) | General Purpose |
|
|
PEWAN090-20SMWR42 GAIN HRN 8.2-12.4GHZ 20DBI |
6 |
|
برگه مشخصات |
- | Tape & Box (TB) | Active | Waveguide | Wide Band | 10.3GHz | 8.2GHz ~ 12.4GHz | Horn | 1 | 1.25 | - | 20dBi | - | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | SMA Male | - | - | - | Waveguide Mount | 3.265" (82.93mm) | General Purpose |
