آنتن های RF
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | RF Family/Standard | گروه فرکانس | فرکانس (مرکز/باند) | محدوده فرکانس | نوع آنتن | تعداد باندها | VSWR | ضرر برگشتی | به دست آوردن | قدرت - حداکثر | ویژگی ها | فسخ | حفاظت از ورود | درجه | صلاحیت | نوع نصب | ارتفاع (حداکثر) | برنامه های کاربردی |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECHO11/0.1M/IPEX/S/S/12RF ANT 2.4GHZ PCB TRACE IPEX SMD |
0 |
|
برگه مشخصات |
ECHO 11 | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | PCB Trace | 1 | 1.6 | - | 2.6dBi | - | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.039" (1.00mm) | Bluetooth, WLAN, Zigbee™ |
|
YE0027AAEXTERNAL CELLULAR ANTENNA |
0 |
|
برگه مشخصات |
- | Bag | Active | Cellular | UHF (2GHz ~ 3GHz) | 2.8495GHz | 699MHz ~ 5GHz | Whip, Straight | 1 | 5 | - | 2dBi | - | - | SMA Male | IP55 | - | - | Magnetic | 8.701" (221.00mm) | 5G |
|
ANT-433WPIG-2SMARF ANT 433MHZ WHIP STR SMA MALE |
0 |
|
برگه مشخصات |
- | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 433MHz | - | Whip, Straight | 1 | 2 | - | 2dBi | - | Cable - 200mm | SMA Male | - | - | - | Panel Mount | 2.362" (60.00mm) | General Purpose |
|
PC81.07.0100A.DBRF ANT 869MHZ PCB TRACE IPEXI |
0 |
|
برگه مشخصات |
TheStripe™ | Bag | Active | - | UHF (300MHz ~ 1GHz) | 869MHz | 868MHz ~ 870MHz | PCB Trace | 1 | 2 | -10dB | - | - | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.307" (7.80mm) | - |
|
110991765INDOOR ANTENNA KIT/860-930MHZ/3D |
3 |
|
برگه مشخصات |
- | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 895MHz | 860MHz ~ 930MHz | Whip, Straight | 1 | 2.2 | - | 3dBi | - | Cable - 1m | RP-SMA Male | IP65 | - | - | Connector Mount | 11.614" (295.00mm) | LoRa |
|
710399RF ANT 739MHZ BLADE SMA MALE ADH |
0 |
|
برگه مشخصات |
SmartBlade | Box | Active | Cellular | Wide Band | 739MHz, 875MHz, 1.4685GHz, 1.94GHz, 2.445GHz, 3.6GHz | 698MHz ~ 780MHz, 790MHz ~ 960MHz, 1.427GHz ~ 1.51GHz, 1.71GHz ~ 2.17GHz, 2.2GHz ~ 2.69GHz, 3.4GHz ~ 3.8GHz | Blade | 6 | 2, 2.2, 3 | - | 1.5dBi, 2.5dBi, 3dBi, 4.5dBi, 5.5dBi, 2.5dBi | 10 W | Cable - 500mm | SMA Male | IP65 | - | - | Adhesive | 0.173" (4.40mm) | 2G, 3G, 4G, 5G, LTE |
|
MIKE1A/2.5M/FMEF/S/S/20RF ANT 850MHZ/900MHZ WHIP STR |
1 |
|
برگه مشخصات |
MIKE 1A | Bulk | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz | - | Whip, Straight | 5 | 1.5 | - | 3dBi | - | - | FME Female | - | - | - | Magnetic | 1.339" (34.00mm) | GPRS, GSM, UMTS |
|
FXP810.09.0100CRF ANT 2.4GHZ/5.4GHZ FLAT PATCH |
0 |
|
برگه مشخصات |
Freedom | Bag | Not For New Designs | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.4GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.8GHz | Flat Patch | 2 | 1.7 | - | 2.4dBi, 5.1dBi | 2 W | Cable - 100mm | MMCX Male | - | - | - | Adhesive | 0.004" (0.10mm) | Wi-Fi |
|

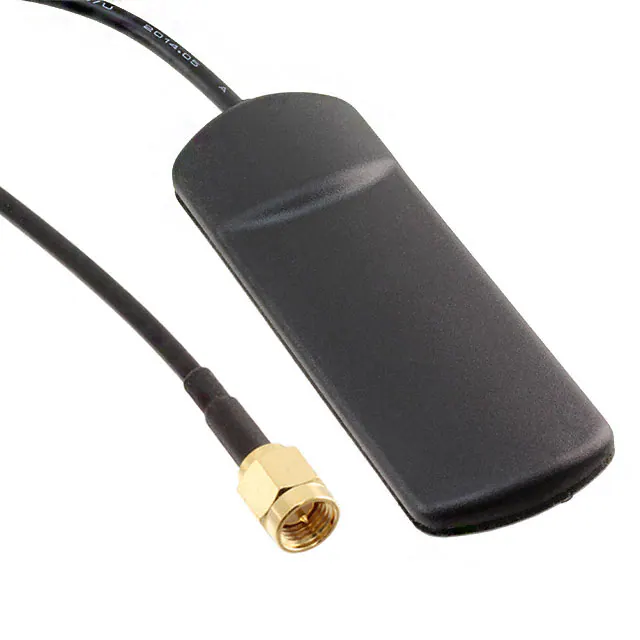

ALPHA3A/3M/SMAM/S/S/26RF ANT 850MHZ/868MHZ BLADE SMA |
0 |
|
برگه مشخصات |
ALPHA 3A | Bulk | Active | 802.15.4, Bluetooth, Cellular, WiFi | Wide Band | 850MHz, 868MHz, 900MHz, 915MHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.4GHz | - | Blade | 8 | 2 | - | 3dBi | - | - | SMA Male | - | - | - | Adhesive | 0.098" (2.50mm) | Bluetooth, GPRS, GSM, UMTS, WLAN, Zigbee™ |
|
MIKE1B/0.5M/SMAM/S/S/20RF ANT 850/868MHZ WHIP STR SMA |
4 |
|
برگه مشخصات |
MIKE 1B | Bulk | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 850MHz, 868MHz, 900MHz, 1.8GHz, 1.9GHz | - | Whip, Straight | 5 | 1.5 | - | 3.5dBi | - | - | SMA Male | - | - | - | Magnetic | 1.181" (30.00mm) | GPRS, GSM |
|

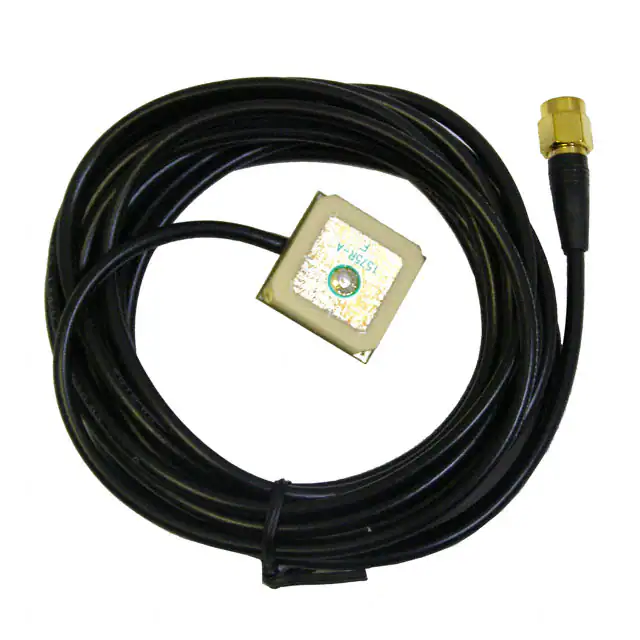

ANT-GPS-P20-SMARF ANT 1.575GHZ CER PATCH 2.5M |
0 |
|
برگه مشخصات |
- | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | - | Ceramic Patch | 1 | 1.5 | - | 2dB | - | LNA | SMA Male | - | - | - | Surface Mount | 0.315" (8.00mm) | GPS |
|
IS.TBCONF.WIFI.2.4ANTENNA WIFI 2.4GHZ |
2 |
|
برگه مشخصات |
- | Box | Active | WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | - | Whip, Right Angle | 1 | - | - | - | - | - | SMA | - | - | - | Connector Mount | 3.346" (85.00mm) | Wi-Fi |
|
1004112-B002ANTENNA ASSY, EXTERNAL LTE TNC |
0 |
|
برگه مشخصات |
- | Bag | Active | 802.15.4, Cellular | Wide Band | 825MHz, 1.955GHz, 2.6GHz | 690MHz ~ 960MHz, 1.71GHz ~ 2.2GHz, 2.5GHz ~ 2.7GHz | Whip, Tilt | 3 | 2.5 | - | 1.18dBi, 4.5dBi, 4dBi | 5 W | - | TNC Male | - | - | - | Connector Mount | 8.941" (227.10mm) | LTE, LoRa, LPWAN, Sigfox |
|
MIKE1A/5M/SMAM/S/S/20RF ANT 850/900MHZ WHIP STR SMA |
5 |
|
برگه مشخصات |
MIKE 1A | Bulk | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz | - | Whip, Straight | 5 | 1.5 | - | 3dBi | - | - | SMA Male | - | - | - | Magnetic | 1.339" (34.00mm) | GPRS, GSM, UMTS |
|
IN24-5RD-RSMARF ANT 2.4GHZ WHIP TILT RP-SMA |
0 |
|
برگه مشخصات |
Rubber Duck | Bulk | Active | WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.485GHz | Whip, Tilt | 1 | 1.5 | - | 5.5dBi | 10 W | - | RP-SMA Male | - | - | - | Connector Mount | 8.071" (205.00mm) | WLAN |
|
2600130083WIRL-ACCE HYDRA-I ANTENNA 868/91 |
1 |
|
برگه مشخصات |
- | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 868MHz ~ 928MHz | Whip, Straight | 1 | 2.5 | - | 0.9dBi | - | - | SMA Male | IP65 | - | - | Connector Mount | 7.047" (179.00mm) | ISM |
|
TA-24B-A-L01LTE TERMINAL ANTENNA |
5 |
|
برگه مشخصات |
- | Bulk | Active | Cellular | Wide Band | 761MHz, 892MHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.495GHz | 698MHz, 824MHz, 1.71GHz, 1.85GHz, 1.92GHz, 2.3GHz ~ 824MHz, 960MHz, 1.88GHz, 1.99GHz, 2.17GHz, 2.69GHz | Whip, Right Angle | 6 | 7.28, 7.28, 2, 3, 3, 3.5 | -2.4dB, -2.4dB, -10dB, -6dB, -6dB, -5dB | 3.85dBi, 2.59dBi, 4.17dBi, 4.31dBi, 4.31dBi, 3.28dBi | - | - | SMA Male | - | - | - | Connector Mount | 1.890" (48.00mm) | LTE |
|
|
QWFTB120RF ANT 544MHZ WHIP STR NMO 24" |
1 |
|
برگه مشخصات |
- | Bulk | Active | - | VHF (f < 300MHz), UHF (300MHz ~ 1GHz) | 544MHz | 118MHz ~ 970MHz | Whip, Straight | 1 | - | - | 0dB | - | - | NMO | - | - | - | Base Mount | 24.000" (609.60mm) | - |
|
ANT-WD-A-RF-0305RF ANT 2.4/5GHZ BLADE RP-SMA FEM |
2 |
|
برگه مشخصات |
- | Bulk | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5GHz | - | Blade, Tilt | 2 | 2 | - | 5dBi | - | - | RP-SMA Female | - | - | - | Connector Mount | 6.299" (160.00mm) | Wi-Fi |
|
ISMP.915.35.6.A.02ISM 915MHZ PATCH ANTENNA (35*35* |
0 |
|
برگه مشخصات |
- | Tray | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | - | Ceramic Patch | 1 | - | -10dB | 2.51dBi | - | - | Pin | - | - | - | Adhesive | 0.236" (6.00mm) | ISM, LoRa, Sigfox |
