آنتن های RF
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | RF Family/Standard | گروه فرکانس | فرکانس (مرکز/باند) | محدوده فرکانس | نوع آنتن | تعداد باندها | VSWR | ضرر برگشتی | به دست آوردن | قدرت - حداکثر | ویژگی ها | فسخ | حفاظت از ورود | درجه | صلاحیت | نوع نصب | ارتفاع (حداکثر) | برنامه های کاربردی |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

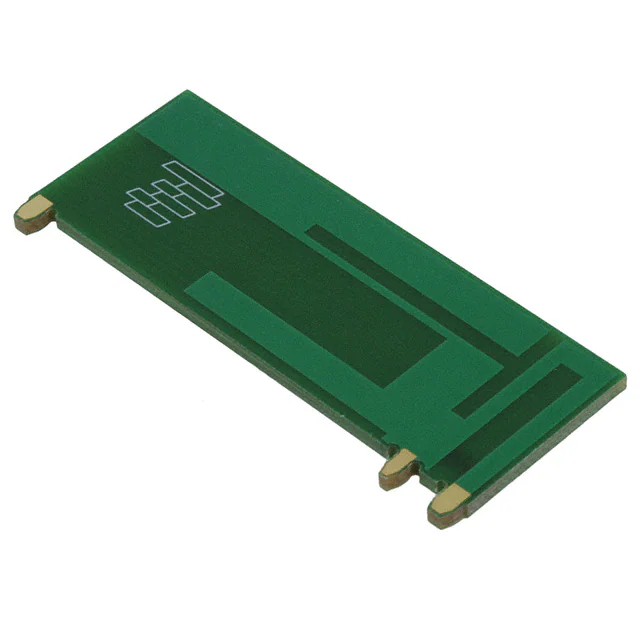

1513317-1RF ANT 850MHZ/900MHZ PCB TRACE |
1,949 |
|
برگه مشخصات |
- | Bulk | Active | 802.15.4, Cellular | Wide Band | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | PCB Trace | 5 | 3 | - | 3dBi | 10 W | - | Solder | - | - | - | Through Hole | 0.798" (20.27mm) | CDMA, GSM, LTE, UMTS, ZigBee™ |
|
2195890-1LTE TERMINAL ANTENNA |
1,663 |
|
برگه مشخصات |
- | Bulk | Active | 802.15.4, Bluetooth, Cellular, General ISM, WiFi | Wide Band | 829MHz, 2.205GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.7GHz | Whip, Tilt | 2 | 3 | - | 3.2dBi, 3.9dBi | - | - | SMA Male | - | - | - | Connector Mount | 2.677" (68.00mm) | Bluetooth, CDMA, GSM, ISM, LTE, UMTS, Wi-Fi, ZigBee™ |
|
APAM1368YB13V3.0RF ANT 1.575GHZ CER PATCH IPEX |
624 |
|
برگه مشخصات |
APAM | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.573GHz ~ 1.577GHz | Ceramic Patch | 1 | 1.5 | - | 1dBic | - | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.268" (6.80mm) | GPS |
|
WCP2400MMCX4RF ANT 2.4GHZ WHIP STR CAB |
698 |
|
برگه مشخصات |
WCP | Bulk | Active | Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Whip, Straight | 1 | 2 | - | 2.5dBi | 10 W | Cable - 102mm | MMCX | - | - | - | Connector Mount | 2.756" (70.00mm) | Bluetooth, Wi-Fi |
|
W1911RF ANT 850MHZ/900MHZ WHIP STR |
433 |
|
برگه مشخصات |
- | Bulk | Active | Cellular | Wide Band | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Whip, Straight | 5 | - | -4dB, -6dB | 1dBi, 2dBi, 2.5dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 1.929" (49.00mm) | GSM, WCDMA |
|
W1910-M3G PENTABAND 824-2170MHZ STRAIGH |
345 |
|
برگه مشخصات |
Stubby Antenna | Bulk | Active | Cellular | Wide Band | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Whip, Straight | 5 | - | -4dB, -6dB | 1dBi, 2dBi | 5 W | - | SMA Male | IP65 | - | - | Connector Mount | 1.969" (50.00mm) | GSM, WCDMA |
|
PRO-IS-212RF ANT 915MHZ/1.8GHZ PCB TRACE |
296 |
|
برگه مشخصات |
Embedded Antenna | Bulk | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 915MHz, 1.8GHz | 868MHz ~ 960MHz, 1.71GHz ~ 1.99GHz | PCB Trace | 2 | 4 | - | 3dBi | - | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.031" (0.80mm) | GSM |
|
|
2-1513472-4UAM ASSEMBLY 500 MM CABLE BLACK |
198 |
|
برگه مشخصات |
- | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.44175GHz, 5.5125GHz | 2.4GHz ~ 2.4835GHz, 5.15GHz ~ 5.875GHz | Stamped Metal | 2 | 3 | - | 3dBi | - | Cable - 500mm | MHF4L | - | - | - | - | 0.394" (10.00mm) | 802.11a/b/g/n, Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|

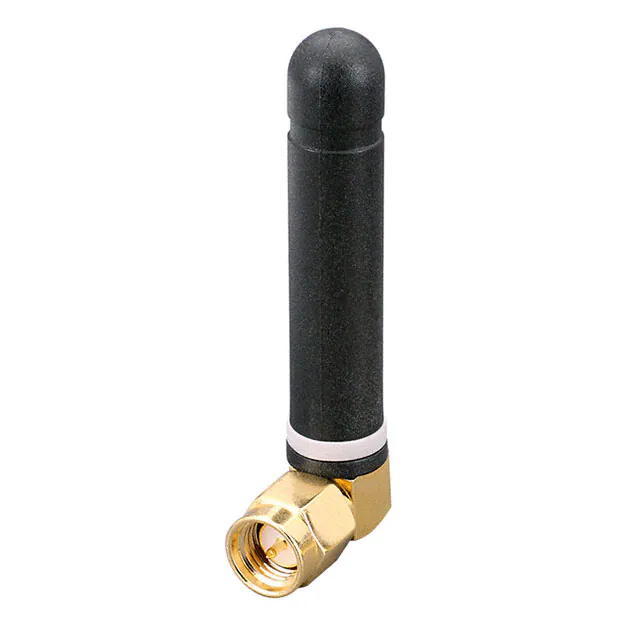

ANT-868-CW-RAH-SMARF ANT 868MHZ WHIP RA SMA MALE |
1,088 |
|
برگه مشخصات |
RAH | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz | 833MHz ~ 903MHz | Whip, Right Angle | 1 | 1.9 | - | 0.6dBi | - | - | SMA Male | - | - | - | Connector Mount | 1.850" (47.00mm) | ISM, LoRa, Sensor Networks, SigFox |
.jpg)
|

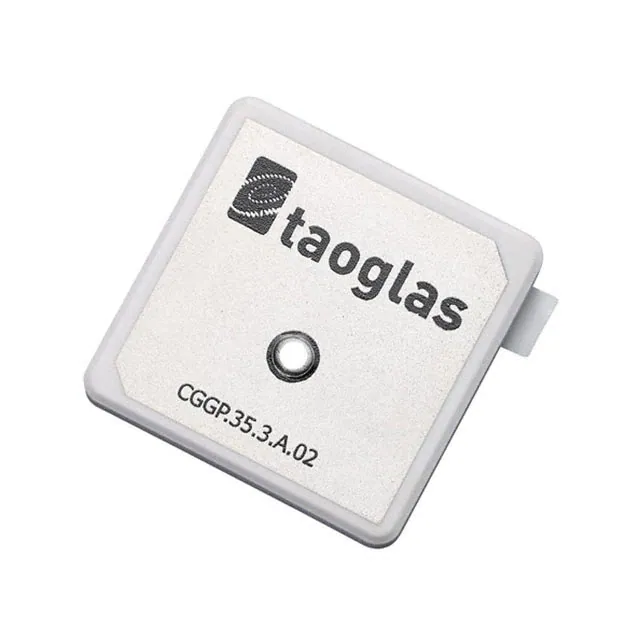

CGGP.35.3.A.02RF ANT 1.575/1.6GHZ CER PATCH |
303 |
|
برگه مشخصات |
- | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.6GHz | 1.564GHz ~ 1.586GHz, 1.591GHz ~ 1.613GHz | Ceramic Patch | 2 | 1.5 | - | 2dBi | - | - | Pin | - | - | - | Adhesive | 0.138" (3.50mm) | GLONASS, GPS |
|
|
ANT-200421B77RF ANT, 5G/4G/3G/2G/NB-IOT/CAT M |
164 |
|
برگه مشخصات |
- | Bag | Active | Cellular | Wide Band | 829MHz, 3.855GHz | 698MHz ~ 960MHz, 1.71GHz ~ 6GHz | PCB Trace | 2 | 2.7, 2.8 | -6.6dB, -7.2dB | 0.5dBi, 2.1dBi, -2.6dBi, 3.9dBi | 5 W | Cable - 101mm | I-PEX MHF1 | - | - | - | Adhesive | 0.005" (0.12mm) | 2G, 3G, 4G, 5G, LPWA |
|
AEACCA115021-S698RF ANT 700/800MHZ BLAD SMA FAKRA |
0 |
|
برگه مشخصات |
AEAC | Bulk | Active | Cellular | Wide Band | 700MHz, 800MHz, 850MHz, 900MHz, 1.575GHz, 1.602GHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.4GHz, 2.6GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.655GHz | Blade | - | 2 | - | 2dBi | 10 W | - | Fakra, SMA | - | - | - | Adhesive | 0.228" (5.80mm) | DCS, GSM, LTE, UMTS |
|
FXUWB20.07.0100CULTRA WIDE BAND FLEX ANTENNA 3.1 |
111 |
|
- |
- | Bag | Active | - | SHF (f > 4GHz) | 4.05GHz, 7.1GHz, 9.25GHz | 3.1GHz ~ 5GHz, 6GHz ~ 8.2GHz, 8.2GHz ~ 10.3GHz | FlexPIFA | 3 | 2 | - | 4dBi, 5dBi | 10 W | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.004" (0.10mm) | UWB |
|
APAMS-102RF ANT 900MHZ/1.8GHZ FLAT BAR |
288 |
|
برگه مشخصات |
APAMS | Bulk | Active | Cellular | Wide Band | 900MHz, 1.8GHz, 1.9GHz, 2.1GHz | 820MHz ~ 960MHz, 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.9GHz ~ 2.17GHz | Flat Bar | 4 | 2 | - | 1dBi, 2dBi, 2.5dBi, 3dBi | - | Cable - 3m | SMA Male | - | - | - | Adhesive | 0.236" (6.00mm) | CDMA, GPRS, GSM, UMTS |
|
2042870200RF ANT 433MHZ FLAT PATCH CAB ADH |
199 |
|
برگه مشخصات |
204287 | Tray | Active | General ISM | UHF (300MHz ~ 1GHz) | 433MHz | - | Flat Patch | 1 | - | -10dB | 0.5dBi | - | Cable - 200mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.004" (0.10mm) | ISM |
|

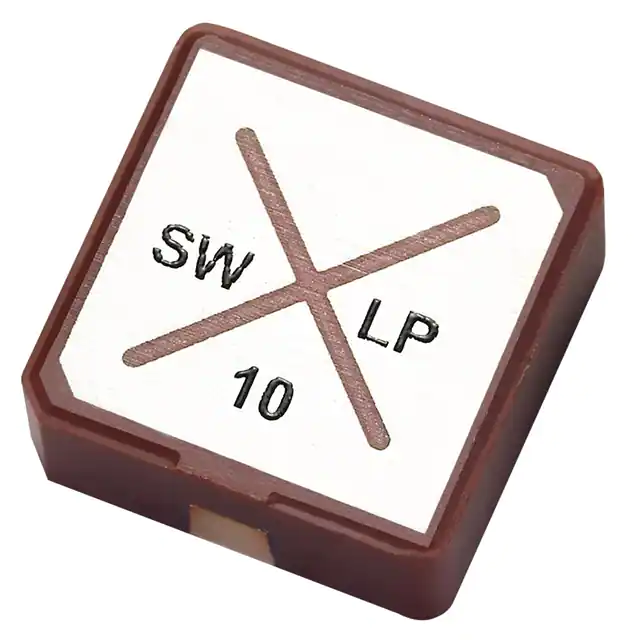

SWLP.2450.10.4.A.02RF ANT 2.4GHZ CER PATCH SLD 10MM |
1,698 |
|
برگه مشخصات |
- | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Ceramic Patch | 1 | 3 | - | -1dBi | - | - | Solder | - | - | - | Surface Mount | 0.157" (4.00mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
DSGP.1575.25.4.A.02GPS 1575MHZ SMD CERAMIC DIRECT M |
272 |
|
- |
- | Tape & Reel (TR) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.574GHz ~ 1.576GHz | Ceramic Patch | 1 | - | -10dB | 4.34dBi | - | - | Solder | - | - | - | Surface Mount | 0.157" (4.00mm) | Galileo, GPS |
|
66089-0406RF ANT 425MHZ WHIP STR U.FL CONN |
798 |
|
برگه مشخصات |
66089 | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 425MHz | - | Whip, Straight | 1 | 1.7 | - | 3dBi | - | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Connector Mount | 7.047" (179.00mm) | - |
|
RN-SMA4-RPRF ANT 2.4GHZ WHP TILT RP-SMA 4" |
938 |
|
برگه مشخصات |
- | Bag | Active | - | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.39GHz ~ 2.51GHz | Whip, Tilt | 1 | 1.9 | - | 2.2dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 3.560" (90.42mm) | - |
|
APAM0968JL03V2.0RF ANT 1.575GHZ CER PATCH IPEX |
192 |
|
برگه مشخصات |
APAM | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.574GHz ~ 1.576GHz | Ceramic Patch | 1 | 1.5 | - | -3dBic | - | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.268" (6.80mm) | GPS |
