آنتن های RF
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | RF Family/Standard | گروه فرکانس | فرکانس (مرکز/باند) | محدوده فرکانس | نوع آنتن | تعداد باندها | VSWR | ضرر برگشتی | به دست آوردن | قدرت - حداکثر | ویژگی ها | فسخ | حفاظت از ورود | درجه | صلاحیت | نوع نصب | ارتفاع (حداکثر) | برنامه های کاربردی |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MA208.A.AB.007RF ANT 1.5GHZ FLAT BAR FAKRA ADH |
53 |
|
- |
Stream | Bag | Active | - | Wide Band | 1.5GHz | 700MHz ~ 2.2GHz | Flat Bar | 1 | 3.5 | - | - | - | - | SMB, Fakra | - | - | - | Adhesive | 0.354" (9.00mm) | - |
|
BMHO69027002NFRF ANT 825MHZ WHIP N TYP F POLE |
28 |
|
برگه مشخصات |
- | Box | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz) | 825MHz, 2.2GHz | 690MHz ~ 960MHz, 1.7GHz ~ 2.7GHz | Whip, Straight | 2 | 2.5 | - | 2dBi, 2dBi | 25 W | - | N Type Female | - | - | - | Pole Mount | 9.000" (228.60mm) | 2G, 3G, 5G, Cellular, LTE |
|
GPSDM08BLACK GPS DIRECT MOUNT, 1575.4 M |
46 |
|
برگه مشخصات |
- | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | - | Dome | 1 | - | - | 5dBi, 28dBi | - | Cable - 431.8mm | SMA | - | - | - | Adhesive | 0.700" (17.78mm) | GPS |
|
YB0033AAEXTERNAL CELLULAR ANTENNA |
89 |
|
برگه مشخصات |
- | Bag | Active | Navigation, WiFi | UHF (1GHz ~ 2GHz) | 1.55GHz, 1.575GHz | 700MHz ~ 2.7GHz, 1.572GHz ~ 1.578GHz | Module | 2 | 2, 3 | - | 3dBi, 20dBi | - | Cable - 2m | SMA Male | IP67 | - | - | Screw Mount | 1.693" (43.00mm) | GPS, LTE |
|
LP800NMOWWHITE NMO LOW PROFILE, UNITY 806 |
46 |
|
برگه مشخصات |
- | Bag | Active | - | UHF (300MHz ~ 1GHz) | 883MHz | 806MHz ~ 960MHz | Whip, Straight | 1 | - | - | 2dBi | 100 W | - | NMO | - | - | - | Magnetic | 1.500" (38.10mm) | - |
|
MA208.A.AB.001RF ANT 700MHZ/850MHZ FLAT BAR |
301 |
|
برگه مشخصات |
Stream | Bag | Active | Cellular, Navigation | Wide Band | 700MHz, 850MHz, 900MHz, 1.575GHz, 1.8GHz, 1.9GHz, 2.1GHz | 700MHz, 824MHz ~ 960MHz, 1.574GHz ~ 1.576GHz, 1.71GHz ~ 2.17GHz | Flat Bar | 7 | 3.3, 3.6, 2.2 | - | 3.5dBic, 2.16dBi, 0.42dBi | - | Cable - 3m, LNA, Filter | SMA Male (2) | IP67 | - | - | Adhesive | 0.354" (9.00mm) | CDMA, DCS, GPS, GSM, LTE, PCS, UMTS |
|
VQJ69595B-92VC1ANTENNA AUTO 4PORT |
27 |
|
برگه مشخصات |
VQJ | Box | Active | Cellular, Navigation, WiFi | Wide Band | 829MHz, 1.561GHz, 1.575GHz, 1.602GHz, 2.165GHz, 2.45GHz, 2.66GHz, 5.4GHz | 698MHz ~ 960MHz, 1.559GHz ~ 1.606GHz, 1.71GHz ~ 2.62GHz, 2.4GHz ~ 2.5GHz, 2.62GHz ~ 2.7GHz, 4.9GHz ~ 5.9GHz | Module | 8 | 3.1 | - | 5dBi | 5 W | Cable - 914mm, LNA | SMA Male (3), RP-SMA Male | IP67 | - | - | Adhesive | 0.575" (14.60mm) | 2G, 3G, 4G, 5G, Beidou, GLONASS, GNSS, GPS, ISM, LTE, Wi-Fi |
|
AEACBA050018-SG4L2L5RF ANT GPS/GLONASS DOME |
54 |
|
برگه مشخصات |
AEAC | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.2015GHz, 1.5815GHz | 1.176GHz ~ 1.227GHz, 1.561GHz ~ 1.602GHz | Module | 2 | 1.5, 2 | - | 3dBic | - | Cable - 3m, LNA | SMA Male | IP67 | - | - | Adhesive, Magnetic | 0.709" (18.00mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|
|
2205731000BOTTOM FEED 5 IN 1 ANTENNA HIGH |
300 |
|
برگه مشخصات |
- | Bag | Active | Cellular, Navigation, WiFi | Wide Band | 829MHz, 1.581GHz, 2.2GHz, 2.45GHz, 3.75GHz, 4.7GHz, 5.5GHz, 6.525GHz | 698MHz ~ 960MHz, 1.561GHz ~ 1.602GHz, 1.71GHz ~ 2.5GHz, 2.4GHz ~ 2.69GHz, 3.3GHz ~ 4.2GHz, 4.4GHz ~ 5GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Module | 8 | - | -10dB, -8dB, -5dB, -4dB | - | - | Cable - 1m | SMA Male | - | - | - | Adhesive, Screw | 1.496" (38.00mm) | 5G, GPS, Wi-Fi |
|
MA252.A.LB.001RF ANT 750MHZ/892MHZ MOD SMA ADH |
42 |
|
برگه مشخصات |
- | Bag | Active | Cellular, Navigation | Wide Band | 750MHz, 892MHz, 1.575GHz, 1.9GHz, 2.6GHz | 698MHz ~ 803MHz, 824MHz ~ 960MHz, 1575.42MHz, 1.71GHz ~ 2.17GHz, 2.49GHz ~ 2.69GHz | Module | 5 | 3, 2 | -10dB, -6dB | 28dBi | 5 W | Cable - 2m, LNA, Filter | SMA Male | IP67 | - | - | Adhesive | 0.551" (14.00mm) | BEIDOU, GLONASS, GPS, LTE |
|
A.60.3A21GPS L1 DIRECT MOUNT MINIATURE EX |
43 |
|
برگه مشخصات |
- | Box | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.574GHz ~ 1.576GHz | Module | 1 | - | - | 1.18dBi | - | - | MCX Female | IP67 | - | - | Surface Mount | 0.512" (13.00mm) | GPS |
|
AECW0801C09S-3000SANTENNA GNSS+LTE MIMO+WIFI |
99 |
|
برگه مشخصات |
AECW | Bulk | Active | Cellular, Navigation, WiFi | Wide Band | 829MHz, 1.5815GHz, 2.2GHz, 2.44GHz, 5.3625GHz | 698MHz ~ 960MHz, 1.561GHz ~ 1.602GHz, 1.71GHz ~ 2.69GHz, 2.4GHz ~ 2.4835GHz, 4.9GHz ~ 5.825GHz | Module | 5 | 1.5, 2, 2.5, 3 | - | 2.5dBi, 2dBic, 2.5dBi, 3dBi, 3dBi | - | Cable - 3m, LNA | SMA Male (4) | IP67 | - | - | Screw Mount | 0.642" (16.30mm) | Beidou, Galileo, GLONASS, GNSS, GPS, LTE, Wi-Fi |
|
AECR1808A20S-3000SRF ANT 7IN1 4X5G/ 2XWIFI/ GNSS D |
32 |
|
برگه مشخصات |
AECR | Bulk | Active | Cellular, Navigation, WiFi | Wide Band | 1.5835GHz, 2.44175GHz, 3.3GHz, 5.4125GHz | 1.561GHz ~ 1.606GHz, 2.4GHz ~ 2.4835GHz, 600MHz ~ 6GHz, 4.9GHz ~ 5.925GHz | Dome | 4 | 2, 2.5, 4 | - | 3dBi, 4dBi, 4dBi, 4dBi | 10 W | Cable - 3m | SMA Male (7) | IP67 | - | - | Screw Mount | 3.346" (85.00mm) | 4G, 5G, Beidou, GLONASS, GNSS, GPS, LTE, Wi-Fi |
|
MA515.C.CG.001RF ANT 2.4GHZ DOME RP-SMA MALE |
238 |
|
برگه مشخصات |
Hercules | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Dome | 1 | 2 | -10dB | 3dBi | 2 W | - | RP-SMA Male | IP69K | - | - | Panel Mount | 1.142" (29.00mm) | Bluetooth, WLAN, Zigbee™ |
|
MA131.A.LK.002RF ANT 915MHZ/1.575GHZ DOME CAB |
145 |
|
برگه مشخصات |
Hercules | Bag | Active | Navigation | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 915MHz, 1.575GHz, 1.602GHz | 902MHz ~ 928MHz, 1.574GHz ~ 1.606GHz | Dome | 3 | 2 | -10dB, -32.19dB, -24.77dB | 0.83dB, -1.4dBi, -1.3dBi | 5 W | Cable - 200mm, LNA, Filter | SMA Male (2) | IP67, IP69K | - | - | Panel Mount | 1.122" (28.50mm) | GLONASS, GPS |
|

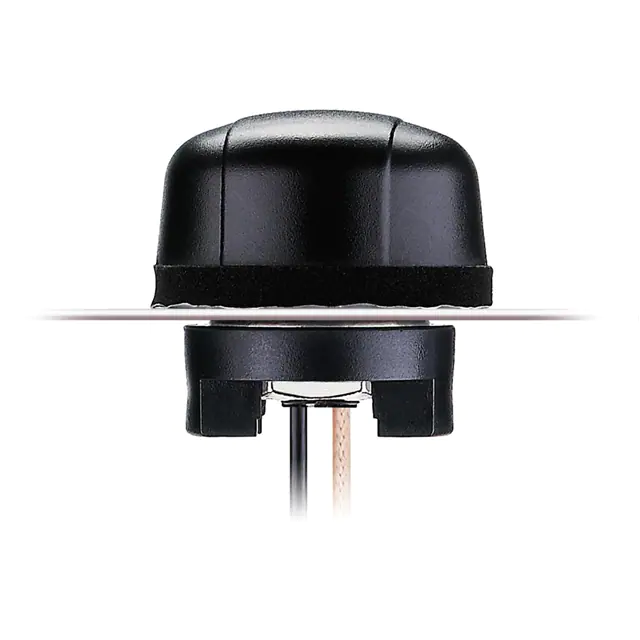

MA130.A.LP.002RF ANT 868MHZ/1.575GHZ DOME SMA |
65 |
|
برگه مشخصات |
Hercules | Bag | Active | Navigation | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 868MHz, 1.575GHz | 868MHz, 1.574GHz ~ 1.606GHz | Dome | 2 | 2 | -10dB | 4.51dBi | 5 W | - | SMA Male | IP69K | - | - | Panel Mount | 1.122" (28.50mm) | GLONASS, GPS |
|
MA1045.A.ALBTX.0025IN1 300MM RG-174:GNSS FAKRA C: |
44 |
|
برگه مشخصات |
- | Bag | Active | Cellular, Navigation | Wide Band | 750.5MHz, 859MHz, 920MHz, 1.561GHz, 1.575GHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.3325GHz, 2.4GHz | 698MHz ~ 803MHz, 824MHz ~ 894MHz, 880MHz ~ 960MHz, 1.559GHz ~ 1.563GHz, 1.574GHz ~ 1.576GHz, 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.92GHz ~ 2.345GHz, 2.3GHz ~ 2.5GHz | Dome | 10 | - | -10dB | 0.6dBi, 2.7dBi, 2.7dBi, 4.4dBi, 2.2dBi, 1.2dBi, 4.6dBi, 5.4dBi, 3dBi | - | Cable - 300mm | BNC Female, SMB, Fakra | IP67 | - | - | Panel Mount | 2.419" (61.45mm) | Beidou, GPS, LTE |
|

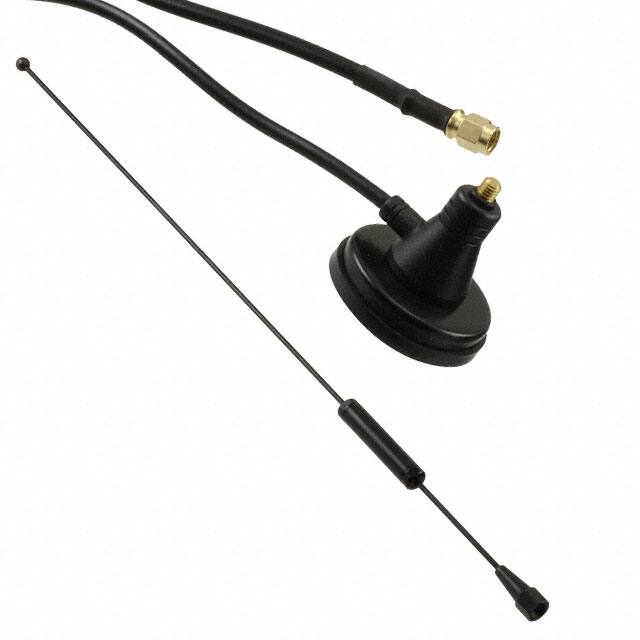

DC-ANT-DBHGRF ANT 850MHZ/1.9GHZ WHIP STR |
32 |
|
برگه مشخصات |
- | Bulk | Active | - | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 850MHz, 1.9GHz | - | Whip, Straight | 2 | - | - | 4dBi | - | Cable - 4.27m | - | - | - | - | Magnetic | 14.370" (365.00mm) | - |
|
MA964.A.CGHM.0034*4MIMO WI-FI 6 PANEL ANTENNA |
43 |
|
برگه مشخصات |
* | Bulk | Active | WiFi | Wide Band | 2.45GHz, 5.5GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | - | 3 | - | - | 5.73dBi, 7.31dBi, 2.6dBi | 10 W | Cable - 3m | Fakra (4) | IP67 | - | - | Adhesive | 0.787" (20.00mm) | IoT, Wi-Fi 6 |
|
OMB.5900.B10F21OMB.5900.B10F21 BARRACUDA 5.9GHZ |
62 |
|
برگه مشخصات |
Barracuda | Bulk | Active | General ISM | SHF (f > 4GHz) | 5.8875GHz | 5.85GHz ~ 5.925GHz | Whip, Straight | 1 | - | -15dB | 10.2dBi | 50 W | - | N Type Female | IP65 | - | - | Bracket Mount | 21.654" (550.00mm) | DSRC |
