سوئیچ های راکر
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | نوع نصب | مدار | عملکرد سوئیچ | رتبه فعلی (آمپر) | رتبه بندی ولتاژ - AC | رتبه بندی ولتاژ - DC | نوع محرک | رنگ - محرک/درپوش | علامت گذاری محرک | نوع روشنایی، رنگ | ولتاژ روشنایی (اسمی) | سبک خاتمه | حفاظت از ورود | ویژگی ها | ابعاد برش پانل | دمای عملیاتی | آژانس تایید |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MLW3020-N-RC-2ASWITCH ROCKER SP3T 5A 125V |
0 |
|
برگه مشخصات |
MLW | Tray | Obsolete | Panel Mount, Snap-In | SP3T | On-On-On | 5A (AC), 3A (DC) | 125 V | 30 V | Concave (Curved) - Illuminated | Red | No Marking | Incandescent, Red | 110 VAC | Solder Lug | - | Jumper needed to achieve triple throw | Square - 19.20mm² | -10°C ~ 50°C | UL |
|
|
M2013TJG01-FA-1ASWITCH ROCKER SPDT 0.4VA 28V |
0 |
|
برگه مشخصات |
M | Tray | Obsolete | Panel Mount, Snap-In | SPDT | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.90mm x 12.50mm | -30°C ~ 85°C | CSA, UL |
|
|
M2012TJW03-FA-2ASWITCH ROCKER SPDT 6A 125V |
0 |
|
برگه مشخصات |
M | Tray | Obsolete | Panel Mount, Snap-In | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | Rectangular - 15.90mm x 12.50mm | -30°C ~ 85°C | CSA, UL |
|
|
LW3122-L4FC-ASWITCH ROCKER DPDT 10A 125V |
0 |
|
برگه مشخصات |
LW | Tray | Obsolete | Panel Mount, Snap-In | DPDT | On-On | 10A (AC), 6A (DC) | 125 V | 30 V | Concave (Standard V) - Illuminated | Clear (Red, Green Filter/Diffuser) | No Marking | Incandescent, Green/Red | 28 VAC | Solder Lug | - | - | Rectangular - 32.00mm x 19.80mm | -20°C ~ 50°C | CSA, UL |
|
|
M2018TNG01-DASWITCH ROCKER SPDT 0.4VA 28V |
0 |
|
برگه مشخصات |
M | Tray | Obsolete | Panel Mount, Flange | SPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 17.80mm x 10.10mm | -30°C ~ 85°C | CSA, UL |
|
|
MLW3019-F-LF-2ASWITCH ROCKER SPDT 5A 125V |
0 |
|
برگه مشخصات |
MLW | Tray | Obsolete | Panel Mount, Snap-In | SPDT | On-Off-Mom | 5A (AC), 3A (DC) | 125 V | 30 V | Concave (Curved) - Illuminated | Green | No Marking | LED, Green | 2.1 VDC | Solder Lug | - | Epoxy Sealed Terminals | Square - 19.20mm² | -10°C ~ 50°C | UL |
|
|
M2022TJW01-GA-2A-CSWITCH ROCKER DPDT 6A 125V |
0 |
|
برگه مشخصات |
M | Tray | Obsolete | Panel Mount, Snap-In | DPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Paddle - Illuminated | Black | No Marking | LED, Red | 2.8 VDC | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.90mm x 13.10mm | -30°C ~ 85°C | CSA, UL |
|
|
MLW3013SWITCH ROCKER SPDT 5A 125V |
0 |
|
برگه مشخصات |
MLW | Tray | Obsolete | Panel Mount, Snap-In | SPDT | On-Off-On | 5A (AC), 3A (DC) | 125 V | 30 V | Actuator Arm, Cap Required | - | Varies by Cap | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 18.70mm x 16.70mm | -10°C ~ 50°C | UL |
|
|
M2028TJW01-GASWITCH ROCKER DPDT 6A 125V |
0 |
|
برگه مشخصات |
M | Tray | Obsolete | Panel Mount, Snap-In | DPDT | Mom-Off-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Paddle | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.90mm x 13.10mm | -30°C ~ 85°C | CSA, UL |
|
M2022TJW01-FA-2A-FSWITCH ROCKER DPDT 6A 125V |
0 |
|
برگه مشخصات |
M | Tray | Obsolete | Panel Mount, Snap-In | DPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Concave (Standard V) - Illuminated | Black | No Marking | LED, Green | 2.1 VDC | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.90mm x 13.10mm | -30°C ~ 85°C | CSA, UL |
|
|
M2022TJW01-FB-2A-FSWITCH ROCKER DPDT 6A 125V |
0 |
|
برگه مشخصات |
M | Tray | Obsolete | Panel Mount, Snap-In | DPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Concave (Standard V) - Illuminated | White | No Marking | LED, Green | 2.1 VDC | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.90mm x 13.10mm | -30°C ~ 85°C | CSA, UL |
|
|
M2029TJW01-GA-1ASWITCH ROCKER DPDT 6A 125V |
0 |
|
برگه مشخصات |
M | Tray | Obsolete | Panel Mount, Snap-In | DPDT | On-Off-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Paddle | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.90mm x 13.10mm | -30°C ~ 85°C | CSA, UL |
|
|
M2022TXW13-DBSWITCH ROCKER DPDT 6A 125V |
0 |
|
برگه مشخصات |
M | Tray | Obsolete | Through Hole | DPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Concave (Standard V) | White | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | CSA, UL |
|
|
M2T28TXW13-FGSWITCH ROCKER DPDT 6A 125V |
0 |
|
برگه مشخصات |
M2 | Tray | Obsolete | Through Hole | DPDT | Mom-Off-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Concave (Standard V) | Blue | No Marking | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C | CSA, UL |
|
M2028TXW13-DASWITCH ROCKER DPDT 6A 125V |
0 |
|
برگه مشخصات |
M | Tray | Obsolete | Through Hole | DPDT | Mom-Off-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | CSA, UL |
|
|
M2T25TXW13-DASWITCH ROCKER DPDT 6A 125V |
0 |
|
برگه مشخصات |
M2 | Tray | Obsolete | Through Hole | DPDT | On-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C | CSA, UL |
TJW01-GA-1A.jpg)
|
M2028TJW01-GA-1ASWITCH ROCKER DPDT 6A 125V |
0 |
|
برگه مشخصات |
M | Tray | Obsolete | Panel Mount, Snap-In | DPDT | Mom-Off-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Paddle | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.90mm x 13.10mm | -30°C ~ 85°C | CSA, UL |
|
|
M2012TXW13-DHSWITCH ROCKER SPDT 6A 125V |
0 |
|
برگه مشخصات |
M | Tray | Obsolete | Through Hole | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Concave (Standard V) | Gray | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | CSA, UL |
|
|
M2012TXW13-FCSWITCH ROCKER SPDT 6A 125V |
0 |
|
برگه مشخصات |
M | Tray | Obsolete | Through Hole | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Concave (Standard V) | Red | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | CSA, UL |
|

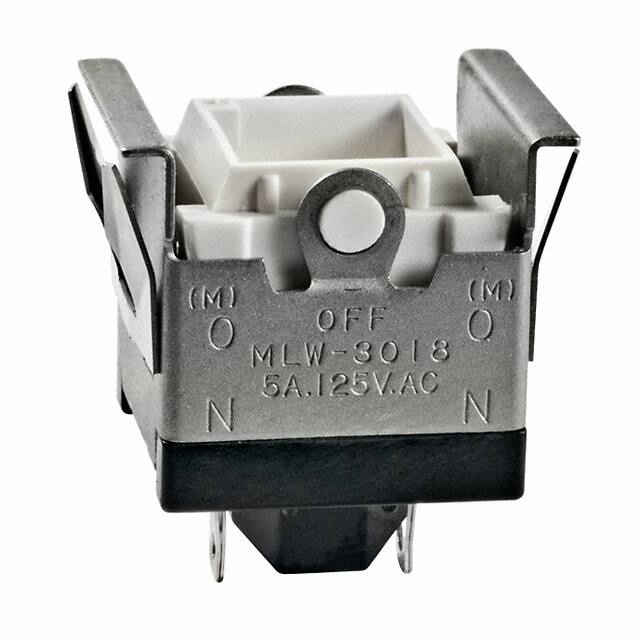

MLW3018SWITCH ROCKER SPDT 5A 125V |
0 |
|
برگه مشخصات |
MLW | Tray | Obsolete | Panel Mount, Snap-In | SPDT | Mom-Off-Mom | 5A (AC), 3A (DC) | 125 V | 30 V | Actuator Arm, Cap Required | - | Varies by Cap | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 18.70mm x 16.70mm | -10°C ~ 50°C | UL |
