سوئیچ های راکر
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | نوع نصب | مدار | عملکرد سوئیچ | رتبه فعلی (آمپر) | رتبه بندی ولتاژ - AC | رتبه بندی ولتاژ - DC | نوع محرک | رنگ - محرک/درپوش | علامت گذاری محرک | نوع روشنایی، رنگ | ولتاژ روشنایی (اسمی) | سبک خاتمه | حفاظت از ورود | ویژگی ها | ابعاد برش پانل | دمای عملیاتی | آژانس تایید |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
M2012TYG01-HHSWITCH ROCKER SPDT 0.4VA 28V |
0 |
|
برگه مشخصات |
M | Bulk | Obsolete | Panel Mount, Flange | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Paddle | Gray | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 28.50mm x 16.00mm | -30°C ~ 85°C | CSA, UL |
|

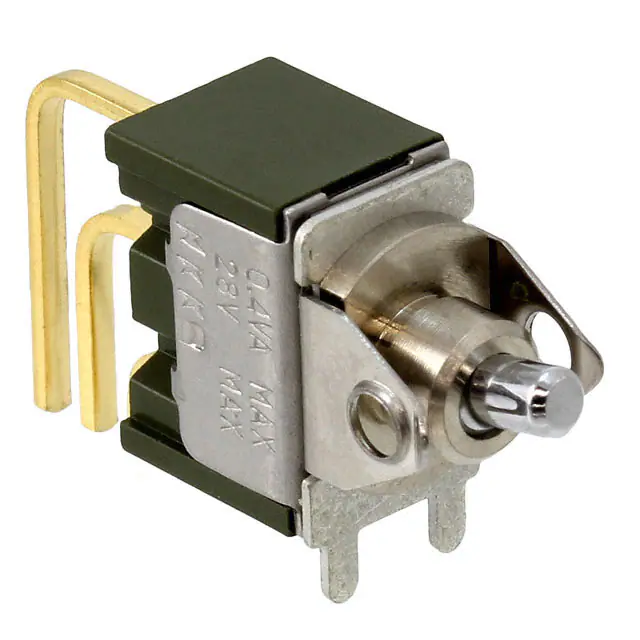

M2012TXG45SWITCH ROCKER SPDT 0.4VA 28V |
14 |
|
برگه مشخصات |
M | Box | Obsolete | Through Hole, Right Angle, Vertical | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Actuator Arm, Cap Required | - | Varies by Cap | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | CSA, UL |
|
M2015TYW01-JASWITCH ROCKER SPDT 6A 125V |
15 |
|
برگه مشخصات |
M | Box | Obsolete | Panel Mount, Flange | SPDT | On-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Concave (Standard V) | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 28.50mm x 16.00mm | -30°C ~ 85°C | CSA, UL |
|
|
M2015TYW01-HHSWITCH ROCKER SPDT 6A 125V |
11 |
|
برگه مشخصات |
M | Box | Obsolete | Panel Mount, Flange | SPDT | On-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Paddle | Gray | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 28.50mm x 16.00mm | -30°C ~ 85°C | CSA, UL |
|
M2027TNW01SWITCH ROCKER SP3T 6A 125V |
20 |
|
- |
M | Bulk | Obsolete | Panel Mount, Flange | SP3T | On-On-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Actuator Arm, Cap Required | - | Varies by Cap | - | - | Solder Lug | - | Jumper needed to achieve triple throw | - | -30°C ~ 85°C | CSA, UL |
|
|
A8GS-C1110SWITCH ROCKER DPST 16A 125V |
7 |
|
برگه مشخصات |
A8GS | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Connector, Solder Lug | - | - | Rectangular - 27.70mm x 15.20mm | -10°C ~ 55°C | cULus, EN, UL |
|

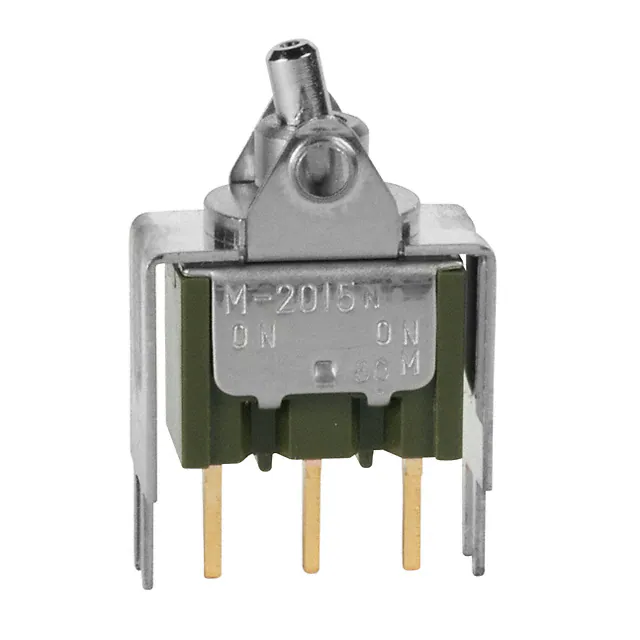

M2015TXG13SWITCH ROCKER SPDT 0.4VA 28V |
0 |
|
برگه مشخصات |
M | Bulk | Obsolete | Through Hole | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Actuator Arm, Cap Required | - | Varies by Cap | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | CSA, UL |
|
M2012TXW25-DASWITCH ROCKER SPDT 6A 125V |
38 |
|
برگه مشخصات |
M | Tray | Obsolete | Through Hole | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | CSA, UL |
|
7103J2ZQI2SWITCH ROCKER SPDT 5A 120V |
12 |
|
برگه مشخصات |
7000 | Tray | Active | Panel Mount, Flange | SPDT | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Paddle | Black | No Marking | - | - | Solder Lug | - | Epoxy Potted | Rectangular - 17.96mm x 10.62mm | -30°C ~ 85°C | cULus |
|
|
C6003ALBR2-G74SWITCH ROCKER SPST 20A 277V |
71 |
|
برگه مشخصات |
6000 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (AC) | 277 V | - | Flat - Illuminated | Red | No Marking | Neon, Red | 125 VAC | Quick Connect - 0.250" (6.3mm) | Splash Proof | Protective Cover | Rectangular - 30.10mm x 11.10mm | - | CSA, UL |
|
M2018TNW03-EGSWITCH ROCKER SPDT 6A 125V |
35 |
|
برگه مشخصات |
M | Bulk | Obsolete | Panel Mount, Flange | SPDT | Mom-Off-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Paddle | Blue | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | Rectangular - 17.80mm x 10.10mm | -30°C ~ 85°C | CSA, UL |
|
M2018TNW03-ECSWITCH ROCKER SPDT 6A 125V |
45 |
|
برگه مشخصات |
M | Bulk | Obsolete | Panel Mount, Flange | SPDT | Mom-Off-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Paddle | Red | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | Rectangular - 17.80mm x 10.10mm | -30°C ~ 85°C | CSA, UL |
|
M2019TJW01-FA-1ASWITCH ROCKER SPDT 6A 125V |
7 |
|
برگه مشخصات |
M | Tray | Obsolete | Panel Mount, Snap-In | SPDT | On-Off-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Concave (Standard V) | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.90mm x 12.50mm | -30°C ~ 85°C | CSA, UL |
|
|
A29KH-CASWITCH ROCKER DPDT 0.4VA 28V |
0 |
|
برگه مشخصات |
A | Bulk | Active | Through Hole, Right Angle | DPDT | On-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C | CSA, UL |
|
|
A29KH-CGSWITCH ROCKER DPDT 0.4VA 28V |
0 |
|
برگه مشخصات |
A | Bulk | Active | Through Hole, Right Angle | DPDT | On-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Concave (Standard V) | Blue | No Marking | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C | CSA, UL |
|
|
M2012TXG30-FCSWITCH ROCKER SPDT 0.4VA 28V |
0 |
|
برگه مشخصات |
M | Tray | Obsolete | Through Hole, Right Angle | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Concave (Standard V) | Red | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | CSA, UL |
|
|
M2012TXG15SWITCH ROCKER SPDT 0.4VA 28V |
7 |
|
برگه مشخصات |
M | Bulk | Obsolete | Through Hole | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Actuator Arm, Cap Required | - | Varies by Cap | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | CSA, UL |
|

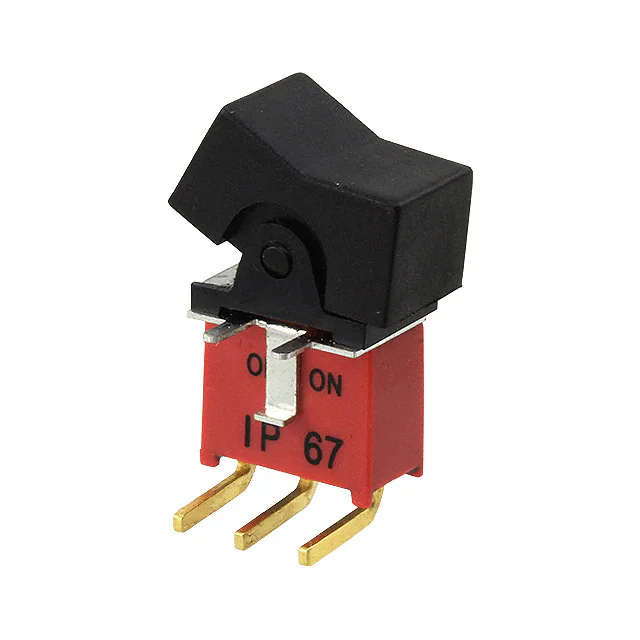

1571988-1SWITCH ROCKER SPDT 0.4VA 20V |
0 |
|
برگه مشخصات |
AE | Bulk | Active | Through Hole, Right Angle | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
|
M2023TXW13SWITCH ROCKER DPDT 6A 125V |
20 |
|
برگه مشخصات |
M | Bulk | Obsolete | Through Hole | DPDT | On-Off-On | 6A (AC), 3A (DC) | 125 V | 30 V | Actuator Arm, Cap Required | - | Varies by Cap | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | CSA, UL |
|
|
4-1571987-2SWITCH ROCKER DPDT 5A 120V |
0 |
|
برگه مشخصات |
A | Bulk | Active | Panel Mount, Snap-In | DPDT | On-Mom | 5A (AC/DC) | 120 V | 28 V | Paddle | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.75mm x 12.70mm | -30°C ~ 85°C | - |
