پتانسیومترهای دوار، رئوستات
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | مقاومت (اهم) | تحمل | توان (وات) | ساخته شده در سوییچ | تعداد چرخش | ویژگی ها | مخروطی | تعداد باندها | نوع تنظیم | ضریب دما | چرخش | مواد مقاومتی | سبک خاتمه | نوع محرک | طول محرک | قطر محرک | نخ بوش | نوع نصب |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
23ESA474MMF50AFPOT 470K OHM 0.4W CARBON LINEAR |
30 |
|
برگه مشخصات |
23, Citec | Bulk | Active | 470k | ±20% | 0.4W | Rotary, DPST | 1.0 | - | Linear | 1 | User Defined | 5% | 300° | Carbon | Solder Lug | Flatted | 1.969" (50.00mm) | 0.250" (6.35mm) | - | Panel Mount |
|
3852A-162-252ALPOT 2.5K OHM 2W CERMET LINEAR |
63 |
|
برگه مشخصات |
3852 | Bulk | Active | 2.5k | ±10% | 2W | None | 1.0 | - | Linear | 1 | User Defined | ±150ppm/°C | 280° | Cermet | Solder Lug | Slotted | 0.500" (12.70mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|

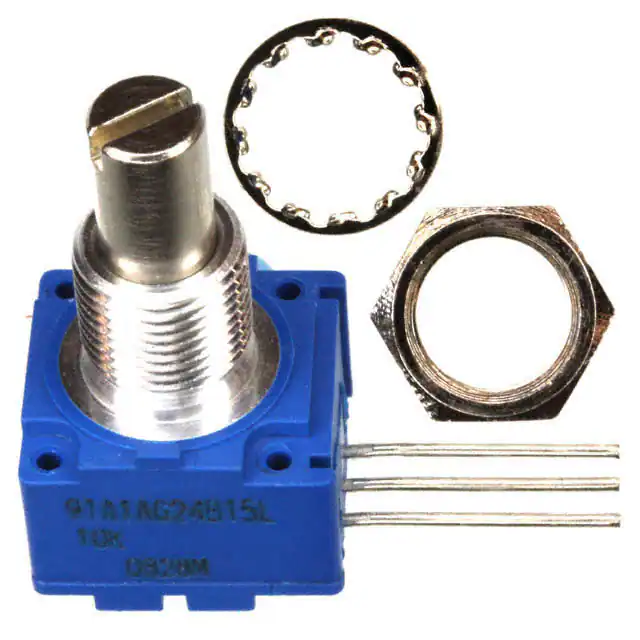

91A1A-G24-B15LPOT 10K OHM 1W PLASTIC LINEAR |
32 |
|
برگه مشخصات |
91 | Tray | Active | 10k | ±20% | 1W | None | 1.0 | - | Linear | 1 | Side Adjustment | ±1000ppm/°C | 300° | Conductive Plastic | PC Pins | Slotted | 0.750" (19.05mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
51AAA-B24-B13LPOT 5K OHM 1/2W PLASTIC LINEAR |
49 |
|
برگه مشخصات |
Pro Audio 51 | Bulk | Active | 5k | ±20% | 0.5W, 1/2W | None | 1.0 | Sealed | Linear | 1 | Side Adjustment | ±1000ppm/°C | 290° | Conductive Plastic | PC Pins | Slotted | 0.750" (19.05mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
53RAA-R25-A18LPOT 50K OHM 1W CERMET LINEAR |
10 |
|
برگه مشخصات |
Pro Audio 53 | Bulk | Active | 50k | ±10% | 1W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 290° | Cermet | Solder Lug | Slotted | 0.984" (25.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|
3109605994POT 1W WIREWOUND LINEAR |
97 |
|
برگه مشخصات |
ABW 1 | Bulk | Active | - | - | 1W | None | 1.0 | - | Linear | 1 | User Defined | - | 285° | Wirewound | Solder Lug | Round | 1.969" (50.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|
3310H-003-105LPOT 1M OHM 1/4W PLASTIC LINEAR |
96 |
|
برگه مشخصات |
Pro Audio 3310 | Tube | Active | 1M | ±20% | 0.25W, 1/4W | Rotary, SPST | 1.0 | Sealed | Linear | 1 | Top Adjustment | ±1000ppm/°C | 300° | Conductive Plastic | PC Pins | Slotted | 0.500" (12.70mm) | 0.125" (3.18mm) | 1/4-32 | Panel Mount |
|
|
3310H-003-502LPOT 5K OHM 1/4W PLASTIC LINEAR |
96 |
|
برگه مشخصات |
Pro Audio 3310 | Tube | Active | 5k | ±20% | 0.25W, 1/4W | Rotary, SPST | 1.0 | Sealed | Linear | 1 | Top Adjustment | ±1000ppm/°C | 300° | Conductive Plastic | PC Pins | Slotted | 0.500" (12.70mm) | 0.125" (3.18mm) | 1/4-32 | Panel Mount |
|
|
3310H-003-102LPOT 1K OHM 1/4W PLASTIC LINEAR |
59 |
|
برگه مشخصات |
Pro Audio 3310 | Tube | Active | 1k | ±20% | 0.25W, 1/4W | Rotary, SPST | 1.0 | Sealed | Linear | 1 | Top Adjustment | ±1000ppm/°C | 300° | Conductive Plastic | PC Pins | Slotted | 0.500" (12.70mm) | 0.125" (3.18mm) | 1/4-32 | Panel Mount |
|
|
PRV6SAABBYB25101MAPOT 100 OHM 1.5W CERMET LINEAR |
55 |
|
برگه مشخصات |
PRV6 | Box | Active | 100 | ±20% | 1.5W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Slotted | 0.492" (12.50mm) | 0.125" (3.18mm) | - | Panel Mount |
|
PRV6SAABGXB25472MAPOT 4.7K OHM 1.5W CERMET LINEAR |
13 |
|
برگه مشخصات |
PRV6 | Box | Active | 4.7k | ±20% | 1.5W | None | 1.0 | Sealed | Linear | 1 | Top Adjustment | ±150ppm/°C | 300° | Cermet | PC Pins | Slotted | 0.630" (16.00mm) | 0.125" (3.18mm) | - | Panel Mount |
|
14910F0GJSX10502KAPOT 5K OHM 1W CERMET LINEAR |
9 |
|
برگه مشخصات |
149 | Box | Active | 5k | ±10% | 1W | None | 1.0 | - | Linear | 1 | Side Adjustment | ±150ppm/°C | 300° | Cermet | PC Pins | Slotted | 0.875" (22.23mm) | 0.250" (6.35mm) | 3/8-32 | Through Hole |
|

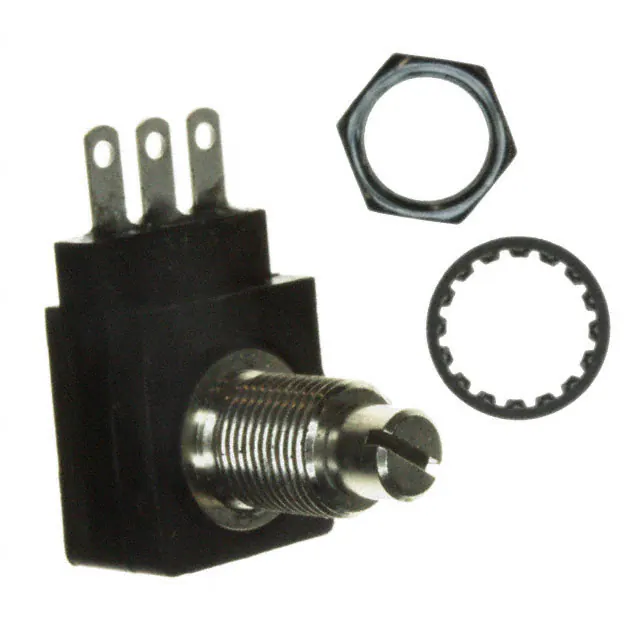

282TCBS103A26B1POT 10K OHM 1/4W PLASTIC LINEAR |
94 |
|
برگه مشخصات |
282 | Tray | Active | 10k | ±10% | 0.25W, 1/4W | None | 1.0 | Long Life | Linear | 1 | User Defined | - | 300° | Conductive Plastic | Solder Lug | Slotted | 0.591" (15.00mm) | 0.236" (6.00mm) | M9 x 0.75 | Panel Mount |
|
P11H1F0GHFW10472MAPOT 4.7K OHM 1W CERMET LINEAR |
35 |
|
برگه مشخصات |
P11H | Box | Active | 4.7k | ±20% | 1W | None | 1.0 | High Torque | Linear | 1 | Top Adjustment | ±150ppm/°C | 300° | Cermet | PC Pins | Slotted | 0.750" (19.05mm) | 0.250" (6.35mm) | 3/8-32 | Through Hole |
|
|
249FGJS0XB25504KAPOT 500K OHM 0.18W CERMET LINEAR |
100 |
|
برگه مشخصات |
249 | Box | Active | 500k | ±10% | 0.18W | None | 1.0 | Sealed | Linear | 1 | Side Adjustment | ±150ppm/°C | 295° | Cermet | PC Pins | Slotted | 0.875" (22.23mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
P11S1V0FLSY00501KAPOT 500 OHM 1W CERMET LINEAR |
11 |
|
برگه مشخصات |
P11S | Box | Active | 500 | ±10% | 1W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Slotted | 0.984" (25.00mm) | 0.236" (6.00mm) | M6 x 0.75 | Panel Mount |
|
14910F0GJSX10503KAPOT 50K OHM 1W CERMET LINEAR |
13 |
|
برگه مشخصات |
149 | Box | Active | 50k | ±10% | 1W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | PC Pins | Slotted | 0.875" (22.23mm) | 0.250" (6.35mm) | 1/4-32 | Through Hole |
|
P11P1F0GJSY00102KAPOT 1K OHM 1W CERMET LINEAR |
34 |
|
برگه مشخصات |
P11P | Box | Active | 1k | ±10% | 1W | None | 1.0 | - | Linear | 1 | Top Adjustment | ±500ppm/°C | 300° | Cermet | PC Pins | Slotted | 0.874" (22.20mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
P11P1F0GJSY00503KAPOT 50K OHM 1W CERMET LINEAR |
32 |
|
برگه مشخصات |
P11P | Box | Active | 50k | ±10% | 1W | None | 1.0 | - | Linear | 1 | Top Adjustment | ±500ppm/°C | 300° | Cermet | PC Pins | Slotted | 0.874" (22.20mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
P11P1F0GGSY00502KAPOT 5K OHM 1W CERMET LINEAR |
28 |
|
برگه مشخصات |
P11P | Box | Active | 5k | ±10% | 1W | None | 1.0 | - | Linear | 1 | Top Adjustment | ±500ppm/°C | 300° | Cermet | PC Pins | Slotted | 0.622" (15.80mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
