پتانسیومترهای دوار، رئوستات
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | مقاومت (اهم) | تحمل | توان (وات) | ساخته شده در سوییچ | تعداد چرخش | ویژگی ها | مخروطی | تعداد باندها | نوع تنظیم | ضریب دما | چرخش | مواد مقاومتی | سبک خاتمه | نوع محرک | طول محرک | قطر محرک | نخ بوش | نوع نصب |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3590S-2-104POT 100K OHM 2W WIREWOUND LINEAR |
0 |
|
برگه مشخصات |
3590 | Bulk | Obsolete | 100k | ±5% | 2W | None | 10.0 | - | Linear | 1 | User Defined | ±50ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.812" (20.63mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
|
|
3590S-2-203POT 20K OHM 2W WIREWOUND LINEAR |
0 |
|
برگه مشخصات |
3590 | Bulk | Obsolete | 20k | ±5% | 2W | None | 10.0 | - | Linear | 1 | User Defined | ±50ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.812" (20.63mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
|
|
3590S-2-503POT 50K OHM 2W WIREWOUND LINEAR |
0 |
|
برگه مشخصات |
3590 | Bulk | Obsolete | 50k | ±5% | 2W | None | 10.0 | - | Linear | 1 | User Defined | ±50ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.812" (20.63mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
|
3852A-162-102APOT 1K OHM 2W CERMET LINEAR |
0 |
|
برگه مشخصات |
3852 | Bulk | Obsolete | 1k | ±10% | 2W | None | 1.0 | - | Linear | 1 | User Defined | ±150ppm/°C | 280° | Cermet | Solder Lug | Slotted | 0.500" (12.70mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
3852A-282-102APOT 1K OHM 2W CERMET LINEAR |
0 |
|
برگه مشخصات |
3852 | Bulk | Obsolete | 1k | ±10% | 2W | None | 1.0 | - | Linear | 1 | User Defined | ±150ppm/°C | 280° | Cermet | Solder Lug | Slotted | 0.875" (22.23mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
|
3852A-282-103APOT 10K OHM 2W CERMET LINEAR |
0 |
|
برگه مشخصات |
3852 | Bulk | Obsolete | 10k | ±10% | 2W | None | 1.0 | - | Linear | 1 | User Defined | ±150ppm/°C | 280° | Cermet | Solder Lug | Slotted | 0.875" (22.23mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
3862C-162-103APOT 10K OHM 1W CERMET LINEAR |
0 |
|
برگه مشخصات |
3862 | Bulk | Obsolete | 10k | ±10% | 1W | None | 1.0 | - | Linear | 1 | User Defined | ±150ppm/°C | 295° | Cermet | Solder Lug | Slotted | 0.500" (12.70mm) | 0.125" (3.18mm) | 1/4-32 | Panel Mount |
|
3862C-282-103APOT 10K OHM 1W CERMET LINEAR |
0 |
|
برگه مشخصات |
3862 | Bulk | Obsolete | 10k | ±10% | 1W | None | 1.0 | - | Linear | 1 | User Defined | ±150ppm/°C | 295° | Cermet | Solder Lug | Slotted | 0.875" (22.23mm) | 0.125" (3.18mm) | 1/4-32 | Panel Mount |
|

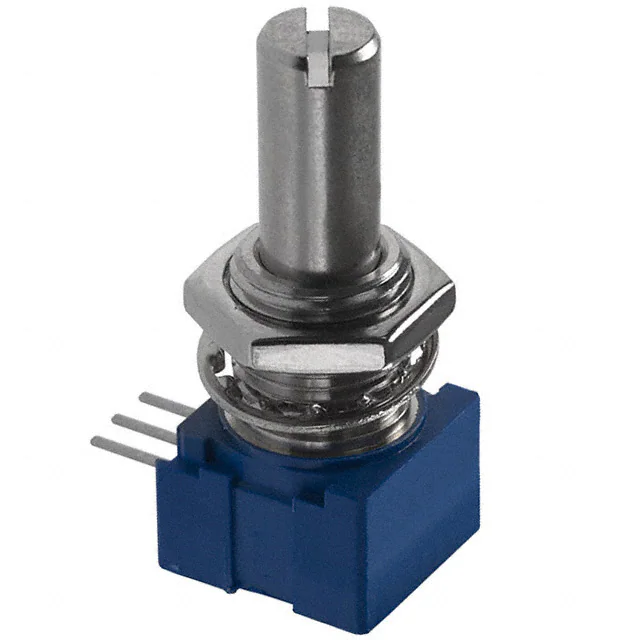

51AAD-B24-A15POT 10K OHM 1W CERMET LINEAR |
0 |
|
برگه مشخصات |
Pro Audio 51 | Bulk | Obsolete | 10k | ±10% | 1W | None | 1.0 | Sealed | Linear | 1 | Side Adjustment | ±150ppm/°C | 290° | Cermet | PC Pins | Slotted | 0.750" (19.05mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
51AAD-B28-D15POT 10K OHM 1/4W PLASTIC LOG |
0 |
|
برگه مشخصات |
Pro Audio 51 | Bulk | Obsolete | 10k | ±20% | 0.25W, 1/4W | None | 1.0 | Sealed | Logarithmic | 1 | Side Adjustment | ±1000ppm/°C | 290° | Conductive Plastic | PC Pins | Slotted | 0.875" (22.23mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|

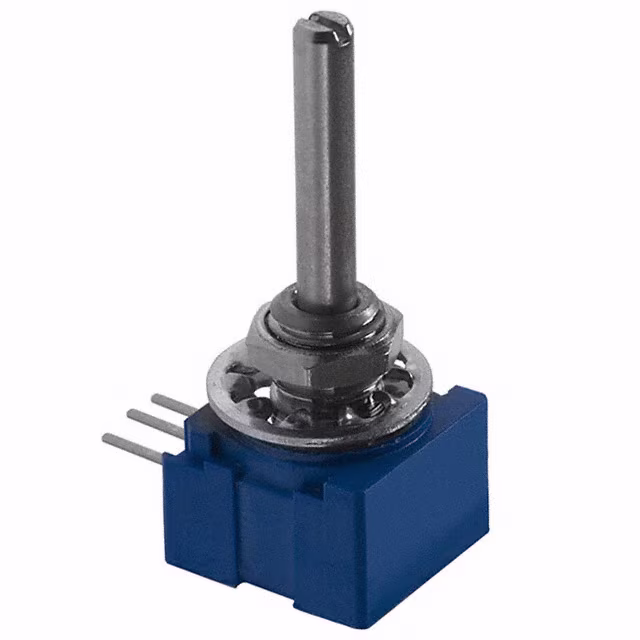

51CAD-E24-A15POT 10K OHM 1W CERMET LINEAR |
0 |
|
برگه مشخصات |
Pro Audio 51 | Bulk | Obsolete | 10k | ±10% | 1W | None | 1.0 | Sealed | Linear | 1 | Side Adjustment | ±150ppm/°C | 290° | Cermet | PC Pins | Slotted | 0.750" (19.05mm) | 0.125" (3.18mm) | 1/4-32 | Panel Mount |
|
|
51CAD-E24-B15POT 10K OHM 1/2W PLASTIC LINEAR |
0 |
|
برگه مشخصات |
Pro Audio 51 | Bulk | Obsolete | 10k | ±20% | 0.5W, 1/2W | None | 1.0 | Sealed | Linear | 1 | Side Adjustment | ±1000ppm/°C | 290° | Conductive Plastic | PC Pins | Slotted | 0.750" (19.05mm) | 0.125" (3.18mm) | 1/4-32 | Panel Mount |
|
|
51CAD-E28-A10POT 1K OHM 1W CERMET LINEAR |
0 |
|
برگه مشخصات |
Pro Audio 51 | Bulk | Obsolete | 1k | ±10% | 1W | None | 1.0 | Sealed | Linear | 1 | Side Adjustment | ±150ppm/°C | 290° | Cermet | PC Pins | Slotted | 0.875" (22.23mm) | 0.125" (3.18mm) | 1/4-32 | Panel Mount |
|
|
51CAD-E28-A13POT 5K OHM 1W CERMET LINEAR |
0 |
|
برگه مشخصات |
Pro Audio 51 | Bulk | Obsolete | 5k | ±10% | 1W | None | 1.0 | Sealed | Linear | 1 | Side Adjustment | ±150ppm/°C | 290° | Cermet | PC Pins | Slotted | 0.875" (22.23mm) | 0.125" (3.18mm) | 1/4-32 | Panel Mount |
|
|
51CAD-E28-A20POT 100K OHM 1W CERMET LINEAR |
0 |
|
برگه مشخصات |
Pro Audio 51 | Bulk | Obsolete | 100k | ±10% | 1W | None | 1.0 | Sealed | Linear | 1 | Side Adjustment | ±150ppm/°C | 290° | Cermet | PC Pins | Slotted | 0.875" (22.23mm) | 0.125" (3.18mm) | 1/4-32 | Panel Mount |
|
|
51CAD-E28-D15POT 10K OHM 1/4W PLASTIC LOG |
0 |
|
برگه مشخصات |
Pro Audio 51 | Bulk | Obsolete | 10k | ±20% | 0.25W, 1/4W | None | 1.0 | Sealed | Logarithmic | 1 | Side Adjustment | ±1000ppm/°C | 290° | Conductive Plastic | PC Pins | Slotted | 0.875" (22.23mm) | 0.125" (3.18mm) | 1/4-32 | Panel Mount |
|
53AAA-B28-B15POT 10K OHM 1/2W PLASTIC LINEAR |
0 |
|
برگه مشخصات |
Pro Audio 53 | Bulk | Obsolete | 10k | ±20% | 0.5W, 1/2W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±1000ppm/°C | 290° | Conductive Plastic | Solder Lug | Slotted | 0.875" (22.23mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
81A1A-B28-A10POT 1K OHM 2W CERMET LINEAR |
0 |
|
برگه مشخصات |
81 | Tray | Obsolete | 1k | ±10% | 2W | None | 1.0 | - | Linear | 1 | Side Adjustment | ±150ppm/°C | 300° | Cermet | PC Pins | Slotted | 0.875" (22.23mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
|
81A1A-B28-A13POT 5K OHM 2W CERMET LINEAR |
0 |
|
برگه مشخصات |
81 | Bulk | Obsolete | 5k | ±10% | 2W | None | 1.0 | - | Linear | 1 | Side Adjustment | ±150ppm/°C | 300° | Cermet | PC Pins | Slotted | 0.875" (22.23mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
|
81A1A-B28-A15POT 10K OHM 2W CERMET LINEAR |
0 |
|
برگه مشخصات |
81 | Bulk | Obsolete | 10k | ±10% | 2W | None | 1.0 | - | Linear | 1 | Side Adjustment | ±150ppm/°C | 300° | Cermet | PC Pins | Slotted | 0.875" (22.23mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
