رله های سیگنال، تا 2 آمپر
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | نوع نصب | ولتاژ سیم پیچ | فرم تماس | رتبه بندی تماس (جاری) | ولتاژ سوئیچینگ | بار - حداکثر سوئیچینگ | جریان سیم پیچ | نوع کویل | ویژگی ها | سبک خاتمه | رتبه بندی مهر و موم | عایق کویل | ولتاژ باید کار کند | ولتاژ باید آزاد شود | زمان عملیات | زمان انتشار | دمای عملیاتی | مواد تماس | آژانس تایید | نوع رله | درجه | صلاحیت |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
OUAZ-SS-105D,900RELAY TELECOM SPDT 1A 5V |
0 |
|
برگه مشخصات |
OUAZ, OEG | Tube | Obsolete | Through Hole | 5VDC | SPDT (1 Form C) | 1 A | 120VAC, 24VDC - Max | 120VA, 24W | 90.9 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 3.5 VDC | 0.25 VDC | 5 ms | 7 ms | -30°C ~ 60°C | Silver Palladium (AgPd), Gold (Au) | - | Telecom | - | - |
|
|
OUAZ-SS-109D,900RELAY TELECOM SPDT 1A 9V |
0 |
|
برگه مشخصات |
OUAZ, OEG | Tube | Obsolete | Through Hole | 9VDC | SPDT (1 Form C) | 1 A | 120VAC, 24VDC - Max | 120VA, 24W | 50 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 6.75 VDC | 0.45 VDC | 5 ms | 7 ms | -30°C ~ 60°C | Silver Palladium (AgPd), Gold (Au) | - | Telecom | - | - |
|
|
OUAZ-SH-105L,900RELAY TELECOM SPDT 1A 5V |
0 |
|
برگه مشخصات |
OUAZ, OEG | Tube | Obsolete | Through Hole | 5VDC | SPDT (1 Form C) | 1 A | 120VAC, 24VDC - Max | 120VA, 24W | 40 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 3.75 VDC | 0.5 VDC | 10 ms | 7 ms | -30°C ~ 70°C | Silver Palladium (AgPd), Gold (Au) | - | Telecom | - | - |
|
|
OUAZ-SH-106L,900RELAY TELECOM SPDT 1A 6V |
0 |
|
برگه مشخصات |
OUAZ, OEG | Tube | Obsolete | Through Hole | 6VDC | SPDT (1 Form C) | 1 A | 120VAC, 24VDC - Max | 120VA, 24W | 33.3 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 4.5 VDC | 0.6 VDC | 10 ms | 7 ms | -30°C ~ 70°C | Silver Palladium (AgPd), Gold (Au) | - | Telecom | - | - |
|
|
OUAZ-SS-106L,900RELAY TELECOM SPDT 1A 6V |
0 |
|
برگه مشخصات |
OUAZ, OEG | Tube | Obsolete | Through Hole | 6VDC | SPDT (1 Form C) | 1 A | 120VAC, 24VDC - Max | 120VA, 24W | 33.3 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 4.5 VDC | 0.6 VDC | 10 ms | 7 ms | -30°C ~ 70°C | Silver Palladium (AgPd), Gold (Au) | - | Telecom | - | - |
|
C93406RELAY TELECOM DPDT 2A 4.5V |
0 |
|
برگه مشخصات |
MT2, AXICOM | Tube | Obsolete | Through Hole | 4.5VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 33.3 mA | Non Latching | - | PC Pin | - | - | 3.2 VDC | 0.45 VDC | 5 ms | 3 ms | -55°C ~ 85°C | Silver Nickel (AgNi), Gold (Au) | cURus | Telecom | - | - |
|
|
C93412RELAY TELECOM DPDT 2A 12V |
0 |
|
برگه مشخصات |
MT2, AXICOM | Tube | Obsolete | Through Hole | 12VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 25 mA | Non Latching | - | PC Pin | - | - | 8.25 VDC | 1.2 VDC | 5 ms | 3 ms | -55°C ~ 85°C | Silver Nickel (AgNi), Gold (Au) | cURus | Telecom | - | - |
|
|
C93417RELAY TELECOM DPDT 2A 9V |
0 |
|
برگه مشخصات |
MT2, AXICOM | Tube | Obsolete | Through Hole | 9VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 22.2 mA | Non Latching | - | PC Pin | - | - | 5.9 VDC | 0.9 VDC | 5 ms | 3 ms | -55°C ~ 85°C | Silver Nickel (AgNi), Gold (Au) | cURus | Telecom | - | - |
|
|
C93420RELAY TELECOM DPDT 2A 48V |
0 |
|
برگه مشخصات |
MT2, AXICOM | Tube | Obsolete | Through Hole | 48VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 4.2 mA | Non Latching | - | PC Pin | - | - | 31.2 VDC | 4.8 VDC | 5 ms | 3 ms | -55°C ~ 85°C | Silver Nickel (AgNi), Gold (Au) | cURus | Telecom | - | - |
|
|
C93421RELAY TELECOM DPDT 2A 4.5V |
0 |
|
برگه مشخصات |
MT2, AXICOM | Tube | Obsolete | Through Hole | 4.5VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 88.9 mA | Non Latching | - | PC Pin | - | - | 2.9 VDC | 0.45 VDC | 5 ms | 3 ms | -55°C ~ 85°C | Silver Nickel (AgNi), Gold (Au) | cURus | Telecom | - | - |
|
|
C93423RELAY TELECOM DPDT 2A 9V |
0 |
|
برگه مشخصات |
MT2, AXICOM | Tube | Obsolete | Through Hole | 9VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 44.4 mA | Non Latching | - | PC Pin | - | - | 5.9 VDC | 0.9 VDC | 5 ms | 3 ms | -55°C ~ 85°C | Silver Nickel (AgNi), Gold (Au) | cURus | Telecom | - | - |
|
|
C93426RELAY TELECOM DPDT 2A 48V |
0 |
|
برگه مشخصات |
MT2, AXICOM | Tube | Obsolete | Through Hole | 48VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 8.3 mA | Non Latching | - | PC Pin | - | - | 31.2 VDC | 4.8 VDC | 5 ms | 3 ms | -55°C ~ 85°C | Silver Nickel (AgNi), Gold (Au) | cURus | Telecom | - | - |
|
|
C93427RELAY TELECOM DPDT 2A 6V |
0 |
|
برگه مشخصات |
MT2, AXICOM | Tube | Obsolete | Through Hole | 6VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 25 mA | Non Latching | - | PC Pin | - | - | 4.3 VDC | 0.6 VDC | 5 ms | 3 ms | -55°C ~ 85°C | Silver Nickel (AgNi), Gold (Au) | cURus | Telecom | - | - |
|
|
C93428RELAY TELECOM DPDT 2A 6V |
0 |
|
برگه مشخصات |
MT2, AXICOM | Tube | Obsolete | Through Hole | 6VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 33.3 mA | Non Latching | - | PC Pin | - | - | 3.9 VDC | 0.6 VDC | 5 ms | 3 ms | -55°C ~ 85°C | Silver Nickel (AgNi), Gold (Au) | cURus | Telecom | - | - |
|
|
C93433RELAY TELECOM DPDT 2A 4.5V |
0 |
|
برگه مشخصات |
MT2, AXICOM | Tube | Obsolete | Through Hole | 4.5VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 66.7 mA | Non Latching | - | PC Pin | - | - | 3.1 VDC | 0.45 VDC | 5 ms | 3 ms | -55°C ~ 85°C | Silver Nickel (AgNi), Gold (Au) | cURus | Telecom | - | - |
|
|
C93434RELAY TELECOM DPDT 2A 5V |
0 |
|
برگه مشخصات |
MT2, AXICOM | Tube | Obsolete | Through Hole | 5VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 60 mA | Non Latching | - | PC Pin | - | - | 3.4 VDC | 0.5 VDC | 5 ms | 3 ms | -55°C ~ 85°C | Silver Nickel (AgNi), Gold (Au) | cURus | Telecom | - | - |
|
|
C93435RELAY TELECOM DPDT 2A 24V |
0 |
|
برگه مشخصات |
MT2, AXICOM | Tube | Obsolete | Through Hole | 24VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 12.5 mA | Non Latching | - | PC Pin | - | - | 16.5 VDC | 2.4 VDC | 5 ms | 3 ms | -55°C ~ 85°C | Silver Nickel (AgNi), Gold (Au) | cURus | Telecom | - | - |
|
|
C93436RELAY TELECOM DPDT 2A 48V |
0 |
|
برگه مشخصات |
MT2, AXICOM | Tube | Obsolete | Through Hole | 48VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 6.3 mA | Non Latching | - | PC Pin | - | - | 32.5 VDC | 4.8 VDC | 5 ms | 3 ms | -55°C ~ 85°C | Silver Nickel (AgNi), Gold (Au) | cURus | Telecom | - | - |
|
|
C93438RELAY TELECOM DPDT 2A 4.5V |
0 |
|
برگه مشخصات |
MT2, AXICOM | Tube | Obsolete | Through Hole | 4.5VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 122 mA | Non Latching | - | PC Pin | - | - | 2.9 VDC | 0.45 VDC | 5 ms | 3 ms | -55°C ~ 85°C | Silver Nickel (AgNi), Gold (Au) | cURus | Telecom | - | - |
|

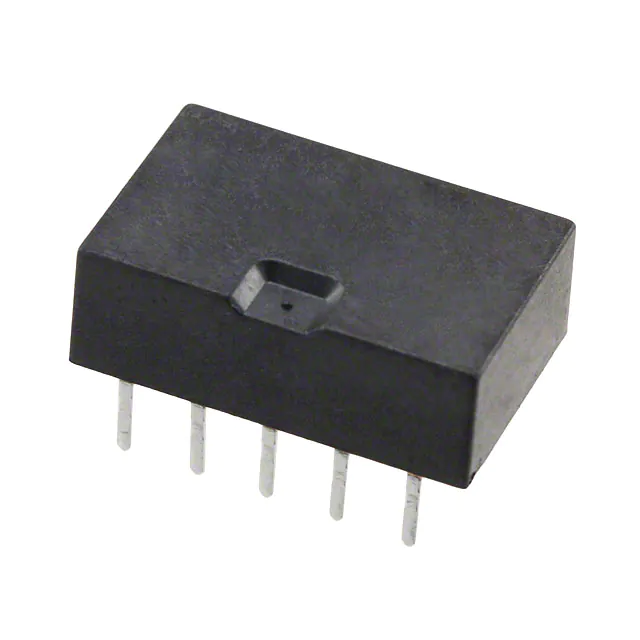

D3004RELAY TELECOM DPDT 2A 4.5V |
0 |
|
برگه مشخصات |
FP2, AXICOM | Bulk | Active | Through Hole | 4.5VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 31.1 mA | Non Latching | - | PC Pin | - | - | 3.15 VDC | 0.45 VDC | 4 ms | 3 ms | -40°C ~ 85°C | Palladium (Pd), Ruthenium (Ru), Gold (Au) | cURus | Telecom | - | - |
