سوئیچ های اسلاید
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | مدار | تماس با زمان بندی | عملکرد سوئیچ | رتبه فعلی (آمپر) | رتبه بندی ولتاژ - DC | نوع محرک | طول محرک | مواد تماس | با Finish تماس بگیرید | نوع نصب | سبک خاتمه | ویژگی ها | دمای عملیاتی |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GS-115-0105SWITCH SLIDE SPDT 500MA 125V |
0 |
|
برگه مشخصات |
GS | Bulk | Active | SPDT | Not Specified | On-On | 500mA (AC/DC) | 125 V | 125 V | Standard | 3.18mm | Copper Alloy | Silver | Through Hole | Press-Fit | - |
|
|
48ASDP1S5M3RBTSWITCH SLIDE DPDT 0.4VA 20V |
0 |
|
برگه مشخصات |
48A | Bulk | Active | DPDT | Not Specified | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 1.02mm | Copper Alloy | Gold | Through Hole | Quick Connect - 0.062" (1.5mm) | Epoxy Sealed Terminals |
|
|
48ASDP3T1M6RATSWITCH SLIDE DPDT 0.4VA 20V |
0 |
|
برگه مشخصات |
48A | Bulk | Active | DPDT | Not Specified | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 5.08mm | Copper Alloy | Gold | Panel Mount, Right Angle | PC Pin | Epoxy Sealed Terminals |
|
|
48ASDP3S1M2QATSWITCH SLIDE DPDT 5A 125V |
0 |
|
برگه مشخصات |
48A | Bulk | Active | DPDT | Not Specified | On-Off-On | 5A (AC/DC) | 125 V | 28 V | Standard | 5.08mm | Copper Alloy | Silver | Panel Mount | PC Pin | Epoxy Sealed Terminals |
|
|
M42ASWITCH SLIDE 4PDT 300MA 125V |
0 |
|
برگه مشخصات |
M | Tray | Obsolete | 4PDT | Not Specified | On-On | 300mA (AC/DC) | 125 V | 30 V | Standard | 9.00mm | - | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
|
M43RSWITCH SLIDE 4P3T 300MA 125V |
0 |
|
برگه مشخصات |
M | Tray | Obsolete | 4P3T | Not Specified | On-On-On | 300mA (AC/DC) | 125 V | 30 V | Standard | 10.00mm | - | Silver | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|
|
MSS24AGSWITCH SLIDE DP4T 0.4VA 20V |
0 |
|
- |
MSS | Tray | Obsolete | DP4T | Not Specified | On-On-On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 10.40mm | - | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals |
|

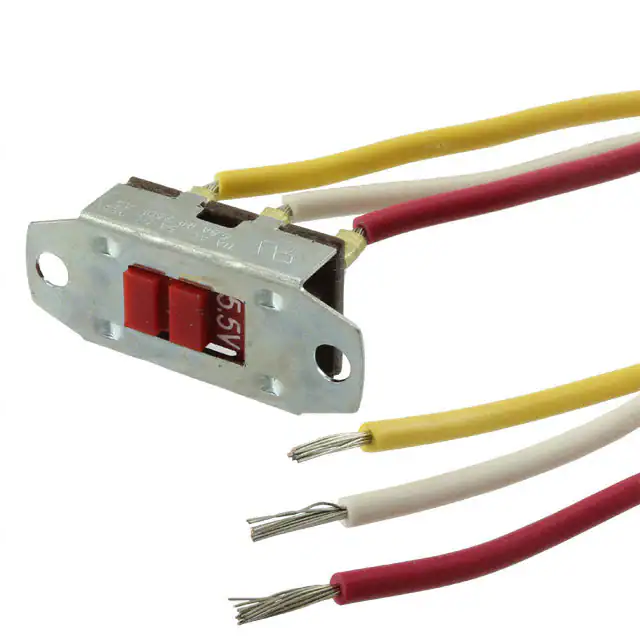

GF-1124-0012SWITCH SLIDE SPDT 11A 125V |
0 |
|
برگه مشخصات |
GF | Bulk | Active | SPDT | Not Specified | On-On (Line Voltage Selector) | 11A (AC), 500mA (DC) | 125 V | 125 V | Screwdriver Slot | 0.79mm | Copper | Silver | Panel Mount | Wire Leads | 5.5V-12V Marking, Red Actuator |
|

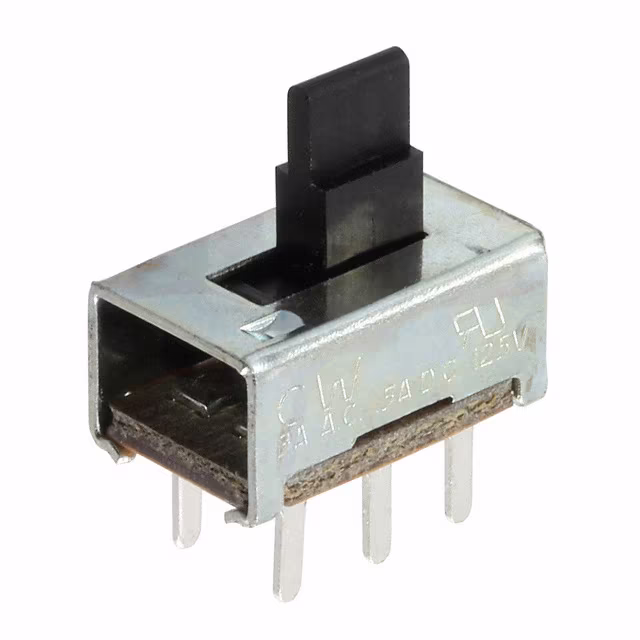

GF-126-0318SWITCH SLIDE DPDT 3A 125V |
0 |
|
برگه مشخصات |
GF | Bulk | Active | DPDT | Not Specified | On-On | 3A (AC), 500mA (DC) | 125 V | 125 V | Standard | 7.75mm | Copper | Silver | Through Hole | PC Pin | - |
|

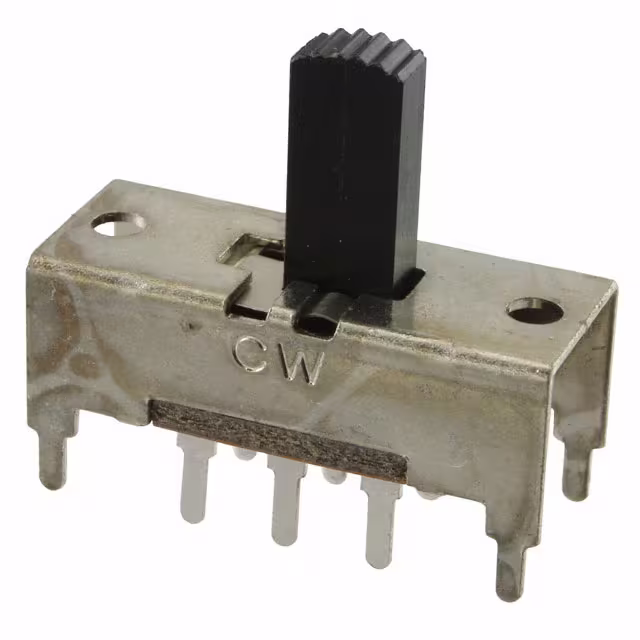

GPS-126-0002SWITCH SLIDE DPDT 500MA 125V |
0 |
|
برگه مشخصات |
GPS | Bulk | Active | DPDT | Not Specified | On-On | 500mA (AC/DC) | 125 V | 125 V | Standard | 11.50mm | - | - | Through Hole | PC Pin | - |
|
|
AS23BH/328SWITCH SLIDE DPDT 0.4VA 28V |
0 |
|
برگه مشخصات |
AS | Tray | Obsolete | DPDT | Non-Shorting (BBM) | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Flush | Flush | Phosphor Bronze | Gold | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|
|
MS12ASW30/USWITCH SLIDE SPDT 6A 125V |
0 |
|
برگه مشخصات |
MS | Bulk | Obsolete | SPDT | Non-Shorting (BBM) | On-On | 6A (AC) | 125 V | - | Standard | 5.10mm | Silver Alloy | Silver | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|
|
MS13ASG13SWITCH SLIDE SPDT 0.4VA 28V |
0 |
|
برگه مشخصات |
MS | Bulk | Obsolete | SPDT | Non-Shorting (BBM) | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard | 5.10mm | Copper | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
|
MS20ASG13SWITCH SLIDE SP3T 0.4VA 28V |
0 |
|
برگه مشخصات |
MS | Bulk | Obsolete | SP3T | Non-Shorting (BBM) | On-On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard | 5.10mm | Copper | Gold | Through Hole | PC Pin | Jumper needed to achieve triple throw |
|
|
MS22ANW03/UCSWITCH SLIDE DPDT 6A 125V |
0 |
|
برگه مشخصات |
MS | Bulk | Obsolete | DPDT | Non-Shorting (BBM) | On-On | 6A (AC) | 125 V | - | Standard | 5.10mm | Silver Alloy | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
|
MS22BSA40SWITCH SLIDE DPDT 6A 125V |
0 |
|
برگه مشخصات |
MS | Bulk | Obsolete | DPDT | Non-Shorting (BBM) | On-On | 6A (AC) | 125 V | - | Standard | 5.10mm | Silver Alloy | Gold | Through Hole, Right Angle, Vertical | PC Pin | Epoxy Sealed Terminals |
|
|
MS22BSG13SWITCH SLIDE DPDT 0.4VA 28V |
0 |
|
برگه مشخصات |
MS | Bulk | Obsolete | DPDT | Non-Shorting (BBM) | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard | 5.10mm | Copper | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
|
SS22SDP4/3SWITCH SLIDE DPDT 0.4VA 28V |
0 |
|
برگه مشخصات |
SS | Bulk | Obsolete | DPDT | Shorting (MBB) | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard | 2.00mm | Phosphor Bronze | Gold | Through Hole | PC Pin | - |
|
|
K2228ESWITCH SLIDE DPDT 16A 250V |
0 |
|
برگه مشخصات |
2000 | Bulk | Active | DPDT | Not Specified | On-On (Line Voltage Selector) | 16A (AC) | 250 V | - | Standard | Flush | - | - | Panel Mount, Snap-In | Quick Connect - 0.110" (2.8mm) | No Marking |
|
AS2P-2M-10-ZSWITCH SLIDE DPDT 50MA 48V |
0 |
|
برگه مشخصات |
AS | Tray | Obsolete | DPDT | Non-Shorting (BBM) | On-Off-On | 50mA (AC/DC) | 48 V | 48 V | Standard | 4.30mm | - | Gold | Through Hole | PC Pin | - |
