رله های حالت جامد (SSR)
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | نوع نصب | مدار | نوع خروجی | ولتاژ - ورودی | ولتاژ - بار | جریان بارگذاری | مقاومت در ایالت (حداکثر) | سبک خاتمه | دمای عملیاتی | بسته دستگاه تامین کننده | آژانس تایید | درجه | صلاحیت |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DR2220D20USSR RELAY SPST-NO 20A 1-200V |
0 |
|
برگه مشخصات |
DR22 | Bulk | Active | DIN Rail | SPST-NO (1 Form A) | DC | 4 ~ 32VDC | 1 V ~ 200 V | 20 A | 34 mOhms | Screw Terminal | -40°C ~ 80°C | - | CE, cURus, EMC, IEC | - | - |
|
D2D40SSR RELAY SPST-NO 40A 0-200V |
0 |
|
برگه مشخصات |
1-DC | Bulk | Active | Chassis Mount | SPST-NO (1 Form A) | DC | 3.5 ~ 32VDC | 1 V ~ 200 V | 40 A | 50 mOhms | Screw Terminal | -40°C ~ 100°C | - | CE, cURus | - | - |
|
PMP2425WSSR RELAY SPST-NO 25A 90-280V |
0 |
|
برگه مشخصات |
PMP | Bulk | Active | Chassis Mount | SPST-NO (1 Form A) | AC, Proportional Control | 4 ~ 20mA, 0 ~ 10VDC | 90 V ~ 280 V | 25 A | - | Screw Terminal | -25°C ~ 70°C | - | CE, cURus, EMC, IEC | - | - |
|

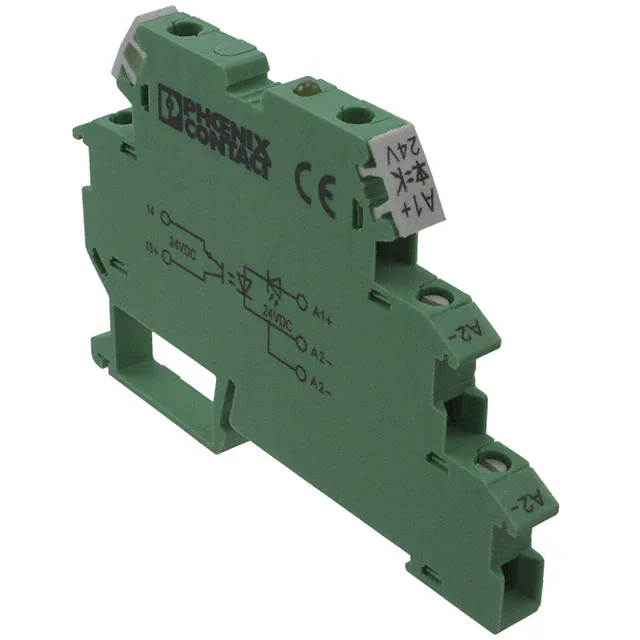

2941374SSR RELAY SPST-NO 3A 3-30V |
0 |
|
برگه مشخصات |
DEK-OV | Bulk | Active | DIN Rail | SPST-NO (1 Form A) | DC | 24VDC | 3 V ~ 30 V | 3 A | - | Screw Terminal | -20°C ~ 60°C | - | cULus, EAC | - | - |
|
CKM0610SSR RELAY SPST-NO 10A 0-60V |
0 |
|
برگه مشخصات |
CKM | Bulk | Active | DIN Rail | SPST-NO (1 Form A) | DC | 4 ~ 32VDC | 0 V ~ 60 V | 10 A | 20 mOhms | Screw Terminal | -40°C ~ 80°C | - | CE | - | - |
|
|
PMP2425WPHSSR RELAY SPST-NO 25A 90-280V |
0 |
|
برگه مشخصات |
PMP | Bulk | Active | Chassis Mount | SPST-NO (1 Form A) | AC, Proportional Control | 4 ~ 20mA, 0 ~ 10VDC | 90 V ~ 280 V | 25 A | - | Screw Terminal | -25°C ~ 70°C | - | CE, cURus, EMC, IEC | - | - |
|
DC60D60CSSR RELAY SPST-NO 60A 1-48V |
0 |
|
برگه مشخصات |
PowerPlus DC | Bulk | Active | Chassis Mount | SPST-NO (1 Form A) | DC | 4 ~ 32VDC | 1 V ~ 48 V | 60 A | 8.5 mOhms | Screw Terminal | -40°C ~ 100°C | - | CE, cURus | - | - |
|
D06D80SSR RELAY SPST-NO 80A 0-60V |
0 |
|
برگه مشخصات |
D06D | Bulk | Active | Chassis Mount | SPST-NO (1 Form A) | DC | 3.5 ~ 32VDC | 0 V ~ 60 V | 80 A | 8 mOhms | Screw Terminal | -40°C ~ 100°C | - | CE, cURus | - | - |
|
2941361SSR RELAY SPST-NO 3A 3-30V |
0 |
|
برگه مشخصات |
DEK-OV | Bulk | Active | DIN Rail | SPST-NO (1 Form A) | DC | 5VDC | 3 V ~ 30 V | 3 A | - | Screw Terminal | -20°C ~ 60°C | - | cULus, EAC | - | - |
|
MCPC4850CSSR RELAY SPST-NO 50A 300-530V |
0 |
|
برگه مشخصات |
MCPC | Bulk | Active | Chassis Mount | SPST-NO (1 Form A) | AC, Proportional Control | 0 ~ 10VDC | 300 V ~ 530 V | 50 A | - | Screw Terminal | -20°C ~ 80°C | - | CE, UR | - | - |
|
84137380SSR RELAY SPST-NO 125A 48-660V |
1 |
|
برگه مشخصات |
GN | Bulk | Active | Chassis Mount | SPST-NO (1 Form A) | AC | 4 ~ 32VDC | 48 V ~ 660 V | 125 A | - | Screw Terminal | -40°C ~ 80°C | - | CE, CSA, cURus, TUV | - | - |
|
LVD75A100SSR RELAY SPST-NO 100A 3-75V |
0 |
|
برگه مشخصات |
LVD | Bulk | Active | Chassis Mount | SPST-NO (1 Form A) | DC | 11 ~ 11.5VDC | 3 V ~ 75 V | 100 A | 5 mOhms | Screw Terminal | -30°C ~ 80°C | - | - | - | - |
|

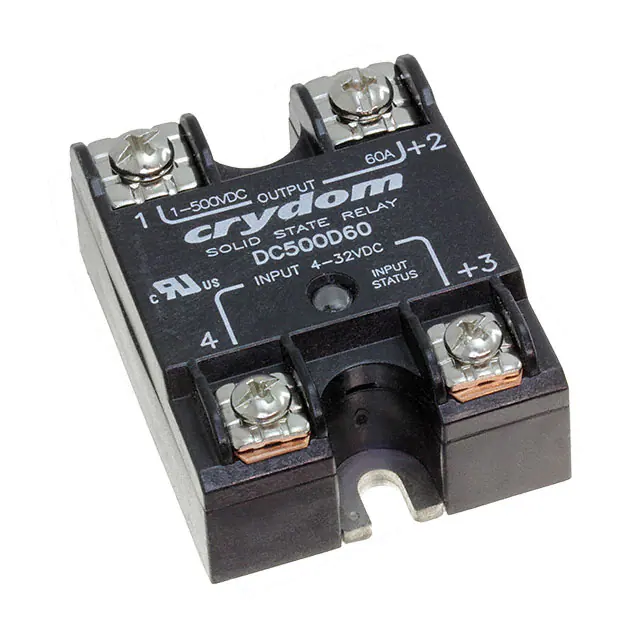

DC500D60SSR RELAY SPST-NO 60A 1-500V |
0 |
|
برگه مشخصات |
PowerPlus DC | Bulk | Active | Chassis Mount | SPST-NO (1 Form A) | DC | 4 ~ 32VDC | 1 V ~ 500 V | 60 A | 13 mOhms | Screw Terminal | -40°C ~ 100°C | - | CE, cURus | - | - |
|
DC500F60SSR RELAY SPST-NO 60A 1-500V |
0 |
|
برگه مشخصات |
PowerPlus DC | Bulk | Active | Chassis Mount | SPST-NO (1 Form A) | DC | 30 ~ 60VDC | 1 V ~ 500 V | 60 A | 13 mOhms | Screw Terminal | -40°C ~ 100°C | - | CE, cURus | - | - |
|
TLP240D(FSSR RELAY SPST-NO 250MA 0-200V |
0 |
|
برگه مشخصات |
TLP240D | Tube | Active | Through Hole | SPST-NO (1 Form A) | AC, DC | 1.27VDC | 0 V ~ 200 V | 250 mA | 8 Ohms | PC Pin | -40°C ~ 85°C | 4-DIP | CQC, cUL, UL, VDE | - | - |
|
VOR1142M4TSSR RELAY SPST-NO 140MA 0-400V |
0 |
|
برگه مشخصات |
VOR1142 | Tape & Reel (TR) | Active | Surface Mount | SPST-NO (1 Form A) | AC, DC | 1.36VDC | 0 V ~ 400 V | 140 mA | 27 Ohms | Gull Wing | -40°C ~ 100°C | 4-SOP | cUL, DIN, UL | - | - |
|
|
TLP241A(FSSR RELAY SPST-NO 2A 0-40V |
1 |
|
برگه مشخصات |
TLP241A | Tube | Active | Through Hole | SPST-NO (1 Form A) | AC, DC | 1.27VDC | 0 V ~ 40 V | 2 A | 150 mOhms | PC Pin | -40°C ~ 85°C | 4-DIP | CSA, cUL, UL, VDE | - | - |
|
TLP241A(LF1,FSSR RELAY SPST-NO 2A 0-40V |
0 |
|
برگه مشخصات |
TLP241A | Tube | Active | Surface Mount | SPST-NO (1 Form A) | AC, DC | 1.27VDC | 0 V ~ 40 V | 2 A | 150 mOhms | Gull Wing | -40°C ~ 85°C | 4-SMD | CSA, cUL, UL, VDE | - | - |
|
|
TLP241A(D4,FSSR RELAY SPST-NO 2A 0-40V |
0 |
|
برگه مشخصات |
TLP241A | Tube | Active | Through Hole | SPST-NO (1 Form A) | AC, DC | 1.27VDC | 0 V ~ 40 V | 2 A | 150 mOhms | PC Pin | -40°C ~ 85°C | 4-DIP | CSA, cUL, UL, VDE | - | - |
|
G3VM-401BYSSR RELAY SPST-NO 120MA 0-400V |
0 |
|
برگه مشخصات |
G3VM | Tube | Active | Through Hole | SPST-NO (1 Form A) | AC, DC | 1.15VDC | 0 V ~ 400 V | 120 mA | 35 Ohms | PC Pin | -40°C ~ 85°C | 6-DIP | - | - | - |
