رله های حالت جامد (SSR)
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | نوع نصب | مدار | نوع خروجی | ولتاژ - ورودی | ولتاژ - بار | جریان بارگذاری | مقاومت در ایالت (حداکثر) | سبک خاتمه | دمای عملیاتی | بسته دستگاه تامین کننده | آژانس تایید | درجه | صلاحیت |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SLR1610ASSR RELAY SPST-NO 10A 0-230V |
0 |
|
برگه مشخصات |
SLR | Bulk | Obsolete | Chassis Mount | SPST-NO (1 Form A) | AC | 230VAC | 0 V ~ 230 V | 10 A | - | Quick Connect - 0.250" (6.3mm) | -20°C ~ 60°C | - | CE, CSA, UR | - | - |
|

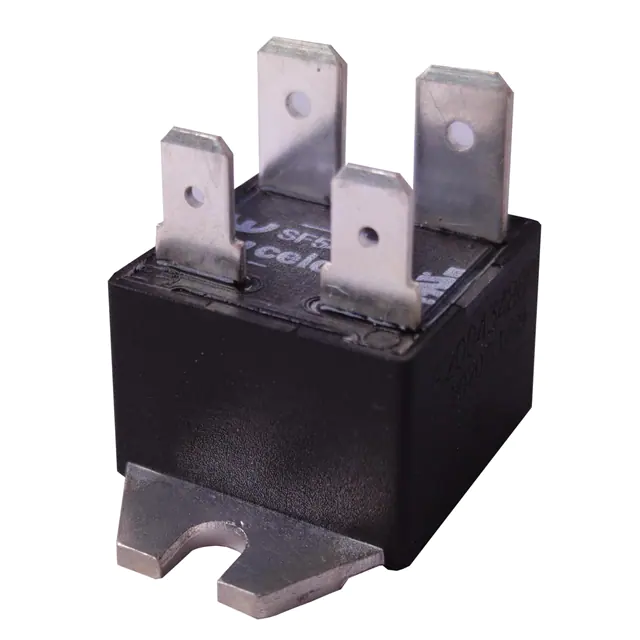

SF542310SSR RELAY SPST-NO 10A 12-280V |
0 |
|
برگه مشخصات |
- | Box | Active | Chassis Mount | SPST-NO (1 Form A) | AC, Zero Cross | 4 ~ 30VDC | 12 V ~ 280 V | 10 A | - | Quick Connect, Disconnect | -40°C ~ 100°C | - | cULus | - | - |
|
RSSDN-50ASOLID STATE RELAY 50A |
0 |
|
- |
RSS | Bulk | Active | Chassis Mount | SPST-NO (1 Form A) | AC, Zero Cross | 3 ~ 32VDC | 48 V ~ 660 V | 50 A | - | Screw Terminal | -20°C ~ 80°C | - | CE, CSA, cURus, TUV | - | - |
|
DR48D03XRSSR RELAY SPST-NO 3A 48-600V |
0 |
|
برگه مشخصات |
DR | Bulk | Active | DIN Rail | SPST-NO (1 Form A) | AC | 4 ~ 32VDC | 48 V ~ 600 V | 3 A | - | Screw Terminal | -20°C ~ 40°C | - | CE, cULus | - | - |
|
|
RAM1A23A25GSSR RELAY SPST-NO 25A 24-265V |
0 |
|
برگه مشخصات |
RA | Bulk | Active | Chassis Mount | SPST-NO (1 Form A) | AC, Zero Cross | 20 ~ 280VAC, 22 ~ 48VDC | 24 V ~ 265 V | 25 A | - | Screw Terminal | -20°C ~ 70°C | - | CCC, CE, CSA, cURus, EAC, UKCA, VDE | - | - |
|
EL100D20-05NSSR RELAY SPST-NO 20A 3-100V |
0 |
|
برگه مشخصات |
EL | Bulk | Active | Chassis Mount | SPST-NO (1 Form A) | DC | 4 ~ 8VDC | 3 V ~ 100 V | 20 A | 13 mOhms | Quick Connect - 0.250" (6.3mm) | -30°C ~ 80°C | Module | CE, cURus, TUV | - | - |
|
|
EL100D20-12NSSR RELAY SPST-NO 20A 3-100V |
0 |
|
برگه مشخصات |
EL | Bulk | Active | Chassis Mount | SPST-NO (1 Form A) | DC | 10 ~ 14VDC | 3 V ~ 100 V | 20 A | 13 mOhms | Quick Connect - 0.250" (6.3mm) | -30°C ~ 80°C | Module | CE, cURus, TUV | - | - |
|
|
DC60S5K-BSSR RELAY, PANEL MOUNT, 60VDC/5A |
0 |
|
برگه مشخصات |
DC60 | Bulk | Active | Chassis Mount | SPST-NO (1 Form A) | DC | 3.5 ~ 32VDC | 3 V ~ 48 V | 5 A | - | Screw Terminal | -30°C ~ 80°C | - | CE, cURus | - | - |
|
|
RS1A23A1-401-POLE PANEL MOUNT SSR, ZERO-CRO |
0 |
|
- |
RS1A | Bulk | Active | Chassis Mount | SPST-NO (1 Form A) | AC, Zero Cross | 110VAC | 0 V ~ 230 V | 40 A | - | Screw Terminal | -30°C ~ 70°C | - | CE, CSA, cURus, EAC, UKCA | - | - |
|
|
RS1A40D251-POLE PANEL MOUNT SSR, ZERO-CRO |
0 |
|
- |
RS1A | Bulk | Active | Chassis Mount | SPST-NO (1 Form A) | AC, Zero Cross | 4 ~ 32VDC | 0 V ~ 400 V | 25 A | - | Screw Terminal | -40°C ~ 80°C | - | CE, CSA, cURus, EAC | - | - |
|
|
PCS34-D-380A-50RLQSSR RELAY 50A 48~440VAC QUICK CO |
0 |
|
برگه مشخصات |
PCS34 | Tray | Active | Chassis Mount | SPST-NO (1 Form A) | AC | 4 ~ 32VDC | 48 V ~ 280 V | 50 A | - | Quick Connect - 0.187"/0.250" | -30°C ~ 80°C | Hockey Puck | cURus | - | - |
|
286-794SSR RELAY SPST-NO 100MA 20-60V |
0 |
|
برگه مشخصات |
286 | Box | Active | Socketable | SPST-NO (1 Form A) | DC | 24VDC | 20 V ~ 60 V | 100 mA | - | Plug In | -25°C ~ 60°C | - | EAC | - | - |
|
LR1200480D25HSSR RELAY SPST-NO 25A 48-530V |
0 |
|
برگه مشخصات |
LR | Bulk | Active | Chassis Mount | SPST-NO (1 Form A) | AC, Zero Cross | 4 ~ 32VDC | 48 V ~ 530 V | 25 A | - | Quick Connect - 0.250" (6.3mm) | -30°C ~ 80°C | Module | CE, cURus | - | - |
|
EZE240D12RSSSR RELAY SPST-NO 12A 24-280V |
0 |
|
برگه مشخصات |
EZ | Bulk | Active | Chassis Mount | SPST-NO (1 Form A) | AC | 15 ~ 32VDC | 24 V ~ 280 V | 12 A | - | Quick Connect - 0.250" (6.3mm) | -40°C ~ 80°C | - | CE, CSA, cURus, TUV | - | - |
|
ASR-SN240D125ZW-LUSSR RELAY SPST-NO 125A 24-280V |
0 |
|
برگه مشخصات |
SN | Box | Active | Chassis Mount | SPST-NO (1 Form A) | AC, Zero Cross | 3 ~ 32VDC | 24 V ~ 280 V | 125 A | - | Screw Terminal | -30°C ~ 80°C | - | CE, cURus | - | - |
|
|
ASR-SN240D125RW-LUSSR RELAY SPST-NO 125A 24-280V |
0 |
|
برگه مشخصات |
SN | Box | Active | Chassis Mount | SPST-NO (1 Form A) | AC | 3 ~ 32VDC | 24 V ~ 280 V | 125 A | - | Screw Terminal | -30°C ~ 80°C | - | CE, cURus | - | - |
|
|
ASR-SN480D125ZW-LSSR RELAY SPST-NO 125A 24-530V |
0 |
|
برگه مشخصات |
SN | Box | Active | Chassis Mount | SPST-NO (1 Form A) | AC, Zero Cross | 3 ~ 32VDC | 24 V ~ 530 V | 125 A | - | Screw Terminal | -30°C ~ 80°C | - | CE, cURus | - | - |
|
|
ASR-SN480D125RW-LSSR RELAY SPST-NO 125A 24-530V |
0 |
|
برگه مشخصات |
SN | Box | Active | Chassis Mount | SPST-NO (1 Form A) | AC | 3 ~ 32VDC | 24 V ~ 530 V | 125 A | - | Screw Terminal | -30°C ~ 80°C | - | CE, cURus | - | - |
|
|
8576380000SSR RELAY SPST-NO 1A 0-30V |
0 |
|
برگه مشخصات |
- | Bulk | Obsolete | Through Hole | SPST-NO (1 Form A) | AC, DC | 24VAC/DC | 0 V ~ 30 V | 1 A | - | PC Pin | -40°C ~ 50°C | - | - | - | - |
|
77.01.0.024.8050SSR RELAY SPST-NO 5A 48-265V |
0 |
|
برگه مشخصات |
77 | Bulk | Obsolete | DIN Rail | SPST-NO (1 Form A) | AC, Zero Cross | 24VAC/DC | 48 V ~ 265 V | 5 A | - | Screw Terminal | -20°C ~ 70°C | Module | CE, cULus, EAC, UKCA | - | - |
