بلندگوها
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | تکنولوژی | تایپ کنید | محدوده فرکانس | فرکانس - خود رزونانس | امپدانس | کارایی - dBA | کارایی - آزمایش | کارایی - نوع | قدرت - دارای رتبه | قدرت - حداکثر | موقعیت بندر | شکل | مواد - مخروط | مواد - آهنربا | حفاظت از ورود | رتبه بندی ها | فسخ | اندازه / ابعاد | ارتفاع - نشسته (حداکثر) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2236FRS 5 XWP 8 OHM |
0 |
|
برگه مشخصات |
- | Retail Package | Active | Magnetic | General Purpose | 120 Hz ~ 20 kHz | 190Hz | 8 Ohms | 86.00 | 1W/1M | Sound Pressure Level (SPL) | 5 W | 8 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | - | IP65 - Dust Tight, Water Resistant | - | Quick Connect | 1.969" Dia (50.00mm) | 1.319" (33.50mm) |
|
7000-253881SPEAKER |
0 |
|
- |
- | Tray | Active | - | General Purpose | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
CM-28431-000SPEAKER 30OHM TOP PORT 119DB |
0 |
|
- |
CM | Bulk | Obsolete | Magnetic | Receiver, Balanced Armature | 150 Hz ~ 6 kHz | - | 30 Ohms | 119.00 | - | - | - | - | Top | Round | - | - | - | - | Flex Contacts | 0.651" Dia (16.54mm) | 0.330" (8.38mm) |
|
|
VSR-32371-000SPEAKER RECEIVER |
0 |
|
- |
VSR | Bulk | Obsolete | - | - | - | - | - | - | - | Sound Pressure Level (SPL) | - | - | - | - | - | - | - | - | - | - | - |
|
TC5FC07-04SPEAKER 4.41OHM 5W TOP PT 83.6DB |
0 |
|
برگه مشخصات |
TC | Bulk | Active | Magnetic | Full Range | 200 Hz ~ 20 kHz | 145.74Hz | 4.41 Ohms | 83.60 | 1W/1M | Half Space Sensitivity | 5 W | - | Top | Round, Square Frame | Paper | Nd-Fe-B | - | - | Solder Eyelet(s) | 1.594" L x 1.594" W (40.50mm x 40.50mm) | 1.106" (28.10mm) |
|
|
2004FRS 8 8 OHM |
0 |
|
- |
- | Retail Package | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 120Hz | 8 Ohms | 82.00 | 1W/1M | Sound Pressure Level (SPL) | 30 W | - | Top | Round, Square Frame | - | - | - | - | Solder Eyelet(s) | 3.071" L x 3.071" W (78.00mm x 78.00mm) | 1.575" (40.00mm) |
|
|
2003FRS 8 4 OHM |
0 |
|
برگه مشخصات |
- | Retail Package | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 120Hz | 4 Ohms | 82.00 | 1W/1M | Sound Pressure Level (SPL) | 30 W | 50 W | Top | Round, Square Frame | - | - | - | - | Quick Connect | 3.071" L x 3.071" W (78.00mm x 78.00mm) | 1.575" (40.00mm) |
|
|
SR8850NWS-000SPEAKER 27.8OHM TOP PORT 114.5DB |
0 |
|
برگه مشخصات |
SR | Tray | Obsolete | Magnetic | Receiver, Balanced Armature | 100 Hz ~ 4.66 kHz | - | 27.8 Ohms | 114.50 | - | Sound Pressure Level (SPL) | - | - | Top | Round | - | - | - | - | Solder Pads | 0.348" Dia (8.84mm) | 0.197" (5.00mm) |
|
8028F 8 SC 8 OHM |
0 |
|
برگه مشخصات |
- | Retail Package | Active | Magnetic | General Purpose | 80 Hz ~ 15 kHz | 125Hz | 8 Ohms | 82.00 | 1W/1M | Sound Pressure Level (SPL) | 20 W | 30 W | Top | Round, Square Frame | - | - | - | - | Solder Eyelet(s) | 5.846" Dia x 3.091" L (148.50mm x 78.50mm) | 1.831" (46.50mm) |
|
BGC-D40-22-4-002SPEAKER 4OHM 5W TOP PORT 83DB |
0 |
|
برگه مشخصات |
- | Box | Obsolete | Magnetic | General Purpose | 10 Hz ~ 20 kHz | - | 4 Ohms | 83.00 | 500mm | Sound Pressure Level (SPL) | 5 W | 15 W | Top | Round | Glass Composite | Nd-Fe-B | - | - | Solder Eyelet | 1.567" Dia (39.80mm) | 0.866" (22.00mm) |
|
TC9FD15-16SPEAKR 14.51OHM 20W TOP 87.8DB |
0 |
|
برگه مشخصات |
TC | Bulk | Active | Magnetic | Full Range | 115 Hz ~ 20 kHz | 127.25Hz | 14.51 Ohms | 87.80 | 1W/1M | Half Space Sensitivity | 20 W | - | Top | Round, Square Frame | Paper | Ferrite | - | - | Solder Eyelet(s) | 3.297" L x 3.297" W (83.75mm x 83.75mm) | 1.541" (39.15mm) |
|

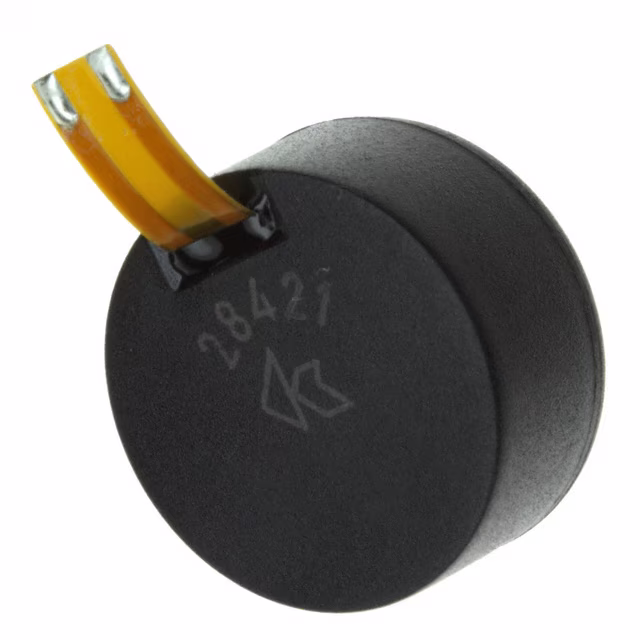

CM-28421-000SPEAKER 360OHM TOP PORT 106DB |
0 |
|
برگه مشخصات |
CM | Bulk | Obsolete | Magnetic | Receiver, Balanced Armature | 100 Hz ~ 5 kHz | - | 360 Ohms | 106.00 | - | - | - | - | Top | Round | - | - | - | - | Flex Contacts | 0.651" Dia (16.54mm) | 0.330" (8.38mm) |
|
|
2021FR 10 8 OHM |
0 |
|
برگه مشخصات |
- | Retail Package | Active | Magnetic | General Purpose | 80 Hz ~ 20 kHz | 90Hz | 8 Ohms | 86.00 | 1W/1M | Sound Pressure Level (SPL) | 30 W | 50 W | Top | Round | - | - | - | - | Quick Connect | - | - |
|
|
2020FR 10 4 OHM |
0 |
|
برگه مشخصات |
- | Retail Package | Active | Magnetic | General Purpose | 80 Hz ~ 20 kHz | 90Hz | 4 Ohms | 86.00 | 1W/1M | Sound Pressure Level (SPL) | 30 W | 50 W | Top | Round | - | - | - | - | Quick Connect | - | - |
|
2245BF 45 S 8 OHM |
0 |
|
- |
- | Retail Package | Active | Magnetic | General Purpose | 90 Hz ~ 20 kHz | 160Hz | 8 Ohms | 79.00 | 1W/1M | Sound Pressure Level (SPL) | 4 W | 8 W | Top | Round | Aluminum (AI) | - | - | - | Quick Connect | 2.402" Dia (61.00mm) | 1.024" (26.00mm) |
|
2246BF 45 S 4 OHM |
0 |
|
- |
- | Retail Package | Active | Magnetic | General Purpose | 90 Hz ~ 20 kHz | 160Hz | 4 Ohms | 79.00 | 1W/1M | Sound Pressure Level (SPL) | 4 W | 8 W | Top | Round | - | - | - | - | Quick Connect | - | 1.024" (26.00mm) |
|
|
2240BF 45 4 OHM |
0 |
|
- |
- | Retail Package | Active | - | General Purpose | 90 Hz ~ 20 kHz | 158Hz | 4 Ohms | 79.00 | 1W/1M | Sound Pressure Level (SPL) | 4 W | 8 W | Top | Round | - | - | - | - | Quick Connect | 1.772" Dia (45.00mm) | 1.024" (26.00mm) |
|
|
2241BF 45 8 OHM |
0 |
|
- |
- | Retail Package | Active | Magnetic | General Purpose | 90 Hz ~ 20 kHz | 160Hz | 8 Ohms | 79.00 | 1W/1M | Sound Pressure Level (SPL) | 4 W | 8 W | Top | Round | Aluminum (AI) | - | - | - | Quick Connect | 2.402" Dia (61.00mm) | 1.024" (26.00mm) |
|
RVA-90120-N04SPEAKER |
0 |
|
- |
RVA-90120-NXX | Tray | Active | - | General Purpose | - | - | - | - | - | - | - | - | Free Hanging | - | - | - | - | - | - | - | - |
|
RVA-90120-N05SPEAKER |
0 |
|
- |
RVA-90120-NXX | Tray | Active | - | General Purpose | - | - | - | - | - | - | - | - | Free Hanging | - | - | - | - | - | - | - | - |
