| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | نوع نصب | تایپ کنید | برنامه های کاربردی | ترکیب | مقاومت | تحمل | توان (وات) | ضریب دما | دمای عملیاتی | امپدانس |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

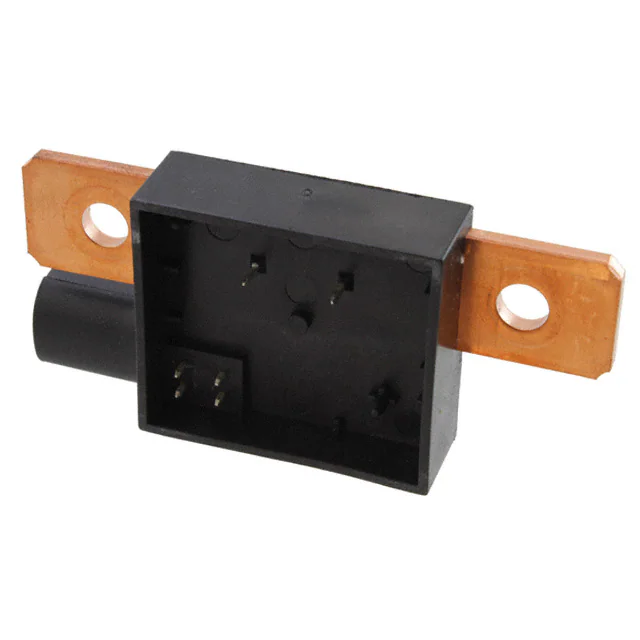

WSBM8518L0500JTRESISTOR SHUNT 50 UOHM 5% 36W |
0 |
|
برگه مشخصات |
Power Metal Strip® | Tray | Obsolete | Shunt, Battery | - | Metal Element | 50 µOhms | - | ±5% | 36W | ±200ppm/°C | -65°C ~ 170°C | Shunt Fixture, 60mm Pitch |
|
BAV-M-R00005-V02-5.0RESISTOR - BUS BAR SHUNT WITH 9. |
0 |
|
برگه مشخصات |
BAV | Tray | Active | Shunt, Battery | Automotive AEC-Q200 | Metal Element | 50 µOhms | - | ±5% | 36W | 0/ +100ppm/°C | -40°C ~ 170°C | Shunt Fixture, 60mm Pitch |
|
|
BAV-M-R00005-V03-5.0RESISTOR - BUS BAR SHUNT WITH 8. |
0 |
|
برگه مشخصات |
BAV | Tray | Active | Shunt, Battery | Automotive AEC-Q200 | Metal Element | 50 µOhms | - | ±5% | 36W | 0/ +100ppm/°C | -40°C ~ 170°C | Shunt Fixture, 60mm Pitch |
|
|
CSM2F-8536-L025J31RES SHUNT 8536 25 UOHM 36W 3P |
0 |
|
برگه مشخصات |
CSM2F-8536 | Tray | Active | - | Automotive AEC-Q200 | - | 25 µOhms | - | ±5% | 50W | ±150ppm/°C | -40°C ~ 170°C | Through Hole |
|
|
KABR300 15R JMETAL CLAD BRAKING RESISTOR 300W |
0 |
|
برگه مشخصات |
KABR | Box | Active | Bleeder, Capacitor | - | Wirewound | 15 Ohms | - | ±5% | 300W | ±200ppm/°C | -25°C ~ 250°C | Screw Mount |
|
|
KABR300 47R JMETAL CLAD BRAKING RESISTOR 300W |
0 |
|
برگه مشخصات |
KABR | Box | Active | Bleeder, Capacitor | - | Wirewound | 47 Ohms | - | ±5% | 300W | ±200ppm/°C | -25°C ~ 250°C | Screw Mount |
|
|
KABR300 3R3 JMETAL CLAD BRAKING RESISTOR 300W |
0 |
|
برگه مشخصات |
KABR | Box | Active | Bleeder, Capacitor | - | Wirewound | 3.3 Ohms | - | ±5% | 300W | ±200ppm/°C | -25°C ~ 250°C | Screw Mount |
|
|
KABR300 220R JMETAL CLAD BRAKING RESISTOR 300W |
0 |
|
برگه مشخصات |
KABR | Box | Active | Bleeder, Capacitor | - | Wirewound | 220 Ohms | - | ±5% | 300W | ±200ppm/°C | -25°C ~ 250°C | Screw Mount |
|
|
KABR300 2R2 JMETAL CLAD BRAKING RESISTOR 300W |
0 |
|
برگه مشخصات |
KABR | Box | Active | Bleeder, Capacitor | - | Wirewound | 2.2 Ohms | - | ±5% | 300W | ±200ppm/°C | -25°C ~ 250°C | Screw Mount |
|
|
KABR300 1R5 JMETAL CLAD BRAKING RESISTOR 300W |
0 |
|
برگه مشخصات |
KABR | Box | Active | Bleeder, Capacitor | - | Wirewound | 1.5 Ohms | - | ±5% | 300W | ±200ppm/°C | -25°C ~ 250°C | Screw Mount |
|
|
KABR300 33R JMETAL CLAD BRAKING RESISTOR 300W |
0 |
|
برگه مشخصات |
KABR | Box | Active | Bleeder, Capacitor | - | Wirewound | 33 Ohms | - | ±5% | 300W | ±200ppm/°C | -25°C ~ 250°C | Screw Mount |
|
|
BAC-M-R00005-5.0-NIRESISTOR - BUS BAR SHUNT WITH PC |
0 |
|
برگه مشخصات |
BAC | Tray | Active | Shunt, Battery | - | - | 50 µOhms | - | ±5% | 15W | ±150ppm/°C | -10°C ~ 125°C | Shunt Fixture, 60mm Pitch |
|
|
BAV-Z-R000035-V02-10.0RESISTOR - BUS BAR SHUNT WITH 9. |
0 |
|
برگه مشخصات |
BAV | Tray | Active | Shunt, Battery | Automotive AEC-Q200 | Metal Element | 35 µOhms | - | ±10% | 36W | 75/ +175ppm/°C | -40°C ~ 170°C | Shunt Fixture, 60mm Pitch |
|
|
BAV-Z-R000035-V03-10.0RESISTOR - BUS BAR SHUNT WITH 8. |
0 |
|
برگه مشخصات |
BAV | Tray | Active | Shunt, Battery | Automotive AEC-Q200 | Metal Element | 35 µOhms | - | ±10% | 36W | 75/ +175ppm/°C | -40°C ~ 170°C | Shunt Fixture, 60mm Pitch |
|
|
CSM2F-8536-L025J32RES SHUNT 8536 25 UOHM 36W 3P |
0 |
|
برگه مشخصات |
CSM2F-8536 | Tray | Active | Shunt, Battery | Automotive AEC-Q200 | - | 25 µOhms | - | ±5% | 50W | ±200ppm/°C | -40°C ~ 170°C | Through Hole |
|
|
CSM2F-7036-L050JT1CURRENTSENSESHUNT 7036 |
0 |
|
برگه مشخصات |
CSM2F-7036 | Tray | Active | Shunt, Battery | Automotive AEC-Q200 | - | 50 µOhms | - | ±5% | 50W | - | -40°C ~ 170°C | Surface Mount |
|
|
CSM2F-8536-L025J20RES SHUNT 8536 25 UOHM 36W 2P |
0 |
|
برگه مشخصات |
CSM2F-8536 | Tray | Active | Shunt, Battery | Automotive AEC-Q200 | - | 25 µOhms | - | ±5% | 50W | ±100ppm/°C | -40°C ~ 170°C | Through Hole |
|
|
CSM2F-8536-L025J21RES SHUNT 8536 25 UOHM 36W 2P |
0 |
|
برگه مشخصات |
CSM2F-8536 | Tray | Active | - | Automotive AEC-Q200 | - | 25 µOhms | - | ±5% | 50W | ±150ppm/°C | -40°C ~ 170°C | Through Hole |
|
|
CSM2F-8536-L025J22RES SHUNT 8536 25 UOHM 36W 2P |
0 |
|
برگه مشخصات |
CSM2F-8536 | Tray | Active | Shunt, Battery | Automotive AEC-Q200 | - | 25 µOhms | - | ±5% | 50W | ±200ppm/°C | -40°C ~ 170°C | Through Hole |
|
|
CSM2F-7036-L100J32RES SHUNT 7036 100 UOHM 36W 3P |
0 |
|
برگه مشخصات |
CSM2F-7036 | Tray | Active | Shunt, Battery | Automotive AEC-Q200 | - | 100 µOhms | - | ±5% | 50W | ±150ppm/°C | -40°C ~ 170°C | Through Hole |
