سینک های حرارتی
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | تایپ کنید | بسته خنک شده | روش پیوست | شکل | طول | عرض | قطر | ارتفاع باله | اتلاف نیرو @ افزایش دما | مقاومت حرارتی @ جریان هوای اجباری | مقاومت حرارتی @ طبیعی | مواد | پایان مواد |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

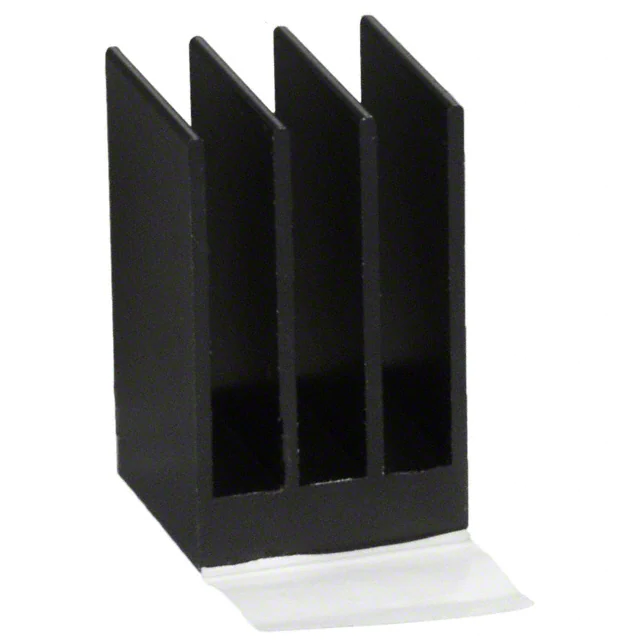

ATS-54150W-C1-R0HEAT SINK 15MM X 15MM X 24.5MM |
401 |
|
برگه مشخصات |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Fins | 0.591" (15.00mm) | 0.591" (15.00mm) | - | 0.965" (24.50mm) | - | 10.50°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
581202B02500GHEATSINK TO-220 2.5W BLK W/PINS |
833 |
|
برگه مشخصات |
- | Bulk | Active | Board Level, Vertical | TO-220 | Bolt On and PC Pin | Rectangular, Fins | 2.000" (50.80mm) | 0.640" (16.26mm) | - | 0.640" (16.26mm) | 1.5W @ 20°C | 4.00°C/W @ 300 LFM | 12.80°C/W | Aluminum | Black Anodized |
|
|
ATS060060025-SF-16XHEATSINK 60X60X25MM |
105 |
|
برگه مشخصات |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Not Included) | Square, Fins | 2.362" (60.00mm) | 2.362" (60.00mm) | - | 0.984" (25.00mm) | - | 1.75°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|

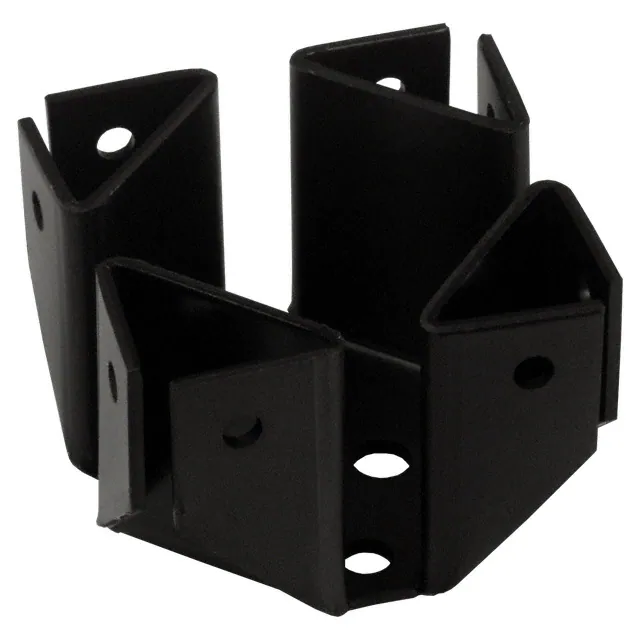

569003B00000GCOOLER FOR TO-3 20 WATTS |
647 |
|
برگه مشخصات |
- | Tray | Active | Board Level | TO-3 | Bolt On | Square, Pin Fins | 1.830" (46.48mm) | 1.830" (46.48mm) | - | 1.310" (33.27mm) | 12.0W @ 60°C | 1.50°C/W @ 500 LFM | 5.50°C/W | Aluminum | Black Anodized |
|
ATS-54350W-C1-R0HEAT SINK 35MM X 35MM X 24.5MM |
133 |
|
برگه مشخصات |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 0.965" (24.50mm) | - | 2.90°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|

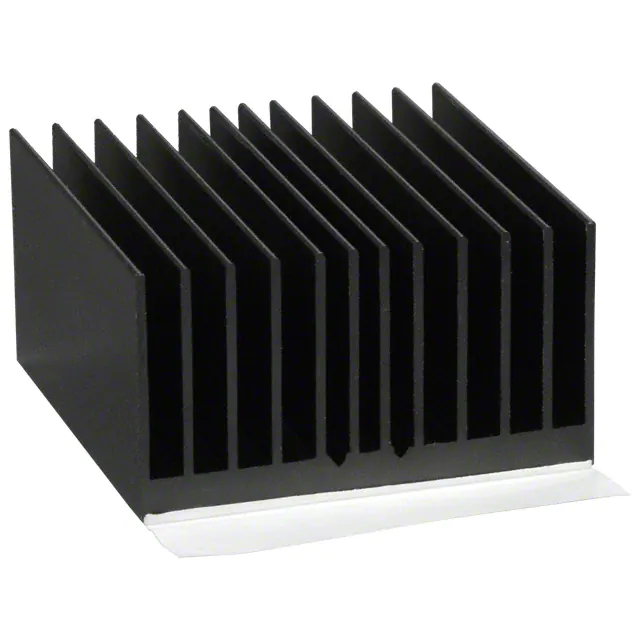

ATS-54450W-C1-R0HEAT SINK 45MM X 45MM X 24.5MM |
168 |
|
برگه مشخصات |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.965" (24.50mm) | - | 2.10°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|

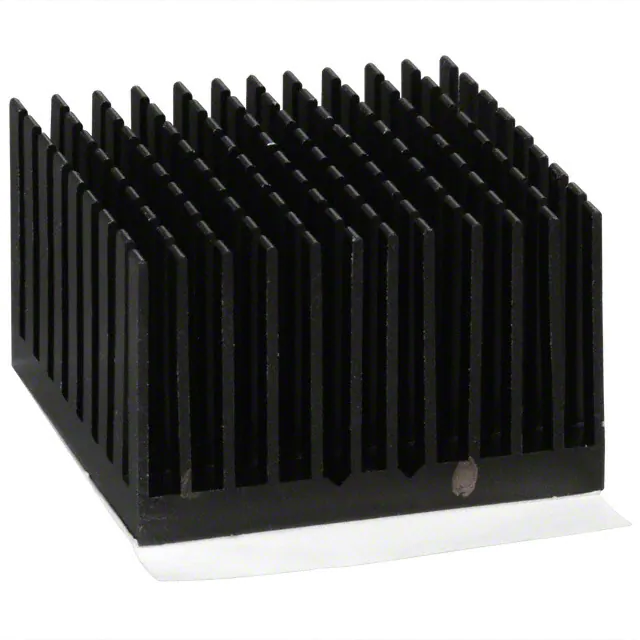

ATS-55400W-C1-R0HEAT SINK 40MM X 40MM X 24.5MM |
243 |
|
برگه مشخصات |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Pin Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.965" (24.50mm) | - | 2.60°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-60000-C1-R0HEAT SINK 25.2MM X 25.2MM X 4MM |
1,426 |
|
برگه مشخصات |
blueICE | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Angled Fins | 0.992" (25.20mm) | 0.992" (25.20mm) | - | 0.157" (4.00mm) | - | 14.80°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|

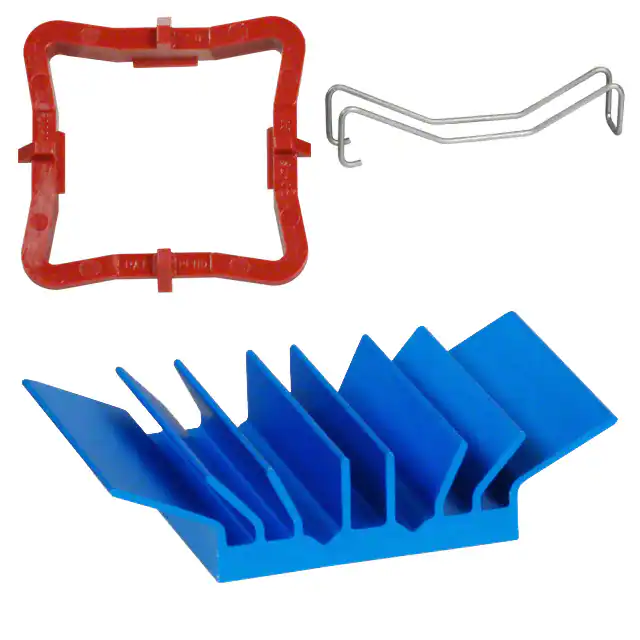

ATS-50230B-C1-R0HEAT SINK 23MM X 23MM X 7.5MM |
144 |
|
برگه مشخصات |
maxiGRIP, maxiFLOW | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Angled Fins | 0.900" (23.00mm) | 0.906" (23.01mm) | - | 0.295" (7.50mm) | - | 10.90°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|

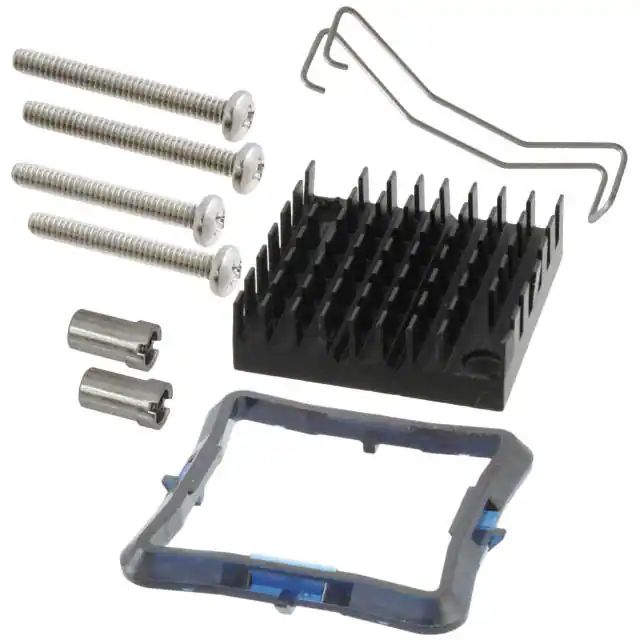

ATS-61310D-C1-R0MAXIGRIP FANSINK 31X31X9.5MM |
1,319 |
|
برگه مشخصات |
fanSINK, maxiGRIP | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Pin Fins | 1.220" (30.99mm) | 1.220" (30.99mm) | - | 0.374" (9.50mm) | - | 2.90°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
641AHEATSINK TO-3 PWR HORZ MT BLK |
216 |
|
برگه مشخصات |
641 | Bulk | Active | Board Level | TO-3 | Bolt On | Rectangular, Angled Fins | 3.000" (76.20mm) | 4.125" (104.77mm) | - | 1.000" (25.40mm) | 15.0W @ 36°C | 0.90°C/W @ 250 LFM | 2.40°C/W | Aluminum | Black Anodized |
|
ATS-61350D-C1-R0MAXIGRIP FANSINK 35X35X9.5MM |
350 |
|
برگه مشخصات |
fanSINK, maxiGRIP | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Pin Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 0.374" (9.50mm) | - | 2.60°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-EXL59-300-R0HEATSINK AL6063 300X14X16MM |
560 |
|
برگه مشخصات |
- | Bulk | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 11.811" (300.00mm) | 0.551" (14.00mm) | - | 0.630" (16.00mm) | - | 11.00°C/W @ 200 LFM | 38.00°C/W | Aluminum | Degreased |
|

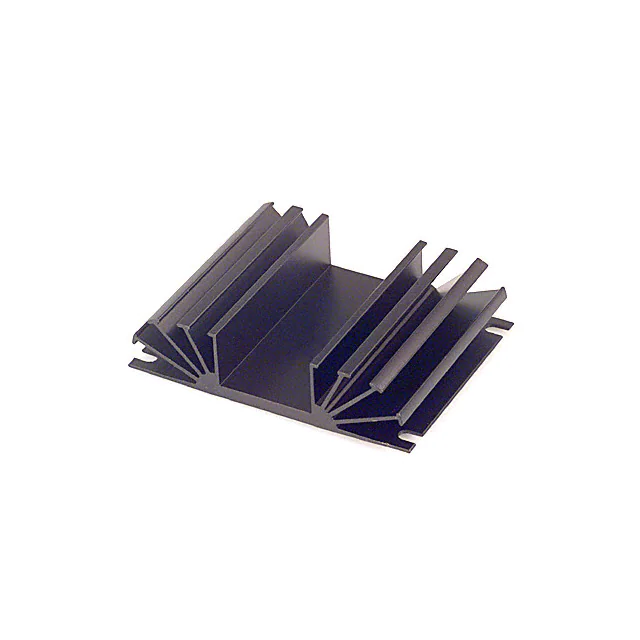

641KHEATSINK TO-3 HORZ MT NO HOLES |
371 |
|
برگه مشخصات |
641 | Bulk | Active | Board Level | TO-3 | Press Fit | Rectangular, Angled Fins | 3.000" (76.20mm) | 4.125" (104.77mm) | - | 1.000" (25.40mm) | 15.0W @ 36°C | 0.90°C/W @ 250 LFM | 2.40°C/W | Aluminum | Black Anodized |
|
114991371RASPBERRY PI COOLING DUAL FAN |
171 |
|
برگه مشخصات |
- | Bulk | Active | Board Level | Raspberry Pi 2, 3, B+ | Thermal Tape, Adhesive (Included) | Rectangular | 2.205" (56.00mm) | 0.985" (25.00mm) | - | 0.590" (15.00mm) | - | - | - | Aluminum | - |
|

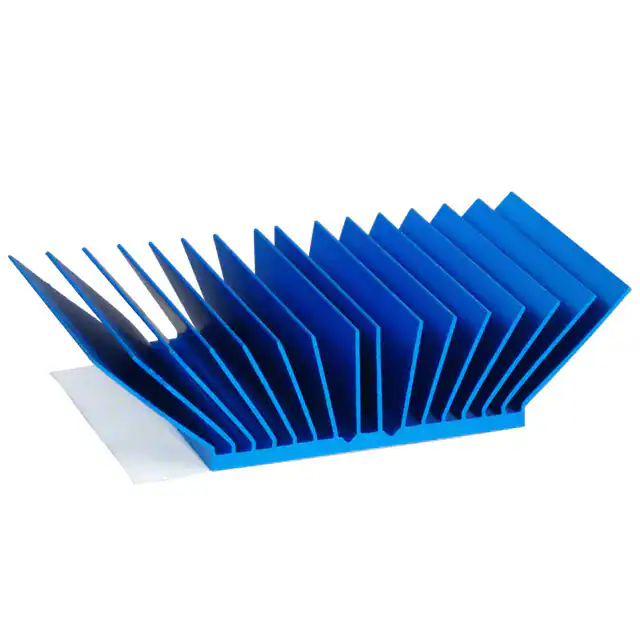

ATS-52450P-C1-R0HEAT SINK 45MM X 45MM X 17.5MM |
795 |
|
برگه مشخصات |
maxiFLOW | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Angled Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.689" (17.50mm) | - | 1.60°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|
403KHEATSINK POWER TO-3 |
130 |
|
برگه مشخصات |
403 | Bulk | Active | Board Level, Extrusion | TO-3 | Press Fit | Rectangular, Fins | 3.000" (76.20mm) | 4.750" (120.65mm) | - | 1.250" (31.75mm) | 30.0W @ 55°C | 0.90°C/W @ 250 LFM | - | Aluminum | Black Anodized |
|
FHS-A7015S6177X68X38MM, AMD AM2/AM2+/AM3/AM3 |
215 |
|
برگه مشخصات |
FHS | Box | Not For New Designs | Board Level | AMD CPU Cooler | Bolt On and Clip | Rectangular, Fins | 3.031" (77.00mm) | 2.677" (68.00mm) | - | 1.929" (49.00mm) | - | - | 0.31°C/W | Aluminum | - |
|

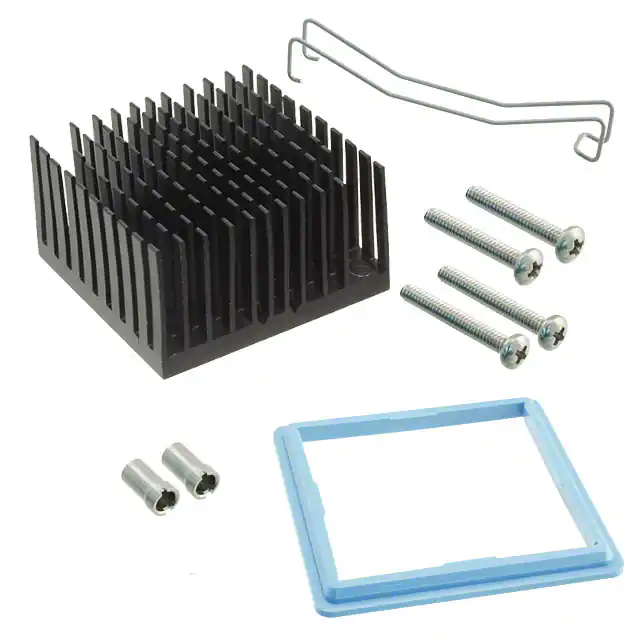

ATS-61450W-C2-R0MAXIGRIP FANSINK 45X45X24.5MM |
864 |
|
برگه مشخصات |
fanSINK, maxiGRIP | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Pin Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.965" (24.50mm) | - | 1.10°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-56003-C1-R0HEAT SINK 15MM X 15MM X 9MM |
243 |
|
برگه مشخصات |
maxiFLOW | Bulk | Active | Top Mount | ASIC | Thermal Tape, Adhesive (Included) | Square, Angled Fins | 0.591" (15.00mm) | 0.591" (15.00mm) | - | 0.354" (9.00mm) | - | 12.00°C/W @ 200 LFM | - | Aluminum | Black Anodized |
