سینک های حرارتی
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | تایپ کنید | بسته خنک شده | روش پیوست | شکل | طول | عرض | قطر | ارتفاع باله | اتلاف نیرو @ افزایش دما | مقاومت حرارتی @ جریان هوای اجباری | مقاومت حرارتی @ طبیعی | مواد | پایان مواد |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ATS-55150D-C3-R0HEAT SINK 15MM X 15MM X 9.5MM |
172 |
|
- |
maxiFLOW | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Not Included) | Square, Angled Fins | 0.591" (15.00mm) | 0.591" (15.00mm) | - | 0.374" (9.50mm) | - | 29.50°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-54210D-C1-R0HEAT SINK 21MM X 21MM X 9.5MM |
336 |
|
برگه مشخصات |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Fins | 0.827" (21.00mm) | 0.827" (21.00mm) | - | 0.374" (9.50mm) | 0.3W @ 20°C | 20.20°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
901-19-2-23-2-B-0HEATSINK 19X19X23MM PIN |
406 |
|
برگه مشخصات |
901 | Box | Active | Top Mount | BGA | Push Pin | Square, Pin Fins | 0.748" (19.00mm) | 0.748" (19.00mm) | - | 0.892" (22.65mm) | - | 5.40°C/W @ 200 LFM | 10.60°C/W | Aluminum | Black Anodized |
|
901-19-1-23-2-B-0HEATSINK 19X19X23MM ELLIPTICAL |
203 |
|
برگه مشخصات |
901 | Box | Active | Top Mount | BGA | Push Pin | Square, Pin Fins | 0.748" (19.00mm) | 0.748" (19.00mm) | - | 0.892" (22.65mm) | - | 4.90°C/W @ 200 LFM | 12.00°C/W | Aluminum | Black Anodized |
|

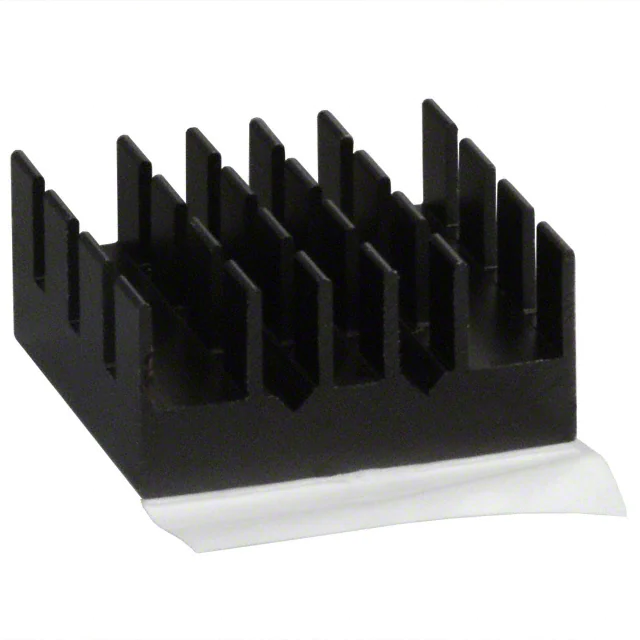

ATS-55210D-C1-R0HEAT SINK 21MM X 21MM X 9.5MM |
110 |
|
برگه مشخصات |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Fins | 0.827" (21.00mm) | 0.827" (21.00mm) | - | 0.374" (9.50mm) | - | 21.90°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
7138DGBOARD LEVEL HEAT SINK |
1,381 |
|
برگه مشخصات |
- | Bulk | Active | Board Level, Vertical | TO-220 | Clip and PC Pin | Rectangular, Fins | 1.025" (26.04mm) | 1.005" (25.53mm) | - | 0.610" (15.49mm) | 1.5W @ 40°C | 5.00°C/W @ 500 LFM | 20.00°C/W | Copper | Tin |
|
902-21-2-23-2-B-0HEATSINK 21X21X23MM PIN |
128 |
|
برگه مشخصات |
902 | Box | Active | Top Mount | BGA | Push Pin | Square, Pin Fins | 0.827" (21.00mm) | 0.827" (21.00mm) | - | 0.892" (22.65mm) | - | 4.30°C/W @ 200 LFM | 11.60°C/W | Aluminum | Black Anodized |
|

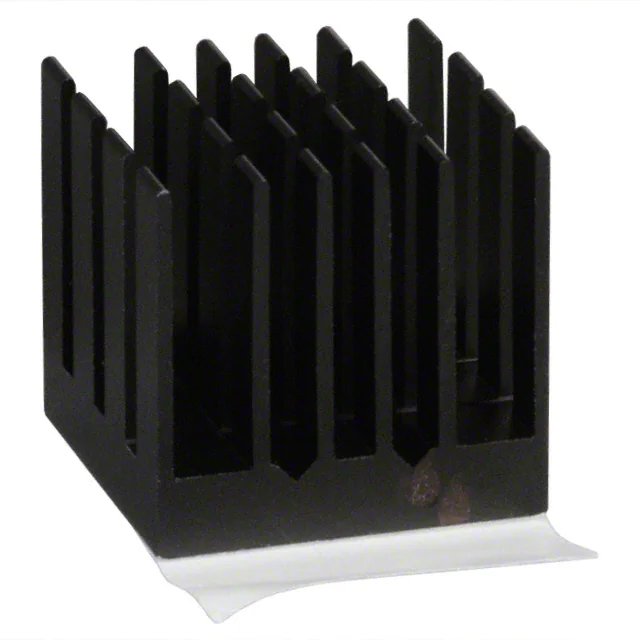

ATS-55210R-C1-R0HEAT SINK 21MM X 21MM X 19.5MM |
370 |
|
برگه مشخصات |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Fins | 0.827" (21.00mm) | 0.827" (21.00mm) | - | 0.768" (19.50mm) | - | 8.40°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|

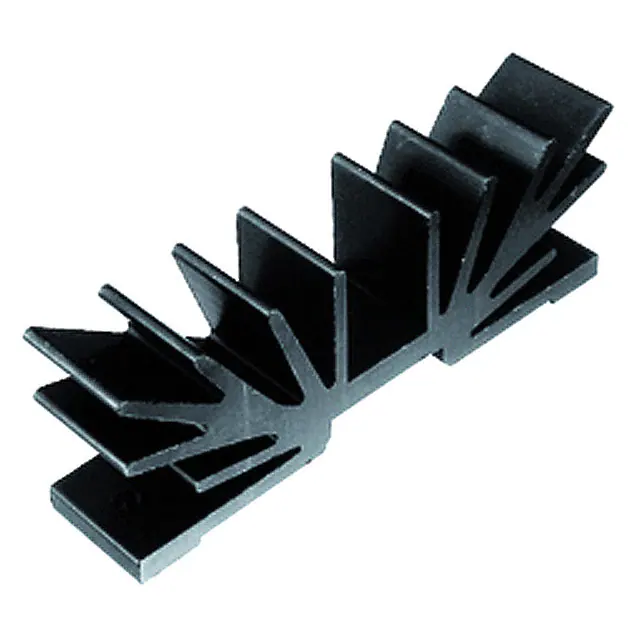

V5512WHEATSINK ALUM ANOD |
811 |
|
برگه مشخصات |
- | Bulk | Active | Board Level | TO-220, TOP-3 | Bolt On | Rectangular, Fins | 0.591" (15.00mm) | 2.756" (70.00mm) | - | 0.984" (25.00mm) | - | - | 5.00°C/W | Aluminum | Black Anodized |
|

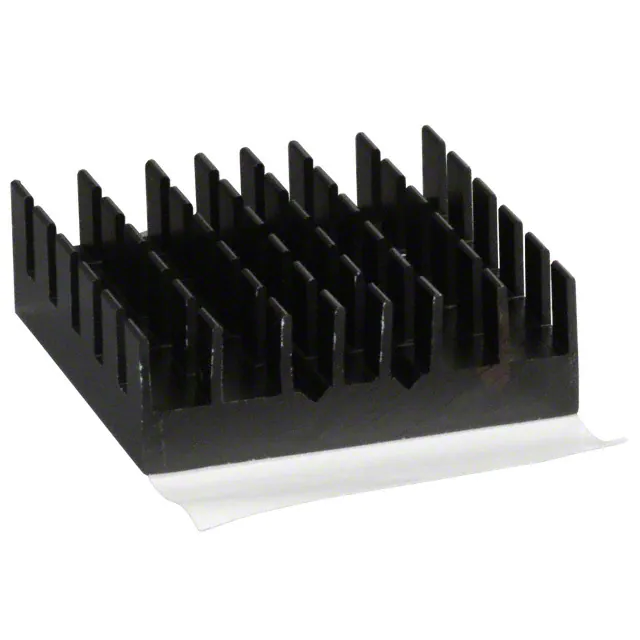

ATS-55290D-C1-R0HEAT SINK 29MM X 29MM X 9.5MM |
133 |
|
برگه مشخصات |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Pin Fins | 1.142" (29.00mm) | 1.142" (29.00mm) | - | 0.374" (9.50mm) | - | 14.50°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-55300D-C1-R0HEAT SINK 30MM X 30MM X 9.5MM |
249 |
|
برگه مشخصات |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Pin Fins | 1.181" (30.00mm) | 1.181" (30.00mm) | - | 0.374" (9.50mm) | - | 14.00°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-52250G-C1-R0HEAT SINK 25MM X 25MM X 12.5MM |
1,187 |
|
برگه مشخصات |
maxiFLOW | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Angled Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 0.492" (12.50mm) | - | 5.20°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|
960-31-33-D-AB-0HEATSINK 31X33MM DIA PUSH PIN |
756 |
|
برگه مشخصات |
960 | Box | Active | Top Mount | BGA | Push Pin | Square, Pin Fins | 1.220" (31.00mm) | 1.220" (31.00mm) | - | 1.299" (33.00mm) | - | 2.00°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-54150K-C0-R0HEATSINK 15X15X14.5MM W/OUT TIM |
600 |
|
- |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Not Included) | Square, Fins | 0.591" (15.00mm) | 0.591" (15.00mm) | - | 0.571" (14.50mm) | - | 19.10°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
|
904-27-2-23-2-B-0HEATSINK 27X27X23MM PIN |
636 |
|
برگه مشخصات |
904 | Box | Active | Top Mount | BGA | Push Pin | Square, Pin Fins | 1.063" (27.00mm) | 1.063" (27.00mm) | - | 0.892" (22.65mm) | - | 3.20°C/W @ 200 LFM | 10.60°C/W | Aluminum | Black Anodized |
|

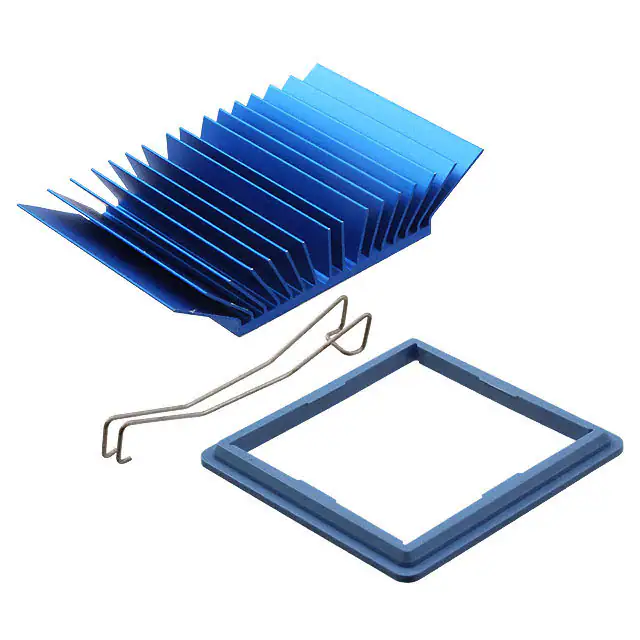

ATS-50450G-C3-R0HEAT SINK T766 |
665 |
|
برگه مشخصات |
maxiGRIP, maxiFLOW | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Angled Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.492" (12.50mm) | - | 2.10°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|
ATS-52450G-C1-R0HEAT SINK 45MM X 45MM X 12.5MM |
1,202 |
|
برگه مشخصات |
maxiFLOW | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Angled Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.492" (12.50mm) | - | 2.10°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|
ATS-54300K-C1-R0HEAT SINK 30MM X 30MM X 14.5MM |
180 |
|
برگه مشخصات |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Fins | 1.181" (30.00mm) | 1.181" (30.00mm) | - | 0.571" (14.50mm) | - | 6.90°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|

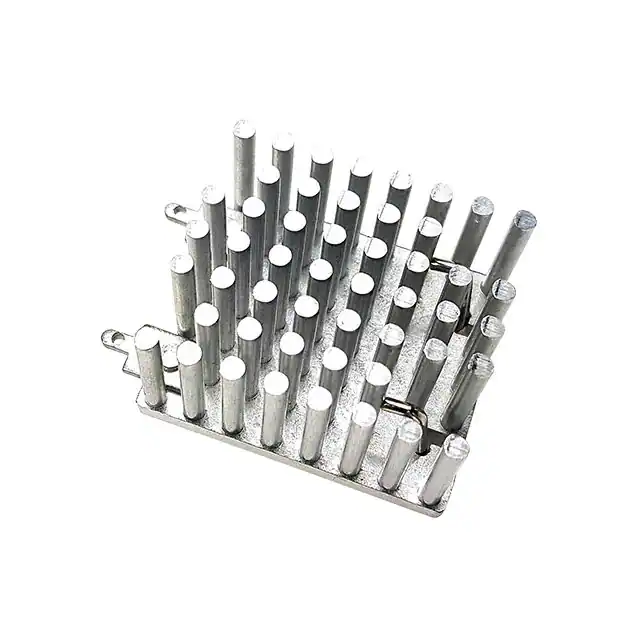

PV-T2X-38EPIN FIN HEATSINK |
242 |
|
برگه مشخصات |
P | Box | Active | Board Level, Vertical | TO-220, TO-247, TO-264 | Clip and PC Pin | Rectangular, Pin Fins | 1.180" (29.97mm) | 0.690" (17.53mm) | - | 1.500" (38.10mm) | - | - | 8.07°C/W | Aluminum | Degreased |
|

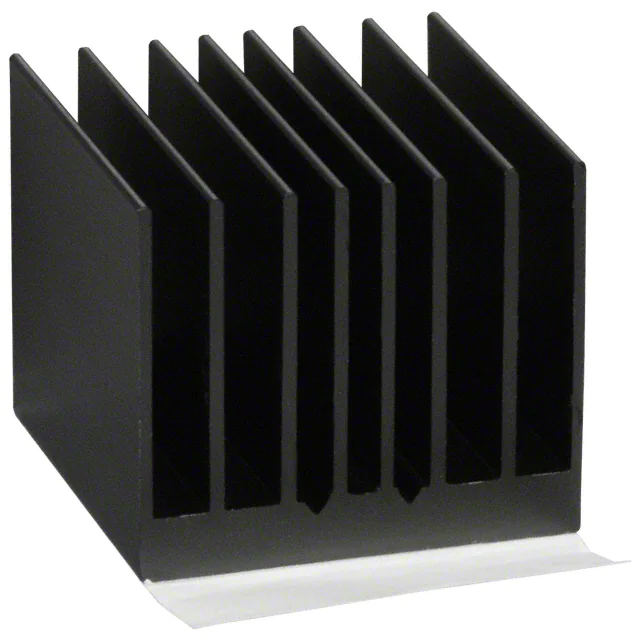

ATS-54290W-C1-R0HEAT SINK 29MM X 29MM X 24.5MM |
174 |
|
برگه مشخصات |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Fins | 1.142" (29.00mm) | 1.142" (29.00mm) | - | 0.965" (24.50mm) | - | 3.80°C/W @ 200 LFM | - | Aluminum | Black Anodized |
