سینک های حرارتی
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | تایپ کنید | بسته خنک شده | روش پیوست | شکل | طول | عرض | قطر | ارتفاع باله | اتلاف نیرو @ افزایش دما | مقاومت حرارتی @ جریان هوای اجباری | مقاومت حرارتی @ طبیعی | مواد | پایان مواد |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
SK 673 1000 SAExtruded Heatsink |
1,000 |
|
- |
SK 673 | Bulk | Active | Board Level, Extrusion | - | - | Rectangular | 39.370" (1000.00mm) | 19.685" (500.00mm) | - | 3.307" (84.00mm) | 381.82W @ 105°C | 0.085°C/W | 0.275°C/W | Aluminum | Black Anodized |
|
|
SK 161 600 SAExtruded Heatsink |
1,000 |
|
- |
SK 161 | Bulk | Active | Board Level, Extrusion | - | - | Rectangular | 23.622" (600.00mm) | 23.622" (600.00mm) | - | 3.287" (83.50mm) | 512.2W @ 105°C | 0.07°C/W | 0.205°C/W | Aluminum | Black Anodized |
|
|
SK 161 600 MEExtruded Heatsink |
1,000 |
|
- |
SK 161 | Bulk | Active | Board Level, Extrusion | - | - | Rectangular | 23.622" (600.00mm) | 23.622" (600.00mm) | - | 3.287" (83.50mm) | 464.6W @ 105°C | 0.07°C/W | 0.226°C/W | Aluminum | Natural Anodized |
|
|
SK 540 600 MEExtruded Heatsink |
1,000 |
|
- |
SK 540 | Bulk | Active | Board Level, Extrusion | - | - | Rectangular | 23.622" (600.00mm) | 29.528" (750.00mm) | - | 3.346" (85.00mm) | 636.36W @ 105°C | 0.047°C/W | 0.165°C/W | Aluminum | Natural Anodized |
|
|
SK 540 600 SAExtruded Heatsink |
1,000 |
|
- |
SK 540 | Bulk | Active | Board Level, Extrusion | - | - | Rectangular | 23.622" (600.00mm) | 29.528" (750.00mm) | - | 3.346" (85.00mm) | 700W @ 105°C | 0.047°C/W | 0.150°C/W | Aluminum | Black Anodized |
|
|
SK 162 600 SAExtruded Heatsink |
1,000 |
|
- |
SK 162 | Bulk | Active | Board Level, Extrusion | - | - | Rectangular | 23.622" (600.00mm) | 29.528" (750.00mm) | - | 3.287" (83.50mm) | 583.33W @ 105°C | 0.06°C/W | 0.18°C/W | Aluminum | Black Anodized |
|
|
SK 162 600 MEExtruded Heatsink |
1,000 |
|
- |
SK 162 | Bulk | Active | Board Level, Extrusion | - | - | Rectangular | 23.622" (600.00mm) | 29.528" (750.00mm) | - | 3.287" (83.50mm) | 530.3W @ 105°C | 0.06°C/W | 0.198°C/W | Aluminum | Natural Anodized |
|

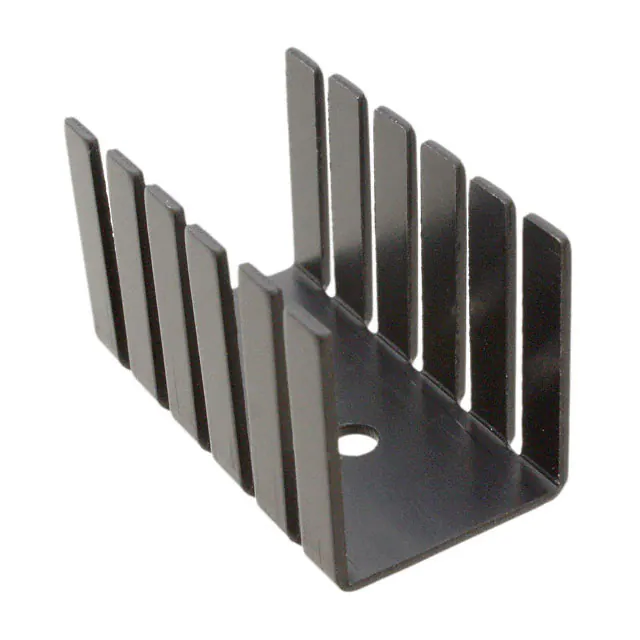

V2006BHEATSINK TO-220 36.83X17.80MM |
892 |
|
برگه مشخصات |
- | Bulk | Active | Board Level | TO-220 | Bolt On | Rectangular, Fins | 1.450" (36.83mm) | 0.700" (17.78mm) | - | 0.850" (21.60mm) | - | - | 7.00°C/W | Aluminum | Black Anodized |
|
658-60ABT4EHEATSINK CPU 27.9MM SQ W/ADH BLK |
83 |
|
برگه مشخصات |
658 | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Pin Fins | 1.100" (27.94mm) | 1.100" (27.94mm) | - | 0.598" (15.20mm) | 2.5W @ 30°C | 2.00°C/W @ 500 LFM | - | Aluminum | Black Anodized |
|
904-27-2-12-2-B-0HEATSINK 27X27X12MM PIN |
58 |
|
برگه مشخصات |
904 | Box | Active | Top Mount | BGA | Push Pin | Square, Pin Fins | 1.063" (27.00mm) | 1.063" (27.00mm) | - | 0.457" (11.60mm) | - | 4.30°C/W @ 200 LFM | 12.90°C/W | Aluminum | Black Anodized |
|

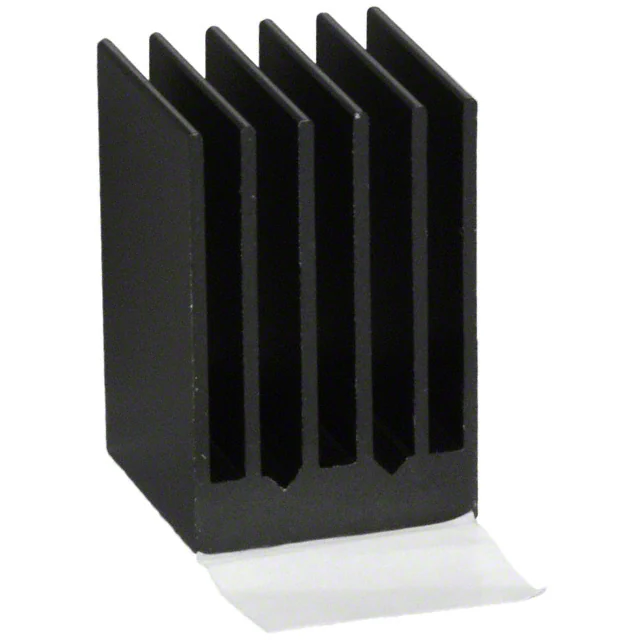

ATS-54170W-C1-R0HEAT SINK 17MM X 17MM X 24.5MM |
14 |
|
برگه مشخصات |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Fins | 0.669" (17.00mm) | 0.669" (17.00mm) | - | 0.965" (24.50mm) | - | 7.10°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-52270P-C1-R0HEAT SINK 27MM X 27MM X 17.5MM |
59 |
|
برگه مشخصات |
maxiFLOW | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Angled Fins | 1.063" (27.00mm) | 1.063" (27.00mm) | - | 0.689" (17.50mm) | - | 3.70°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|
MA-302-55EHEATSINK FOR TO-247 TO-264 |
10 |
|
برگه مشخصات |
M | Box | Active | Top Mount | TO-247, TO-264 | Clip and PC Pin | Rectangular, Fins | 2.170" (55.12mm) | 2.200" (55.88mm) | - | 1.712" (43.48mm) | 5.0W @ 20°C | 1.00°C/W @ 300 LFM | - | Aluminum | Black Anodized |
|

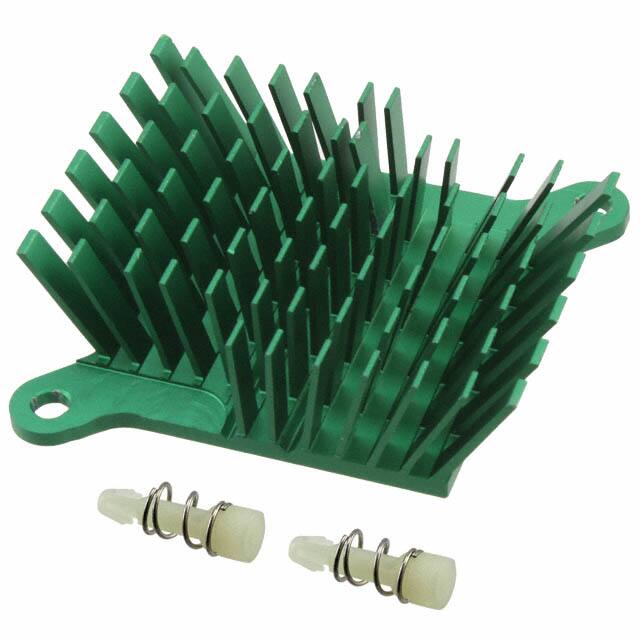

ATS-1039-C1-R0HEATSINK 40X38X15MM NYLONPUSHPIN |
156 |
|
برگه مشخصات |
maxiFLOW | Bulk | Active | Top Mount | BGA | Push Pin | Rectangular, Angled Fins | 1.575" (40.00mm) | 1.500" (38.10mm) | - | 0.590" (15.00mm) | - | 2.50°C/W @ 300 LFM | - | Aluminum | Green Anodized |
|
ATS-X50230G-C1-R0SUPERGRIP HEATSINK 23X23X12.5MM |
100 |
|
برگه مشخصات |
maxiFLOW, superGRIP™ | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Angled Fins | 0.900" (23.00mm) | 0.906" (23.01mm) | - | 0.492" (12.50mm) | - | 6.70°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|
1277094.00" WIDE X 12" FLATBACK HEATSI |
29 |
|
برگه مشخصات |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 12.000" (304.80mm) | 4.000" (101.60mm) | - | 1.395" (35.43mm) | - | - | 0.85°C/W | Aluminum | - |
|
394-2ABHEATSINK 5.5X1.5X5" SSR/IGBT |
45 |
|
برگه مشخصات |
394 | Bulk | Active | Top Mount, Extrusion | Power Modules | Bolt On | Rectangular, Fins | 5.500" (139.70mm) | 5.000" (127.00mm) | - | 1.500" (38.10mm) | - | 0.60°C/W @ 500 LFM | 1.50°C/W | Aluminum | Black Anodized |
|

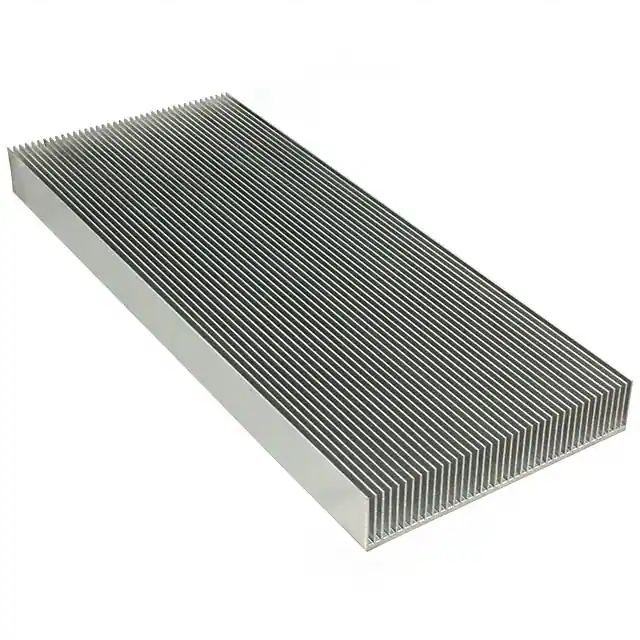

ATS-EXL2-254-R0HEATSINK AL6063 254X100X20MM |
43 |
|
برگه مشخصات |
- | Bulk | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 10.000" (254.00mm) | 3.967" (100.76mm) | - | 0.790" (20.00mm) | - | 0.90°C/W @ 200 LFM | 10.00°C/W | Aluminum | Degreased |
|
|
ATS-NVA-3281-C1-R0ACTIVE HEATSINK 63X40X8MM NVIDIA |
59 |
|
برگه مشخصات |
- | Box | Active | Top Mount | Nvidia Jetson Orin Nano, Orin NX | Bolt On, Thermal Material | Rectangular, Fins | 2.480" (63.00mm) | 1.575" (40.00mm) | - | 0.315" (8.00mm) | - | - | 1.60°C/W | Aluminum | Black Anodized |
|
FHE35-35-26/T710/TFAN AXIAL 34.6X26.6MM 5VDC 2510 |
58 |
|
برگه مشخصات |
FHE | Tray | Active | Board Level with Fan | - | Clip, Tape | Square, Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 1.023" (26.00mm) | - | - | 1.65°C/W | - | - |
