سینک های حرارتی
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | تایپ کنید | بسته خنک شده | روش پیوست | شکل | طول | عرض | قطر | ارتفاع باله | اتلاف نیرو @ افزایش دما | مقاومت حرارتی @ جریان هوای اجباری | مقاومت حرارتی @ طبیعی | مواد | پایان مواد |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
WAVE-35-15ANCHOR HEATSINK 35X35X15MM |
1,130 |
|
برگه مشخصات |
Wave 3x | Bulk | Active | Board Level | BGA | Clip | Square, Angled Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 0.590" (15.00mm) | - | 3.15°C/W @ 200 LFM | - | Aluminum Alloy | Black Anodized |
|
ATS-PCB1052HEATSINK TO-220/TO-218/TO-247 |
865 |
|
برگه مشخصات |
- | Bulk | Active | Board Level, Vertical | TO-218, TO-220, TO-247 | Clip and Board Mounts | Rectangular, Angled Fins | 1.750" (44.45mm) | 0.500" (12.70mm) | - | 1.750" (44.45mm) | - | 2.30°C/W @ 200 LFM | 6.30°C/W | Aluminum | Black Anodized |
|
WAVE-425-117ANCHOR HEATSINK 42.5X42.5X11.7MM |
972 |
|
برگه مشخصات |
Wave 4x | Bulk | Active | Board Level | BGA | Clip | Square, Angled Fins | 1.673" (42.50mm) | 1.673" (42.50mm) | - | 0.461" (11.70mm) | - | 3.40°C/W @ 200 LFM | - | Aluminum Alloy | Black Anodized |
|
V2032AHEATSINK CPU FORGED |
127 |
|
برگه مشخصات |
- | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Not Included) | Square, Pin Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 0.728" (18.50mm) | - | - | 5.50°C/W | Aluminum Alloy | Clean Finished |
|
219-268ATO-268 HEAT SINK ANODZD |
433 |
|
برگه مشخصات |
219 | Bulk | Active | Top Mount | TO-268 (D³Pak) | Solderable Feet | Rectangular, Fins | 0.500" (12.70mm) | 1.580" (40.13mm) | - | 0.460" (11.68mm) | 7.0W @ 35°C | 4.00°C/W @ 700 LFM | - | Aluminum | Black Anodized |
|
ATS-CPX025025015-138-C1-R0HEATSINK 25X25X15MM L-TAB CP |
230 |
|
برگه مشخصات |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 0.590" (15.00mm) | - | 12.12°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
WAVE-34-21ANCHOR HEATSINK 34X34X21MM |
1,622 |
|
برگه مشخصات |
Wave 3x | Bulk | Active | Board Level | BGA | Clip | Square, Angled Fins | 1.339" (34.00mm) | 1.339" (34.00mm) | - | 0.827" (21.00mm) | - | 2.19°C/W @ 200 LFM | - | Aluminum Alloy | Black Anodized |
|
WAVE-40-125ANCHOR HEATSINK 40X40X12.5MM |
509 |
|
برگه مشخصات |
Wave 4x | Bulk | Active | Board Level | BGA | Clip | Square, Angled Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.492" (12.50mm) | - | 3.16°C/W @ 200 LFM | - | Aluminum Alloy | Black Anodized |
|
6221BGTHM,16555B REV D-G |
2,929 |
|
برگه مشخصات |
- | Bulk | Active | Board Level, Vertical | TO-220 | Bolt On and PC Pin | Rectangular, Fins | 1.180" (29.97mm) | 1.000" (25.40mm) | - | 0.500" (12.70mm) | - | - | - | Aluminum | Black Anodized |
|
ATS-CPX025025025-140-C3-R0HEATSINK 25X25X25MM L-TAB CP |
129 |
|
برگه مشخصات |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 0.984" (25.00mm) | - | 7.55°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
PF720MRP/PF-720 |
870 |
|
برگه مشخصات |
- | Bulk | Active | Board Level | TO-220 | Clip and PC Pin, Bolt On | Rectangular | 0.787" (20.00mm) | 0.776" (19.70mm) | - | 0.319" (8.10mm) | - | - | 28.90°C/W | - | Black Paint |
|

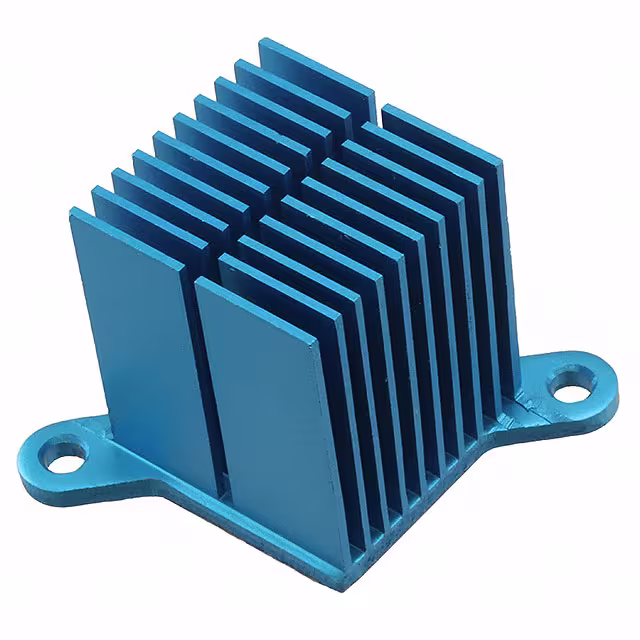

ATS-FPX025025030-47-C2-R0HEATSINK 25X25X30MM L-TAB FP |
167 |
|
برگه مشخصات |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 1.181" (30.00mm) | - | 9.30°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
WAVE-40-12ANCHOR HEATSINK 40X40X12MM |
544 |
|
برگه مشخصات |
Wave 4x | Bulk | Active | Board Level | BGA | Clip | Square, Angled Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.472" (12.00mm) | - | 3.36°C/W @ 200 LFM | - | Aluminum Alloy | Black Anodized |
|
ATS-FPX040040010-103-C1-R1HEATSINK 40X40X9.5MM XCUT SFP |
122 |
|
برگه مشخصات |
pushPIN™ | Tray | Active | Top Mount, Skived | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.374" (9.50mm) | - | 27.64°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-PCBT1088HEATSINK TO-3 BLACK |
570 |
|
برگه مشخصات |
- | Bulk | Active | Board Level | TO-3 | Bolt On | Square, Fins | 1.780" (45.21mm) | 1.780" (45.21mm) | - | 1.220" (31.00mm) | - | 2.60°C/W @ 200 LFM | 6.00°C/W | Aluminum | Black Anodized |
|

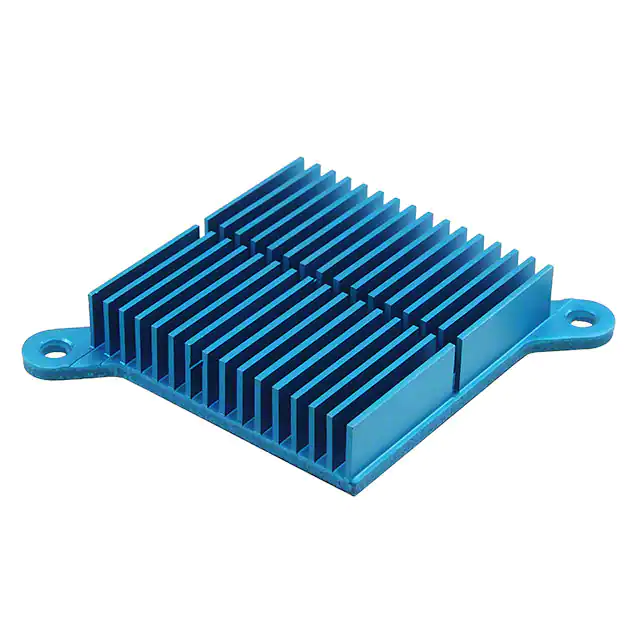

ATS-FPX040040010-91-C2-R0HEATSINK 40X40X10MM R-TAB FP |
195 |
|
برگه مشخصات |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.394" (10.00mm) | - | 21.97°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-FPX030030025-52-C1-R0HEATSINK 30X30X25MM L-TAB FP |
400 |
|
برگه مشخصات |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.181" (30.00mm) | 1.181" (30.00mm) | - | 0.984" (25.00mm) | - | 10.74°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-FPX025025025-76-C3-R0HEATSINK 25X25X25MM R-TAB FP |
122 |
|
برگه مشخصات |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 0.984" (25.00mm) | - | 11.84°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-FPX040040010-01-C3-R0HEATSINK 40X40X10MM XCUT FP |
195 |
|
برگه مشخصات |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.394" (10.00mm) | - | 22.05°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

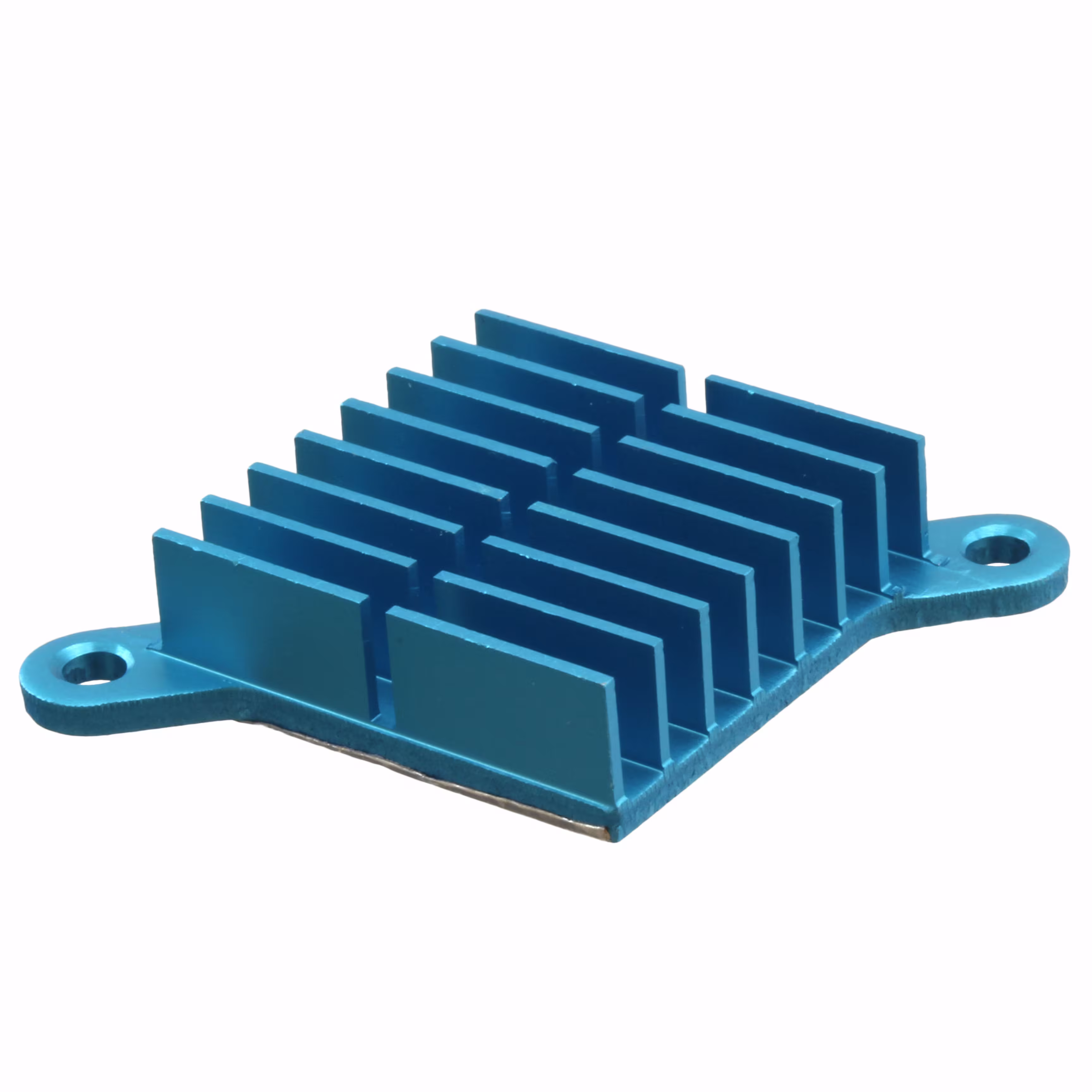

ATS-FPX030030010-79-C3-R0HEATSINK 30X30X10MM R-TAB FP |
105 |
|
برگه مشخصات |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.181" (30.00mm) | 1.181" (30.00mm) | - | 0.394" (10.00mm) | - | 26.55°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
