سینک های حرارتی
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | تایپ کنید | بسته خنک شده | روش پیوست | شکل | طول | عرض | قطر | ارتفاع باله | اتلاف نیرو @ افزایش دما | مقاومت حرارتی @ جریان هوای اجباری | مقاومت حرارتی @ طبیعی | مواد | پایان مواد |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ATS-51325K-C1-R0HEAT SINK 32.5 X 32.5 X 14.5MM |
143 |
|
برگه مشخصات |
maxiGRIP, maxiFLOW | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Angled Fins | 1.280" (32.51mm) | 1.280" (32.51mm) | - | 0.571" (14.50mm) | - | 3.50°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
1277302.00" WIDE X 12" CENTER CHANNEL |
23 |
|
برگه مشخصات |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 12.000" (304.80mm) | 2.000" (50.80mm) | - | 0.562" (14.28mm) | - | - | 1.63°C/W | Aluminum | - |
|
ATS-X53250G-C1-R0SUPERGRIP HEATSINK 25X25X12.5MM |
7 |
|
برگه مشخصات |
superGRIP™ | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 0.492" (12.50mm) | - | 8.10°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|
ATS-56009-C4-R0HEAT SINK 58MM X 30MM X 9MM |
19 |
|
برگه مشخصات |
maxiFLOW | Bulk | Active | Top Mount | ASIC | Thermal Tape, Adhesive (Not Included) | Rectangular, Angled Fins | 1.181" (30.00mm) | 2.283" (58.00mm) | - | 0.354" (9.00mm) | - | 4.80°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|

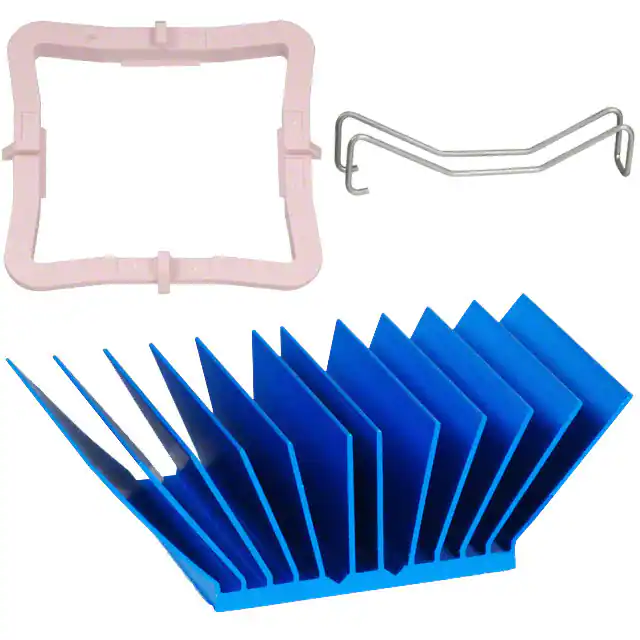

ATS-50330P-C1-R0HEAT SINK 33MM X 33MM X 17.5MM |
175 |
|
برگه مشخصات |
maxiGRIP, maxiFLOW | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Angled Fins | 1.299" (32.99mm) | 1.299" (32.99mm) | - | 0.689" (17.50mm) | - | 2.70°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|
ATS-51425K-C1-R0HEAT SINK 42.5 X 42.5 X 14.5MM |
83 |
|
برگه مشخصات |
maxiGRIP, maxiFLOW | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Angled Fins | 1.673" (42.50mm) | 1.673" (42.49mm) | - | 0.571" (14.50mm) | - | 2.40°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
1276931.66" WIDE X 12" BGA HEATSINK EX |
29 |
|
برگه مشخصات |
- | Box | Active | Top Mount, Extrusion | BGA | Adhesive | Rectangular, Fins | 12.000" (304.80mm) | 1.660" (42.16mm) | - | 1.175" (29.85mm) | - | - | 0.90°C/W | Aluminum | - |
|
ATS-59007-C1-R0HEAT SINK 35MM X 46MM X 16MM |
79 |
|
برگه مشخصات |
maxiGRIP | Bulk | Active | Top Mount | Flip Chip Processors | Clip | Rectangular, Angled Fins | 1.378" (35.00mm) | 1.811" (46.00mm) | - | 0.630" (16.00mm) | - | 2.40°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-56008-C4-R0HEAT SINK 50MM X 45MM X 16MM |
6 |
|
برگه مشخصات |
maxiFLOW | Bulk | Active | Top Mount | ASIC | Thermal Tape, Adhesive (Not Included) | Rectangular, Angled Fins | 1.969" (50.00mm) | 1.772" (45.00mm) | - | 0.630" (16.00mm) | - | 2.10°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-56005-C4-R0HEAT SINK 50MM X 45MM X 15MM |
58 |
|
برگه مشخصات |
maxiFLOW | Bulk | Active | Top Mount | ASIC | Thermal Tape, Adhesive (Not Included) | Rectangular, Angled Fins | 1.969" (50.00mm) | 1.772" (45.00mm) | - | 0.590" (15.00mm) | - | 2.80°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-X51310D-C1-R0MAXIFLOW 30.25X30.25X9.5MM T766 |
66 |
|
برگه مشخصات |
maxiFLOW, superGRIP™ | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Angled Fins | 1.220" (31.00mm) | 1.220" (31.00mm) | - | 0.374" (9.50mm) | - | 7.00°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-51310R-C1-R0HEAT SINK 31MM X 31MM X 19.5MM |
67 |
|
برگه مشخصات |
maxiGRIP, maxiFLOW | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Angled Fins | 1.220" (30.99mm) | 1.220" (30.99mm) | - | 0.768" (19.50mm) | - | 3.20°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|

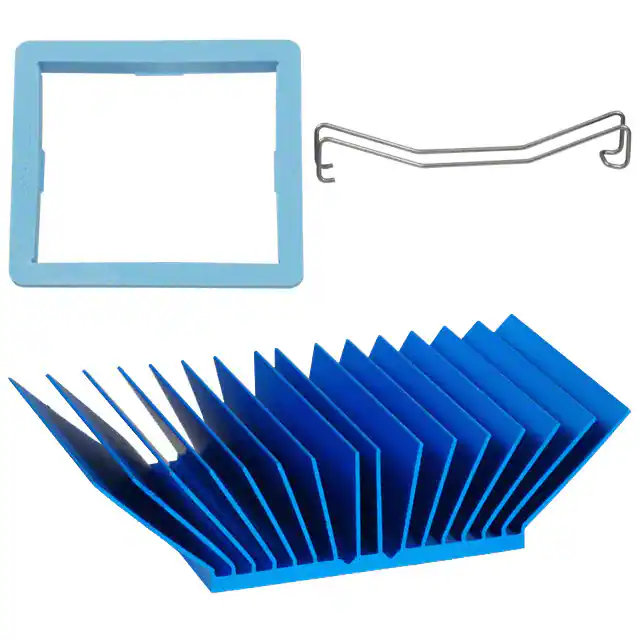

ATS-50450P-C1-R0HEAT SINK 45MM X 45MM X 17.5MM |
75 |
|
برگه مشخصات |
maxiGRIP, maxiFLOW | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Angled Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.689" (17.50mm) | - | 1.60°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|

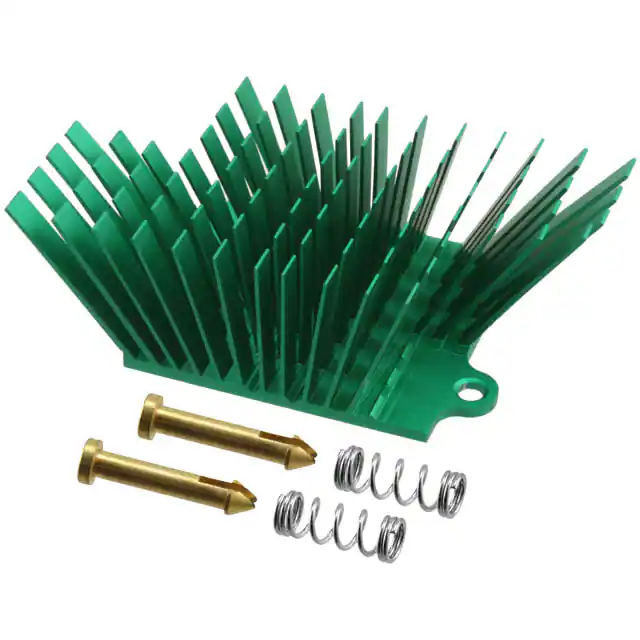

ATS-1043-C2-R0HEATSINK 41X45X25MM BRASSPUSHPIN |
63 |
|
برگه مشخصات |
maxiFLOW | Bulk | Active | Top Mount | BGA | Push Pin | Rectangular, Angled Fins | 1.610" (40.89mm) | 1.772" (45.00mm) | - | 0.984" (25.00mm) | - | 1.60°C/W @ 300 LFM | - | Aluminum | Green Anodized |
|
1252831.1WX12" EXTRUSI 16240 XX8052-65 |
41 |
|
برگه مشخصات |
- | Box | Active | Top Mount, Extrusion | BGA | Adhesive | Rectangular, Fins | 12.000" (304.80mm) | 1.100" (27.94mm) | - | 0.450" (11.43mm) | - | - | 2.00°C/W | Aluminum | - |
|

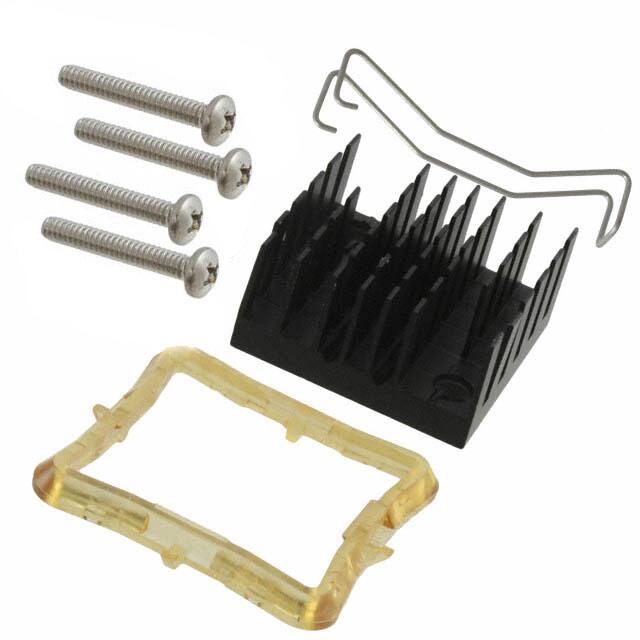

ATS-61290K-C1-R0MAXIGRIP FANSINK 29X29X14.5MM |
35 |
|
برگه مشخصات |
fanSINK, maxiGRIP | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Pin Fins | 1.142" (29.00mm) | 1.142" (29.00mm) | - | 0.571" (14.50mm) | - | 2.30°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-61450D-C1-R0MAXIGRIP FANSINK 45X45X9.5MM |
34 |
|
برگه مشخصات |
fanSINK, maxiGRIP | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Pin Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.374" (9.50mm) | - | 2.20°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-61300K-C1-R0MAXIGRIP FANSINK 30X30X14.5MM |
70 |
|
برگه مشخصات |
fanSINK, maxiGRIP | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Pin Fins | 1.181" (30.00mm) | 1.181" (30.00mm) | - | 0.571" (14.50mm) | - | 2.20°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-56006-C4-R0HEAT SINK 50MM X 45MM X 12.5MM |
68 |
|
برگه مشخصات |
maxiFLOW | Bulk | Active | Top Mount | ASIC | Thermal Tape, Adhesive (Not Included) | Rectangular, Angled Fins | 1.969" (50.00mm) | 1.772" (45.00mm) | - | 0.472" (12.00mm) | - | 3.90°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-X53150B-C1-R0STR FIN 14.25X14.25X7.5MM T766 |
99 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
