سینک های حرارتی
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | تایپ کنید | بسته خنک شده | روش پیوست | شکل | طول | عرض | قطر | ارتفاع باله | اتلاف نیرو @ افزایش دما | مقاومت حرارتی @ جریان هوای اجباری | مقاومت حرارتی @ طبیعی | مواد | پایان مواد |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ATS-CPX040040025-184-C2-R0HEATSINK 40X40X25MM R-TAB CP |
0 |
|
برگه مشخصات |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.984" (25.00mm) | - | 4.14°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
C247-025-1VEHEATSINK FOR TO-247 WITH 1 CLIP |
0 |
|
برگه مشخصات |
C | Box | Active | Board Level, Vertical | TO-247 | Clip and PC Pin | Rectangular, Fins | 0.984" (25.00mm) | 1.500" (38.10mm) | - | 0.710" (18.03mm) | 5.0W @ 60°C | 6.00°C/W @ 350 LFM | - | Aluminum | Degreased |
|
HSB28-606022HEAT SINK, BGA, 60 X 60 X 22 MM, |
23 |
|
برگه مشخصات |
HSB | Box | Active | Top Mount | BGA | Push Pin | Square, Pin Fins | 2.362" (60.00mm) | 2.362" (60.00mm) | - | 0.866" (22.00mm) | 15.83W @ 75°C | 1.40°C/W @ 200 LFM | 4.74°C/W | Aluminum Alloy | Black Anodized |
|
|
HSB38-707025PHEAT SINK, BGA, 70 X 70 X 25 MM, |
0 |
|
برگه مشخصات |
HSB | Box | Active | Top Mount | BGA | Push Pin | Square, Pin Fins | 2.756" (70.00mm) | 2.756" (70.00mm) | - | 0.984" (25.00mm) | 21.7W @ 75°C | 1.20°C/W @ 200 LFM | 3.45°C/W | Aluminum Alloy | Black Anodized |
|
906-31-1-23-2-B-0HEATSINK 31X31X23MM ELLIPTICAL |
22 |
|
برگه مشخصات |
906 | Box | Active | Top Mount | BGA | Push Pin | Square, Pin Fins | 1.220" (30.99mm) | 1.220" (30.99mm) | - | 0.892" (22.65mm) | - | 2.50°C/W @ 200 LFM | 8.90°C/W | Aluminum | Black Anodized |
|
CR201-75AEALUMINUM HEATSINK 75MM BLK ANODI |
0 |
|
برگه مشخصات |
CR | Box | Active | Board Level, Vertical | TO-201 | 3 Clips and PC Pin | Rectangular, Fins | 2.953" (75.00mm) | 2.953" (75.00mm) | - | - | - | - | 2.60°C/W | Aluminum Alloy | Black Anodized |
|

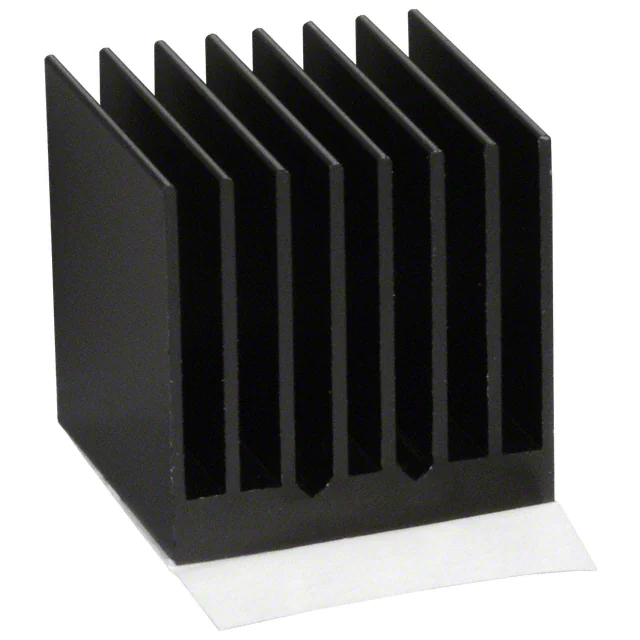

ATS-54250W-C1-R0HEAT SINK 25MM X 25MM X 24.5MM |
0 |
|
برگه مشخصات |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 0.965" (24.50mm) | - | 4.40°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|

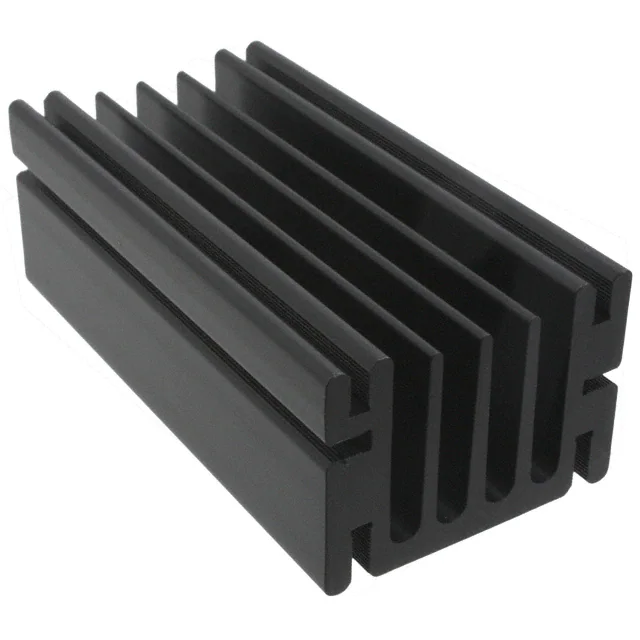

V5583KHEATSINK ALUM ANOD |
0 |
|
برگه مشخصات |
- | Bulk | Active | Top Mount | TO-220 | Bolt On | Rectangular, Fins | 3.543" (90.00mm) | 1.811" (46.00mm) | - | 1.299" (33.00mm) | - | - | 3.20°C/W | Aluminum | Black Anodized |
|
559-50ABHEATSINK DC/DC FULL BRICK |
0 |
|
برگه مشخصات |
559 | Bulk | Active | Top Mount | DC/DC Converter | Press Fit | Rectangular, Fins | 2.400" (60.96mm) | 4.600" (116.84mm) | - | 0.500" (12.70mm) | 10.0W @ 40°C | 2.20°C/W @ 300 LFM | - | Aluminum | Black Anodized |
|
401AHEATSINK POWER TO-3 BLK |
0 |
|
برگه مشخصات |
401 | Bulk | Active | Board Level | TO-3, Stud Mount | Bolt On | Rectangular, Fins | 1.500" (38.10mm) | 4.750" (120.65mm) | - | 1.250" (31.75mm) | 30.0W @ 80°C | 1.50°C/W @ 250 LFM | 2.60°C/W | Aluminum | Black Anodized |
|
ATS-1038-C3-R0HEATSINK 40X38X10MM PEM |
0 |
|
برگه مشخصات |
maxiFLOW | Bulk | Active | Top Mount | BGA | Push Pin | Rectangular, Angled Fins | 1.575" (40.00mm) | 1.500" (38.10mm) | - | 0.394" (10.00mm) | - | 3.90°C/W @ 300 LFM | - | Aluminum | Green Anodized |
|
|
C60-075-VEHEATSINK FOR TO-247 TO-264 |
0 |
|
برگه مشخصات |
C60 | Box | Active | Board Level, Vertical | TO-220, TO-247, TO-264 | Clip, Solder Foot | Rectangular, Fins | 2.953" (75.00mm) | 2.480" (62.99mm) | - | 1.610" (40.89mm) | - | - | - | Aluminum | Degreased |
|
SKV606014-CUCOPPER HEATSINK 60X60X14MM |
0 |
|
برگه مشخصات |
SKV | Bulk | Active | Top Mount, Skived | - | Push Pin | Square, Fins | 2.362" (60.00mm) | 2.362" (60.00mm) | - | 0.551" (14.00mm) | - | 1.70°C/W @ 200 LFM | 7.00°C/W | Copper | - |
|
|
SKV585811-CUCOPPER HEATSINK 57.9X59X11MM |
2 |
|
برگه مشخصات |
SKV | Bulk | Active | Top Mount, Skived | - | Push Pin | Rectangular, Fins | 2.323" (59.00mm) | 2.280" (57.91mm) | - | 0.433" (11.00mm) | - | 1.90°C/W @ 200 LFM | 7.70°C/W | Copper | - |
|
|
ATS-X53250P-C1-R0SUPERGRIP HEATSINK 25X25X17.5MM |
2 |
|
برگه مشخصات |
superGRIP™ | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 0.689" (17.50mm) | - | 5.70°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|

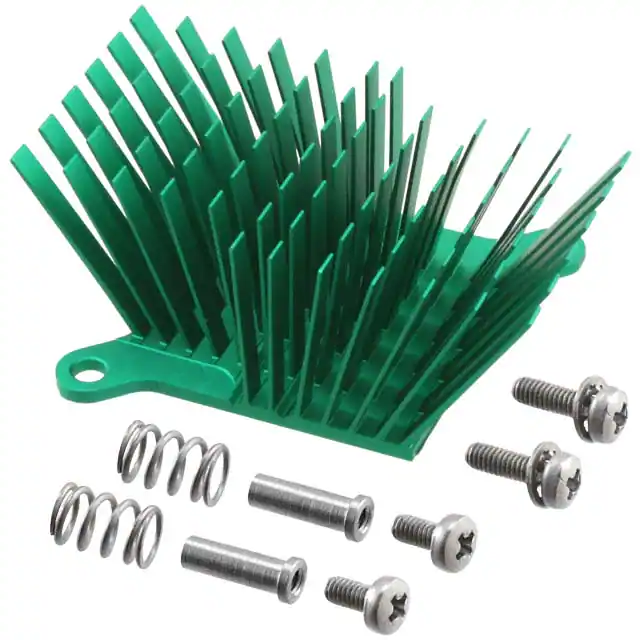

ATS-1040-C3-R0HEATSINK 40X38X25MM PEM |
0 |
|
برگه مشخصات |
maxiFLOW | Bulk | Active | Top Mount | BGA | Push Pin | Rectangular, Angled Fins | 1.575" (40.00mm) | 1.500" (38.10mm) | - | 0.984" (25.00mm) | - | 1.60°C/W @ 300 LFM | - | Aluminum | Green Anodized |
|
1277083.66" WIDE X 12" FLATBACK HEATSI |
0 |
|
برگه مشخصات |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 12.000" (304.80mm) | 3.660" (92.96mm) | - | 0.774" (19.66mm) | - | - | 0.55°C/W | Aluminum | - |
|
ATS-61600D-C2-R0FANSINK ASSEMBLY W/ MOUNTING HAR |
0 |
|
برگه مشخصات |
fanSINK™ | Bulk | Active | Top Mount | BGA | Push Pin, Thermal Material | Square, Pin Fins | 2.480" (63.00mm) | 2.480" (63.00mm) | - | 0.374" (9.50mm) | - | - | - | - | - |
|
|
SKV707014-CUCOPPER HEATSINK 70X70X14MM |
5 |
|
برگه مشخصات |
SKV | Bulk | Active | Top Mount, Skived | - | Push Pin | Square, Fins | 2.756" (70.00mm) | 2.756" (70.00mm) | - | 0.551" (14.00mm) | - | 1.40°C/W @ 200 LFM | 5.60°C/W | Copper | - |
|
|
SKV909010-CUCOPPER HEATSINK 90X90X10MM |
5 |
|
برگه مشخصات |
SKV | Bulk | Active | Top Mount, Skived | - | Push Pin | Square, Fins | 3.543" (90.00mm) | 3.543" (90.00mm) | - | 0.394" (10.00mm) | - | 1.30°C/W @ 200 LFM | 4.50°C/W | Copper | - |
