سینک های حرارتی
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | تایپ کنید | بسته خنک شده | روش پیوست | شکل | طول | عرض | قطر | ارتفاع باله | اتلاف نیرو @ افزایش دما | مقاومت حرارتی @ جریان هوای اجباری | مقاومت حرارتی @ طبیعی | مواد | پایان مواد |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

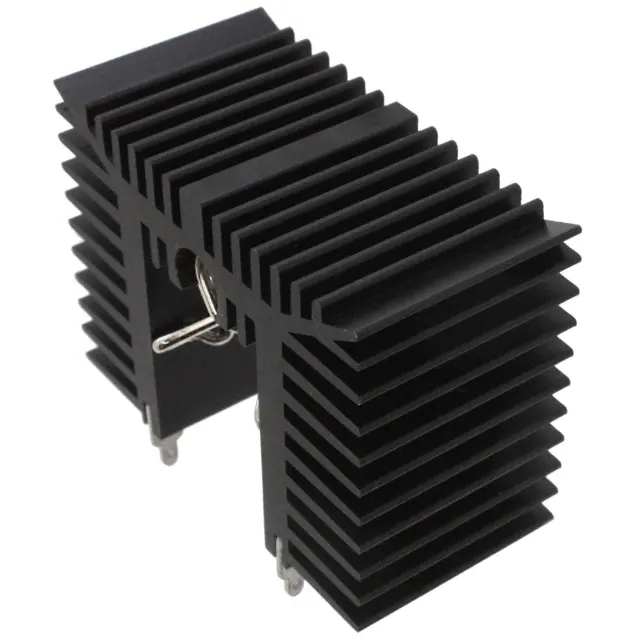

MA-301-27EHEATSINK W/CLIP - TO-247/TO-264 |
0 |
|
برگه مشخصات |
M | Box | Obsolete | Top Mount | TO-247, TO-264 | Clip and PC Pin | Rectangular, Fins | 1.060" (26.92mm) | 2.200" (55.88mm) | - | 1.712" (43.48mm) | - | - | 4.60°C/W | Aluminum | Black Anodized |
|

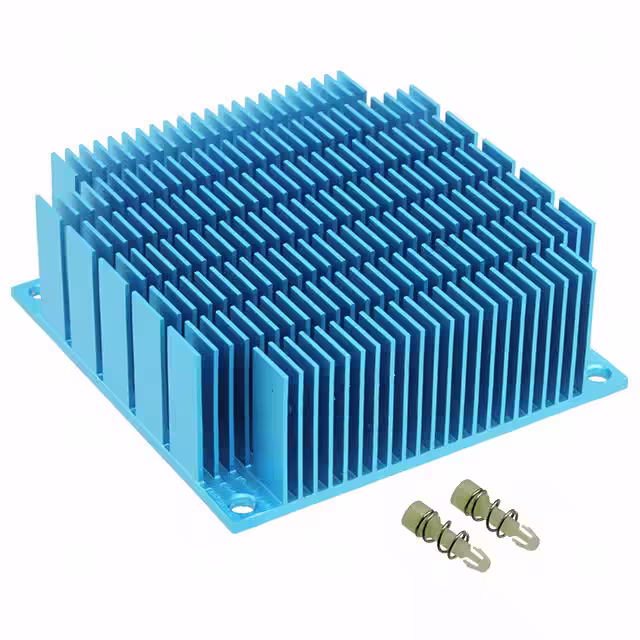

ATS-P1-30-C3-R0HEATSINK 70X70X25MM XCUT T412 |
0 |
|
برگه مشخصات |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.756" (70.00mm) | 2.756" (70.00mm) | - | 0.984" (25.00mm) | - | 5.35°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
1542199-4SALEABLE PACKAGED VERSION. |
0 |
|
برگه مشخصات |
- | Tray | Active | Top Mount | - | - | Cylindrical | - | - | 0.984" (24.99mm) OD | 0.837" (21.26mm) | - | - | - | - | Black Anodized |
|
ATS-H1-28-C1-R0HEATSINK 70X70X15MM XCUT |
0 |
|
برگه مشخصات |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.756" (70.00mm) | 2.756" (70.00mm) | - | 0.590" (15.00mm) | - | 10.57°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
566010B02800GHEATSINK TO-220 CLIP-ON W/TABS |
0 |
|
برگه مشخصات |
- | Bulk | Active | Board Level, Vertical | Multiwatt, SIP | Clip and Board Locks | Rectangular, Fins | 1.220" (30.99mm) | 1.000" (25.40mm) | - | 0.500" (12.70mm) | 2.0W @ 30°C | 5.00°C/W @ 200 LFM | 11.50°C/W | Aluminum | Black Anodized |
|
ATS-H1-208-C3-R0HEATSINK 70X70X6MM XCUT T412 |
0 |
|
برگه مشخصات |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.756" (70.00mm) | 2.756" (70.00mm) | - | 0.236" (6.00mm) | - | 10.56°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

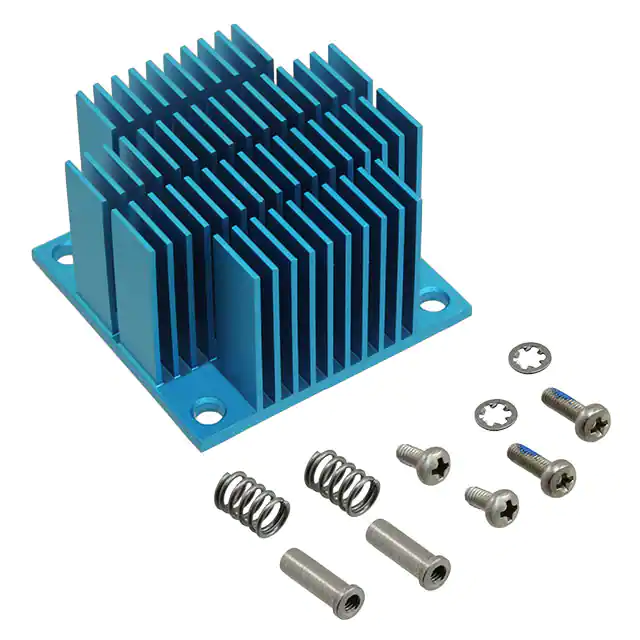

ATS-H1-156-C2-R0HEATSINK 40X40X25MM L-TAB T766 |
0 |
|
برگه مشخصات |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.984" (25.00mm) | - | 4.14°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
UP1-348-CBUP1-348-CB DISSIPATOR |
0 |
|
برگه مشخصات |
UP1 | Tray | Active | Board Level | TO-3 | Bolt On | Rhombus | 1.780" (45.21mm) | 1.780" (45.21mm) | - | 0.500" (12.70mm) | - | - | 10.40°C/W | - | - |
|
|
ATS-50290P-C4-R0HEATSINK 29X29X17.5MM CUSTOM TIM |
0 |
|
- |
maxiGRIP, maxiFLOW | Box | Active | Top Mount | BGA | Clip, Thermal Material | Square, Angled Fins | 1.142" (29.00mm) | 1.142" (29.00mm) | - | 0.689" (17.50mm) | - | 3.50°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|
ATS-H1-111-C3-R1HEATSINK 60.00MM X 60.00MM ALUM |
0 |
|
برگه مشخصات |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.362" (60.00mm) | 2.362" (60.00mm) | - | 0.374" (9.50mm) | - | 26.82°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
2262RGHEATSINK |
0 |
|
برگه مشخصات |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
ATS-H1-136-C1-R0HEATSINK 70X70X25MM XCUT |
0 |
|
برگه مشخصات |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.756" (70.00mm) | 2.756" (70.00mm) | - | 0.984" (25.00mm) | - | 2.17°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-H1-209-C3-R0HEATSINK 70X70X10MM XCUT T412 |
0 |
|
برگه مشخصات |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.756" (70.00mm) | 2.756" (70.00mm) | - | 0.394" (10.00mm) | - | 6.33°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

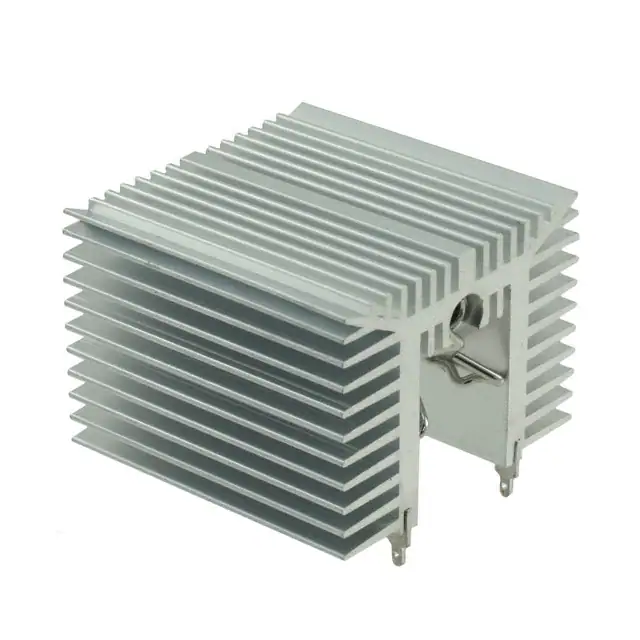

MV-302-55EHEATSINK FOR TO-247 TO-264 |
0 |
|
برگه مشخصات |
M | Box | Obsolete | Top Mount | TO-247, TO-264 | Clip and PC Pin | Rectangular, Fins | 2.170" (55.12mm) | 2.200" (55.88mm) | - | 1.712" (43.48mm) | 5.0W @ 20°C | 1.00°C/W @ 300 LFM | - | Aluminum | Degreased |
|
ATS-H1-112-C3-R1HEATSINK 60.00MM X 60.00MM ALUM |
0 |
|
برگه مشخصات |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.362" (60.00mm) | 2.362" (60.00mm) | - | 0.500" (12.70mm) | - | 26.38°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-20E-30-C3-R0HEATSINK 70X70X25MM XCUT T412 |
0 |
|
برگه مشخصات |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.756" (70.00mm) | 2.756" (70.00mm) | - | 0.984" (25.00mm) | - | 5.35°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-21E-30-C3-R0HEATSINK 70X70X25MM XCUT T412 |
0 |
|
برگه مشخصات |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.756" (70.00mm) | 2.756" (70.00mm) | - | 0.984" (25.00mm) | - | 5.35°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-01F-30-C3-R0HEATSINK 70X70X25MM XCUT T412 |
0 |
|
برگه مشخصات |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.756" (70.00mm) | 2.756" (70.00mm) | - | 0.984" (25.00mm) | - | 5.35°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-02F-30-C3-R0HEATSINK 70X70X25MM XCUT T412 |
0 |
|
برگه مشخصات |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.756" (70.00mm) | 2.756" (70.00mm) | - | 0.984" (25.00mm) | - | 5.35°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-03F-30-C3-R0HEATSINK 70X70X25MM XCUT T412 |
0 |
|
برگه مشخصات |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.756" (70.00mm) | 2.756" (70.00mm) | - | 0.984" (25.00mm) | - | 5.35°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
