سرمایش مایع، گرمایش
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | نوع محصول | قدرت - خنک کننده | فعلی | ولتاژ | نرخ جریان | ورودی برق | مقاومت حرارتی @ GPM | ظرفیت سیال | دمای عملیاتی | نوع اتصال | وزن | ابعاد - به طور کلی | رتبه بندی ها |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

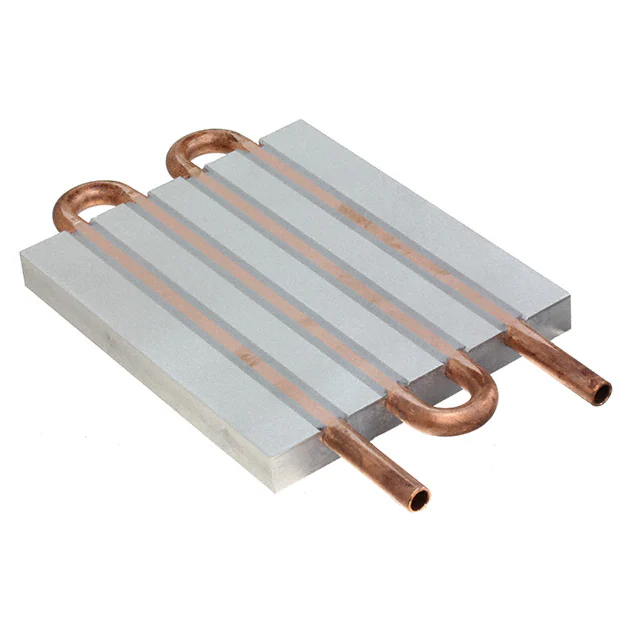

120456COLD PLATE HEAT SINK EXPOSED |
0 |
|
برگه مشخصات |
- | Box | Active | Passive, Cold Plate | - | - | - | - | - | - | - | - | - | - | 6.00" L x 5.00" W x 0.66" H (152.4mm x 127.0mm x 16.8mm) | - |
|
416101U00000GCOLD PLATE HEAT SINK 0.010C/W |
0 |
|
برگه مشخصات |
Hi-Contact™ | Box | Active | Passive, Cold Plate | - | - | - | - | - | 0.010°C/W @ 1.5 GPM | - | - | - | - | 9.19" L x 7.00" W x 0.64" H (233.4mm x 177.8mm x 16.3mm) | - |
|
180-12-12CCOLD PLATE HEAT SINK 0.018C/W |
0 |
|
برگه مشخصات |
180 | Bulk | Active | Passive, Cold Plate | - | - | - | - | - | 0.018°C/W @ 1.0 GPM | - | - | - | 4.3 lbs (2 kg) | 19.41" L x 7.75" W x 0.66" H (492.9mm x 196.9mm x 16.7mm) | - |
|
120457COLD PLATE HEAT SINK EXPOSED |
1 |
|
برگه مشخصات |
- | Box | Active | Passive, Cold Plate | - | - | - | - | - | - | - | - | - | - | 12.00" L x 5.00" W x 0.66" H (304.8mm x 127.0mm x 16.8mm) | - |
|
120964COLD PLATE HEAT SINK BURIED |
0 |
|
برگه مشخصات |
- | Box | Active | Passive, Cold Plate | - | - | - | - | - | - | - | - | - | - | 27.19" L x 7.00" W x 0.60" H (690.6mm x 177.8mm x 15.2mm) | - |
|
120460COLD PLATE HEAT SINK EXPOSED |
0 |
|
برگه مشخصات |
- | Box | Active | Passive, Cold Plate | - | - | - | - | - | - | - | - | - | - | 27.19" L x 7.00" W x 0.60" H (690.6mm x 177.8mm x 15.2mm) | - |
|
|
416301U00000GCOLD PLATE HEAT SINK 0.006C/W |
0 |
|
برگه مشخصات |
Hi-Contact™ | Box | Active | Passive, Cold Plate | - | - | - | - | - | 0.006°C/W @ 1.0 GPM | - | - | - | - | 27.21" L x 7.00" W x 0.64" H (691.1mm x 177.8mm x 16.3mm) | - |
|
120459COLD PLATE HEAT SINK EXPOSED |
0 |
|
برگه مشخصات |
- | Box | Active | Passive, Cold Plate | - | - | - | - | - | - | - | - | - | - | 15.00" L x 7.00" W x 0.60" H (381.0mm x 177.8mm x 15.2mm) | - |
|
ATS-TCP-1020STAINLESS STEEL TUBED COLD PLATE |
0 |
|
برگه مشخصات |
ATS-TCP | Bulk | Active | Passive, Cold Plate | 400 W | - | - | 0.50 - 2.00GPM (1.9-7.6LPM) | - | - | - | - | - | - | 12.01" L x 5.00" W x 0.59" H (305.0mm x 127.0mm x 15.0mm) | - |
|
ATS-HE26-C5-R0HEAT EXCHANGER WITH FOUR 24V DC |
0 |
|
برگه مشخصات |
ATS-HE26 | Bulk | Active | Active, Heat Exchanger | 97 W | - | 24V | - | - | - | - | - | - | 12.8 lbs (5.8 kg) | 18.64" L x 13.97" W x 2.64" H (473.5mm x 354.8mm x 67.0mm) | - |
|
ATS-CHILL150VRECIRC CHILLER 220V 150W |
1 |
|
برگه مشخصات |
CHILL V | Box | Active | Active, Recirculating Chiller | 150 W | - | 220V | 1.85-2.64GPM (7.0-10.0LPM) | - | - | 1000ML (33.8 oz) | 0°C ~ 40°C | - | 22 lbs (10 kg) | 10.24" L x 9.06" W x 14.90" H (260mm x 230mm x 380mm) | - |
|
385736-001RECIRC CHILLER 2.9LPM 149W 4.7A |
0 |
|
برگه مشخصات |
MRC | Box | Active | Active, Recirculating Chiller | 149 W | 4.7 A | 115 ~ 240VAC | 0.76GPM (2.9LPM) | 294W | - | 250ML (8.4 oz) | 4°C ~ 45°C | 3/8" Quick Connect | 24 lbs (10.9 kg) | 13.82" L x 7.68" W x 11.97" H (351.0mm x 195.1mm x 304.0mm) | UL61010-1 |
|

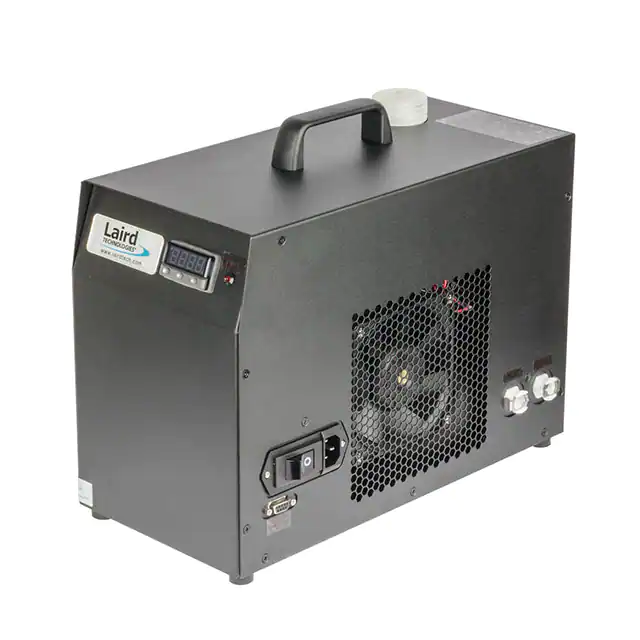

385737-001RECIRC CHILLR/HEATER 2.9LPM 149W |
1 |
|
برگه مشخصات |
MRC | Box | Active | Active, Recirculating Chiller/Heater | 149 W | 4.7 A | 115 ~ 240VAC | 0.76GPM (2.9LPM) | 294W | - | 250ML (8.4 oz) | 4°C ~ 45°C | 3/8" Quick Connect | 24 lbs (10.9 kg) | 13.82" L x 7.68" W x 11.97" H (351.0mm x 195.1mm x 304.0mm) | UL61010-1 |
|

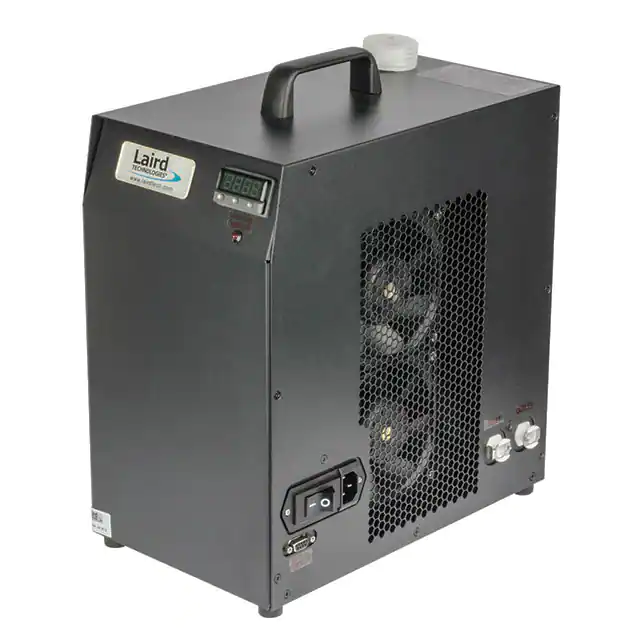

385755-001RECIRC CHILLER 3.3LPM 290W 8.5A |
0 |
|
برگه مشخصات |
MRC | Box | Active | Active, Recirculating Chiller | 290 W | 8.5 A | 115 ~ 240VAC | 0.87GPM (3.3LPM) | 507W | - | 450ML (15.2 oz) | 4°C ~ 45°C | 3/8" Quick Connect | 30 lbs (13.6 kg) | 13.31" L x 7.99" W x 15.39" H (338.0mm x 203.0mm x 391.0mm) | UL61010-1 |
|
180-10-12CCOLD PLATE HEAT SINK 0.041C/W |
0 |
|
برگه مشخصات |
180 | Bulk | Active | Passive, Cold Plate | - | - | - | - | - | 0.041°C/W @ 1.5 GPM | - | - | - | 1.7 lbs (771.1 g) | 19.41" L x 3.00" W x 0.63" H (429.9mm x 76.2mm x 15.9mm) | - |
|
120962COLD PLATE HEAT SINK BURIED |
0 |
|
برگه مشخصات |
- | Box | Active | Passive, Cold Plate | - | - | - | - | - | - | - | - | - | - | 9.19" L x 7.00" W x 0.60" H (233.4mm x 177.8mm x 15.2mm) | - |
|
|
387008347EFC CHILLER SERIES, 2350W |
0 |
|
برگه مشخصات |
Nextreme™ | Box | Active | Active, Recirculating Chiller | 2.35 kW | 8.6 A | 230VAC | 3.2GPM (12.1LPM) | - | - | - | 10°C ~ 40°C | 1/2" NPT | - | 20.80" L x 19.60" W x 29.20" H (528.3mm x 497.8mm x 741.7mm) | CE |
|
1264.00LIQUID TO LIQUID HEAT EXCHANGER |
1 |
|
برگه مشخصات |
WL | Bulk | Active | Active, Heat Exchanger | 4500 W | - | - | - | - | - | - | 10°C ~ 40°C | - | - | - | - |
|
385910-015NRC1200-A1-10-ST1 |
0 |
|
برگه مشخصات |
Nextreme™ | Box | Active | Active, Recirculating Chiller | 1800 W | - | 100 ~ 120V | 3.96GPM (15.0LPM) | - | - | 5000ML (169.1 oz) | 15°C ~ 40°C | - | 106 lbs (48.1 kg) | 17.80" L x 20.00" W x 23.50" H (452.0mm x 514.0mm x 598.0mm) | CE, UL |
|
120455COLD PLATE HEAT SINK EXPOSED |
0 |
|
برگه مشخصات |
- | Box | Active | Passive, Cold Plate | - | - | - | - | - | - | - | - | - | - | 5.25" L x 2.25" W x 0.66" H (133.4mm x 57.2mm x 16.8mm) | - |
