پد، ورق
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | استفاده | تایپ کنید | شکل | طرح کلی | ضخامت | مواد | چسب | پشتیبان، حامل | رنگ | مقاومت حرارتی | هدایت حرارتی |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SOFTFLEX-A014-30-01-0762-0762THERM PAD 76.2X76.2MM W/ADH |
0 |
|
- |
- | Bulk | Active | - | Gap Filler Pad, Sheet | Square | 76.20mm x 76.20mm | 0.118" (3.00mm) | Silicone | Adhesive - One Side | Polyethylene-Terephthalate (PET) | Blue-Gray | - | 1.4W/m-K |
|

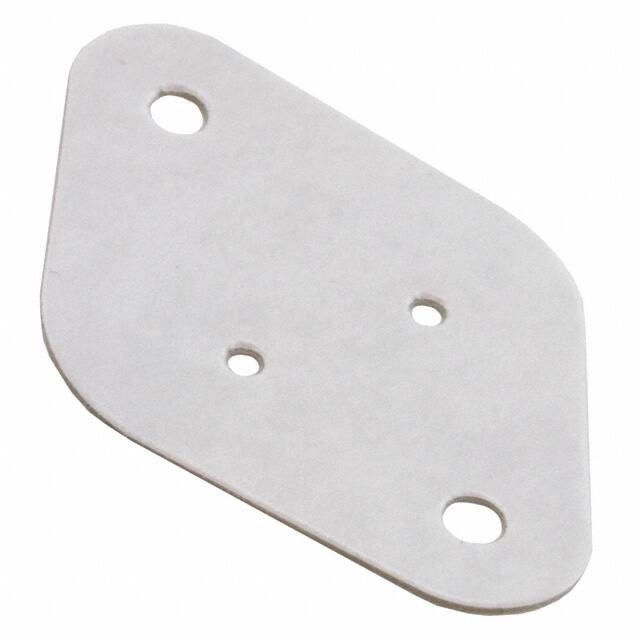

DC0001/05-TG-A486G-0.3-2ATHERM PAD 41.91X28.96MM W/ADH |
0 |
|
برگه مشخصات |
TG-A486G | Bulk | Active | TO-3 | Die-Cut Pad, Sheet | Rhombus | 41.91mm x 28.96mm | 0.0120" (0.305mm) | Silicone Elastomer | Adhesive - Both Sides | - | Gray | - | 6.0W/m-K |
|
DC0001/06-TG-A486G-0.3-2ATHERM PAD 41.91X28.96MM W/ADH |
0 |
|
برگه مشخصات |
TG-A486G | Bulk | Active | TO-3 | Die-Cut Pad, Sheet | Rhombus | 41.91mm x 28.96mm | 0.0120" (0.305mm) | Silicone Elastomer | Adhesive - Both Sides | - | Gray | - | 6.0W/m-K |
|

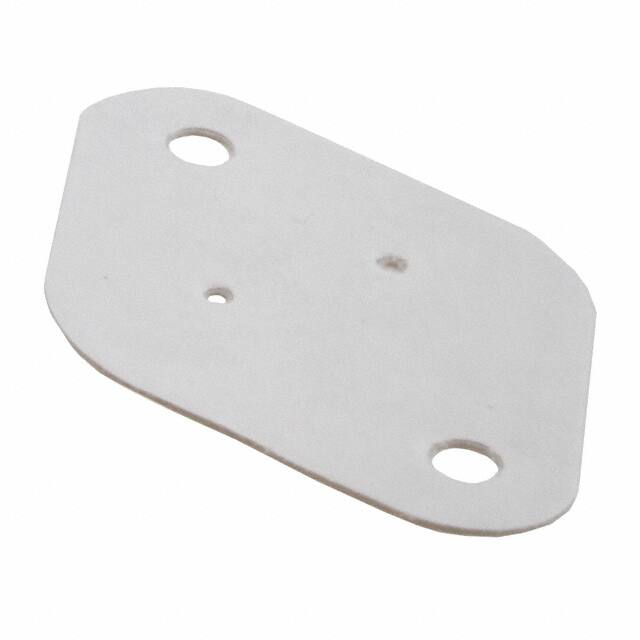

DC0001/08-TG-A486G-0.3-2ATHERM PAD 41.91X28.96MM W/ADH |
0 |
|
برگه مشخصات |
TG-A486G | Bulk | Active | TO-3 | Die-Cut Pad, Sheet | Rhombus | 41.91mm x 28.96mm | 0.0120" (0.305mm) | Silicone Elastomer | Adhesive - Both Sides | - | Gray | - | 6.0W/m-K |
|
V833-100-80-0.2THERM PAD 100MMX80MM GRAY |
0 |
|
برگه مشخصات |
TG-V833 | Bulk | Obsolete | Multi | Phase Change Pad, Sheet | Rectangular | 100.00mm x 80.00mm | 0.0079" (0.200mm) | Phase Change Compound | - | - | Gray | - | 3.3W/m-K |
|
SF100S-707005THERM PAD 70X70MM BLUE |
0 |
|
برگه مشخصات |
SF100S | Sheet | Active | - | Pad, Sheet | Square | 70.00mm x 70.00mm | 0.0197" (0.500mm) | Silicone Elastomer | Tacky - Both Sides | - | Blue | - | 1.5W/m-K |
|
TG-AH486-100-100-0.5-1ATHERM PAD 100MMX100MM W/ADH GRAY |
0 |
|
برگه مشخصات |
H48-6 | Box | Active | - | Conductive Pad, Sheet | Square | 100.00mm x 100.00mm | 0.0200" (0.508mm) | Silicone Elastomer | Adhesive - One Side | - | Gray | - | 3.2W/m-K |
|
|
2213609BERGQUIST SIL PAD TSP 1600S |
0 |
|
برگه مشخصات |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - |
|
|
QB1020A40WYT\500THERMAL CONDUCTOR Q-BRIDGE |
0 |
|
برگه مشخصات |
Q-Bridge | Tape & Reel (TR) | Active | Heat Transfer | Thermal Bridge Jumper | Rectangular | 2.54mm x 5.08mm | 0.0402" (1.020mm) | Aluminum Nitride | - | - | - | 2°C/W, 3°C/W | 320W/m-K, 508W/m-K |
|
|
QB1111B40WYT\500THERMAL CONDUCTOR Q-BRIDGE |
0 |
|
برگه مشخصات |
Q-Bridge | Tape & Reel (TR) | Active | Heat Transfer | Thermal Bridge Jumper | Square | 1.27mm x 1.27mm | 0.0402" (1.020mm) | Beryllium Oxide | - | - | - | 4°C/W, 7°C/W | 153W/m-K, 340W/m-K |
|
|
QB0603A25ESSTHERMAL CONDUCTOR Q-BRIDGE |
0 |
|
برگه مشخصات |
Q-Bridge | Strip | Active | Heat Transfer | Thermal Bridge Jumper | Rectangular | 1.52mm x 0.76mm | 0.0025" (0.064mm) | Aluminum Nitride | - | - | - | 13°C/W, 20°C/W | 50W/m-K, 76W/m-K |
|
|
VFSIAN-050050015-00THERMAL FOIL |
0 |
|
برگه مشخصات |
- | Bulk | Active | Heat Transfer Low Thermal Resistance | Conductive Pad, Sheet | Square | 50.00mm x 50.00mm | 0.0591" (1.500mm) | Silicone | Tacky - Both Sides | Fiberglass | Gray, White | - | 9.0W/m-K |
|
|
VFSFAN-100100010-00THERMAL FOIL |
0 |
|
- |
- | Bulk | Active | Heat Transfer Low Thermal Resistance | Conductive Pad, Sheet | Square | 100.00mm x 100.00mm | 0.0394" (1.000mm) | Silicone | Tacky - Both Sides | Fiberglass | Gray, White | - | 6.0W/m-K |
|
60-12-4511-T500THERM PAD 40.46X27.94MM W/ADH |
0 |
|
برگه مشخصات |
CHO-THERM® T500 | Bulk | Active | TO-3 | Insulator Pad, Sheet | Rhombus | 40.46mm x 27.94mm | 0.0100" (0.254mm) | Acrylic | Adhesive - One Side | Fiberglass | Green | - | 2.1W/m-K |
|
|
QB0505A25WYSTHERMAL CONDUCTOR Q-BRIDGE |
0 |
|
برگه مشخصات |
Q-Bridge | Strip | Active | Heat Transfer | Thermal Bridge Jumper | Square | 1.27mm x 1.27mm | 0.0025" (0.064mm) | Aluminum Nitride | - | - | - | 7°C/W, 10°C/W | 100W/m-K, 153W/m-K |
|
|
BIOMERIEUX 202724-2 REV ASILL PAD |
0 |
|
برگه مشخصات |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - |
|
60-11-4997-T500THERM PAD 34.93X20.96MM GREEN |
0 |
|
برگه مشخصات |
CHO-THERM® T500 | Bulk | Active | TO-66 | Insulator Pad, Sheet | Rhombus | 34.93mm x 20.96mm | 0.0100" (0.254mm) | Acrylic | - | Fiberglass | Green | - | 2.1W/m-K |
|
|
VFSFAN-050050040-00THERMAL FOIL |
0 |
|
- |
- | Bulk | Active | Heat Transfer Low Thermal Resistance | Conductive Pad, Sheet | Square | 50.00mm x 50.00mm | 0.157" (4.00mm) | Silicone | Tacky - Both Sides | Fiberglass | Gray, White | - | 6.0W/m-K |
|
|
VFSHBN-100100010-00THERMAL FOIL |
0 |
|
برگه مشخصات |
- | Bulk | Active | Heat Transfer Low Thermal Resistance | Conductive Pad, Sheet | Square | 100.00mm x 100.00mm | 0.0394" (1.000mm) | Silicone | Tacky - Both Sides | Fiberglass | Black | - | 5W/m-K |
|
|
VFSFAR-050050040-00THERMAL FOIL |
0 |
|
برگه مشخصات |
- | Bulk | Active | Heat Transfer Low Thermal Resistance | Conductive Pad, Sheet | Square | 50.00mm x 50.00mm | 0.157" (4.00mm) | Silicone | Tacky - Both Sides | Fiberglass | Gray, White | - | 6.0W/m-K |
