دیودهای TVS
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | بسته / کیس | سری | بسته بندی | وضعیت محصول | تایپ کنید | کانال های یک طرفه | کانال های دو طرفه | ولتاژ - مقاومت معکوس (نوع) | ولتاژ - خرابی (حداقل) | ولتاژ - بستن (حداکثر) @ Ipp | جریان - پیک پالس (10/1000µs) | پاور - پیک پالس | حفاظت از خط برق | برنامه های کاربردی | ظرفیت @ فرکانس | دمای عملیاتی | درجه | صلاحیت | نوع نصب | بسته دستگاه تامین کننده |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MQ1N8172US/TRLOW CAPACITANCE TVS |
5,863 |
|
برگه مشخصات |
SQ-MELF, A | - | Tape & Reel (TR) | Active | Zener | 1 | - | 64V | 71.3V | 103V | 1.45A | 150W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | A, SQ-MELF |
|
|
MQ1N8179US/TRLOW CAPACITANCE TVS |
4,359 |
|
برگه مشخصات |
SQ-MELF, A | - | Tape & Reel (TR) | Active | Zener | 1 | - | 120V | 138V | 208V | 720mA | 150W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | A, SQ-MELF |
|
|
MQ1N8169US/TRLOW CAPACITANCE TVS |
2,209 |
|
برگه مشخصات |
SQ-MELF, A | - | Tape & Reel (TR) | Active | Zener | 1 | - | 47V | 53.2V | 77V | 1.95A | 150W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | A, SQ-MELF |
|
|
MQ1N8158US/TRLOW CAPACITANCE TVS |
3,968 |
|
برگه مشخصات |
SQ-MELF, A | - | Tape & Reel (TR) | Active | Zener | 1 | - | 17V | 19V | 27.7V | 5.42A | 150W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | A, SQ-MELF |
|
|
MQ1N8162US/TRLOW CAPACITANCE TVS |
3,215 |
|
برگه مشخصات |
SQ-MELF, A | - | Tape & Reel (TR) | Active | Zener | 1 | - | 25V | 28.5V | 41.6V | 3.6A | 150W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | A, SQ-MELF |
|
|
MQ1N8163US/TRLOW CAPACITANCE TVS |
2,171 |
|
برگه مشخصات |
SQ-MELF, A | - | Tape & Reel (TR) | Active | Zener | 1 | - | 28V | 31.4V | 45.7V | 3.28A | 150W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | A, SQ-MELF |
|
|
MQ1N8175US/TRLOW CAPACITANCE TVS |
7,210 |
|
برگه مشخصات |
SQ-MELF, A | - | Tape & Reel (TR) | Active | Zener | 1 | - | 82V | 95V | 137V | 1.09A | 150W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | A, SQ-MELF |
|
|
MQ1N8171US/TRLOW CAPACITANCE TVS |
3,536 |
|
برگه مشخصات |
SQ-MELF, A | - | Tape & Reel (TR) | Active | Zener | 1 | - | 58V | 64.6V | 93.7V | 1.6A | 150W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | A, SQ-MELF |
|
|
MQ1N8159US/TRLOW CAPACITANCE TVS |
2,052 |
|
برگه مشخصات |
SQ-MELF, A | - | Tape & Reel (TR) | Active | Zener | 1 | - | 18V | 20.9V | 30.5V | 4.92A | 150W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | A, SQ-MELF |
|
|
AK15-076C-BPInterface |
5,654 |
|
برگه مشخصات |
Axial, Right Angle Bend (24.15mm Center) | - | Bulk | Active | Zener | - | 1 | 76V | 85V | 145V | 15000A (15kA) (8/20µs) | - | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | AK |
|
|
JANTXV1N6169USTVS DIODE 98.8VWM 187.74VC MELF |
4,112 |
|
برگه مشخصات |
SQ-MELF, C | - | Bulk | Active | Zener | - | 1 | 98.8V | 117.33V | 187.74V | 7.98A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | Military | MIL-PRF-19500/516 | Surface Mount | C, SQ-MELF |
|
|
MPLAD30KP16AE3/TRTVS DIODE 16VWM 27.2VC PLAD |
9,601 |
|
برگه مشخصات |
Nonstandard SMD | - | Tape & Reel (TR) | Active | Zener | 1 | - | 16V | 17.8V | 27.2V | 1101A (1.101kA) | 30000W (30kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | Military | MIL-PRF-19500 | Surface Mount | PLAD |
|

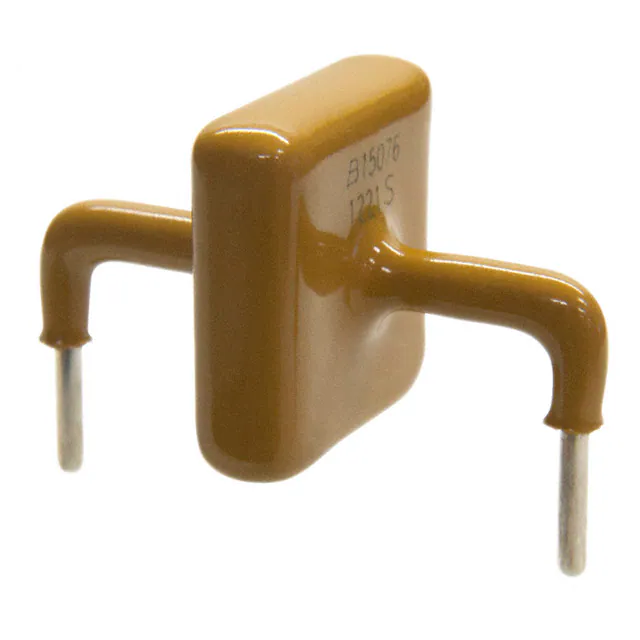

PTVS15-076C-THTVS DIODE 76VWM 150VC AXIAL |
9,668 |
|
- |
Axial, Right Angle Bend (24.15mm Center) | PTVS | Tray | Active | Zener | - | 1 | 76V (Max) | 85V | 150V | 15000A (15kA) (8/20µs) | - | No | General Purpose | 9000pF @ 10kHz | -55°C ~ 125°C (TJ) | - | - | Through Hole | Axial |
|
JANTXV1N6169US/TRTVS DIODE 98.8VWM 187.74VC MELF |
9,538 |
|
- |
SQ-MELF, C | - | Tape & Reel (TR) | Active | Zener | - | 1 | 98.8V | 117.33V | 187.74V | 7.98A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | Military | MIL-PRF-19500/516 | Surface Mount | C, SQ-MELF |
|
|
MX1N8147TVS DIODE |
8,684 |
|
- |
- | * | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MX1N8148TVS DIODE |
4,809 |
|
- |
- | * | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MX1N8149TVS DIODE |
3,994 |
|
برگه مشخصات |
A, Axial | - | Bulk | Active | Zener | 1 | - | 6.8V | 7.79V | 12.8V | 11.7A | 150W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | A, Axial |
|
|
MX1N8150TVS DIODE |
3,544 |
|
برگه مشخصات |
A, Axial | - | Bulk | Active | Zener | 1 | - | 7.5V | 8.65V | 13.5V | 11.1A | 150W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | A, Axial |
|
|
MX1N8151TVS DIODE |
3,740 |
|
برگه مشخصات |
A, Axial | - | Bulk | Active | Zener | 1 | - | 8.5V | 9.5V | 14.5V | 10.3A | 150W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | A, Axial |
|
|
MX1N8152TVS DIODE |
6,065 |
|
برگه مشخصات |
A, Axial | - | Bulk | Active | Zener | 1 | - | 9V | 10.4V | 15.6V | 9.62A | 150W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | A, Axial |
