مبدل های AC DC
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | تایپ کنید | تعداد خروجی ها | ولتاژ - ورودی | ولتاژ - خروجی 1 | ولتاژ - خروجی 2 | ولتاژ - خروجی 3 | ولتاژ - خروجی 4 | ولتاژ - خروجی 5 | ولتاژ - خروجی 6 | جریان - خروجی 1 | جریان - خروجی 2 | جریان - خروجی 3 | جریان - خروجی 4 | جریان - خروجی 5 | جریان - خروجی 6 | توان (وات) | برنامه های کاربردی | ولتاژ - جداسازی | کارایی | دمای عملیاتی | ویژگی ها | نوع نصب | اندازه / ابعاد | آژانس تایید |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VGS-25-15AC/DC CONVERTER 15V 25W |
0 |
|
برگه مشخصات |
VGS-25 (27W) | Box | Obsolete | Enclosed | 1 | 88 ~ 264 VAC | 15V | - | - | - | - | - | 1.7 A | - | - | - | - | - | 25W | ITE (Commercial) | 4.242 kV | 86% | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.09" L x 2.01" W x 1.11" H (78.5mm x 51.0mm x 28.3mm) | CB Scheme, EN, IEC, SIQ, TUV, UL |
|
|
VGS-25-48AC/DC CONVERTER 48V 25W |
0 |
|
برگه مشخصات |
VGS-25 (27W) | Box | Obsolete | Enclosed | 1 | 88 ~ 264 VAC | 48V | - | - | - | - | - | 570 mA | - | - | - | - | - | 25W | ITE (Commercial) | 4.242 kV | 88% | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.09" L x 2.01" W x 1.11" H (78.5mm x 51.0mm x 28.3mm) | CB Scheme, EN, IEC, SIQ, TUV, UL |
|
VGS-75-3.3AC/DC CONVERTER 3.3V 75W |
0 |
|
برگه مشخصات |
VGS-75 (76.8W) | Box | Obsolete | Enclosed | 1 | 88 ~ 264 VAC | 3.3V | - | - | - | - | - | 15 A | - | - | - | - | - | 75W | ITE (Commercial) | 4.242 kV | 73% | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 5.10" L x 3.84" W x 1.48" H (129.5mm x 97.5mm x 37.5mm) | CB Scheme, EN, IEC, SIQ, TUV, UL |
|
|
VGS-75-5AC/DC CONVERTER 5V 75W |
0 |
|
برگه مشخصات |
VGS-75 (76.8W) | Box | Obsolete | Enclosed | 1 | 88 ~ 264 VAC | 5V | - | - | - | - | - | 15 A | - | - | - | - | - | 75W | ITE (Commercial) | 4.242 kV | 81% | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 5.10" L x 3.84" W x 1.48" H (129.5mm x 97.5mm x 37.5mm) | CB Scheme, EN, IEC, SIQ, TUV, UL |
|
|
VGS-75-15AC/DC CONVERTER 15V 75W |
0 |
|
برگه مشخصات |
VGS-75 (76.8W) | Box | Obsolete | Enclosed | 1 | 88 ~ 264 VAC | 15V | - | - | - | - | - | 5 A | - | - | - | - | - | 75W | ITE (Commercial) | 4.242 kV | 87% | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 5.10" L x 3.84" W x 1.48" H (129.5mm x 97.5mm x 37.5mm) | CE, cURus, GS |
|
|
VGS-75-48AC/DC CONVERTER 48V 75W |
0 |
|
برگه مشخصات |
VGS-75 (76.8W) | Box | Obsolete | Enclosed | 1 | 88 ~ 264 VAC | 48V | - | - | - | - | - | 1.6 A | - | - | - | - | - | 75W | ITE (Commercial) | 4.242 kV | 90% | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 5.10" L x 3.84" W x 1.48" H (129.5mm x 97.5mm x 37.5mm) | CB Scheme, EN, IEC, SIQ, TUV, UL |
|
VGS-100-24AC/DC CONVERTER 24V 100W |
0 |
|
برگه مشخصات |
VGS-100 (110W) | Box | Obsolete | Enclosed | 1 | 88 ~ 264 VAC | 24V | - | - | - | - | - | 4.5 A | - | - | - | - | - | 100W | ITE (Commercial) | 4.242 kV | 88% | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 5.10" L x 3.84" W x 1.48" H (129.5mm x 97.5mm x 37.5mm) | CB Scheme, EN, IEC, SIQ, TUV, UL |
|
ZWS5-3/JAC/DC CONVERTER 3.3V 5W |
0 |
|
برگه مشخصات |
ZWS (5W) | Bulk | Obsolete | Open Frame | 1 | 85 ~ 265 VAC | 3.3V | - | - | - | - | - | 1 A | - | - | - | - | - | 5W | ITE (Commercial) | 3 kV | 62% | -10°C ~ 60°C (With Derating) | Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input | Chassis Mount | 3.86" L x 1.77" W x 0.83" H (98.0mm x 44.9mm x 21.0mm) | CE |
|
FXA350012AAC/DC CONVERTER 12V 250W |
0 |
|
برگه مشخصات |
FXA350 (350W) | Bulk | Active | Open Frame | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 20 A | - | - | - | - | - | 250W (350W Forced Air) | ITE (Commercial) | - | 88% | 0°C ~ 70°C (With Derating) | PFC, Remote Sense, Standby Output, Universal Input | Chassis Mount | 8.00" L x 5.00" W x 1.50" H (203.2mm x 127.0mm x 38.1mm) | CB, CE, cTUVus |
|
VF-S320-05A-1AC/DC CONVERTER 5V 320W |
0 |
|
برگه مشخصات |
VF-S320 (320W) | Box | Obsolete | Open Frame | 1 | 90 ~ 132 VAC, 180 ~ 264 VAC | 5V | - | - | - | - | - | 27.28 A | - | - | - | - | - | 320W | ITE (Commercial) | 3 kV | 75% | 0°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 6.00" L x 4.00" W x 1.50" H (152.4mm x 101.6mm x 38.1mm) | CB Scheme, EN, IEC, SIQ, TUV, UL |
|
VF-D320-D512A-1AC/DC CONVERTER 5V 12V 320W |
0 |
|
برگه مشخصات |
VF-D320-D (300W) | Box | Obsolete | Open Frame | 2 | 90 ~ 132 VAC, 180 ~ 264 VAC | 5V | 12V | - | - | - | - | 30 A | 16.67 A | - | - | - | - | 320W | ITE (Commercial) | 3 kV | 75% | 0°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 6.00" L x 4.00" W x 1.50" H (152.4mm x 101.6mm x 38.1mm) | CB Scheme, EN, IEC, SIQ, TUV, UL |
|
VF-D320-D524A-1AC/DC CONVERTER 5V 24V 320W |
0 |
|
برگه مشخصات |
VF-D320-D (300W) | Box | Obsolete | Open Frame | 2 | 90 ~ 132 VAC, 180 ~ 264 VAC | 5V | 24V | - | - | - | - | 30 A | 8.33 A | - | - | - | - | 320W | ITE (Commercial) | 3 kV | 75% | 0°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 6.00" L x 4.00" W x 1.50" H (152.4mm x 101.6mm x 38.1mm) | CB Scheme, EN, IEC, SIQ, TUV, UL |
|
VF-S320-05A-CFS-1AC/DC CONVERTER 5V 320W |
0 |
|
برگه مشخصات |
VF-S320 (320W) | Box | Obsolete | Enclosed | 1 | 90 ~ 132 VAC, 180 ~ 264 VAC | 5V | - | - | - | - | - | 45 A | - | - | - | - | - | 320W | ITE (Commercial) | 3 kV | 75% | 0°C ~ 70°C (With Derating) | Adjustable Output, PFC, Standby Output | Chassis Mount | 7.00" L x 4.00" W x 1.55" H (177.8mm x 101.6mm x 39.3mm) | CB Scheme, EN, IEC, SIQ, TUV, UL |
|

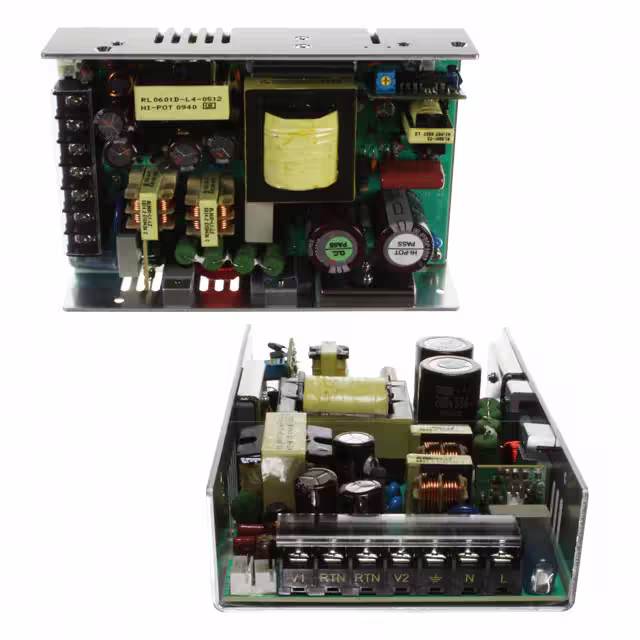

VF-D320-D512A-CFS-1AC/DC CONVERTER 5V 12V 320W |
0 |
|
برگه مشخصات |
VF-D320-D (300W) | Box | Obsolete | Enclosed | 2 | 90 ~ 132 VAC, 180 ~ 264 VAC | 5V | 12V | - | - | - | - | 30 A | 16.67 A | - | - | - | - | 320W | ITE (Commercial) | 3 kV | 75% | 0°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 7.00" L x 4.00" W x 1.60" H (177.8mm x 101.6mm x 40.6mm) | CB Scheme, EN, IEC, SIQ, TUV, UL |
|
|

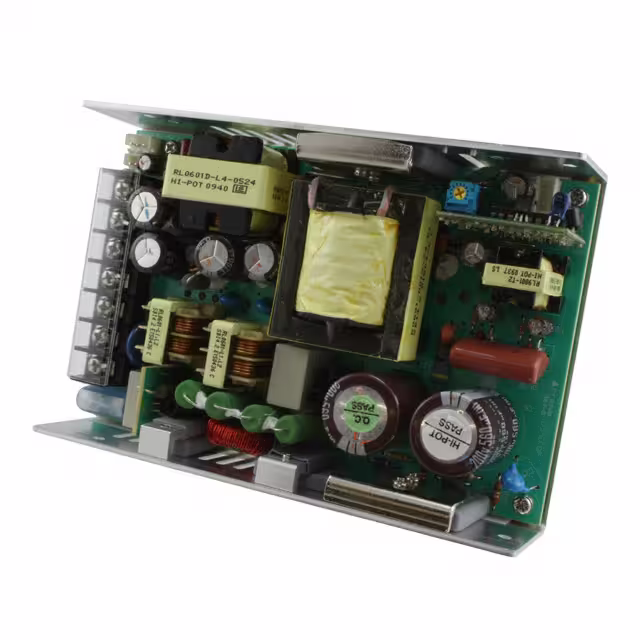

VF-D320-D524A-CFS-1AC/DC CONVERTER 5V 24V 320W |
0 |
|
برگه مشخصات |
VF-D320-D (300W) | Box | Obsolete | Enclosed | 2 | 90 ~ 132 VAC, 180 ~ 264 VAC | 5V | 24V | - | - | - | - | 30 A | 8.33 A | - | - | - | - | 320W | ITE (Commercial) | 3 kV | 75% | 0°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 7.00" L x 4.00" W x 1.60" H (177.8mm x 101.6mm x 40.6mm) | CB Scheme, EN, IEC, SIQ, TUV, UL |
|
|
VF-D320-D548A-CFS-1AC/DC CONVERTER 5V 48V 320W |
0 |
|
برگه مشخصات |
VF-D320-D (300W) | Box | Obsolete | Enclosed | 2 | 90 ~ 132 VAC, 180 ~ 264 VAC | 5V | 48V | - | - | - | - | 30 A | 4.16 A | - | - | - | - | 320W | ITE (Commercial) | 3 kV | 75% | 0°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 7.00" L x 4.00" W x 1.60" H (177.8mm x 101.6mm x 40.6mm) | CB Scheme, EN, IEC, SIQ, TUV, UL |
|
|
VF-S320-09AAC/DC CONVERTER 9V 320W |
0 |
|
برگه مشخصات |
VF-S320 (320W) | Box | Obsolete | Open Frame | 1 | 90 ~ 132 VAC, 180 ~ 264 VAC | 9V | - | - | - | - | - | 32 A | - | - | - | - | - | 320W | ITE (Commercial) | 3 kV | 83% | 0°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 6.00" L x 4.00" W x 1.50" H (152.4mm x 101.6mm x 38.1mm) | CB Scheme, EN, IEC, SIQ, TUV, UL |
|
|
VF-D320-D548AAC/DC CONVERTER 5V 48V 320W |
0 |
|
برگه مشخصات |
VF-D320-D (300W) | Box | Obsolete | Open Frame | 2 | 90 ~ 132 VAC, 180 ~ 264 VAC | 5V | 48V | - | - | - | - | 30 A | 4.16 A | - | - | - | - | 320W | ITE (Commercial) | 3 kV | 75% | 0°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 6.00" L x 4.00" W x 1.50" H (152.4mm x 101.6mm x 38.1mm) | CB Scheme, EN, IEC, SIQ, TUV, UL |
|
|
VF-D320-D548A-CFSAC/DC CONVERTER 5V 48V 320W |
0 |
|
برگه مشخصات |
VF-D320-D (300W) | Box | Obsolete | Enclosed | 2 | 90 ~ 132 VAC, 180 ~ 264 VAC | 5V | 48V | - | - | - | - | 30 A | 4.16 A | - | - | - | - | 320W | ITE (Commercial) | 3 kV | 75% | 0°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 7.00" L x 4.00" W x 1.60" H (177.8mm x 101.6mm x 40.6mm) | CB Scheme, EN, IEC, SIQ, TUV, UL |
|
|
VF-S320-05AAC/DC CONVERTER 5V 320W |
0 |
|
برگه مشخصات |
VF-S320 (320W) | Box | Obsolete | Open Frame | 1 | 90 ~ 132 VAC, 180 ~ 264 VAC | 5V | - | - | - | - | - | 27 A | - | - | - | - | - | 320W | ITE (Commercial) | 3 kV | 75% | 0°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 6.00" L x 4.00" W x 1.50" H (152.4mm x 101.6mm x 38.1mm) | CB Scheme, EN, IEC, SIQ, TUV, UL |
