مبدل های AC DC
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | تایپ کنید | تعداد خروجی ها | ولتاژ - ورودی | ولتاژ - خروجی 1 | ولتاژ - خروجی 2 | ولتاژ - خروجی 3 | ولتاژ - خروجی 4 | ولتاژ - خروجی 5 | ولتاژ - خروجی 6 | جریان - خروجی 1 | جریان - خروجی 2 | جریان - خروجی 3 | جریان - خروجی 4 | جریان - خروجی 5 | جریان - خروجی 6 | توان (وات) | برنامه های کاربردی | ولتاژ - جداسازی | کارایی | دمای عملیاتی | ویژگی ها | نوع نصب | اندازه / ابعاد | آژانس تایید |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GLM50AGAC/DC CONVERTER 5.05V +/-12V 50W |
0 |
|
برگه مشخصات |
GLM50 (50W) | Box | Obsolete | Open Frame | 3 | 90 ~ 264 VAC | 5.05V | 12V | -12V | - | - | - | 4 A | 2.5 A | 200 mA | - | - | - | 50W | Medical | - | 85% | 0°C ~ 50°C | Adjustable Output, Universal Input | Chassis Mount | 4.25" L x 2.50" W x 1.25" H (108.0mm x 63.5mm x 31.8mm) | CE, cURus, TUV |
|
|
GLM50BGAC/DC CONVERTER 5.05V +/-15V 50W |
0 |
|
برگه مشخصات |
GLM50 (50W) | Box | Obsolete | Open Frame | 3 | 90 ~ 264 VAC | 5.05V | 15V | -15V | - | - | - | 4 A | 2.5 A | 200 mA | - | - | - | 50W | Medical | - | 85% | 0°C ~ 50°C | Adjustable Output, Universal Input | Chassis Mount | 4.25" L x 2.50" W x 1.25" H (108.0mm x 63.5mm x 31.8mm) | CE, cURus, TUV |
|

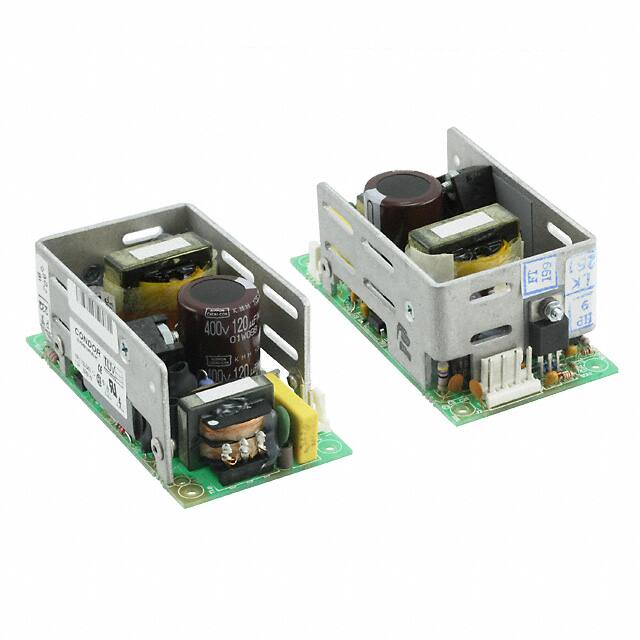

GPM41-12GAC/DC CONVERTER 12V 41W |
0 |
|
برگه مشخصات |
GPM41 (41W) | Box | Obsolete | Open Frame | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 3.3 A | - | - | - | - | - | 41W | Medical | - | 77% | 0°C ~ 50°C (With Derating) | Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.50" H (101.6mm x 50.8mm x 38.1mm) | CE, cURus, TUV |
|
GPMP600-24GAC/DC CONVERTER 24V 900W |
0 |
|
برگه مشخصات |
GPMP (600W/700W) | Box | Obsolete | Enclosed | 1 | 90 ~ 264 VAC | 24V | - | - | - | - | - | 27 A | - | - | - | - | - | 900W | Medical | 4 kV | 84% | -20°C ~ 70°C | Adjustable Output, PFC, Universal Input | Chassis Mount | 12.38" L x 4.85" W x 2.48" H (314.5mm x 123.2mm x 63.0mm) | - |
|
|
VFM40-D512AC/DC CONVERTER 5V 12V 55W |
0 |
|
- |
VFM40 (40W) | Box | Obsolete | Open Frame | 2 | 90 ~ 264 VAC, 120 ~ 370 VDC | 5V | 12V | - | - | - | - | 5 A | 2.5 A | - | - | - | - | 55W | ITE (Commercial), Medical | 4.242 kV | 80% | 0°C ~ 45°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.20" H (101.6mm x 50.8mm x 30.5mm) | CE, cURus, FCC, TUV |
|
|
VFM40-D524AC/DC CONVERTER 5V 24V 61W |
0 |
|
- |
VFM40 (40W) | Box | Obsolete | Open Frame | 2 | 90 ~ 264 VAC, 120 ~ 370 VDC | 5V | 24V | - | - | - | - | 5 A | 1.5 A | - | - | - | - | 61W | ITE (Commercial), Medical | 4.242 kV | 81% | 0°C ~ 45°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.20" H (101.6mm x 50.8mm x 30.5mm) | CE, cURus, FCC, TUV |
|
|
VFM40-T512AC/DC CONVERTER 5V +/-12V 61W |
0 |
|
- |
VFM40 (40W) | Box | Obsolete | Open Frame | 3 | 90 ~ 264 VAC, 120 ~ 370 VDC | 5V | 12V | -12V | - | - | - | 5 A | 2.5 A | 500 mA | - | - | - | 61W | ITE (Commercial), Medical | 4.242 kV | 78% | 0°C ~ 45°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.20" H (101.6mm x 50.8mm x 30.5mm) | CE, cURus, FCC, TUV |
|
|
VFM40-T515AC/DC CONVERTER 5V +/-15V 67W |
0 |
|
- |
VFM40 (40W) | Box | Obsolete | Open Frame | 3 | 90 ~ 264 VAC, 120 ~ 370 VDC | 5V | 15V | -15V | - | - | - | 5 A | 2.3 A | 500 mA | - | - | - | 67W | ITE (Commercial), Medical | 4.242 kV | 78% | 0°C ~ 45°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.20" H (101.6mm x 50.8mm x 30.5mm) | CE, cURus, FCC, TUV |
|
VOF-80-3.3AC/DC CONVERTER 3.3V 80W |
0 |
|
برگه مشخصات |
VOF-80 (80W) | Bulk | Obsolete | Open Frame | 1 | 85 ~ 264 VAC | 3.3V | - | - | - | - | - | 10 A | - | - | - | - | - | 80W | ITE (Commercial) | 3 kV | 75% | 0°C ~ 60°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.28" H (102.0mm x 51.0mm x 32.6mm) | CE, cURus, GS |
|
|
VOF-80-5AC/DC CONVERTER 5V 80W |
0 |
|
برگه مشخصات |
VOF-80 (80W) | Bulk | Obsolete | Open Frame | 1 | 85 ~ 264 VAC | 5V | - | - | - | - | - | 10 A | - | - | - | - | - | 80W | ITE (Commercial) | 3 kV | 76% | 0°C ~ 60°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.28" H (102.0mm x 51.0mm x 32.6mm) | CE, cURus, GS |
|
|
VOF-80-12AC/DC CONVERTER 12V 80W |
0 |
|
برگه مشخصات |
VOF-80 (80W) | Bulk | Obsolete | Open Frame | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 7 A | - | - | - | - | - | 80W | ITE (Commercial) | 3 kV | 85% | 0°C ~ 60°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.28" H (102.0mm x 51.0mm x 32.6mm) | CE, cURus, GS |
|
|
VOF-80-24AC/DC CONVERTER 24V 80W |
0 |
|
برگه مشخصات |
VOF-80 (80W) | Bulk | Obsolete | Open Frame | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 3.33 A | - | - | - | - | - | 80W | ITE (Commercial) | 3 kV | 87% | 0°C ~ 60°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.28" H (102.0mm x 51.0mm x 32.6mm) | CE, cURus, GS |
|
|
VOF-80-48AC/DC CONVERTER 48V 80W |
0 |
|
برگه مشخصات |
VOF-80 (80W) | Bulk | Obsolete | Open Frame | 1 | 85 ~ 264 VAC | 48V | - | - | - | - | - | 1.66 A | - | - | - | - | - | 80W | ITE (Commercial) | 3 kV | 89% | 0°C ~ 60°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.28" H (102.0mm x 51.0mm x 32.6mm) | CE, cURus, GS |
|
NFS110-7601PJAC/DC CNVRTR 5.1V +/-12V -5V 80W |
0 |
|
برگه مشخصات |
NFS110 (110W) | Bulk | Obsolete | Open Frame | 4 | 85 ~ 264 VAC | 5.1V | 12V | -12V | -5V | - | - | 8 A | 4.5 A | 500 mA | 500 mA | - | - | 80W (110W Forced Air) | ITE (Commercial) | 3 kV | 70% | 0°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 7.00" L x 4.25" W x 1.80" H (177.8mm x 108.0mm x 45.7mm) | CE |
|
DS550-3AC/DC CONVERTER 12V 550W |
0 |
|
برگه مشخصات |
DS550-3 (550W) | Bulk | Obsolete | Front End | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | 45 A | - | - | - | - | - | 550W | ITE (Commercial) | - | 84% | -10°C ~ 50°C | Hot Swappable, I2C Interface, Load Sharing, PFC, PMBus™, Remote Sense, Standby Output, Universal Input | Rack Mount | 11.05" L x 3.07" W x 1.57" H (280.7mm x 78.0mm x 39.9mm) | CB, CE |
|
DS650-3AC/DC CONVERTER 12V 650W |
0 |
|
برگه مشخصات |
DS650 (650W) | Bulk | Obsolete | Front End | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | 52.5 A | - | - | - | - | - | 650W | ITE (Commercial) | - | 82% | -10°C ~ 50°C | Hot Swappable, I2C Interface, Load Sharing, PFC, Remote Sense, Standby Output, Universal Input | Rack Mount | 11.00" L x 3.20" W x 1.57" H (279.4mm x 81.3mm x 39.9mm) | CB, CE |
|
UFE1300-5AC/DC CONVERTER 24V 2000W |
0 |
|
- |
UFE (1300W) | Bulk | Obsolete | Enclosed | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 65 A | - | - | - | - | - | 2000W | ITE (Commercial) | 3 kV | 90% | -33°C ~ 70°C (With Derating) | Adjustable Output, Hot Swappable, PMBus™, Standby Output, Universal Input | Chassis Mount | 10.74" L x 5.51" W x 1.60" H (272.8mm x 140.0mm x 40.6mm) | - |
|
PMC-12V035W1AAAC/DC CONVERTER 12V 35W |
0 |
|
برگه مشخصات |
PMC (36W) | Box | Obsolete | Enclosed | 1 | 85 ~ 264 VAC, 125 ~ 375 VDC | 12V | - | - | - | - | - | 3 A | - | - | - | - | - | 35W | ITE (Commercial) | 3 kV | 84% | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.86" L x 3.82" W x 1.50" H (98.0mm x 97.0mm x 38.0mm) | CB, CCC, CE, cURus, TUVgs |
|

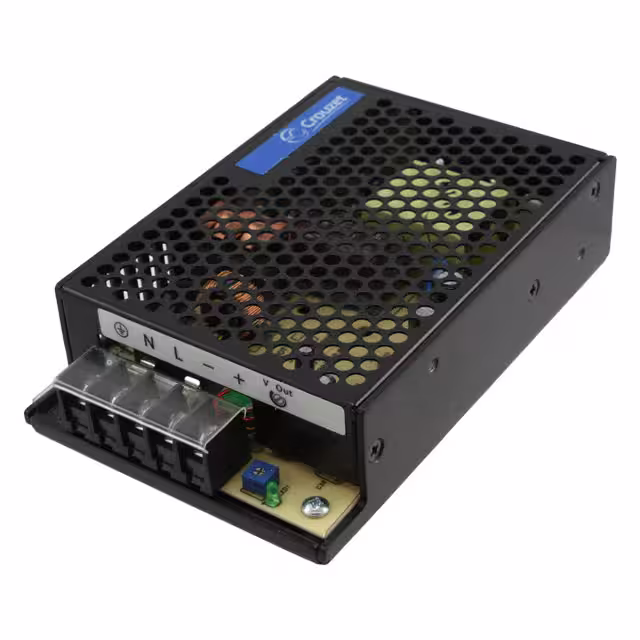

89450110AC/DC CONVERTER 12V 60W |
0 |
|
برگه مشخصات |
Millenium Supply, 89450 | Bulk | Obsolete | Enclosed | 1 | 240VAC | 12V | - | - | - | - | - | 5 A | - | - | - | - | - | 60W | ITE (Commercial) | 3 kV | - | 0°C ~ 60°C (With Derating) | Universal Input | Chassis Mount | 5.91" L x 3.86" W x 1.50" H (150.0mm x 98.0mm x 38.0mm) | CE |
|
|
89450210AC/DC CONVERTER 24V 60W |
0 |
|
برگه مشخصات |
Millenium Supply, 89450 | Bulk | Obsolete | Enclosed | 1 | 240VAC | 24V | - | - | - | - | - | 2.5 A | - | - | - | - | - | 60W | ITE (Commercial) | 3 kV | - | 0°C ~ 60°C (With Derating) | Universal Input | Chassis Mount | 5.91" L x 3.86" W x 1.50" H (150.0mm x 98.0mm x 38.0mm) | CE |
