مبدل های AC DC
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | تایپ کنید | تعداد خروجی ها | ولتاژ - ورودی | ولتاژ - خروجی 1 | ولتاژ - خروجی 2 | ولتاژ - خروجی 3 | ولتاژ - خروجی 4 | ولتاژ - خروجی 5 | ولتاژ - خروجی 6 | جریان - خروجی 1 | جریان - خروجی 2 | جریان - خروجی 3 | جریان - خروجی 4 | جریان - خروجی 5 | جریان - خروجی 6 | توان (وات) | برنامه های کاربردی | ولتاژ - جداسازی | کارایی | دمای عملیاتی | ویژگی ها | نوع نصب | اندازه / ابعاد | آژانس تایید |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LRS-150F-48AC/DC CONVERTER 48V 158W |
17 |
|
برگه مشخصات |
LRS-150F (150W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 48V | - | - | - | - | - | 3.3 A | - | - | - | - | - | 158W | Household Appliances, ITE (Commercial) | 4 kV | 90% | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 6.26" L x 3.82" W x 1.18" H (159.0mm x 97.0mm x 30.0mm) | CB, CCC, CE, cURus, RCM, TUV |
|

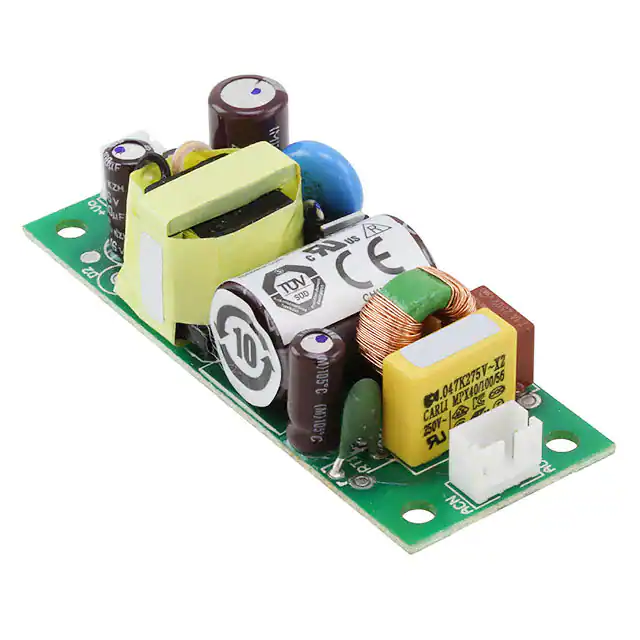

ECL05US05-TAC/DC CONVERTER 5V 5W |
18 |
|
برگه مشخصات |
ECL (5W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 5V | - | - | - | - | - | 1 A | - | - | - | - | - | 5W | ITE (Commercial) | 3 kV | 75% | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.46" L x 1.36" W x 0.88" H (87.9mm x 34.6mm x 22.4mm) | - |
|
MPM-45-24STAC/DC CONVERTER 24V 45W |
44 |
|
برگه مشخصات |
MPM-45 (45W) | Box | Active | Enclosed | 1 | 80 ~ 264 VAC, 113 ~ 370 VDC | 24V | - | - | - | - | - | 1.88 A | - | - | - | - | - | 45W (50W Forced Air) | Household Appliances, Medical | 4 kV | 92.5% | -30°C ~ 80°C (With Derating) | - | Chassis Mount | 4.29" L x 2.05" W x 1.32" H (109.0mm x 52.0mm x 33.5mm) | CB, CE, cURus, EAC, TUV |
|
MPM-45-12STAC/DC CONVERTER 12V 45W |
39 |
|
برگه مشخصات |
MPM-45 (45W) | Box | Active | Enclosed | 1 | 80 ~ 264 VAC, 113 ~ 370 VDC | 12V | - | - | - | - | - | 3.75 A | - | - | - | - | - | 45W (50W Forced Air) | Household Appliances, Medical | 4 kV | 91.5% | -30°C ~ 80°C (With Derating) | - | Chassis Mount | 4.29" L x 2.05" W x 1.32" H (109.0mm x 52.0mm x 33.5mm) | CB, CE, cURus, EAC, TUV |
|
MPM-45-5STAC/DC CONVERTER 5V 40W |
8 |
|
برگه مشخصات |
MPM-45 (45W) | Box | Active | Enclosed | 1 | 80 ~ 264 VAC, 113 ~ 370 VDC | 5V | - | - | - | - | - | 8 A | - | - | - | - | - | 40W (44W Forced Air) | Household Appliances, Medical | 4 kV | 88% | -30°C ~ 80°C (With Derating) | - | Chassis Mount | 4.29" L x 2.05" W x 1.32" H (109.0mm x 52.0mm x 33.5mm) | CB, CE, cURus, EAC, TUV |
|

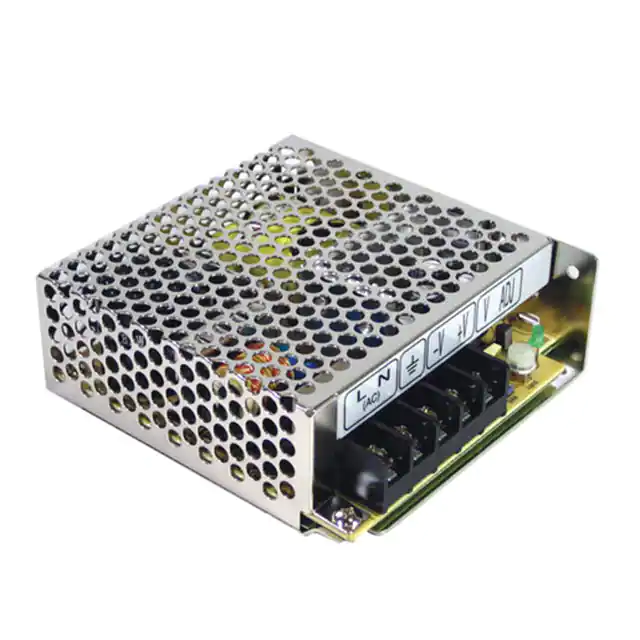

RID-50AAC/DC CONVERTER 5V 12V 54W |
26 |
|
برگه مشخصات |
RID-50 (50W) | Box | Active | Enclosed | 2 | 88 ~ 264 VAC, 125 ~ 373 VDC | 5V | 12V | - | - | - | - | 6 A | 2 A | - | - | - | - | 54W | ITE (Commercial) | 3 kV | 80% | -25°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.90" L x 3.82" W x 1.42" H (99.0mm x 97.0mm x 36.0mm) | CB, CE, cURus, TUV |
|
RQ-50BAC/DC CNVRTR 5V 12V -5V -12V 46W |
10 |
|
برگه مشخصات |
RQ-50 (50W) | Box | Active | Enclosed | 4 | 88 ~ 264 VAC, 125 ~ 373 VDC | 5V | 12V | -5V | -12V | - | - | 5 A | 1 A | 500 mA | 500 mA | - | - | 46W | ITE (Commercial) | 3 kV | 74% | -25°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.90" L x 3.82" W x 1.42" H (99.0mm x 97.0mm x 36.0mm) | CB, CE, cURus, TUV |
|

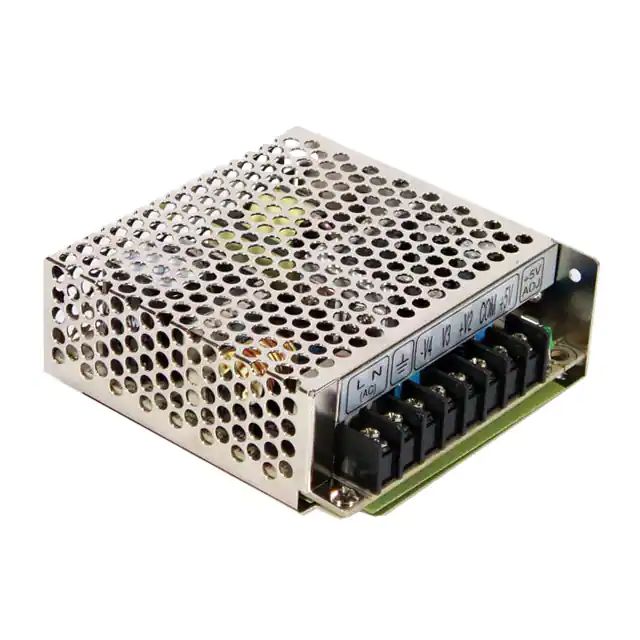

RQ-50CAC/DC CNVRTR 5V 15V -5V -15V 50W |
77 |
|
برگه مشخصات |
RQ-50 (50W) | Box | Active | Enclosed | 4 | 88 ~ 264 VAC, 125 ~ 373 VDC | 5V | 15V | -5V | -15V | - | - | 5 A | 1 A | 500 mA | 500 mA | - | - | 50W | ITE (Commercial) | 3 kV | 75% | -25°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.90" L x 3.82" W x 1.42" H (99.0mm x 97.0mm x 36.0mm) | CB, CE, cURus, TUV |
|
LS50-48AC/DC CONVERTER 48V 50W |
100 |
|
برگه مشخصات |
LS (50W) | Bulk | Active | Enclosed | 1 | 88 ~ 264 VAC | 48V | - | - | - | - | - | 1.1 A | - | - | - | - | - | 50W | ITE (Commercial) | 3 kV | 86% | -25°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.90" L x 3.80" W x 1.40" H (99.1mm x 96.5mm x 35.6mm) | CE |
|
|
LRS-150F-36AC/DC CONVERTER 36V 155W |
33 |
|
برگه مشخصات |
LRS-150F (150W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 36V | - | - | - | - | - | 4.3 A | - | - | - | - | - | 155W | Household Appliances, ITE (Commercial) | 4 kV | 89% | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 6.26" L x 3.82" W x 1.18" H (159.0mm x 97.0mm x 30.0mm) | CB, CCC, CE, cURus, RCM, TUV |
|

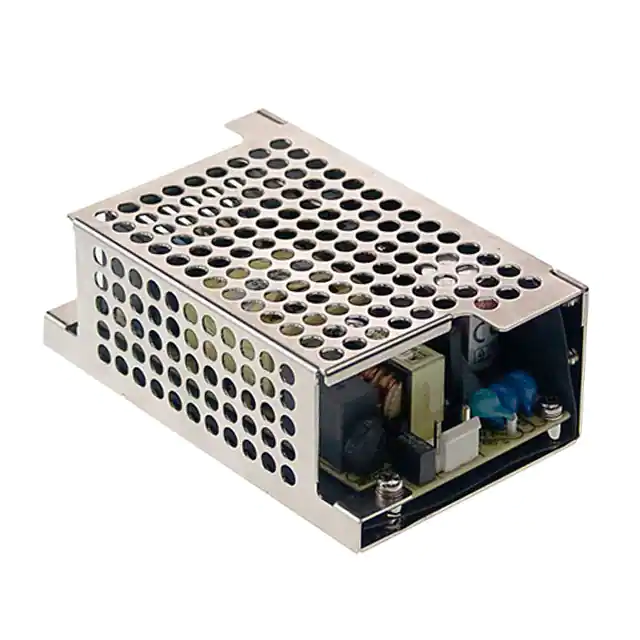

PSC-60A-CAC/DC CONVERTER 13.8V 13.8V 59W |
84 |
|
برگه مشخصات |
PSC-60 (60W) | Box | Active | Enclosed | 2 | 90 ~ 264 VAC, 127 ~ 370 VDC | 13.8V | 13.8V | - | - | - | - | 2.8 A | 1.5 A | - | - | - | - | 59W | ITE (Commercial) | 3 kV | 84% | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.07" L x 2.44" W x 1.46" H (103.4mm x 62.0mm x 37.0mm) | CB, CE, cURus, TUV |
|
TMPW 10-105-T10 WATT AC/DC ENCAPSULATED CHASS |
29 |
|
برگه مشخصات |
TMPW 10-T (10W) | Box | Active | Enclosed | 1 | 90 ~ 305 VAC, 100 ~ 430 VDC | 5V | - | - | - | - | - | 2 A | - | - | - | - | - | 10W | Household Appliances, ITE (Commercial) | 4 kV | 81% | -40°C ~ 70°C | - | Chassis Mount | 2.17" L x 1.70" W x 0.91" H (55.1mm x 43.2mm x 23.1mm) | CB, CE, cURus, EAC, UKCA |
|
RPS-120-48AC/DC CONVERTER 48V 84W |
57 |
|
برگه مشخصات |
RPS-120 (120W) | Box | Active | Open Frame | 1 | 80 ~ 264 VAC, 113 ~ 370 VDC | 48V | - | - | - | - | - | 1.75 A | - | - | - | - | - | 84W (120W Forced Air) | Medical | 4 kV | 91% | -30°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 4.00" L x 2.00" W x 1.14" H (101.6mm x 50.8mm x 29.0mm) | CB, CE, cURus, TUV |
|
IRM-90-48STAC/DC CONVERTER 48V 90W |
36 |
|
برگه مشخصات |
IRM-90 (90W) | Box | Active | Enclosed | 1 | 80 ~ 305 VAC, 113 ~ 431 VDC | 48V | - | - | - | - | - | 1.88 A | - | - | - | - | - | 90W (99W Forced Air) | Household Appliances, ITE (Commercial) | 4 kV | 93% | -30°C ~ 80°C (With Derating) | Universal Input | Chassis Mount | 4.29" L x 2.05" W x 1.32" H (109.0mm x 52.0mm x 33.5mm) | CB, CE, cURus, EAC |
|

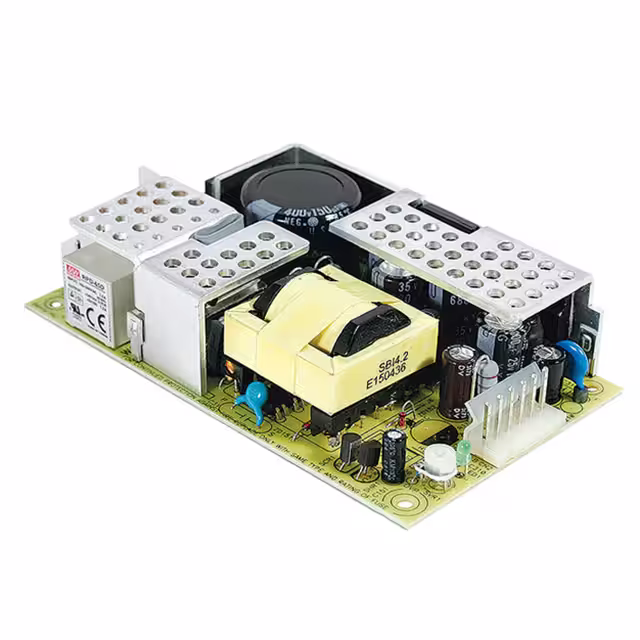

RPD-65CAC/DC CONVERTER 12V 5V 60W |
54 |
|
برگه مشخصات |
RPD-65 (65W) | Box | Active | Open Frame | 2 | 90 ~ 264 VAC, 127 ~ 370 VDC | 12V | 5V | - | - | - | - | 4.5 A | 1.2 A | - | - | - | - | 60W | ITE (Commercial) | 3 kV | 79% | -20°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.00" L x 2.99" W x 1.14" H (127.0mm x 76.0mm x 29.0mm) | CB, CE, cURus, TUV |
|
CUS30M-24AC/DC CONVERTER 24V 30W |
95 |
|
برگه مشخصات |
CUS30M (30W) | Box | Active | Open Frame | 1 | 85 ~ 265 VAC | 24V | - | - | - | - | - | 1.25 A | - | - | - | - | - | 30W | ITE (Commercial), Medical | 4 kV | 90% | -20°C ~ 70°C (With Derating) | PFC, Remote Sense | Chassis Mount | 3.00" L x 2.00" W x 0.95" H (76.2mm x 50.8mm x 24.1mm) | CE |
|
|
IRM-90-15STAC/DC CONVERTER 15V 85W |
25 |
|
برگه مشخصات |
IRM-90 (90W) | Box | Active | Enclosed | 1 | 80 ~ 305 VAC, 113 ~ 431 VDC | 15V | - | - | - | - | - | 5.67 A | - | - | - | - | - | 85W (93W Forced Air) | Household Appliances, ITE (Commercial) | 4 kV | 92.5% | -30°C ~ 80°C (With Derating) | Universal Input | Chassis Mount | 4.29" L x 2.05" W x 1.32" H (109.0mm x 52.0mm x 33.5mm) | CB, CE, cURus, EAC |
|
|
LRS-150F-15AC/DC CONVERTER 15V 150W |
83 |
|
برگه مشخصات |
LRS-150F (150W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 15V | - | - | - | - | - | 10 A | - | - | - | - | - | 150W | Household Appliances, ITE (Commercial) | 4 kV | 89% | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 6.26" L x 3.82" W x 1.18" H (159.0mm x 97.0mm x 30.0mm) | CB, CCC, CE, cURus, RCM, TUV |
|
CFM40S120AC/DC CONVERTER 12V 40W |
90 |
|
برگه مشخصات |
CFM40S (40W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | 3.34 A | - | - | - | - | - | 40W | ITE (Commercial) | 4.242 kV | 85% | 0°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.20" H (101.6mm x 50.8mm x 30.5mm) | CE, cURus, FCC, TUV |
|

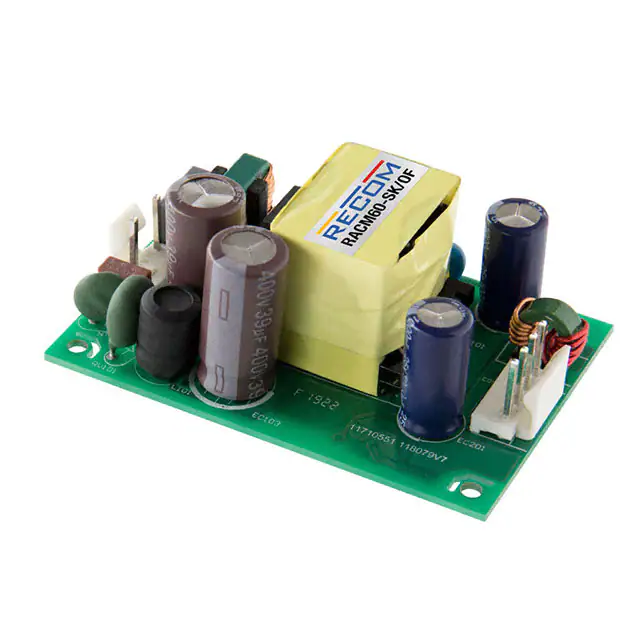

RACM60-12SK/OFAC/DC CONVERTER 12V 60W |
19 |
|
برگه مشخصات |
POWERLINE RACM60-K/OF (60W) | Box | Active | Open Frame | 1 | 80 ~ 264 VAC, 120 ~ 370 VDC | 12V | - | - | - | - | - | 5 A | - | - | - | - | - | 60W | Household Appliances, ITE (Commercial), Medical | 4 kV | 90% | -40°C ~ 85°C (With Derating) | Universal Input | Chassis Mount | 3.09" L x 2.09" W x 1.24" H (78.4mm x 53.0mm x 31.5mm) | CB, CE, cURus |
