مبدل های AC DC
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | تایپ کنید | تعداد خروجی ها | ولتاژ - ورودی | ولتاژ - خروجی 1 | ولتاژ - خروجی 2 | ولتاژ - خروجی 3 | ولتاژ - خروجی 4 | ولتاژ - خروجی 5 | ولتاژ - خروجی 6 | جریان - خروجی 1 | جریان - خروجی 2 | جریان - خروجی 3 | جریان - خروجی 4 | جریان - خروجی 5 | جریان - خروجی 6 | توان (وات) | برنامه های کاربردی | ولتاژ - جداسازی | کارایی | دمای عملیاتی | ویژگی ها | نوع نصب | اندازه / ابعاد | آژانس تایید |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TMPW 25-124-T25 WATT AC/DC ENCAPSULATED CHASS |
32 |
|
برگه مشخصات |
TMPW 25-T (25W) | Box | Active | Enclosed | 1 | 90 ~ 305 VAC, 100 ~ 430 VDC | 24V | - | - | - | - | - | 1.042 A | - | - | - | - | - | 25W | Household Appliances, ITE (Commercial) | 4 kV | 87% | -40°C ~ 70°C | - | Chassis Mount | 3.48" L x 1.50" W x 0.95" H (88.4mm x 38.1mm x 24.1mm) | CB, CE, cURus, EAC, UKCA |
|

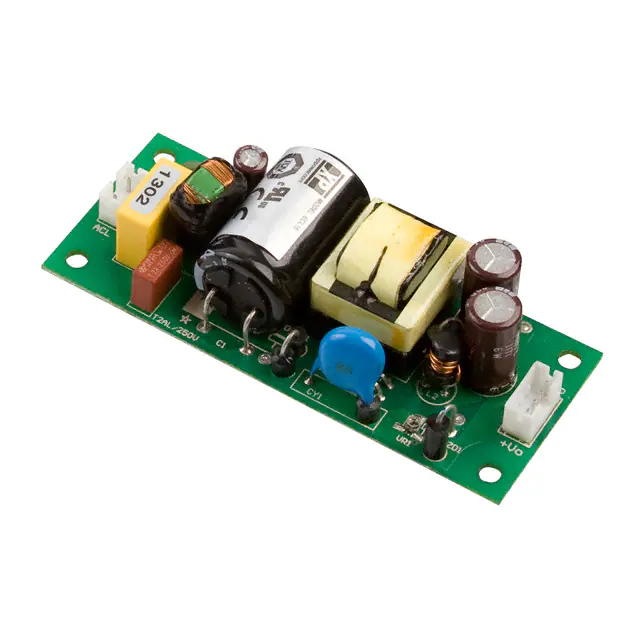

ECL15US12-TAC/DC CONVERTER 12V 15W |
48 |
|
برگه مشخصات |
ECL (15W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 1.25 A | - | - | - | - | - | 15W | ITE (Commercial) | 3 kV | 80% | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.10" L x 1.25" W x 0.78" H (78.7mm x 31.7mm x 20.0mm) | - |
|
ZPSA40-5AC/DC CONVERTER 5V 40W |
58 |
|
برگه مشخصات |
ZPSA40 (40W) | Bulk | Active | Open Frame | 1 | 90 ~ 264 VAC | 5V | - | - | - | - | - | 6 A | - | - | - | - | - | 40W | ITE (Commercial) | 3 kV | 79% | 0°C ~ 70°C | - | Chassis Mount | 4.00" L x 2.00" W x 1.07" H (101.6mm x 50.8mm x 27.1mm) | CE |
|
|
ZPSA40-28AC/DC CONVERTER 28V 40W |
29 |
|
برگه مشخصات |
ZPSA40 (40W) | Bulk | Active | Open Frame | 1 | 90 ~ 264 VAC | 28V | - | - | - | - | - | 1.43 A | - | - | - | - | - | 40W | ITE (Commercial) | 3 kV | 86% | 0°C ~ 70°C | - | Chassis Mount | 4.00" L x 2.00" W x 1.07" H (101.6mm x 50.8mm x 27.1mm) | CE |
|
RSP-75-24AC/DC CONVERTER 24V 77W |
36 |
|
برگه مشخصات |
RSP-75 (75W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 24V | - | - | - | - | - | 3.2 A | - | - | - | - | - | 77W | ITE (Commercial) | 4 kV | 87% | -25°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Universal Input | Chassis Mount | 6.26" L x 3.82" W x 1.18" H (159.0mm x 97.0mm x 30.0mm) | CB, CCC, CE, cURus, TUV |
|
RT-85AAC/DC CONVERTER 5V 12V -5V 85W |
11 |
|
برگه مشخصات |
RT-85 (85W) | Box | Active | Enclosed | 3 | 88 ~ 264 VAC, 125 ~ 373 VDC | 5V | 12V | -5V | - | - | - | 8 A | 3.5 A | 500 mA | - | - | - | 85W | ITE (Commercial) | 3 kV | 76% | -25°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 6.26" L x 3.82" W x 1.50" H (159.0mm x 97.0mm x 38.0mm) | CB, CE, cURus, TUV |
|

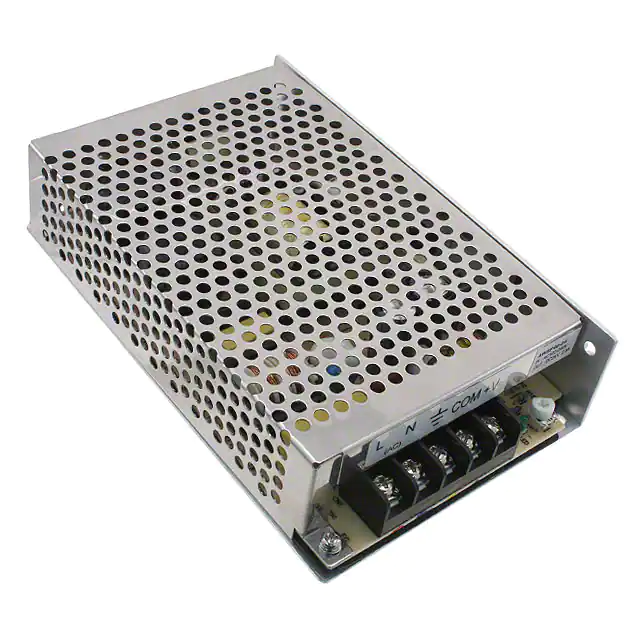

AWSP60-12AC/DC CONVERTER 12V 60W |
30 |
|
برگه مشخصات |
AWSP60 | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 5 A | - | - | - | - | - | 60W | ITE (Commercial) | 3 kV | 78% | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 6.30" L x 3.86" W x 1.50" H (160.0mm x 98.0mm x 38.0mm) | TUV, UR |
|
RT-125BAC/DC CONVERTER 5V +/-12V 132W |
43 |
|
برگه مشخصات |
RT-125 (125W) | Box | Active | Enclosed | 3 | 88 ~ 132 VAC, 176 ~ 264 VAC, 248 ~ 373 VDC | 5V | 12V | -12V | - | - | - | 12 A | 5 A | 1 A | - | - | - | 132W | ITE (Commercial) | 3 kV | 80% | -25°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 7.83" L x 3.86" W x 1.50" H (199.0mm x 98.0mm x 38.0mm) | CB, CE, cURus, TUV |
|
|
RT-125DAC/DC CONVERTER 5V 24V 12V 136W |
21 |
|
برگه مشخصات |
RT-125 (125W) | Box | Active | Enclosed | 3 | 88 ~ 132 VAC, 176 ~ 264 VAC, 248 ~ 373 VDC | 5V | 24V | 12V | - | - | - | 8 A | 3 A | 2 A | - | - | - | 136W | ITE (Commercial) | 3 kV | 82% | -25°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 7.83" L x 3.86" W x 1.50" H (199.0mm x 98.0mm x 38.0mm) | CB, CE, cURus, TUV |
|
|
RT-125CAC/DC CONVERTER 5V +/-15V 133W |
7 |
|
برگه مشخصات |
RT-125 (125W) | Box | Active | Enclosed | 3 | 88 ~ 132 VAC, 176 ~ 264 VAC, 248 ~ 373 VDC | 5V | 15V | -15V | - | - | - | 10 A | 4.5 A | 1 A | - | - | - | 133W | ITE (Commercial) | 3 kV | 81% | -25°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 7.83" L x 3.86" W x 1.50" H (199.0mm x 98.0mm x 38.0mm) | CB, CE, cURus, TUV |
|
|
TMPW 25-112-T25 WATT AC/DC ENCAPSULATED CHASS |
24 |
|
برگه مشخصات |
TMPW 25-T (25W) | Box | Active | Enclosed | 1 | 90 ~ 305 VAC, 100 ~ 430 VDC | 12V | - | - | - | - | - | 2.083 A | - | - | - | - | - | 25W | Household Appliances, ITE (Commercial) | 4 kV | 88% | -40°C ~ 70°C | - | Chassis Mount | 3.48" L x 1.50" W x 0.95" H (88.4mm x 38.1mm x 24.1mm) | CB, CE, cURus, EAC, UKCA |
|
RPS-120S-48AC/DC CONVERTER 48V 120W |
100 |
|
برگه مشخصات |
RPS-120S (120W) | Box | Active | Open Frame | 1 | 80 ~ 264 VAC, 113 ~ 370 VDC | 48V | - | - | - | - | - | 2.5 A | - | - | - | - | - | 120W (150W Forced Air) | Medical | 4 kV | 93.5% | -30°C ~ 85°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.10" H (76.2mm x 50.8mm x 28.0mm) | CB, CE, cURus, EAC, TUV |
.jpg)
|

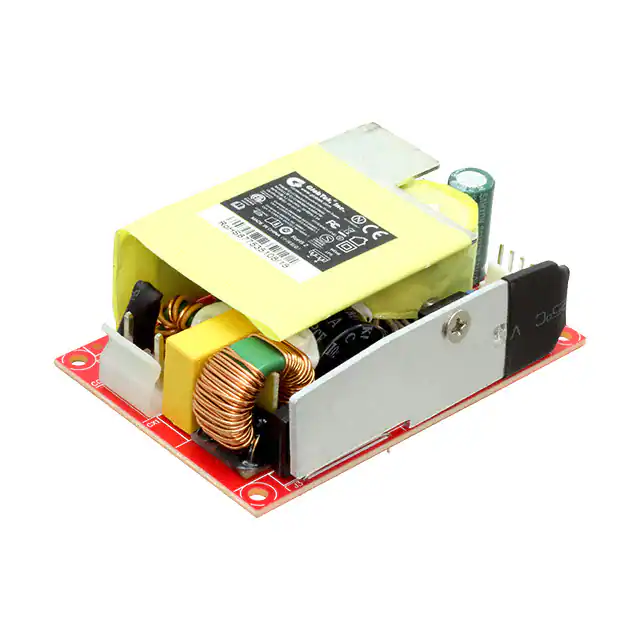

GTM43007-A3006-FW(R)AC/DC CONVERTER 6V 30W |
58 |
|
برگه مشخصات |
GTM43007-AWWVV-FW | Bulk | Active | Open Frame | 1 | 90 ~ 264 VAC | 6V | - | - | - | - | - | 5 A | - | - | - | - | - | 30W | Household Appliances, ITE (Commercial), Medical | 4 kV | 89% | -10°C ~ 45°C | Universal Input | Chassis Mount | 3.00" L x 2.00" W x 0.93" H (76.2mm x 50.8mm x 23.6mm) | CB, CCC, CE, cETLus, EAC, ETL, FCC, NEMKO, S-Mark, UkrSEPRO |
|
ZPSA60-15AC/DC CONVERTER 15V 60W |
6 |
|
برگه مشخصات |
ZPSA60 (60W) | Bulk | Active | Open Frame | 1 | 90 ~ 264 VAC | 15V | - | - | - | - | - | 4 A | - | - | - | - | - | 60W | ITE (Commercial) | 3 kV | 85% | 0°C ~ 70°C | - | Chassis Mount | 4.00" L x 2.00" W x 1.07" H (101.6mm x 50.8mm x 27.1mm) | CE |
|
|
LRS-350N2-48O/P +48V7.3A |
15 |
|
برگه مشخصات |
LRS-350N2 (350W) | Box | Active | Enclosed | 1 | 90 ~ 132 VAC, 180 ~ 264 VAC, 240 ~ 370 VDC | 48V | - | - | - | - | - | 7.3 A | - | - | - | - | - | 350W | ITE (Commercial) | 3.75 kV | 89% | -25°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 8.46" L x 4.53" W x 1.18" H (215.0mm x 115.0mm x 30.0mm) | CB, CE, CQC, cURus, EAC, UKCA |
|
|
LRS-350N2-24O/P +24V14.6A |
9 |
|
برگه مشخصات |
LRS-350N2 (350W) | Box | Active | Enclosed | 1 | 90 ~ 132 VAC, 180 ~ 264 VAC, 240 ~ 370 VDC | 24V | - | - | - | - | - | 14.6 A | - | - | - | - | - | 350W | ITE (Commercial) | 3.75 kV | 88% | -25°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 8.46" L x 4.53" W x 1.18" H (215.0mm x 115.0mm x 30.0mm) | CB, CE, CQC, cURus, EAC, UKCA |
|
LS100-15AC/DC CONVERTER 15V 100W |
41 |
|
برگه مشخصات |
LS (100W) | Bulk | Active | Enclosed | 1 | 88 ~ 264 VAC | 15V | - | - | - | - | - | 7 A | - | - | - | - | - | 100W | ITE (Commercial) | 3 kV | 84% | -25°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 6.30" L x 3.80" W x 1.50" H (160.0mm x 96.5mm x 38.1mm) | CE |
|
NPS43-MAC/DC CONVERTER 12V 45W |
58 |
|
برگه مشخصات |
NPS40-M (60W) | Bulk | Active | Open Frame | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | 3.75 A | - | - | - | - | - | 45W (60W Forced Air) | ITE (Commercial), Medical | - | 87% | 0°C ~ 80°C (With Derating) | Adjustable Output, DC Input Capable, Remote Sense, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.00" H (101.6mm x 50.8mm x 21.8mm) | CB, CCC, CE, CSA, UL, TUV |
|
RD-125-1248AC/DC CONVERTER 12V 48V 138W |
25 |
|
برگه مشخصات |
RD-125 (125W) | Box | Active | Enclosed | 2 | 88 ~ 132 VAC, 176 ~ 264 VAC, 248 ~ 373 VDC | 12V | 48V | - | - | - | - | 2.3 A | 2.3 A | - | - | - | - | 138W | ITE (Commercial) | 3 kV | 86% | -25°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 7.83" L x 3.86" W x 1.50" H (199.0mm x 98.0mm x 38.0mm) | CB, CE, cURus, TUV |
|
LFWLT60-1001AC/DC CONVERTER 12V 65W |
65 |
|
برگه مشخصات |
WLT60 (60W) | Bulk | Active | Open Frame | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | 5.4 A | - | - | - | - | - | 65W | ITE (Commercial) | 4.242 kV | 85% | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.12" H (101.6mm x 50.8mm x 28.5mm) | CE, cUL, Nemko, UL |
