مبدل های AC DC
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | تایپ کنید | تعداد خروجی ها | ولتاژ - ورودی | ولتاژ - خروجی 1 | ولتاژ - خروجی 2 | ولتاژ - خروجی 3 | ولتاژ - خروجی 4 | ولتاژ - خروجی 5 | ولتاژ - خروجی 6 | جریان - خروجی 1 | جریان - خروجی 2 | جریان - خروجی 3 | جریان - خروجی 4 | جریان - خروجی 5 | جریان - خروجی 6 | توان (وات) | برنامه های کاربردی | ولتاژ - جداسازی | کارایی | دمای عملیاتی | ویژگی ها | نوع نصب | اندازه / ابعاد | آژانس تایید |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RACM90-12SK/ENCAC/DC CONVERTER 12V 90W |
18 |
|
برگه مشخصات |
RACM90-K (90W) | Tray | Active | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 12V | - | - | - | - | - | 7.5 A | - | - | - | - | - | 90W | ITE (Commercial) | 4 kV | 87% | -40°C ~ 90°C (With Derating) | Baseplate, DC Input Capable, PFC, Universal Input | Chassis Mount | 4.66" L x 2.47" W x 1.52" H (118.3mm x 62.7mm x 38.7mm) | CE, EAC |
|
LS100-5AC/DC CONVERTER 5V 100W |
29 |
|
برگه مشخصات |
LS (100W) | Bulk | Active | Enclosed | 1 | 88 ~ 264 VAC | 5V | - | - | - | - | - | 16 A | - | - | - | - | - | 100W | ITE (Commercial) | 3 kV | 79% | -25°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 6.30" L x 3.80" W x 1.50" H (160.0mm x 96.5mm x 38.1mm) | CE |
|
TPI 50-148A-JAC/DC CONVERTER 48V 50W |
15 |
|
برگه مشخصات |
TPI 50A-J (50W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 48V | - | - | - | - | - | 1.045 A | - | - | - | - | - | 50W | ITE (Commercial) | 3 kV | 92% | -40°C ~ 85°C | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.00" L x 1.50" W x 1.30" H (76.2mm x 38.1mm x 33.0mm) | CB, CE, cULus, cURus |
|

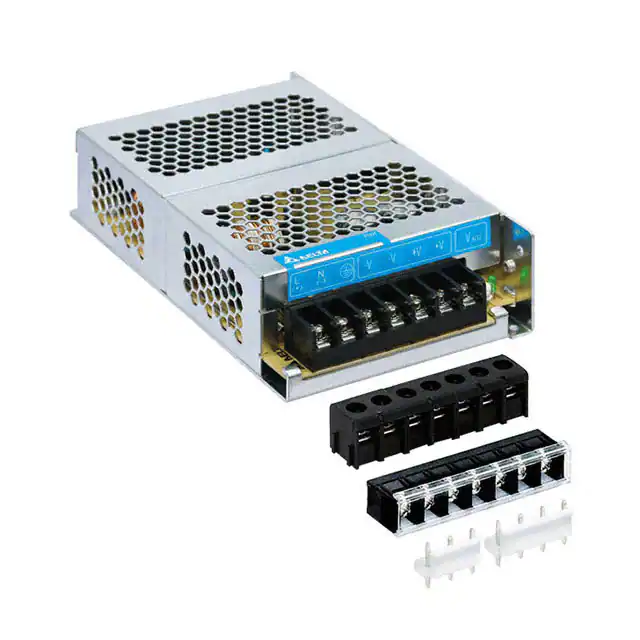

PMH-24V100WCAAAC/DC CONVERTER 24V 100W |
29 |
|
برگه مشخصات |
PMH (100W) | Bulk | Active | Enclosed | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 4.16 A | - | - | - | - | - | 100W | Household Appliances, ITE (Commercial) | 4.2 kV | 89% | -30°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Load Sharing, Universal Input | Chassis Mount | 6.22" L x 3.82" W x 1.50" H (158.0mm x 97.0mm x 38.0mm) | CB, CE, cURus |
|

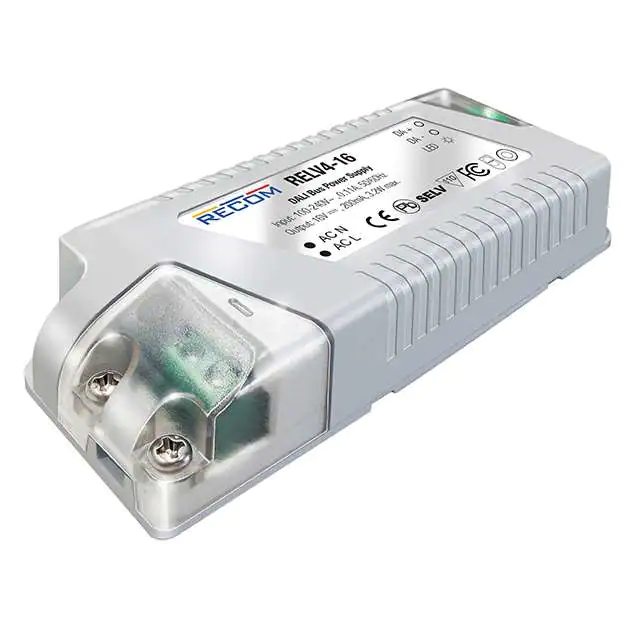

RELV4-16AC/DC CONVERTER 16V 3W |
37 |
|
برگه مشخصات |
LIGHTLINE RELV4-16 (3.2W) | Box | Active | Enclosed | 1 | 90 ~ 264 VAC | 16V | - | - | - | - | - | 200 mA | - | - | - | - | - | 3W | ITE (Commercial) | 3.75 kV | 68% | -20°C ~ 45°C | IP20 | Chassis Mount | 4.41" L x 1.65" W x 0.94" H (112.0mm x 42.0mm x 24.0mm) | CE |
|
FCB100US48AC/DC CONVERTER 48V 86W |
38 |
|
برگه مشخصات |
FCB100 (100W) | Tray | Active | Open Frame | 1 | 80 ~ 264 VAC | 48V | - | - | - | - | - | 2.1 A | - | - | - | - | - | 86W (101W Forced Air) | Household Appliances, ITE (Commercial), Medical | 4 kV | 87% | -25°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.25" H (101.6mm x 50.8mm x 31.8mm) | CB, CE, UKCA, UL |
|
|
FCB100US15AC/DC CONVERTER 15V 80W |
15 |
|
برگه مشخصات |
FCB100 (100W) | Tray | Active | Open Frame | 1 | 80 ~ 264 VAC | 15V | - | - | - | - | - | 6.7 A | - | - | - | - | - | 80W (101W Forced Air) | Household Appliances, ITE (Commercial), Medical | 4 kV | 87% | -25°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.25" H (101.6mm x 50.8mm x 31.8mm) | CB, CE, UKCA, UL |
|

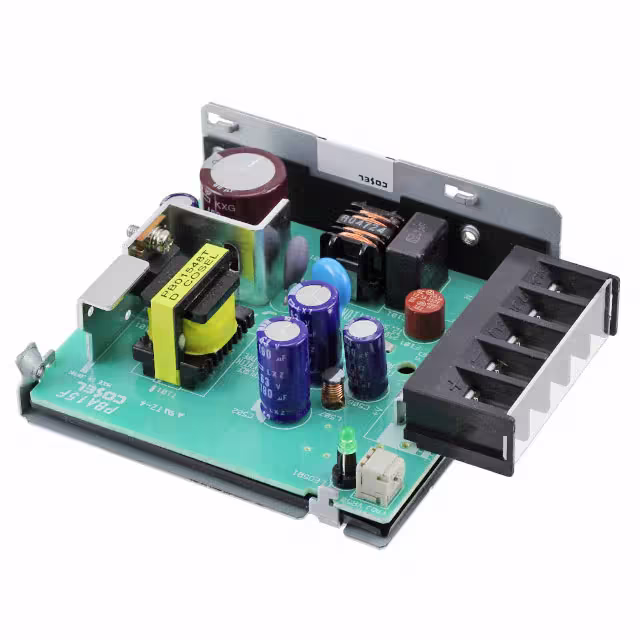

PBA15F-15AC/DC CONVERTER 15V 15W |
65 |
|
برگه مشخصات |
PBA (15W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 15V | - | - | - | - | - | 1 A | - | - | - | - | - | 15W | ITE (Commercial) | - | 80% | - | DC Input Capable, Universal Input | Chassis Mount | - | CE, cURus, TUV |
|
RQ-85BAC/DC CNVRTR 5V 12V -5V -12V 81W |
66 |
|
برگه مشخصات |
RQ-85 (85W) | Box | Active | Enclosed | 4 | 88 ~ 264 VAC, 125 ~ 373 VDC | 5V | 12V | -5V | -12V | - | - | 7 A | 3.1 A | 500 mA | 500 mA | - | - | 81W | ITE (Commercial) | 3 kV | 76% | -25°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 6.26" L x 3.82" W x 1.50" H (159.0mm x 97.0mm x 38.0mm) | CB, CE, cURus, TUV |
|
ECL15UD01-TAC/DC CONVERTER +/-12V 15W |
8 |
|
برگه مشخصات |
ECL (15W) | Box | Active | Open Frame | 2 | 85 ~ 264 VAC | 12V | -12V | - | - | - | - | 650 mA | 650 mA | - | - | - | - | 15W | ITE (Commercial) | 3 kV | 82% | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.10" L x 1.25" W x 0.78" H (78.7mm x 31.7mm x 20.0mm) | - |
|
TPP 30-124A-JAC/DC CONVERTER 24V 30W |
72 |
|
برگه مشخصات |
TPP 30A-J (30W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 24V | - | - | - | - | - | 1.25 A | - | - | - | - | - | 30W | Household Appliances, ITE (Commercial), Medical | 4 kV | 89.5% | -40°C ~ 85°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.34" L x 1.36" W x 0.77" H (84.8mm x 34.5mm x 19.6mm) | CB, CE, cURus |
|
CFM130S360AC/DC CONVERTER 36V 101W |
43 |
|
برگه مشخصات |
CFM130S (130W) | Box | Active | Open Frame | 1 | 100 ~ 240 VAC | 36V | - | - | - | - | - | 2.8 A | - | - | - | - | - | 101W (130W Forced Air) | Household Appliances, ITE (Commercial) | 4 kV | 94% | -30°C ~ 70°C (With Derating) | PFC, Standby Output, Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.20" H (76.2mm x 50.8mm x 30.5mm) | CE, cURus, DEMKO, FCC |
|
|
TPI 50-115A-JAC/DC CONVERTER 15V 50W |
8 |
|
برگه مشخصات |
TPI 50A-J (50W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 15V | - | - | - | - | - | 3.34 A | - | - | - | - | - | 50W | ITE (Commercial) | 3 kV | 93% | -40°C ~ 85°C | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.00" L x 1.50" W x 1.30" H (76.2mm x 38.1mm x 33.0mm) | CB, CE, cULus, cURus |
|
LFMWLT60-1003AC/DC CONVERTER 24V 65W |
59 |
|
برگه مشخصات |
MWLT60 (60W) | Bulk | Active | Open Frame | 1 | 90 ~ 264 VAC | 24V | - | - | - | - | - | 2.7 A | - | - | - | - | - | 65W | Medical | 5.7 kV | 85% | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.12" H (101.6mm x 50.8mm x 28.5mm) | CE, cUL, Nemko, UL |
|

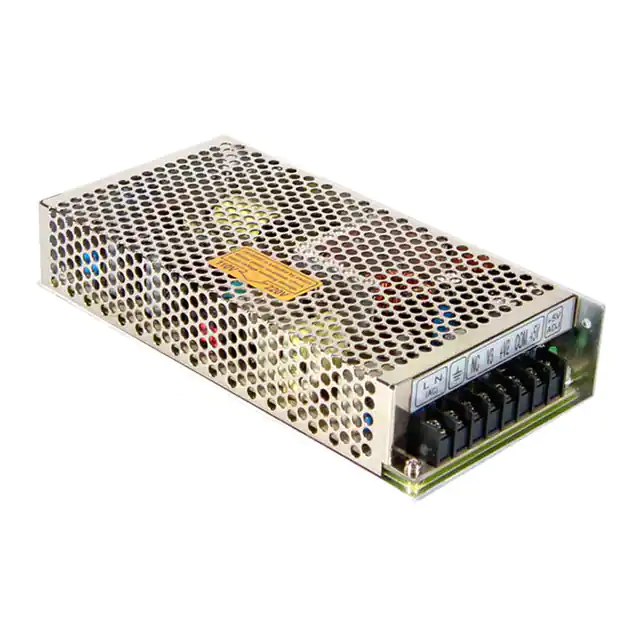

RID-125-2448AC/DC CONVERTER 24V 48V 144W |
15 |
|
برگه مشخصات |
RID-125 (125W) | Box | Active | Enclosed | 2 | 88 ~ 132 VAC, 176 ~ 264 VAC, 248 ~ 373 VDC | 24V | 48V | - | - | - | - | 2 A | 2 A | - | - | - | - | 144W | ITE (Commercial) | 3 kV | 86% | -20°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 7.83" L x 3.86" W x 1.50" H (199.0mm x 98.0mm x 38.0mm) | CB, CE, cURus, TUV |
|

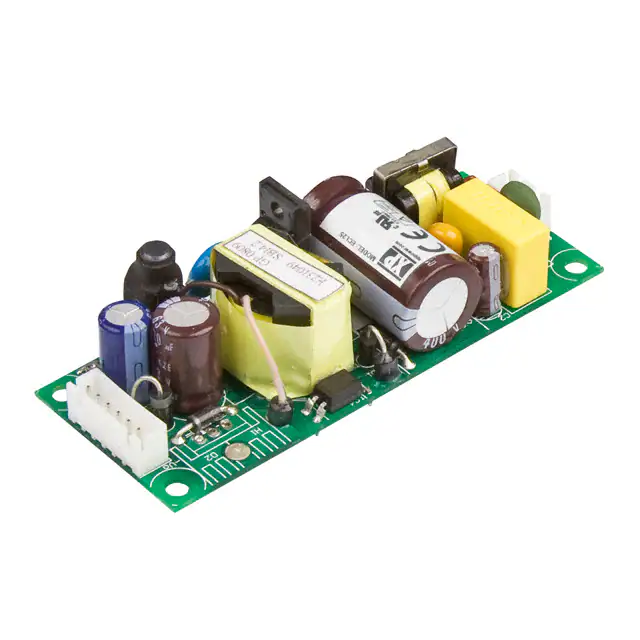

ECL25US05-TAC/DC CONVERTER 5V 25W |
23 |
|
برگه مشخصات |
ECL (25W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 5V | - | - | - | - | - | 5 A | - | - | - | - | - | 25W | ITE (Commercial) | 4 kV | 78% | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.46" L x 1.36" W x 0.88" H (87.9mm x 34.6mm x 22.4mm) | CE |
|

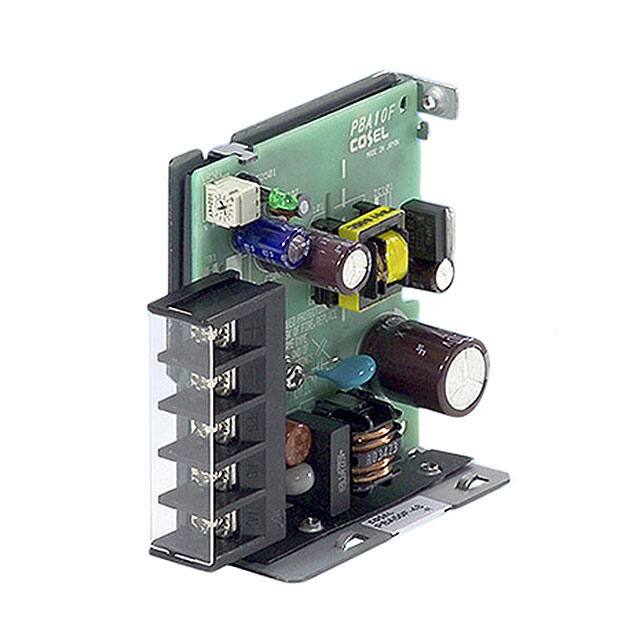

PBA10F-24AC/DC CONVERTER 24V 10W |
14 |
|
برگه مشخصات |
PBA (10W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 500 mA | - | - | - | - | - | 10W | ITE (Commercial) | - | 77% | - | DC Input Capable, Universal Input | Chassis Mount | - | CE, cURus, TUV |
|
PBA10F-5AC/DC CONVERTER 5V 10W |
8 |
|
برگه مشخصات |
PBA (10W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 5V | - | - | - | - | - | 2 A | - | - | - | - | - | 10W | ITE (Commercial) | - | 74% | - | DC Input Capable, Universal Input | Chassis Mount | - | CE, cURus, TUV |
|
TPP 15-105A-JAC/DC CONVERTER 5V 15W |
17 |
|
برگه مشخصات |
TPP 15A-J (15W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 5V | - | - | - | - | - | 3 A | - | - | - | - | - | 15W | ITE (Commercial), Medical | 4 kV | 86% | -40°C ~ 85°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 2.61" L x 1.00" W x 0.64" H (66.3mm x 25.4mm x 16.3mm) | CB, CE, cURus |
|
PLA50F-24AC/DC CONVERTER 24V 50W |
37 |
|
برگه مشخصات |
PLA (50W) | Box | Last Time Buy | Enclosed | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 2.2 A | - | - | - | - | - | 50W | ITE (Commercial) | - | 84% | -20°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | - | CE, cURus, TUV |
