مبدل های AC DC
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | تایپ کنید | تعداد خروجی ها | ولتاژ - ورودی | ولتاژ - خروجی 1 | ولتاژ - خروجی 2 | ولتاژ - خروجی 3 | ولتاژ - خروجی 4 | ولتاژ - خروجی 5 | ولتاژ - خروجی 6 | جریان - خروجی 1 | جریان - خروجی 2 | جریان - خروجی 3 | جریان - خروجی 4 | جریان - خروجی 5 | جریان - خروجی 6 | توان (وات) | برنامه های کاربردی | ولتاژ - جداسازی | کارایی | دمای عملیاتی | ویژگی ها | نوع نصب | اندازه / ابعاد | آژانس تایید |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TXM 075-112AC/DC CONVERTER 12V 72W |
9 |
|
برگه مشخصات |
TXM 075 (75W) | Box | Active | Enclosed | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 12V | - | - | - | - | - | 6 A | - | - | - | - | - | 72W | ITE (Commercial) | 3 kV | 85% | -25°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.08" L x 3.90" W x 1.50" H (129.0mm x 99.1mm x 38.1mm) | CE, cURus |
|
RACM18-12SER/WAC/DC CONVERTER 12V 18W |
38 |
|
برگه مشخصات |
MEDLINE RACM18-ER/W (18W) | Box | Active | Enclosed | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | 1.5 A | - | - | - | - | - | 18W | Household Appliances, ITE (Commercial), Medical | 4.6 kV | 86% | -20°C ~ 80°C (With Derating) | IP68, Universal Input | Chassis Mount | 2.09" L x 2.00" W x 0.98" H (53.0mm x 51.0mm x 25.0mm) | CE |
|

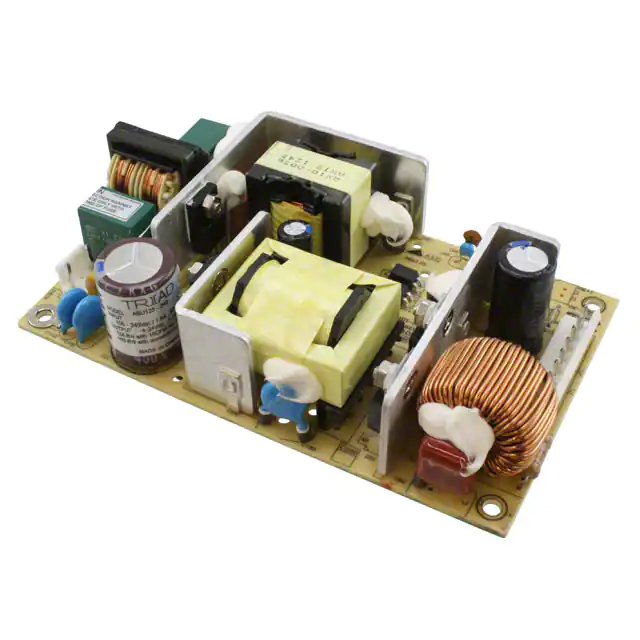

ABU125-240AC/DC CONVERTER 24V 100W |
11 |
|
برگه مشخصات |
ABU125 | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 24V | - | - | - | - | - | 4.16 A | - | - | - | - | - | 100W | ITE (Commercial) | 3 kV | 87% | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.05" H (127.0mm x 76.2mm x 26.6mm) | CB, CE, TUV, UR |
|
TIW 06-106AC/DC CONVERTER 6V 6W |
16 |
|
برگه مشخصات |
TIW (6W) | Box | Active | Enclosed | 1 | 93 ~ 264 VAC | 6V | - | - | - | - | - | 1 A | - | - | - | - | - | 6W | Household Appliances, ITE (Commercial) | - | 80% | -25°C ~ 50°C | IP67, Universal Input | Chassis Mount | 1.98" L x 1.89" W x 0.93" H (50.2mm x 48.0mm x 23.6mm) | CB, CE, cCSAus |
|

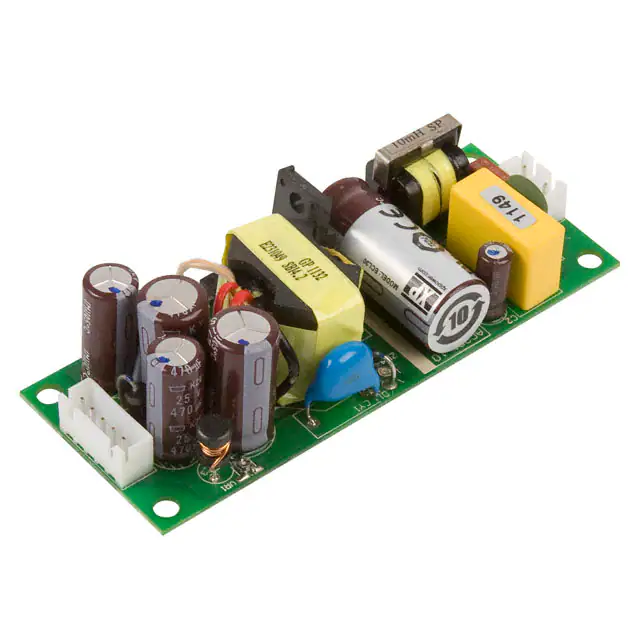

ECL30UD02-TAC/DC CONVERTER +/-15V 30W |
33 |
|
برگه مشخصات |
ECL (30W) | Box | Active | Open Frame | 2 | 85 ~ 264 VAC | 15V | -15V | - | - | - | - | 1 A | 1 A | - | - | - | - | 30W | ITE (Commercial) | 3 kV | 83% | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.46" L x 1.36" W x 0.88" H (87.9mm x 34.6mm x 22.4mm) | - |
|

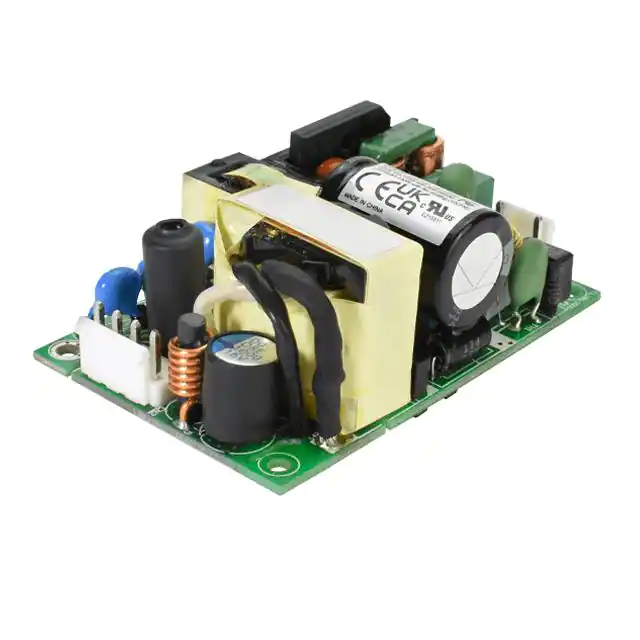

VOF-130-12AC/DC CONVERTER 12V 130W |
25 |
|
برگه مشخصات |
VOF-130 (130W) | Box | Active | Open Frame | 1 | 80 ~ 264 VAC | 12V | - | - | - | - | - | 10.8 A | - | - | - | - | - | 130W | ITE (Commercial) | 3 kV | 93% | -30°C ~ 70°C (With Derating) | PFC | Chassis Mount | 3.00" L x 2.00" W x 1.20" H (76.2mm x 50.8mm x 30.5mm) | CE, cURus, UKCA |
|
ECM40US09AC/DC CONVERTER 9V 40W |
18 |
|
برگه مشخصات |
ECM (40W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 9V | - | - | - | - | - | 4.4 A | - | - | - | - | - | 40W | ITE (Commercial), Medical | 4 kV | 80% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.20" H (101.6mm x 50.8mm x 30.5mm) | CB, CE |
|

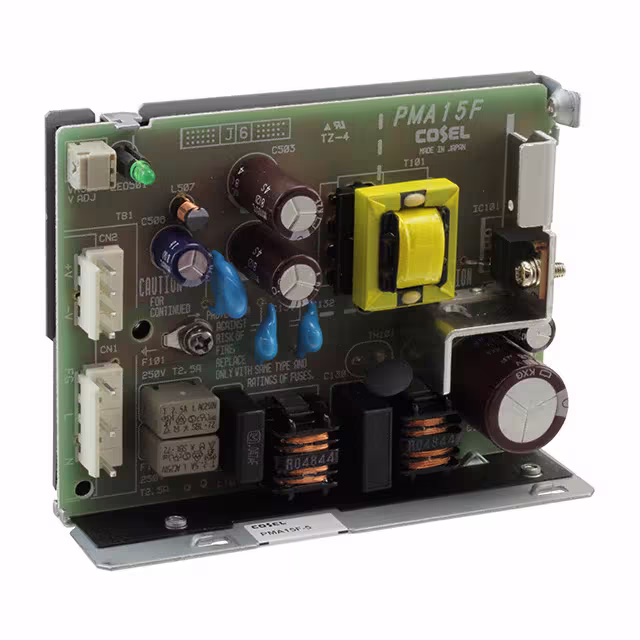

PMA15F-5AC/DC CONVERTER 5V |
11 |
|
برگه مشخصات |
PMA (15W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 5V | - | - | - | - | - | 3 A | - | - | - | - | - | - | Medical | 2 kV | 74% | -10°C ~ 70°C | - | Chassis Mount | 4.06" L x 1.22" W x 3.07" H (103.1mm x 31.0mm x 78.0mm) | CE, cURus, TUV |
|
HRP-75-5AC/DC CONVERTER 5V 75W |
44 |
|
برگه مشخصات |
HRP-75 (75W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 5V | - | - | - | - | - | 15 A | - | - | - | - | - | 75W | ITE (Commercial) | 3 kV | 82.5% | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Universal Input | Chassis Mount | 5.08" L x 3.86" W x 1.50" H (129.0mm x 98.0mm x 38.0mm) | CB, CE, cURus, TUV |
|
TPP 30-115A-JAC/DC CONVERTER 15V 30W |
16 |
|
برگه مشخصات |
TPP 30A-J (30W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 15V | - | - | - | - | - | 2 A | - | - | - | - | - | 30W | Household Appliances, ITE (Commercial), Medical | 4 kV | 90.5% | -40°C ~ 85°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.34" L x 1.36" W x 0.77" H (84.8mm x 34.5mm x 19.6mm) | CB, CE, cURus |
|
CFM202S360BAC/DC CONVERTER 36V 150W |
55 |
|
برگه مشخصات |
CFM202S (200W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 36V | - | - | - | - | - | 5.56 A | - | - | - | - | - | 150W (200W Forced Air) | Household Appliances, ITE (Commercial) | 4 kV | 93% | -40°C ~ 80°C (With Derating) | Baseplate, PFC, Standby Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.31" H (101.6mm x 50.8mm x 33.3mm) | CE, cURus, DEMKO, FCC |
|
|
CFM202S120BAC/DC CONVERTER 12V 150W |
51 |
|
برگه مشخصات |
CFM202S (200W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | 16.66 A | - | - | - | - | - | 150W (200W Forced Air) | Household Appliances, ITE (Commercial) | 4 kV | 92% | -40°C ~ 80°C (With Derating) | Baseplate, PFC, Standby Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.31" H (101.6mm x 50.8mm x 33.3mm) | CE, cURus, DEMKO, FCC |
|
CUT35-5FF/BAC/DC CONVERTER 5V +/-15V 35W |
11 |
|
برگه مشخصات |
CUT35 (35W) | Bulk | Active | Open Frame | 3 | 85 ~ 265 VAC | 5V | 15V | -15V | - | - | - | 3 A | 1 A | 650 mA | - | - | - | 35W | ITE (Commercial), Medical | 3 kV | 82% | -20°C ~ 70°C (With Derating) | Baseplate, DC Input Capable, Universal Input | Chassis Mount | 4.80" L x 2.22" W x 1.10" H (122.0mm x 56.5mm x 28.0mm) | CE |
|
CUT35-522/BAC/DC CONVERTER 5V +/-12V 35W |
6 |
|
برگه مشخصات |
CUT35 (35W) | Bulk | Active | Open Frame | 3 | 85 ~ 265 VAC | 5V | 12V | -12V | - | - | - | 3 A | 1.2 A | 850 mA | - | - | - | 35W | ITE (Commercial), Medical | 3 kV | 81% | -20°C ~ 70°C (With Derating) | Baseplate, DC Input Capable, Universal Input | Chassis Mount | 4.80" L x 2.22" W x 1.10" H (122.0mm x 56.5mm x 28.0mm) | CE |
|
TPP 15-105-JAC/DC CONVERTER 5V 15W |
13 |
|
برگه مشخصات |
TPP 15-J (15W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 5V | - | - | - | - | - | 3 A | - | - | - | - | - | 15W | Household Appliances, ITE (Commercial), Medical | 4 kV | 86% | -40°C ~ 85°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 2.82" L x 1.14" W x 0.82" H (71.6mm x 28.9mm x 20.9mm) | CB, CE, cURus |
|
RSP-200-2.5AC/DC CONVERTER 2.5V 100W |
8 |
|
برگه مشخصات |
RSP-200 (200W) | Box | Active | Enclosed | 1 | 88 ~ 264 VAC, 124 ~ 370 VDC | 2.5V | - | - | - | - | - | 40 A | - | - | - | - | - | 100W | ITE (Commercial) | 3 kV | 79.5% | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 8.46" L x 4.53" W x 1.18" H (215.0mm x 115.0mm x 30.0mm) | CB, CCC, CE, cURus, TUV |
|
LHA100F-48AC/DC CONVERTER 48V 101W |
52 |
|
برگه مشخصات |
LHA (100W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 48V | - | - | - | - | - | 2.1 A | - | - | - | - | - | 101W | ITE (Commercial) | 3 kV | 89% | -10°C ~ 70°C | Adjustable Output, Universal Input | Chassis Mount | 6.10" L x 2.44" W x 0.93" H (154.9mm x 62.0mm x 23.6mm) | CE, cURus, DEMKO, UL |
|
LFA30F-12-SNYAC/DC CONVERTER 12V |
7 |
|
برگه مشخصات |
LFA (30W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 2.5 A | - | - | - | - | - | - | ITE (Commercial) | 3 kV | 81% | -10°C ~ 70°C | - | Chassis Mount | 4.13" L x 1.97" W x 1.04" H (104.9mm x 50.0mm x 26.4mm) | CE, CSA, cURus, TUV, UL |
|
LSP-160-48TAC/DC CONVERTER 48V 163W |
32 |
|
برگه مشخصات |
LSP-160 (160W) | Box | Active | Enclosed | 1 | 100 ~ 264 VAC, 141 ~ 370 VDC | 48V | - | - | - | - | - | 3.4 A | - | - | - | - | - | 163W | ITE (Commercial) | 3.75 kV | 93.5% | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC | Chassis Mount | 7.64" L x 2.17" W x 0.79" H (194.0mm x 55.0mm x 20.0mm) | CB, CCC, CE, cURus, EAC, TUV |
|
CFM130S480AC/DC CONVERTER 48V 101W |
8 |
|
برگه مشخصات |
CFM130S (130W) | Box | Active | Open Frame | 1 | 100 ~ 240 VAC | 48V | - | - | - | - | - | 2.1 A | - | - | - | - | - | 101W (130W Forced Air) | Household Appliances, ITE (Commercial) | 4 kV | 94% | -30°C ~ 70°C (With Derating) | PFC, Standby Output, Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.20" H (76.2mm x 50.8mm x 30.5mm) | CE, cURus, DEMKO, FCC |
