مبدل های AC DC
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | تایپ کنید | تعداد خروجی ها | ولتاژ - ورودی | ولتاژ - خروجی 1 | ولتاژ - خروجی 2 | ولتاژ - خروجی 3 | ولتاژ - خروجی 4 | ولتاژ - خروجی 5 | ولتاژ - خروجی 6 | جریان - خروجی 1 | جریان - خروجی 2 | جریان - خروجی 3 | جریان - خروجی 4 | جریان - خروجی 5 | جریان - خروجی 6 | توان (وات) | برنامه های کاربردی | ولتاژ - جداسازی | کارایی | دمای عملیاتی | ویژگی ها | نوع نصب | اندازه / ابعاد | آژانس تایید |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CX10S-ADGBHA-P-A-DK00000AC/DC CNVT 2X5V 24V 12V 48V 24V |
10 |
|
برگه مشخصات |
COOLX®1000 | Box | Active | Enclosed | 8 | 85 ~ 264 VAC | 5V | 48V | 24V | 24V | 12V | 5V | 21 A | 4.17 A | 3 A | 3 A | 15 A | 6 A | 810W | ITE (Commercial), Medical | 4 kV | 93% | -40°C ~ 85°C | Adjustable Output, PMBus™, Remote Sense, Standby Output, Universal Input | Chassis Mount | 10.22" L x 6.46" W x 1.60" H (259.5mm x 164.0mm x 40.6mm) | CSA, EN, IEC, UL |
|
OFI700A12-NAC/DC CONVERTER 12V 701W |
2 |
|
برگه مشخصات |
OFI700A (700W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 58.4 A | - | - | - | - | - | 701W | ITE (Commercial) | - | 85.5% | -40°C ~ 95°C | Adjustable Output, Baseplate, PFC, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 9.84" L x 4.96" W x 1.57" H (249.9mm x 126.0mm x 39.9mm) | CB, CE, CSA, cURus, EN, UKCA, UL |
|
|
OFI1200A28AC/DC CONVERTER 28V 1204W |
2 |
|
برگه مشخصات |
OFI1200A (1200W) | Box | Active | Open Frame | 1 | 85 ~ 305 VAC | 28V | - | - | - | - | - | 43 A | - | - | - | - | - | 1204W | ITE (Commercial) | 3 kV | 90.5% | -40°C ~ 95°C | Adjustable Output, Baseplate, PFC, Remote On/Off, Remote Sense | Chassis Mount | 10.24" L x 5.59" W x 1.54" H (260.0mm x 142.0mm x 39.1mm) | CB, CE, CSA, cURus, EN, UKCA, UL |
|
|
OFI1200A48AC/DC CONVERTER 48V 1200W |
2 |
|
برگه مشخصات |
OFI1200A (1200W) | Box | Active | Open Frame | 1 | 85 ~ 305 VAC | 48V | - | - | - | - | - | 25 A | - | - | - | - | - | 1200W | ITE (Commercial) | 3 kV | 92% | -40°C ~ 95°C | Adjustable Output, Baseplate, PFC, Remote On/Off, Remote Sense | Chassis Mount | 10.24" L x 5.59" W x 1.54" H (260.0mm x 142.0mm x 39.1mm) | CB, CE, CSA, cURus, EN, UKCA, UL |
|
|
OFI1200A12-NAC/DC CONVERTER 12V 1008W |
2 |
|
برگه مشخصات |
OFI1200A (1200W) | Box | Active | Enclosed | 1 | 85 ~ 305 VAC | 12V | - | - | - | - | - | 84 A | - | - | - | - | - | 1008W | ITE (Commercial) | 3 kV | 86.5% | -40°C ~ 95°C | Adjustable Output, Baseplate, PFC, Remote On/Off, Remote Sense | Chassis Mount | 10.24" L x 5.59" W x 1.58" H (260.0mm x 142.0mm x 40.1mm) | CB, CE, CSA, cURus, EN, UKCA, UL |
|
|
OFI1200A48-NAC/DC CONVERTER 48V 1200W |
2 |
|
برگه مشخصات |
OFI1200A (1200W) | Box | Active | Enclosed | 1 | 85 ~ 305 VAC | 48V | - | - | - | - | - | 25 A | - | - | - | - | - | 1200W | ITE (Commercial) | 3 kV | 92% | -40°C ~ 95°C | Adjustable Output, Baseplate, PFC, Remote On/Off, Remote Sense | Chassis Mount | 10.24" L x 5.59" W x 1.58" H (260.0mm x 142.0mm x 40.1mm) | CB, CE, CSA, cURus, EN, UKCA, UL |
|
RFE1600-12/SAC/DC CONVERTER 12V 1600W |
5 |
|
برگه مشخصات |
RFE1600 (1600W) | Bulk | Active | Enclosed | 1 | 85 ~ 265 VAC | 12V | - | - | - | - | - | 133 A | - | - | - | - | - | 1600W | ITE (Commercial) | 3 kV | 90% | 0°C ~ 70°C (With Derating) | Adjustable Output, I2C Interface, IP64, Load Sharing, PMBus™, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 12.60" L x 3.45" W x 1.61" H (320.0mm x 85.0mm x 40.8mm) | CE |
|
TET4000-48-069RAHAC/DC CONVERTER 48V 3984W |
11 |
|
برگه مشخصات |
- | Box | Active | Front End | 1 | 90 ~ 305 VAC, 192 ~ 400 VDC | 48V | - | - | - | - | - | 83 A | - | - | - | - | - | 3984W | ITE (Commercial) | - | 96.8% | 0°C ~ 45°C | Adjustable Output, PFC, Remote On/Off, Standby Output | Rack Mount | 20.80" L x 2.72" W x 1.60" H (528.4mm x 69.0mm x 40.6mm) | - |
|
|
TET2200-12-086RAAC/DC CONVERTER 12V 2196W |
6 |
|
برگه مشخصات |
TET2200 (2200W) | Bulk | Active | Front End | 1 | 100 ~ 240 VAC, 180 ~ 300 VDC | 12V | - | - | - | - | - | 183 A | - | - | - | - | - | 2196W | ITE (Commercial) | 4.242 kV | 96% | 0°C ~ 55°C | Adjustable Output, Remote Sense, Standby Output | Rack Mount | 7.74" L x 3.40" W x 1.57" H (196.5mm x 86.3mm x 40.0mm) | CE |
|
|
OFI1200A12AC/DC CONVERTER 12V 1008W |
2 |
|
برگه مشخصات |
OFI1200A (1200W) | Box | Active | Open Frame | 1 | 85 ~ 305 VAC | 12V | - | - | - | - | - | 84 A | - | - | - | - | - | 1008W | ITE (Commercial) | 3 kV | 86.5% | -40°C ~ 95°C | Adjustable Output, Baseplate, PFC, Remote On/Off, Remote Sense | Chassis Mount | 10.24" L x 5.59" W x 1.54" H (260.0mm x 142.0mm x 39.1mm) | CB, CE, CSA, cURus, EN, UKCA, UL |
|

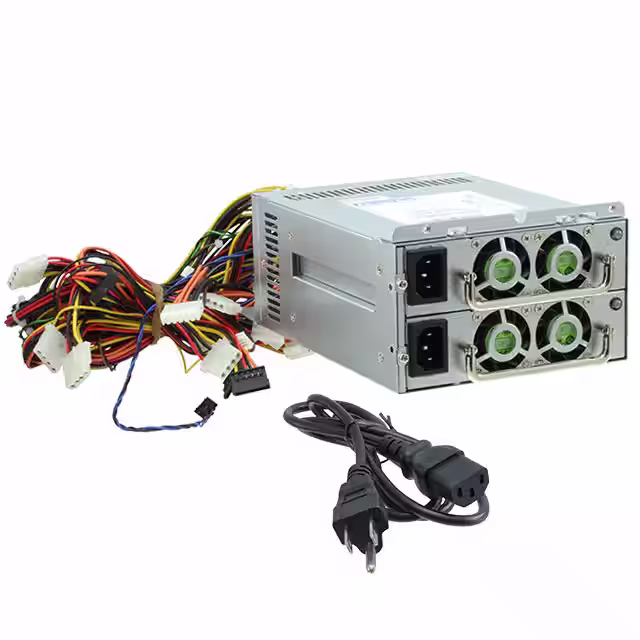

RPS8-750ATX-XEAC/DC CNVT 3.3V 5V +/-12V 5V |
2 |
|
برگه مشخصات |
- | Bulk | Active | Enclosed | 5 | 100 ~ 240 VAC | 3.3V | 5V | 12V | -12V | 5V | - | 24 A | 30 A | 60.9 A | 500 mA | 4 A | - | 750W | ITE (Commercial) | - | 80% | 0°C ~ 60°C | PFC, PMBus™ | Chassis Mount | 7.87" L x 5.91" W x 3.31" H (200.0mm x 150.0mm x 84.0mm) | CB, CCC, CE, CUL, TUV |
|
HPU1K5PS48-MAC/DC CONVERTER 48V 1500W |
9 |
|
برگه مشخصات |
HPU1K5 (1500W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 48V | - | - | - | - | - | 25 A | - | - | - | - | - | 1500W | Medical | 4 kV | 90% | -20°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Standby Output, Universal Input | Chassis Mount | 12.75" L x 4.00" W x 1.70" H (323.9mm x 101.6mm x 43.2mm) | - |
|
PBA1500F-15AC/DC CONVERTER 15V |
2 |
|
برگه مشخصات |
PBA (1500W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 15V | - | - | - | - | - | 100 A | - | - | - | - | - | - | ITE (Commercial) | 3 kV | 86% | -20°C ~ 70°C (With Derating) | - | Chassis Mount | 10.55" L x 7.01" W x 2.40" H (268.0mm x 178.1mm x 61.0mm) | CE, cURus, TUV |
|
|
ILS600-5-RAC/DC CONVERTER 50V 1000W |
10 |
|
برگه مشخصات |
ILS600-R | Box | Active | Enclosed | 1 | 100 ~ 240 VAC | 50V | - | - | - | - | - | 20 A | - | - | - | - | - | 1000W | ITE (Commercial) | - | - | - | Adjustable Output, Remote Sense | Rack Mount | 10.30" L x 8.82" W x 1.73" H (261.6mm x 224.0mm x 43.9mm) | - |
|
LZSA-1000-2AC/DC CONVERTER 12V 1000W |
2 |
|
برگه مشخصات |
LZSA (1000W) | Bulk | Active | Enclosed, Conformal Coated | 1 | 85 ~ 265 VAC | 12V | - | - | - | - | - | 84 A | - | - | - | - | - | 1000W | ITE (Commercial) | 3 kV | 84% | -40°C ~ 71°C (With Derating) | Adjustable Output, DC Input Capable, Load Sharing, PFC, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 10.50" L x 5.62" W x 4.75" H (266.7mm x 142.7mm x 120.7mm) | CE |
|
HWS1800T-5AC/DC CONVERTER 5V 1800W |
21 |
|
برگه مشخصات |
HWS1800T (1800W) | Bulk | Active | Enclosed | 1 | 85 ~ 265 VAC | 5V | - | - | - | - | - | 300 A | - | - | - | - | - | 1800W | ITE (Commercial) | 3 kV | 81% | -10°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Load Sharing, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 11.00" L x 4.98" W x 3.23" H (279.4mm x 126.5mm x 82.0mm) | CE |
|
|
ILS600-20AC/DC CONVERTER 200V 1000W |
10 |
|
برگه مشخصات |
ILS600 | Box | Active | Enclosed | 1 | 100 ~ 240 VAC | 200V | - | - | - | - | - | 5 A | - | - | - | - | - | 1000W | ITE (Commercial) | - | - | - | Adjustable Output, Remote Sense | Rack Mount | 10.30" L x 8.82" W x 1.73" H (261.6mm x 224.0mm x 43.9mm) | - |
|
|
ILS600-20-RAC/DC CONVERTER 200V 1000W |
10 |
|
برگه مشخصات |
ILS600-R | Box | Active | Enclosed | 1 | 100 ~ 240 VAC | 200V | - | - | - | - | - | 5 A | - | - | - | - | - | 1000W | ITE (Commercial) | - | - | - | Adjustable Output, Remote Sense | Rack Mount | 10.30" L x 8.82" W x 1.73" H (261.6mm x 224.0mm x 43.9mm) | - |
|
|
ILS600-3-RAC/DC CONVERTER 30V 990W |
10 |
|
برگه مشخصات |
ILS600-R | Box | Active | Enclosed | 1 | 100 ~ 240 VAC | 30V | - | - | - | - | - | 33 A | - | - | - | - | - | 990W | ITE (Commercial) | - | - | - | Adjustable Output, Remote Sense | Rack Mount | 10.30" L x 8.82" W x 1.73" H (261.6mm x 224.0mm x 43.9mm) | - |
|
TXP4000-1110GAC/DC CONVERTER 110V |
10 |
|
برگه مشخصات |
TXP4000 (4000W) | Bulk | Active | Front End | 1 | 350 ~ 528 VAC (3 Phase) | 110V | - | - | - | - | - | 36.5 A | - | - | - | - | - | - | ITE (Commercial) | 1.5 kV | 93% | -25°C ~ 55°C | Adjustable Output, PFC | Rack Mount | 17.72" L x 5.31" W x 3.35" H (450.0mm x 135.0mm x 85.0mm) | - |
