مبدل های AC DC
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | تایپ کنید | تعداد خروجی ها | ولتاژ - ورودی | ولتاژ - خروجی 1 | ولتاژ - خروجی 2 | ولتاژ - خروجی 3 | ولتاژ - خروجی 4 | ولتاژ - خروجی 5 | ولتاژ - خروجی 6 | جریان - خروجی 1 | جریان - خروجی 2 | جریان - خروجی 3 | جریان - خروجی 4 | جریان - خروجی 5 | جریان - خروجی 6 | توان (وات) | برنامه های کاربردی | ولتاژ - جداسازی | کارایی | دمای عملیاتی | ویژگی ها | نوع نصب | اندازه / ابعاد | آژانس تایید |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TCP3500-1024GAC/DC CONVERTER 24V 3480W |
10 |
|
برگه مشخصات |
TCP3500 (3500W) | Bulk | Active | Front End | 1 | 180 ~ 528 VAC (3 Phase) | 24V | - | - | - | - | - | 145 A | - | - | - | - | - | 3480W | ITE (Commercial) | 3 kV | 94% | -25°C ~ 70°C | Adjustable Output, Baseplate, IP20, Load Sharing, PFC, Remote On/Off, Universal Input | Rack Mount | 15.77" L x 4.06" W x 3.33" H (400.6mm x 103.0mm x 84.6mm) | - |
|
TCP4000-H090AC/DC CONVERTER 90V 4050W |
4 |
|
برگه مشخصات |
TCP4000 (4000W) | Box | Active | Front End | 1 | 115 ~ 277 VAC, 200 ~ 480 VAC | 90V | - | - | - | - | - | 45 A | - | - | - | - | - | 4050W | ITE (Commercial) | 1.5 kV | 94% | 0°C ~ 70°C | Adjustable Output, IP20, Load Sharing, PFC | Rack Mount | 15.77" L x 4.06" W x 3.33" H (400.6mm x 103.0mm x 84.6mm) | - |
|
FETA7000ST-144AC/DC CONVERTER 144V 7488W |
3 |
|
برگه مشخصات |
FETA (7000W) | Box | Active | Enclosed | 1 | 300 ~ 480 VAC | 144V | - | - | - | - | - | 52 A | - | - | - | - | - | 7488W | ITE (Commercial) | 3 kV | 90.5% | -10°C ~ 60°C (With Derating) | Adjustable Output, Remote On/Off | Chassis Mount | 18.70" L x 15.28" W x 1.69" H (475.0mm x 388.0mm x 43.0mm) | CE, cURus, D-Mark |
|
ILS1500-20AC/DC CONVERTER 200V 2000W |
10 |
|
برگه مشخصات |
ILS1500 | Box | Active | Enclosed | 1 | 100 ~ 240 VAC | 200V | - | - | - | - | - | 10 A | - | - | - | - | - | 2000W | ITE (Commercial) | - | - | - | Adjustable Output, Remote Sense | Rack Mount | 19.00" L x 15.50" W x 1.73" H (482.6mm x 393.7mm x 43.9mm) | - |
|
|
RACM15E-3.3SK/OF15W AC/DC-CONVERTER 'POWERLINE' |
54 |
|
برگه مشخصات |
RACM15E-K (15W) | Tray | Active | Open Frame | 1 | 80 ~ 275 VAC, 120 ~ 370 VDC | 3.3V | - | - | - | - | - | 3.64 A | - | - | - | - | - | 15W | Household Appliances, ITE (Commercial), Medical | 4.2 kV | 78% | -40°C ~ 85°C (With Derating) | Baseplate, DC Input Capable, PFC, Universal Input | Chassis Mount | 3.10" L x 0.90" W x 0.80" H (78.7mm x 22.9mm x 20.3mm) | CB Scheme, CE, cURus, FCC, UKCA |
|
PS-05-48AC/DC CONVERTER 48V 5W |
64 |
|
برگه مشخصات |
PS-05 (5W) | Box | Not For New Designs | Open Frame | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 48V | - | - | - | - | - | 110 mA | - | - | - | - | - | 5W | ITE (Commercial) | 3 kV | 76% | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 2.95" L x 1.57" W x 0.79" H (75.0mm x 40.0mm x 20.0mm) | CB, CE |
|

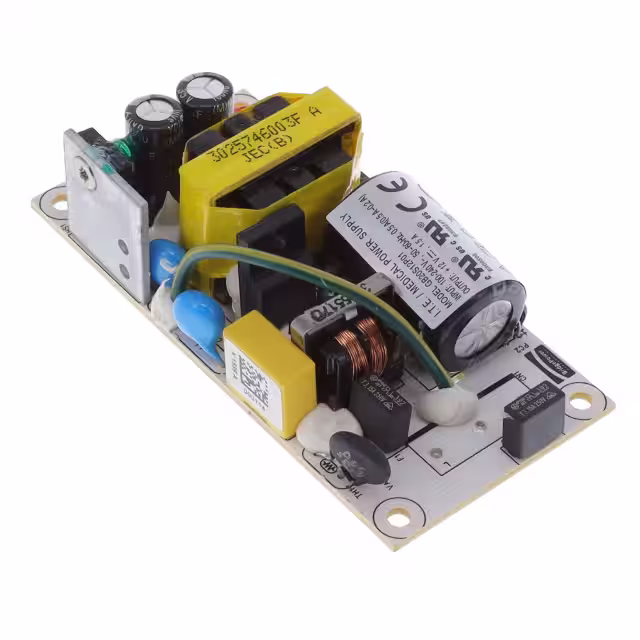

GB20S12P01AC/DC CONVERTER 12V 18W |
99 |
|
برگه مشخصات |
GB20S (20W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | 1.5 A | - | - | - | - | - | 18W | ITE (Commercial), Medical | 4 kV | 88% | -25°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 3.23" L x 1.57" W x 0.81" H (82.0mm x 39.9mm x 20.5mm) | CE, cURus, DEMKO |
|

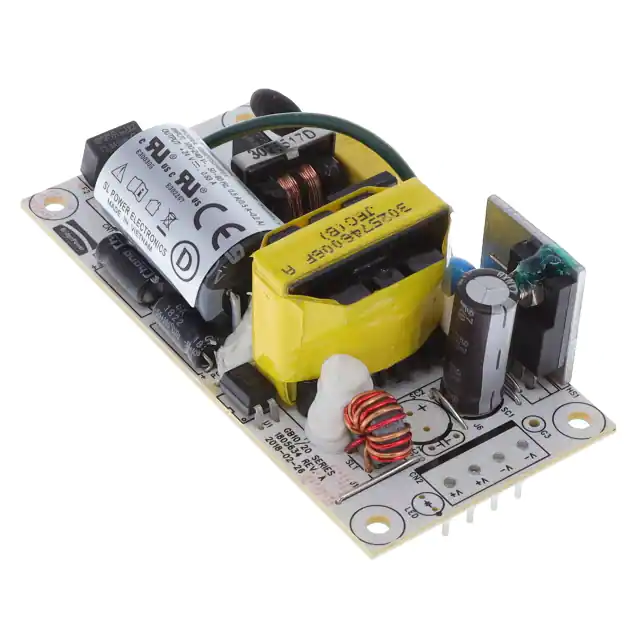

GB20S24P01AC/DC CONVERTER 24V 19W |
74 |
|
برگه مشخصات |
GB20S (20W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 24V | - | - | - | - | - | 800 mA | - | - | - | - | - | 19W | ITE (Commercial), Medical | 4 kV | 88% | -25°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 3.23" L x 1.57" W x 0.81" H (82.0mm x 39.9mm x 20.5mm) | CE, cURus, DEMKO |
|

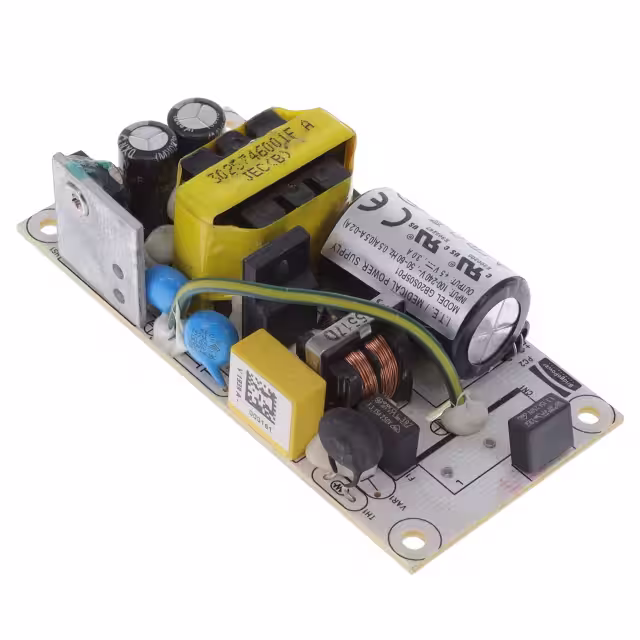

GB20S05P01AC/DC CONVERTER 5V 15W |
69 |
|
برگه مشخصات |
GB20S (20W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 5V | - | - | - | - | - | 3 A | - | - | - | - | - | 15W | ITE (Commercial), Medical | 4 kV | 88% | -25°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 3.23" L x 1.57" W x 0.81" H (82.0mm x 39.9mm x 20.5mm) | CE, cURus, DEMKO |
|

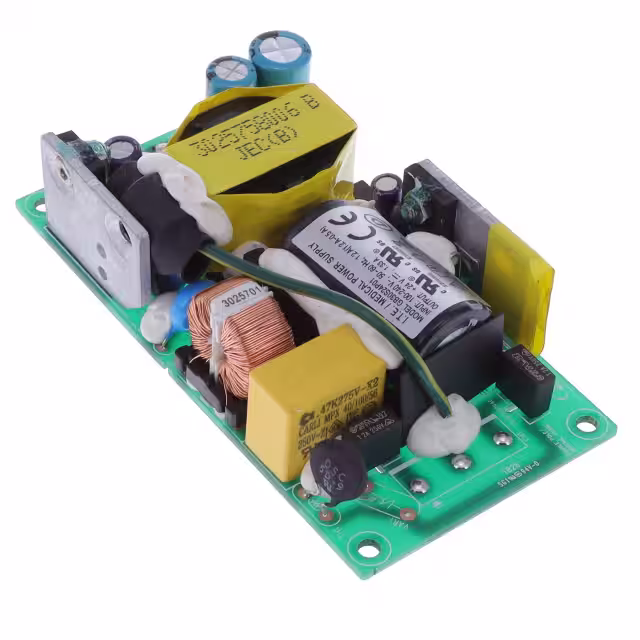

GB30S24P01AC/DC CONVERTER 24V 32W |
76 |
|
برگه مشخصات |
GB30S (30W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 24V | - | - | - | - | - | 1.33 A | - | - | - | - | - | 32W | ITE (Commercial), Medical | 4 kV | 88% | -25°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 3.62" L x 1.89" W x 0.82" H (91.9mm x 48.0mm x 20.9mm) | CE, cURus, DEMKO |
|
|
RACM15E-15SK/OF15W AC/DC-CONVERTER 'POWERLINE' |
54 |
|
برگه مشخصات |
RACM15E-K (15W) | Tray | Active | Open Frame | 1 | 80 ~ 275 VAC, 120 ~ 370 VDC | 15V | - | - | - | - | - | 1 A | - | - | - | - | - | 15W | Household Appliances, ITE (Commercial), Medical | 4.2 kV | 85% | -40°C ~ 85°C (With Derating) | Baseplate, DC Input Capable, PFC, Universal Input | Chassis Mount | 3.10" L x 0.90" W x 0.80" H (78.7mm x 22.9mm x 20.3mm) | CB Scheme, CE, cURus, FCC, UKCA |
|
|
KPSB6-9-JAC/DC CONVERTER 9V 6W |
20 |
|
برگه مشخصات |
KPSB6-25 (25W) | Bulk | Active | Open Frame | 1 | 90 ~ 264 VAC | 9V | - | - | - | - | - | 670 mA | - | - | - | - | - | 6W | Household Appliances, ITE (Commercial) | 3 kV | 81% | -30°C ~ 60°C (With Derating) | Universal Input | Chassis Mount | 1.95" L x 0.73" W x 0.69" H (49.5mm x 18.5mm x 17.5mm) | CE, CSA, FCC, UL |
|
|
KPSB6-12-JAC/DC CONVERTER 12V 6W |
17 |
|
برگه مشخصات |
KPSB6-25 (25W) | Bulk | Active | Open Frame | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | 500 mA | - | - | - | - | - | 6W | Household Appliances, ITE (Commercial) | 3 kV | 81% | -30°C ~ 60°C (With Derating) | Universal Input | Chassis Mount | 1.95" L x 0.73" W x 0.69" H (49.5mm x 18.5mm x 17.5mm) | CE, CSA, FCC, UL |
|
|
VOF-4-12AC-DC, 4W, 12 VDC, SINGLE OUTPUT |
17 |
|
برگه مشخصات |
VOF-4 (4W) | Box | Active | Open Frame | 1 | 85 ~ 305 VAC, 120 ~ 431 VDC | 12V | - | - | - | - | - | 333 mA | - | - | - | - | - | 4W | ITE (Commercial) | 3 kV | 81% | -40°C ~ 80°C (With Derating) | Universal Input | Chassis Mount | 1.95" L x 0.71" W x 0.69" H (49.5mm x 18.0mm x 17.5mm) | CE, cURus, UKCA |
|
EPS-25-48AC/DC CONVERTER 48V 25W |
23 |
|
برگه مشخصات |
EPS-25 (25W) | Tray | Active | Open Frame | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 48V | - | - | - | - | - | 530 mA | - | - | - | - | - | 25W | ITE (Commercial) | 3 kV | 90% | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.00" L x 2.00" W x 0.94" H (76.2mm x 50.8mm x 24.0mm) | CB, CE, cURus, TUV |
|
|
RACM15E-24SK/PMAD-CTN15W AC/DC-CONVERTER 'POWERLINE' |
12 |
|
برگه مشخصات |
RACM15E-K (15W) | Box | Active | Enclosed | 1 | 80 ~ 275 VAC, 120 ~ 370 VDC | 24V | - | - | - | - | - | 625 mA | - | - | - | - | - | 15W | Household Appliances, ITE (Commercial), Medical | 4.2 kV | 86% | -40°C ~ 85°C (With Derating) | Baseplate, DC Input Capable, PFC, Universal Input | Chassis Mount / DIN Rail | 3.20" L x 1.00" W x 1.10" H (81.3mm x 25.4mm x 27.9mm) | CB Scheme, CE, cURus, FCC, UKCA |
|

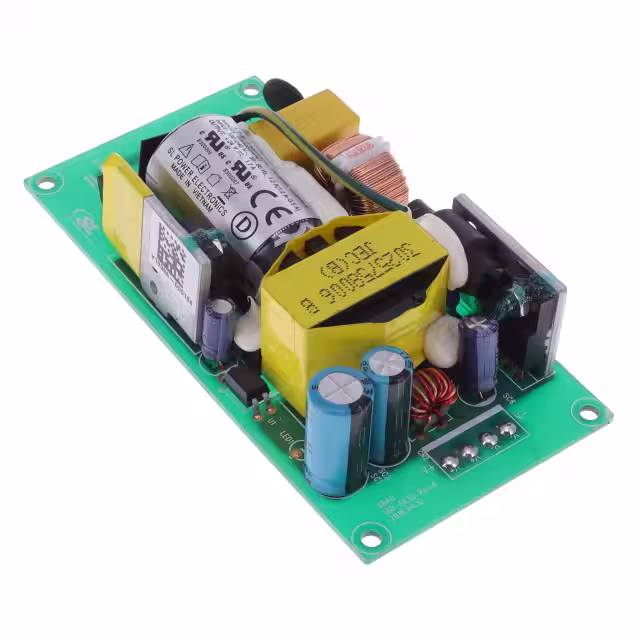

GB40S24P01AC/DC CONVERTER 24V 41W |
85 |
|
برگه مشخصات |
GB40S (40W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 24V | - | - | - | - | - | 1.7 A | - | - | - | - | - | 41W | ITE (Commercial), Medical | 4 kV | 88% | -25°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 4.00" L x 2.00" W x 0.81" H (101.6mm x 50.8mm x 20.6mm) | CE, cURus, DEMKO |
|

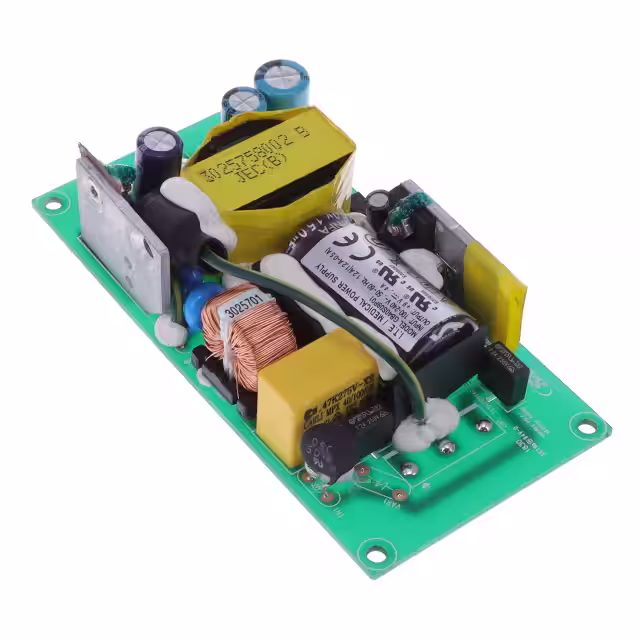

GB40S09P01AC/DC CONVERTER 9V 36W |
83 |
|
برگه مشخصات |
GB40S (40W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 9V | - | - | - | - | - | 4 A | - | - | - | - | - | 36W | ITE (Commercial), Medical | 4 kV | 88% | -25°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 4.00" L x 2.00" W x 0.81" H (101.6mm x 50.8mm x 20.6mm) | CE, cURus, DEMKO |
|
RPS-30-3.3AC/DC CONVERTER 3.3V 20W |
16 |
|
برگه مشخصات |
RPS-30 (30W) | Box | Active | Open Frame | 1 | 80 ~ 264 VAC | 3.3V | - | - | - | - | - | 6 A | - | - | - | - | - | 20W | Medical | 4 kV | 80% | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.00" L x 2.00" W x 0.95" H (76.2mm x 50.8mm x 24.0mm) | CB, CE, cURus, TUV |
|
|
PMT-48V35W2BAAC/DC CONVERTER 48V 38W |
35 |
|
برگه مشخصات |
PMT2 (35W) | Box | Active | Enclosed | 1 | 90 ~ 264 VAC | 48V | - | - | - | - | - | 800 mA | - | - | - | - | - | 38W | Household Appliances, ITE (Commercial) | 4 kV | 89.5% | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.90" L x 3.23" W x 1.14" H (99.0mm x 82.0mm x 28.9mm) | CB, CE, cURus, EAC, KC, TUV, UKCA |
