مبدل های AC DC
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | تایپ کنید | تعداد خروجی ها | ولتاژ - ورودی | ولتاژ - خروجی 1 | ولتاژ - خروجی 2 | ولتاژ - خروجی 3 | ولتاژ - خروجی 4 | ولتاژ - خروجی 5 | ولتاژ - خروجی 6 | جریان - خروجی 1 | جریان - خروجی 2 | جریان - خروجی 3 | جریان - خروجی 4 | جریان - خروجی 5 | جریان - خروجی 6 | توان (وات) | برنامه های کاربردی | ولتاژ - جداسازی | کارایی | دمای عملیاتی | ویژگی ها | نوع نصب | اندازه / ابعاد | آژانس تایید |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LD05-23B24WR2AC/DC CONVERTER 24V 5W |
87 |
|
برگه مشخصات |
305RAC / LD-WR2 | Tray | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 100 ~ 430 VDC | 24V | - | - | - | - | - | 208 mA | - | - | - | - | - | 5W | Household Appliances, ITE (Commercial) | 4 kV | 81.5% | -40°C ~ 85°C (With Derating) | Adjustable Output | Chassis Mount | 1.00" L x 1.00" W x 0.69" H (25.4mm x 25.4mm x 17.6mm) | CB, CE, cURus, UL |
|
|
LD05-23B09WR2AC/DC CONVERTER 9V 5W |
26 |
|
برگه مشخصات |
305RAC / LD-WR2 | Tray | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 100 ~ 430 VDC | 9V | - | - | - | - | - | 555 mA | - | - | - | - | - | 5W | Household Appliances, ITE (Commercial) | 4 kV | 80.5% | -40°C ~ 85°C (With Derating) | Adjustable Output | Chassis Mount | 1.00" L x 1.00" W x 0.69" H (25.4mm x 25.4mm x 17.6mm) | CB, CE, cURus, UL |
|
LO15-10B09AC/DC CONVERTER 9V 14W |
57 |
|
برگه مشخصات |
LO15-10Bxx (15W) | Tray | Not For New Designs | Open Frame | 1 | 85 ~ 264 VAC, 100 ~ 370 VDC | 9V | - | - | - | - | - | 1.6 A | - | - | - | - | - | 14W | ITE (Commercial) | 3 kV | 78% | -25°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 2.50" L x 1.80" W x 0.75" H (63.5mm x 45.7mm x 19.0mm) | CB, CE, cURus |
|
VGS-15W-12AC/DC CONVERTER 12V 16W |
76 |
|
برگه مشخصات |
VGS-15W (15W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 100 ~ 430 VDC | 12V | - | - | - | - | - | 1.3 A | - | - | - | - | - | 16W | ITE (Commercial) | 4 kV | 82% | -30°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 2.56" L x 2.17" W x 0.98" H (65.0mm x 55.0mm x 25.0mm) | CE, cURus, EN, IEC, UL |
|
|
VGS-15W-15AC/DC CONVERTER 15V 15W |
31 |
|
برگه مشخصات |
VGS-15W (15W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 100 ~ 430 VDC | 15V | - | - | - | - | - | 1 A | - | - | - | - | - | 15W | ITE (Commercial) | 4 kV | 82% | -30°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 2.56" L x 2.17" W x 0.98" H (65.0mm x 55.0mm x 25.0mm) | CE, cURus, EN, IEC, UL |
|
LO30-20B05MUAC/DC CONVERTER 5V 30W |
47 |
|
برگه مشخصات |
LO30-20BxxMU (30W) | Tray | Not For New Designs | Open Frame | 1 | 80 ~ 264 VAC, 100 ~ 370 VDC | 5V | - | - | - | - | - | 6 A | - | - | - | - | - | 30W | Household Appliances, ITE (Commercial), Medical | 4 kV | 85% | -30°C ~ 85°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.04" H (76.2mm x 50.8mm x 26.5mm) | CE, EN |
|
|
LO30-20B24MUAC/DC CONVERTER 24V 30W |
45 |
|
برگه مشخصات |
LO30-20BxxMU (30W) | Tray | Not For New Designs | Open Frame | 1 | 80 ~ 264 VAC, 100 ~ 370 VDC | 24V | - | - | - | - | - | 1.25 A | - | - | - | - | - | 30W | Household Appliances, ITE (Commercial), Medical | 4 kV | 89% | -30°C ~ 85°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.04" H (76.2mm x 50.8mm x 26.5mm) | CE, EN |
|
|
LO30-20B03MUAC/DC CONVERTER 3.3V 20W |
33 |
|
برگه مشخصات |
LO30-20BxxMU (30W) | Tray | Not For New Designs | Open Frame | 1 | 80 ~ 264 VAC, 100 ~ 370 VDC | 3.3V | - | - | - | - | - | 6 A | - | - | - | - | - | 20W | Household Appliances, ITE (Commercial), Medical | 4 kV | 82% | -30°C ~ 85°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.04" H (76.2mm x 50.8mm x 26.5mm) | CE, EN |
|
|
LO30-20B48MUAC/DC CONVERTER 48V 30W |
31 |
|
برگه مشخصات |
LO30-20BxxMU (30W) | Tray | Not For New Designs | Open Frame | 1 | 80 ~ 264 VAC, 100 ~ 370 VDC | 48V | - | - | - | - | - | 625 mA | - | - | - | - | - | 30W | Household Appliances, ITE (Commercial), Medical | 4 kV | 90% | -30°C ~ 85°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.04" H (76.2mm x 50.8mm x 26.5mm) | CE, EN |
|
|
LO30-20B36MUAC/DC CONVERTER 36V 30W |
28 |
|
برگه مشخصات |
LO30-20BxxMU (30W) | Tray | Not For New Designs | Open Frame | 1 | 80 ~ 264 VAC, 100 ~ 370 VDC | 36V | - | - | - | - | - | 833 mA | - | - | - | - | - | 30W | Household Appliances, ITE (Commercial), Medical | 4 kV | 90% | -30°C ~ 85°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.04" H (76.2mm x 50.8mm x 26.5mm) | CE, EN |
|

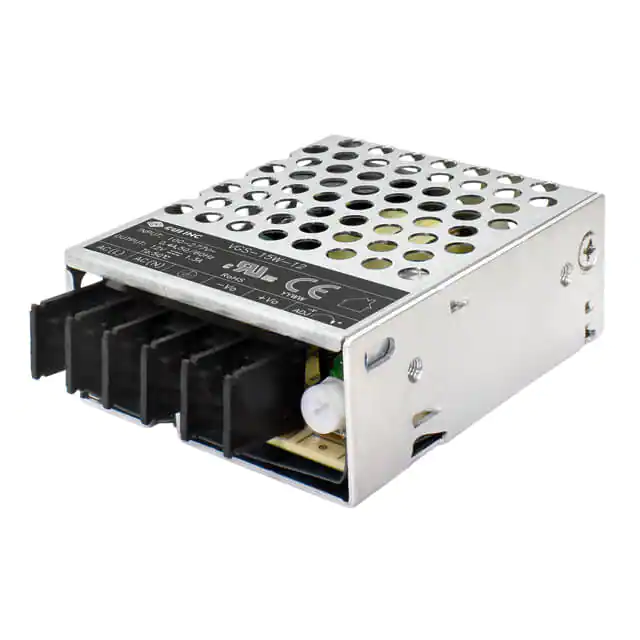

VGS-15W-12-AAC/DC CONVERTER 12V 16W |
65 |
|
برگه مشخصات |
VGS-15W (15W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 100 ~ 430 VDC | 12V | - | - | - | - | - | 1.3 A | - | - | - | - | - | 16W | ITE (Commercial) | 4 kV | 82% | -30°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 2.56" L x 2.17" W x 0.98" H (65.0mm x 55.0mm x 25.0mm) | CE, cURus, EN, IEC, UL |
|
|
25ACPW_12S4ENCLOSED AC DC CONVERTERS 1 OUTP |
73 |
|
برگه مشخصات |
25ACPW_4 (25W) | Retail Package | Obsolete | Enclosed | 1 | 85 ~ 305 VAC, 100 ~ 430 VDC | 12V | - | - | - | - | - | 2.1 A | - | - | - | - | - | 25W | ITE (Commercial) | 4 kV | 85% | -30°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 2.56" L x 2.17" W x 0.98" H (65.0mm x 55.0mm x 25.0mm) | CE, cURus, UL |
|
PSK-5D-3-TAC/DC CONVERTER 3.3V 5W |
33 |
|
برگه مشخصات |
PSK-5D (5W) | Tray | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 100 ~ 430 VDC | 3.3V | - | - | - | - | - | 1.515 A | - | - | - | - | - | 5W | Household Appliances, ITE (Commercial) | 4 kV | 71.5% | -40°C ~ 85°C (With Derating) | - | Chassis Mount | 2.99" L x 1.24" W x 1.04" H (76.0mm x 31.5mm x 26.4mm) | CE, cURus |
|
VOF-15C-S24AC/DC CONVERTER 24V 15W |
58 |
|
برگه مشخصات |
VOF-15C (15W) | Tray | Not For New Designs | Open Frame | 1 | 85 ~ 264 VAC, 100 ~ 370 VDC | 24V | - | - | - | - | - | 625 mA | - | - | - | - | - | 15W | Household Appliances, ITE (Commercial) | 3 kV | 82% | -25°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 2.50" L x 1.80" W x 0.75" H (63.5mm x 45.7mm x 19.0mm) | CB Scheme, EN, IEC, UL |
|
|
LO45-20B48MUOPEN FRAME AC DC CONVERTERS 45W |
35 |
|
برگه مشخصات |
LO45-20BxxMU (45W) | Tray | Not For New Designs | Open Frame | 1 | 85 ~ 264 VAC, 100 ~ 370 VDC | 48V | - | - | - | - | - | 940 mA | - | - | - | - | - | 45W | Household Appliances, ITE (Commercial) | 4 kV | 90% | -40°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.04" H (76.2mm x 50.8mm x 26.5mm) | CE, EN |
|
|
LO45-20B24MUOPEN FRAME AC DC CONVERTERS 45W |
33 |
|
برگه مشخصات |
LO45-20BxxMU (45W) | Tray | Not For New Designs | Open Frame | 1 | 85 ~ 264 VAC, 100 ~ 370 VDC | 24V | - | - | - | - | - | 1.875 A | - | - | - | - | - | 45W | Household Appliances, ITE (Commercial) | 4 kV | 90% | -40°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.04" H (76.2mm x 50.8mm x 26.5mm) | CE, EN |
|
|
LO45-20B12MUOPEN FRAME AC DC CONVERTERS 45W |
32 |
|
برگه مشخصات |
LO45-20BxxMU (45W) | Tray | Not For New Designs | Open Frame | 1 | 85 ~ 264 VAC, 100 ~ 370 VDC | 12V | - | - | - | - | - | 3.75 A | - | - | - | - | - | 45W | Household Appliances, ITE (Commercial) | 4 kV | 86% | -40°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.04" H (76.2mm x 50.8mm x 26.5mm) | CE, EN |
|
LM15-23B03AC/DC CONVERTER 3.3V 10W |
73 |
|
برگه مشخصات |
305RAC / LM-23B | Tray | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 100 ~ 430 VDC | 3.3V | - | - | - | - | - | 3 A | - | - | - | - | - | 10W | ITE (Commercial) | 4 kV | 73% | -30°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 2.56" L x 2.17" W x 0.98" H (65.0mm x 55.0mm x 25.0mm) | CB, CCC, CE, UL |
|

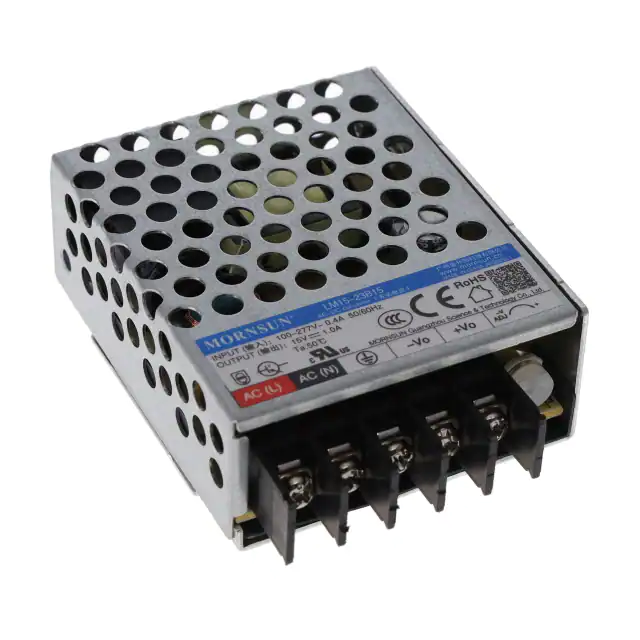

LM15-23B15AC/DC CONVERTER 15V 15W |
54 |
|
برگه مشخصات |
305RAC / LM-23B | Tray | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 100 ~ 430 VDC | 15V | - | - | - | - | - | 1 A | - | - | - | - | - | 15W | ITE (Commercial) | 4 kV | 82% | -30°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 2.56" L x 2.17" W x 0.98" H (65.0mm x 55.0mm x 25.0mm) | CB, CCC, CE, UL |
|
|
LM75-23B24R2AC/DC CONVERTER 24V 77W |
44 |
|
برگه مشخصات |
LM-R2 | Box | Not For New Designs | Enclosed | 1 | 80 ~ 305 VAC, 100 ~ 430 VDC | 24V | - | - | - | - | - | 3.2 A | - | - | - | - | - | 77W | Household Appliances, ITE (Commercial) | 4 kV | 91% | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable | Chassis Mount | 3.90" L x 3.23" W x 1.18" H (99.0mm x 82.0mm x 30.0mm) | - |
