مبدل های AC DC
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | تایپ کنید | تعداد خروجی ها | ولتاژ - ورودی | ولتاژ - خروجی 1 | ولتاژ - خروجی 2 | ولتاژ - خروجی 3 | ولتاژ - خروجی 4 | ولتاژ - خروجی 5 | ولتاژ - خروجی 6 | جریان - خروجی 1 | جریان - خروجی 2 | جریان - خروجی 3 | جریان - خروجی 4 | جریان - خروجی 5 | جریان - خروجی 6 | توان (وات) | برنامه های کاربردی | ولتاژ - جداسازی | کارایی | دمای عملیاتی | ویژگی ها | نوع نصب | اندازه / ابعاد | آژانس تایید |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LM75-23B15R2AC/DC CONVERTER 15V 75W |
27 |
|
برگه مشخصات |
LM-R2 | Box | Not For New Designs | Enclosed | 1 | 80 ~ 305 VAC, 100 ~ 430 VDC | 15V | - | - | - | - | - | 5 A | - | - | - | - | - | 75W | Household Appliances, ITE (Commercial) | 4 kV | 89% | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable | Chassis Mount | 3.90" L x 3.23" W x 1.18" H (99.0mm x 82.0mm x 30.0mm) | - |
|
VGS-25W-24AC/DC CONVERTER 24V 26W |
58 |
|
برگه مشخصات |
VGS-25W (25W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 100 ~ 430 VDC | 24V | - | - | - | - | - | 1.1 A | - | - | - | - | - | 26W | ITE (Commercial) | 4 kV | 87% | -30°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 3.15" L x 2.17" W x 0.98" H (80.0mm x 55.0mm x 25.0mm) | CE, cURus, EN, IEC, UL |
|
VGS-35C-15AC/DC CONVERTER 15V 36W |
82 |
|
برگه مشخصات |
VGS-35C | Box | Not For New Designs | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 373 VDC | 15V | - | - | - | - | - | 2.4 A | - | - | - | - | - | 36W | Household Appliances, ITE (Commercial) | 4 kV | 89% | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.90" L x 3.23" W x 1.18" H (99.0mm x 82.0mm x 30.0mm) | CE, cURus |
|
LCW15US15AC/DC CONVERTER 15V 15W |
80 |
|
برگه مشخصات |
LCW15 (15W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 100 ~ 430 VDC | 15V | - | - | - | - | - | 1 A | - | - | - | - | - | 15W | ITE (Commercial), Industrial | 4 kV | 82% | -30°C ~ 70°C (With Derating) | Adjustable Output, Remote On/Off | Chassis Mount | 3.07" L x 2.17" W x 0.98" H (78.0mm x 55.0mm x 25.0mm) | CE, EN, UKCA, UL |
|
|
Switching Power Supply ALRS12V5ATAC/DC CONVERTER 12V 60W |
23 |
|
برگه مشخصات |
- | Tape & Box (TB) | Active | Enclosed | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | 5 A | - | - | - | - | - | 60W | ITE (Commercial) | 1.5 kV | 80% | -10°C ~ 60°C | Adjustable Output, Universal Input | Chassis Mount | 4.33" L x 3.07" W x 1.42" H (110.0mm x 78.0mm x 36.1mm) | - |
|
|
Switching Power Supply ALRS24V2R5ATAC/DC CONVERTER 24V 60W |
16 |
|
برگه مشخصات |
- | Tape & Box (TB) | Active | Enclosed | 1 | 90 ~ 264 VAC | 24V | - | - | - | - | - | 2.5 A | - | - | - | - | - | - | ITE (Commercial) | 1.5 kV | 83% | -10°C ~ 60°C | Adjustable Output, Universal Input | Chassis Mount | 4.33" L x 3.07" W x 1.42" H (110.0mm x 78.0mm x 36.1mm) | - |
|
LM25-23B48AC/DC CONVERTER 48V 27W |
21 |
|
برگه مشخصات |
305RAC / LM-23B | Box | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 100 ~ 430 VDC | 48V | - | - | - | - | - | 570 mA | - | - | - | - | - | 27W | ITE (Commercial) | 4 kV | 88% | -30°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 3.15" L x 2.17" W x 0.98" H (80.0mm x 55.0mm x 25.0mm) | CB, CCC, CE, UL |
|
|
LM75-23B15R2-CAC/DC CONVERTER 15V 75W |
25 |
|
برگه مشخصات |
LM-R2 | Box | Not For New Designs | Enclosed | 1 | 80 ~ 305 VAC, 100 ~ 430 VDC | 15V | - | - | - | - | - | 5 A | - | - | - | - | - | 75W | Household Appliances, ITE (Commercial) | 4 kV | 89% | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable | Chassis Mount | 3.90" L x 3.23" W x 1.18" H (99.0mm x 82.0mm x 30.0mm) | - |
|
|
LM75-23B12R2-QAC/DC CONVERTER 12V 72W |
25 |
|
برگه مشخصات |
LM-R2 | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 80 ~ 305 VAC, 100 ~ 430 VDC | 12V | - | - | - | - | - | 6 A | - | - | - | - | - | 72W | Household Appliances, ITE (Commercial) | 4 kV | 89% | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable | Chassis Mount | 3.90" L x 3.23" W x 1.18" H (99.0mm x 82.0mm x 30.0mm) | - |
|
|
LM75-23B54R2-CAC/DC CONVERTER 54V 76W |
23 |
|
برگه مشخصات |
LM-R2 | Box | Not For New Designs | Enclosed | 1 | 80 ~ 305 VAC, 100 ~ 430 VDC | 54V | - | - | - | - | - | 1.4 A | - | - | - | - | - | 76W | Household Appliances, ITE (Commercial) | 4 kV | 92.5% | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable | Chassis Mount | 3.90" L x 3.23" W x 1.18" H (99.0mm x 82.0mm x 30.0mm) | - |
|
|
LM75-23B24R2-CAC/DC CONVERTER 24V 77W |
19 |
|
برگه مشخصات |
LM-R2 | Box | Not For New Designs | Enclosed | 1 | 80 ~ 305 VAC, 100 ~ 430 VDC | 24V | - | - | - | - | - | 3.2 A | - | - | - | - | - | 77W | Household Appliances, ITE (Commercial) | 4 kV | 91% | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable | Chassis Mount | 3.90" L x 3.23" W x 1.18" H (99.0mm x 82.0mm x 30.0mm) | - |
|
|
LM75-23B12R2-CAC/DC CONVERTER 12V 72W |
18 |
|
برگه مشخصات |
LM-R2 | Box | Not For New Designs | Enclosed | 1 | 80 ~ 305 VAC, 100 ~ 430 VDC | 12V | - | - | - | - | - | 6 A | - | - | - | - | - | 72W | Household Appliances, ITE (Commercial) | 4 kV | 89% | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable | Chassis Mount | 3.90" L x 3.23" W x 1.18" H (99.0mm x 82.0mm x 30.0mm) | - |
|
|
LO65-20B48MUOPEN FRAME AC DC CONVERTERS 65W |
36 |
|
برگه مشخصات |
LO65-20BxxMU (65W) | Tray | Not For New Designs | Open Frame | 1 | 85 ~ 264 VAC, 100 ~ 370 VDC | 48V | - | - | - | - | - | 1.36 A | - | - | - | - | - | 65W | Household Appliances, ITE (Commercial) | 4 kV | 91% | -40°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.04" H (76.2mm x 50.8mm x 26.5mm) | CE, EN |
|
|
LO65-20B12MUOPEN FRAME AC DC CONVERTERS 65W |
36 |
|
برگه مشخصات |
LO65-20BxxMU (65W) | Tray | Not For New Designs | Open Frame | 1 | 85 ~ 264 VAC, 100 ~ 370 VDC | 12V | - | - | - | - | - | 5.42 A | - | - | - | - | - | 65W | Household Appliances, ITE (Commercial) | 4 kV | 89% | -40°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.04" H (76.2mm x 50.8mm x 26.5mm) | CE, EN |
|

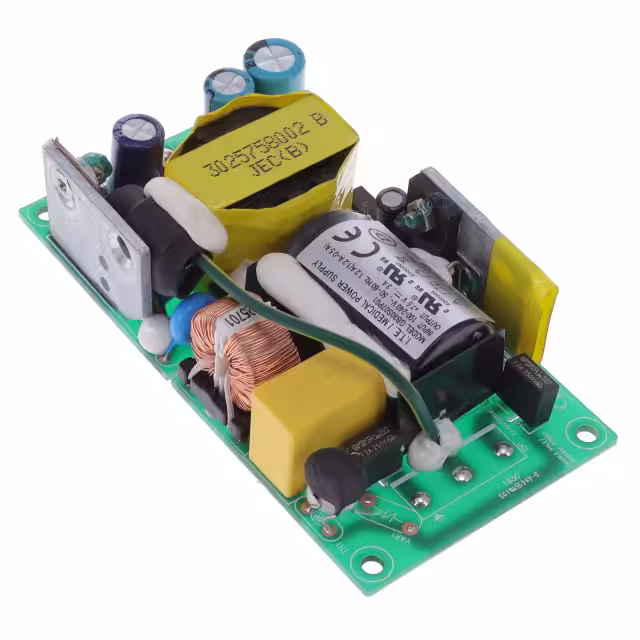

GB30S07P01AC/DC CONVERTER 7.5V 23W |
86 |
|
- |
GB30S (30W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 7.5V | - | - | - | - | - | 3 A | - | - | - | - | - | 23W | ITE (Commercial), Medical | 4 kV | 88% | -25°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 3.62" L x 1.89" W x 0.82" H (91.9mm x 48.0mm x 20.9mm) | CE, cURus, DEMKO |
|
VGS-50C-15AC/DC CONVERTER 15V 51W |
69 |
|
برگه مشخصات |
VGS-50C | Box | Not For New Designs | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 373 VDC | 15V | - | - | - | - | - | 3.4 A | - | - | - | - | - | 51W | Household Appliances, ITE (Commercial) | 4 kV | 88% | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.90" L x 3.23" W x 1.18" H (99.0mm x 82.0mm x 30.0mm) | CE, cURus |
|
|
LM75-23B24R2-CQAC/DC CONVERTER 24V 77W |
27 |
|
برگه مشخصات |
LM-R2 | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 80 ~ 305 VAC, 100 ~ 430 VDC | 24V | - | - | - | - | - | 3.2 A | - | - | - | - | - | 77W | Household Appliances, ITE (Commercial) | 4 kV | 91% | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable | Chassis Mount | 3.90" L x 3.23" W x 1.18" H (99.0mm x 82.0mm x 30.0mm) | - |
|
|
LM75-23B54R2-CQAC/DC CONVERTER 54V 76W |
24 |
|
برگه مشخصات |
LM-R2 | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 80 ~ 305 VAC, 100 ~ 430 VDC | 54V | - | - | - | - | - | 1.4 A | - | - | - | - | - | 76W | Household Appliances, ITE (Commercial) | 4 kV | 92.5% | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable | Chassis Mount | 3.90" L x 3.23" W x 1.18" H (99.0mm x 82.0mm x 30.0mm) | - |
|
LM35-23B24AC/DC CONVERTER 24V 36W |
40 |
|
برگه مشخصات |
305RAC / LM-23B | Box | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 120 ~ 430 VDC | 24V | - | - | - | - | - | 1.5 A | - | - | - | - | - | 36W | Household Appliances, ITE (Commercial) | 4 kV | 87% | -30°C ~ 70°C (With Derating) | Adjustable Output, Standby Output, Universal Input | Chassis Mount | 3.90" L x 3.23" W x 1.18" H (99.0mm x 82.0mm x 30.0mm) | CB, CCC, CE, cURus |
|
|
LM100-23B54R2AC/DC CONVERTER 54V 103W |
23 |
|
برگه مشخصات |
LM-R2 | Box | Not For New Designs | Enclosed | 1 | 80 ~ 305 VAC, 100 ~ 430 VDC | 54V | - | - | - | - | - | 1.9 A | - | - | - | - | - | 103W | Household Appliances, ITE (Commercial) | 4 kV | 91.5% | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable | Chassis Mount | 3.90" L x 3.82" W x 1.18" H (99.0mm x 97.0mm x 30.0mm) | - |
