AC DC رومیزی، آداپتورهای برق دیواری
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | منطقه مورد استفاده | فرم | نوع ورودی | ولتاژ - ورودی | ولتاژ - خروجی | جریان - خروجی (حداکثر) | توان (وات) | بدون بار مصرف برق | قطبی شدن | برنامه های کاربردی | کارایی | دمای عملیاتی | کانکتور خروجی | طول سیم | رابط ورودی | ویژگی ها | اندازه / ابعاد | آژانس تایید | شماره استاندارد |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ACM36US30AC/DC WALL MOUNT ADAPTER 30V 36W |
27 |
|
برگه مشخصات |
ACM36 (36W) | Box | Active | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 30V | 1.2A | 36 W | 75mW (Max) | - | ITE (Commercial), Medical | Level VI, CoC Tier 2 | 0°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm | 59" (1.50m) | Multi-Blade (Sold Separately) | - | 3.93" L x 1.29" W x 2.34" H (96.7mm x 33.0mm x 59.5mm) | CB, CE, CSA, TUV, UL | 60601-1; 62368-1 |
|
TRH25150-A-01E03 VIAC/DC WALL MOUNT ADAPTER 15V 25W |
19 |
|
- |
TRH25 (25W) | Box | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 15V | 1.67A | 25 W | 75mW (Max) | - | ITE (Commercial) | Level VI, CoC Tier 2 | -20°C ~ 60°C | - | 70.9" (1.80m) | NEMA 1-15P | - | 2.84" L x 1.38" W x 2.05" H (72.0mm x 35.0mm x 52.0mm) | CE, cULus, GS, TUV | 60950-1 |
|
SDI30-15-U-P5AC/DC DESKTOP ADAPTER 15V 30W |
0 |
|
برگه مشخصات |
SDI30-U (30W) | Bulk | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 15V | 2A | 30 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 60.2" (1.53m) | IEC 320-C14 | - | 4.37" L x 2.05" W x 1.27" H (111.0mm x 52.0mm x 32.3mm) | CB Scheme, CCC, CSA, EN, FCC, IEC, RCM, SIQ, TUV, UL | C22.2 No. 60950-1; 55024; 55032 Class B; 60950-1; 61000-3-2; 61000-3-3; 61204-3 |
|

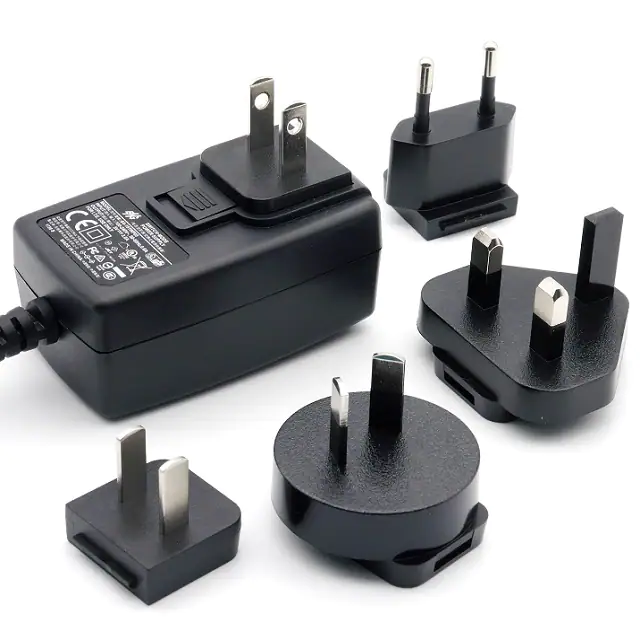

6A-181WP05-127AC/DC WALL MOUNT ADAPTER 5V |
87 |
|
برگه مشخصات |
6A-181WP05 (18W) | Box | Active | International | Wall Mount (Class II) | Multi-Blade (Included) | 90 ~ 264 VAC | 5V | 3A | - | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 39.4" (1.00m) | Multi-Blade | - | 2.90" L x 1.71" W x 1.39" H (74.0mm x 43.5mm x 35.3mm) | AS/NZS, BIS, BSMI, CB, CCC, CSA, FCC, IEC, KC, PSE, RCM, UKCA, UL | 60950-1; 62368-1 |
|
P12W12VAC/DC WALL MOUNT ADAPTER 12V 12W |
78 |
|
برگه مشخصات |
- | Box | Active | North America | Wall Mount (Class II) | Fixed Blade | 120VAC | 12V | 1A | 12 W | - | - | ITE (Commercial) | - | - | - | 72.83" (1.85m) | NEMA 1-15P | - | 3.38" L x 1.88" W x 1.50" H (85.7mm x 47.6mm x 38.1mm) | - | - |
|
P12W24VAC/DC WALL MOUNT ADAPTER 24V 12W |
76 |
|
برگه مشخصات |
- | Box | Active | North America | Wall Mount (Class II) | Fixed Blade | 120VAC | 24V | 500mA | 12 W | - | - | ITE (Commercial) | - | - | - | 72.83" (1.85m) | NEMA 1-15P | - | 3.38" L x 1.88" W x 1.50" H (85.7mm x 47.6mm x 38.1mm) | - | - |
|
6A-181WP12-187AC/DC WALL MOUNT ADAPTER 12V |
26 |
|
برگه مشخصات |
6A-181WP12 (18W) | Box | Active | International | Wall Mount (Class II) | Multi-Blade (Included) | 90 ~ 264 VAC | 12V | 1.5A | - | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 60.2" (1.53m) | Multi-Blade | - | 2.90" L x 1.71" W x 1.39" H (74.0mm x 43.5mm x 35.3mm) | AS/NZS, BIS, BSMI, CB, CCC, CSA, FCC, IEC, KC, PSE, RCM, UKCA, UL | 60950-1; 62368-1 |
|
AMA65UR5-120500YAC/DC WALL MOUNT ADAPTER 12V 60W |
37 |
|
برگه مشخصات |
AMA65-Y | Box | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 12V | 5A | 60 W | 210mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 60.2" (1.50m) | NEMA 1-15P | - | 4.15" L x 1.65" W x 3.41" H (105.4mm x 42.0mm x 86.5mm) | CE, UL | 62368-1 |
|
RR9LH3610T00-IMR6BAC/DC DSKTP/WALL MT ADPT 18V 65W |
57 |
|
برگه مشخصات |
- | Bulk | Active | International | Desktop, Wall Mount (Class I) | Cord, Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 18V | 3.61A | 65 W | 150mW (Max) | Negative Center | ITE (Commercial), Medical | Level VI, CoC Tier 2 | -20°C ~ 40°C | Barrel Plug Kit, (1.3mm x 3.5mm, 2.1mm x 5.5mm, 2.5mm x 5.5mm) | 47.2" (1.20m) | IEC 320-C6, Multi-Blade (Sold Separately) | - | 4.63" L x 2.11" W x 1.44" H (117.5mm x 53.5mm x 36.6mm) | CB, CE, cETLus, EAC, ETL, FCC, PSE, S-Mark, UKRSepro, VCCI | 60601-1-11; 60601-1-2; 62368-1 |
|
RR9LX1350T00-IMR6BAC/DC DSKTP/WALL MT ADPT 48V 65W |
29 |
|
برگه مشخصات |
- | Bulk | Active | International | Desktop, Wall Mount (Class I) | Cord, Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 48V | 1.35A | 65 W | 150mW (Max) | Positive Tip, Negative Sleeve | ITE (Commercial), Medical | Level VI, CoC Tier 2 | -20°C ~ 40°C | Barrel Plug Kit, (1.3mm x 3.5mm, 2.1mm x 5.5mm, 2.5mm x 5.5mm) | 59" (1.50m) | IEC 320-C6, Multi-Blade (Sold Separately) | - | 4.63" L x 2.11" W x 1.44" H (117.5mm x 53.5mm x 36.6mm) | CB, CE, cETLus, EAC, ETL, FCC, PSE, S-Mark, UKRSepro, VCCI | 60601-1-11; 60601-1-2; 62368-1 |
|
RR9LG4330T00-IMR6BAC/DC DSKTP/WALL MT ADPT 15V 65W |
12 |
|
برگه مشخصات |
- | Bulk | Active | International | Desktop, Wall Mount (Class I) | Cord, Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 15V | 4.33A | 65 W | 150mW (Max) | Negative Center | ITE (Commercial), Medical | Level VI, CoC Tier 2 | -20°C ~ 40°C | Barrel Plug Kit, (1.3mm x 3.5mm, 2.1mm x 5.5mm, 2.5mm x 5.5mm) | 47.2" (1.20m) | IEC 320-C6, Multi-Blade (Sold Separately) | - | 4.63" L x 2.11" W x 1.44" H (117.5mm x 53.5mm x 36.6mm) | CB, CE, cETLus, EAC, ETL, FCC, PSE, S-Mark, UKRSepro, VCCI | 60601-1-11; 60601-1-2; 62368-1 |
|
SDI40-12-UD-P5AC/DC DESKTOP ADAPTER 12V 36W |
0 |
|
برگه مشخصات |
SDI40-UD (40W) | Bulk | Obsolete | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 12V | 3A | 36 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 60.2" (1.53m) | IEC 320-C8 | - | 4.37" L x 2.05" W x 1.27" H (111.0mm x 52.0mm x 32.3mm) | CE, cULus, GS, PSE | - |
|

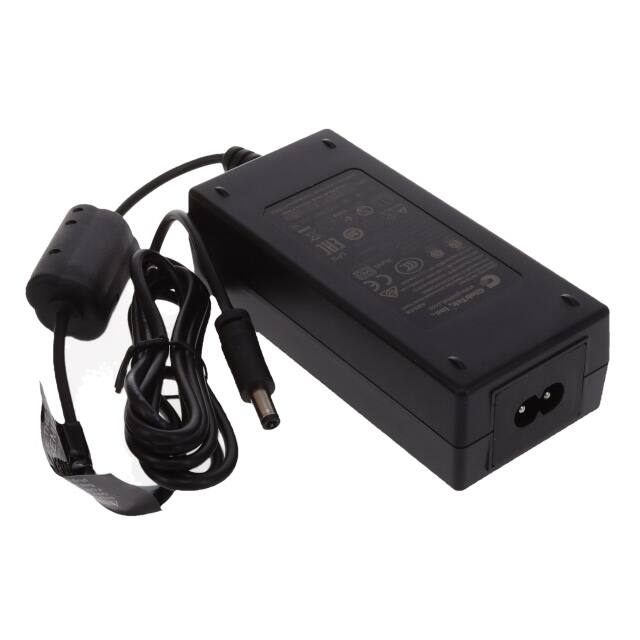

TR9KZ3160LCPCIMR6BAC/DC DESKTOP ADAPTER 19V 60W |
57 |
|
برگه مشخصات |
GTM96600-6019-T2 | Bulk | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 19V | 3.16A | 60 W | 150mW (Max) | Positive Center | Household Appliances, ITE (Commercial), Medical | Level VI, CoC Tier 2 | -20°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm | 60.2" (1.53m) | IEC 320-C8 | - | 4.63" L x 2.11" W x 1.35" H (117.5mm x 53.5mm x 34.2mm) | BSMI, CB, CCC, CE, cETLus, EAC, ETL, FCC, LPS, PSE, RCM, S-Mark, UKRSepro, VCCI | 60335-1; 60601-1-11; 60601-1-2; 60950-1; 62368-1 |
|
IPD3019-760SAC/DC DESKTOP ADAPTER 19V |
89 |
|
برگه مشخصات |
IPD30 (30W) | Box | Active | North America | Desktop (Class I) | Cord (Sold Separately) | 85 ~ 264 VAC | 19V | 1.6A | - | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 60°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 48" (1.22m) | IEC 320-C6 | - | 3.53" L x 1.92" W x 0.99" H (89.6mm x 48.8mm x 25.2mm) | CE, cTUVus | - |
|
AMA36UR5-120300YAC/DC WALL MOUNT ADAPTER 12V 36W |
28 |
|
برگه مشخصات |
AMA36-Y | Box | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 12V | 3A | 36 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 60.2" (1.50m) | NEMA 1-15P | - | 3.27" L x 1.38" W x 2.97" H (83.0mm x 35.0mm x 75.5mm) | CE, UL | 60950-1 |
|
GE40I24-P1JAC/DC WALL MOUNT ADAPTER 24V 40W |
0 |
|
برگه مشخصات |
GE40 (40W) | Box | Obsolete | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 24V | 1.67A | 40 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | -30°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 59" (1.50m) | Multi-Blade | - | 3.70" L x 1.91" W x 1.57" H (94.0mm x 48.4mm x 40.0mm) | CCC, CE, cULus, EAC, FCC, GS, RCM, TUV | - |
|
MWA020005B-10AAC/DC DESKTOP ADAPTER 5V 20W |
29 |
|
برگه مشخصات |
MWA020 (20W) | Bulk | Active | International | Desktop (Class II) | Cord (Sold Separately) | 85 ~ 264 VAC | 5V | 4A | 20 W | 300mW (Max) | Positive Center | Medical | Level V | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 72" (1.83m) | IEC 320-C8 | - | 3.45" L x 2.04" W x 1.30" H (87.7mm x 51.8mm x 33.0mm) | CB, CE, cTUVus | - |
|
FWA020012B-10AAC/DC DESKTOP ADAPTER 12V 20W |
43 |
|
برگه مشخصات |
FWA020 (20W) | Bulk | Active | International | Desktop (Class II) | Cord (Sold Separately) | 85 ~ 264 VAC | 12V | 1.67A | 20 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 48" (1.22m) | IEC 320-C8 | - | 3.45" L x 2.04" W x 1.30" H (87.7mm x 51.8mm x 33.0mm) | CB, CE, cTUVus | - |
|
TRG36A18-01E03 VIAC/DC DESKTOP ADAPTER 18V 36W |
73 |
|
برگه مشخصات |
TRG36 (36W) | Box | Obsolete | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 18V | 2A | 36 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | -20°C ~ 60°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 12.0mm | 70.9" (1.80m) | IEC 320-C8 | - | 4.37" L x 2.01" W x 0.89" H (111.0mm x 51.0mm x 22.5mm) | CE, cULus, FCC, GS, PSE, TUV | 60950-1; 62368-1 |
|
TRG36A15-11E03 VIAC/DC DESKTOP ADAPTER 15V 36W |
31 |
|
برگه مشخصات |
TRG36 (36W) | Box | Obsolete | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 15V | 2.4A | 36 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | -20°C ~ 60°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 12.0mm | 70.9" (1.80m) | IEC 320-C8 | - | 4.37" L x 2.01" W x 0.89" H (111.0mm x 51.0mm x 22.5mm) | CE, cULus, FCC, GS, PSE, TUV | - |
