تابلوهای ارزیابی SMPS DC/DC و AC/DC (خارج از خط).
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | هدف اصلی | خروجی ها و نوع | ولتاژ - خروجی | جریان - خروجی | ولتاژ - ورودی | توپولوژی تنظیم کننده | فرکانس - سوئیچینگ | مطالب | آی سی / قطعه استفاده شده | قدرت - خروجی |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

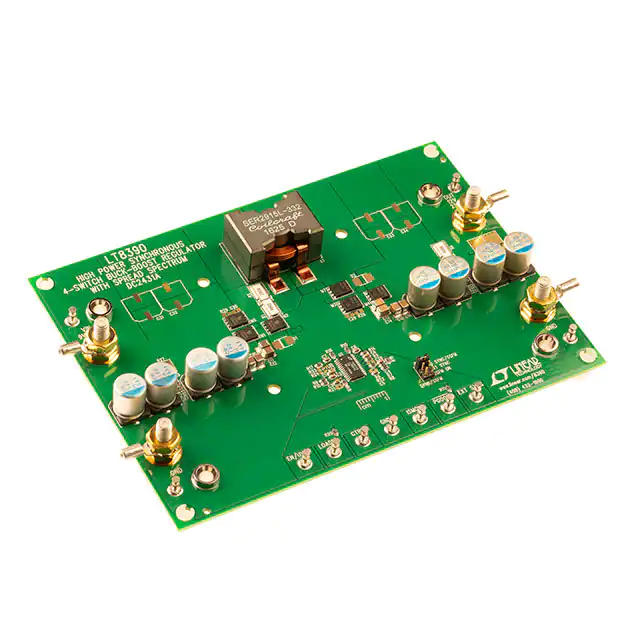

DC2431AEVAL BOARD FOR LT8390 |
4 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | 300 W | 12V | 25A | 9V ~ 36V | Buck-Boost | 150kHz | Board(s) | LT8390 |
|

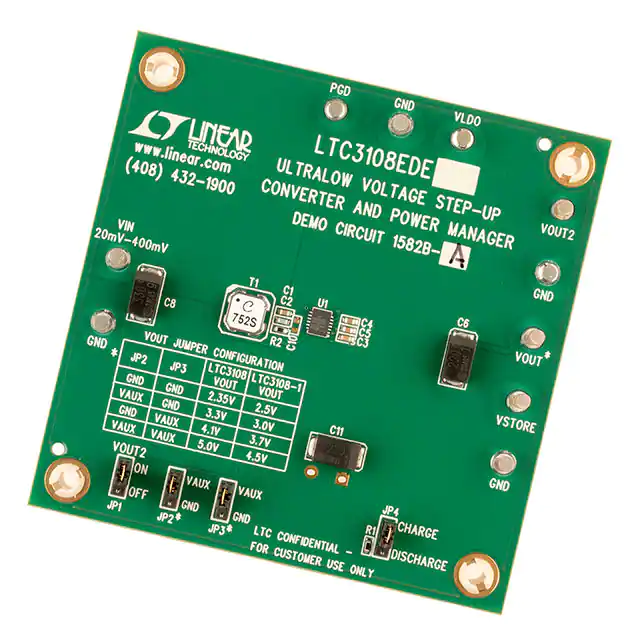

DC1582B-AEVAL BOARD FOR LTC3108 |
3 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Up with LDO | 3 Non-Isolated Outputs | - | - | - | 0.05V ~ 0.4V | Boost | - | Board(s) | LTC3108 |
|

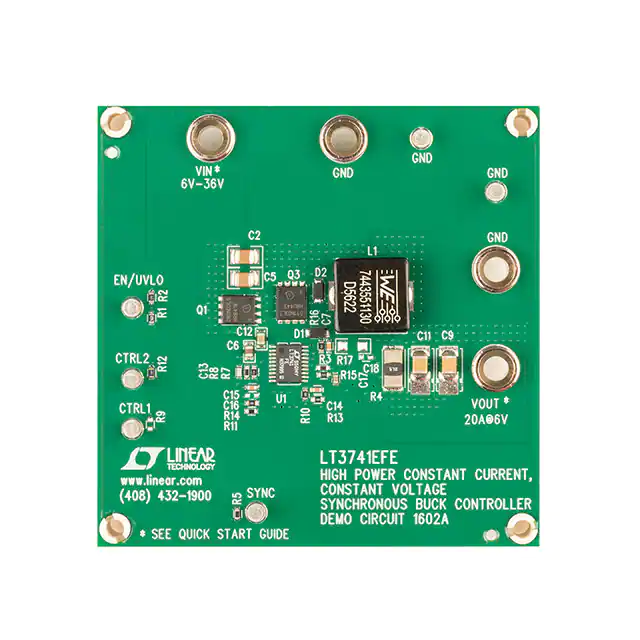

DC1602AEVAL BOARD FOR LT3741 |
3 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 6V | 20A | 12V ~ 24V | Buck | 420kHz | Board(s) | LT3741 |
|

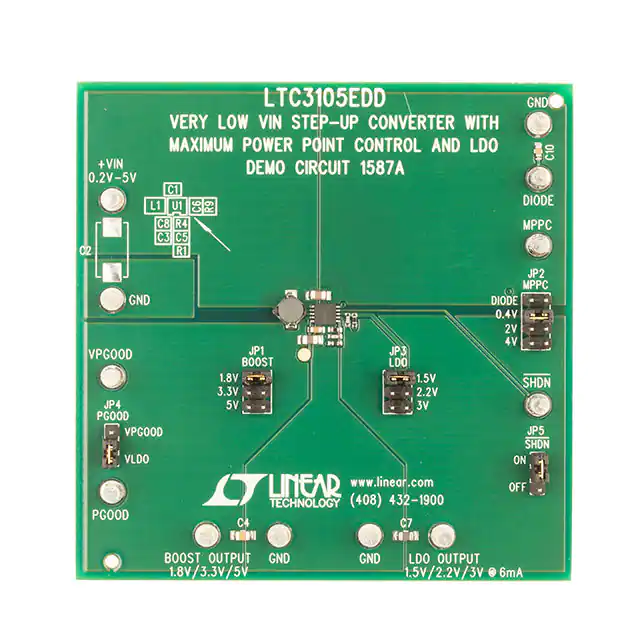

DC1587AEVAL BOARD FOR LTC3105 |
3 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Up with LDO | 2 Non-Isolated Outputs | - | 3V, 5V | 125mA, 6mA | 0.2V ~ 5V | Boost | - | Board(s) | LTC3105 |
|

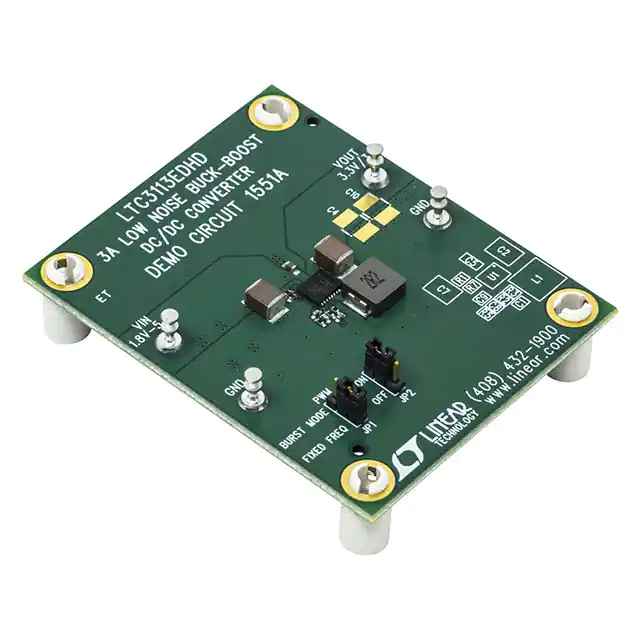

DC1551AEVAL BOARD FOR LTC3113 |
1 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 3.3V | 3A | 1.8V ~ 5.5V | Buck-Boost | 300kHz ~ 2MHz | Board(s) | LTC3113 |
|
TPS54KB20EVMEVAL BOARD FOR TPS54KB20 |
15 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 3.3V, 3.3V | 25A, 25A | 4.5V ~ 16V, 8V ~ 16V | Buck | - | Board(s) | TPS54KB20 |
|
LM5113LLPEVB/NOPBEVAL BOARD FOR LM5113 |
7 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 10V | 10A | 15V ~ 60V | Buck | 800kHz | Board(s) | LM5113 |
|

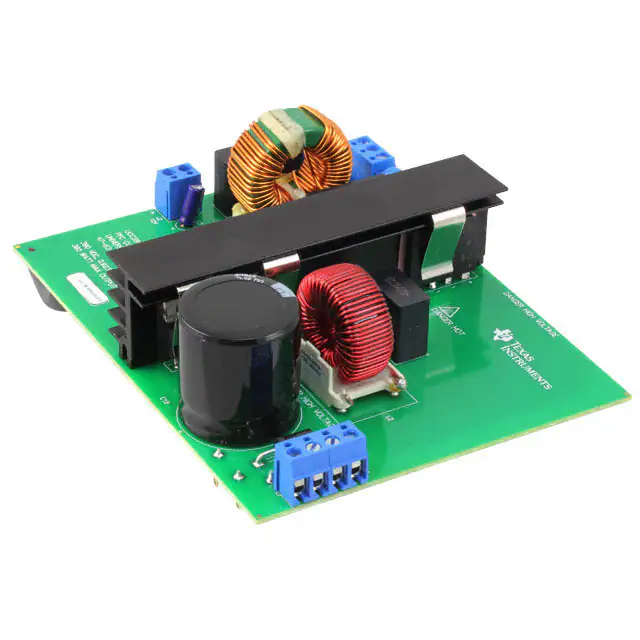

UCC28180EVM-573EVAL BOARD FOR UCC28180 |
7 |
|
برگه مشخصات |
- | Box | Active | AC/DC, Primary Side and PFC | 1 Non-Isolated Output | 360 W | 390V | 923mA | 85 ~ 265 VAC | - | 120kHz | Board(s) | UCC28180 |
|
|
EVAL-LTC7890-AZEVAL BOARD FOR LTC7890 |
5 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 5V, 12V | 20A, 20A | 14V ~ 72V | Buck | 500kHz | Board(s) | LTC7890 |
|
|
EVAL-LT8306-AZEVAL BOARD FOR LT8306 |
1 |
|
برگه مشخصات |
- | Box | Active | DC/DC Converter | 1 Isolated Output | - | 12V | 2A | 6V ~ 36V | Flyback | 300kHz | Board(s) | LT8306 |
|
|
EVAL-LTC7878-AZEVAL BOARD FOR LTC7878 |
11 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 24V | 20A | 18V ~ 65V | Buck-Boost | 600kHz | Board(s) | LTC7878 |
|

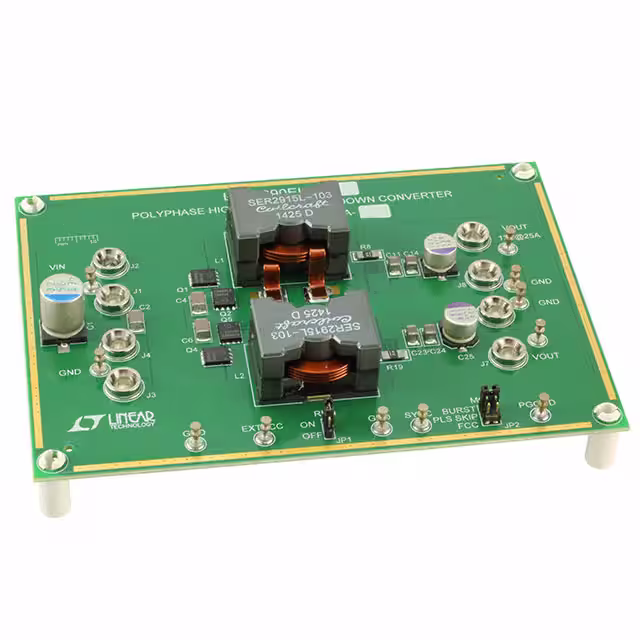

DC2236A-BEVAL BOARD FOR LTC3890 |
5 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 12V | 25A | 16V ~ 60V | Buck | 150kHz | Board(s) | LTC3890 |
|

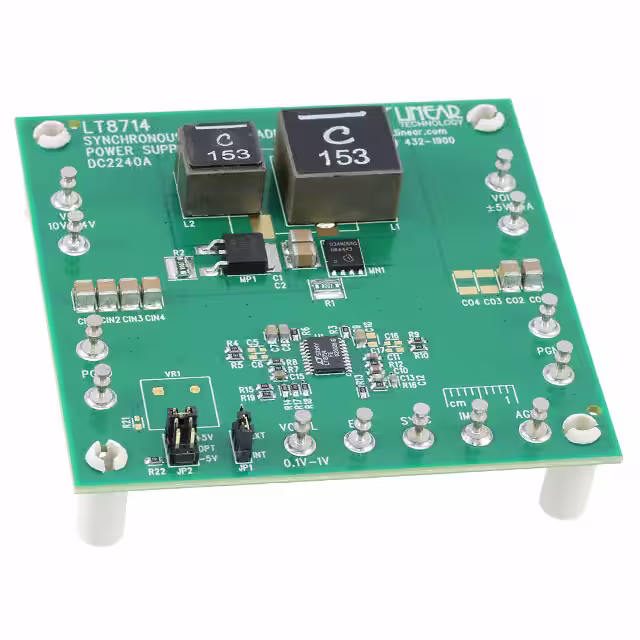

DC2240AEVAL BOARD FOR LT8714 |
4 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Positive and Negative | 1 Non-Isolated Output | - | 5V or -5V | 5A | 10V ~ 14V | - | 200kHz | Board(s) | LT8714 |
|
CM2EVAL BOARD FOR CA SERIES |
25 |
|
برگه مشخصات |
CA | Box | Active | DC/DC Converter | - | - | - | - | - | - | - | Partially Populated Board(s) | CA Series |
|
|
EVAL-LT8390A-AZEVAL BOARD FOR LT8390A |
7 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 24V | 5A | 8V ~ 60V | Buck-Boost | 2MHz | Board(s) | LT8390A |
|

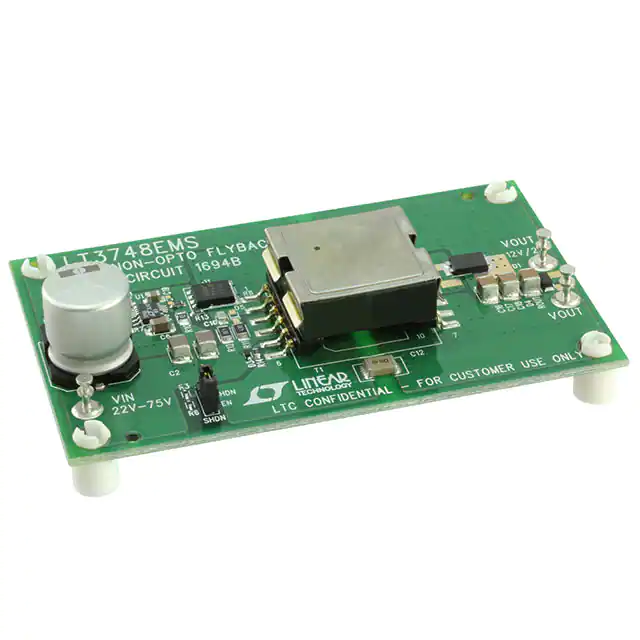

DC1694BEVAL BOARD FOR LT3748 |
10 |
|
برگه مشخصات |
- | Box | Active | DC/DC Converter | 1 Isolated Output | - | 12V | 2.5A | 22V ~ 75V | Flyback | 289kHz | Board(s) | LT3748 |
|
DC1557AEVAL BOARD FOR LT3748 |
2 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Isolated Output | - | 12V | 1A | 30V ~ 75V | Flyback | - | Board(s) | LT3748 |
|

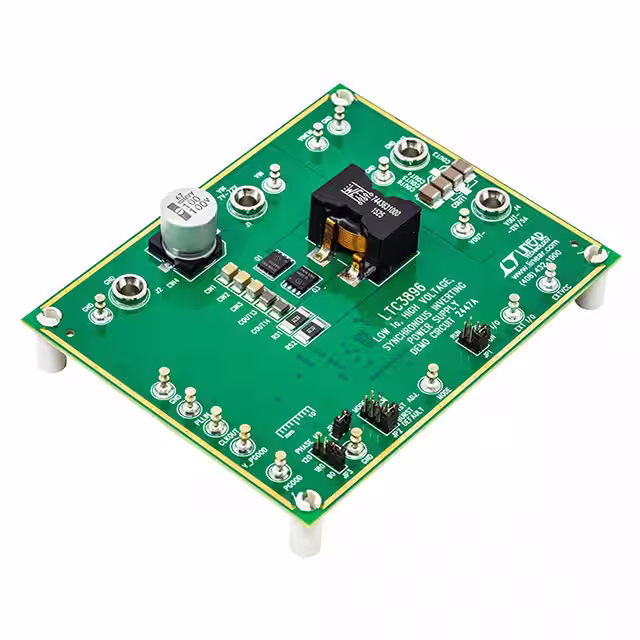

DC2447AEVAL BOARD FOR LTC3896 |
10 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Negative Inverter | 1 Non-Isolated Output | - | -12V | 5A | 7V ~ 72V | Inverting | 300kHz | Board(s) | LTC3896 |
|

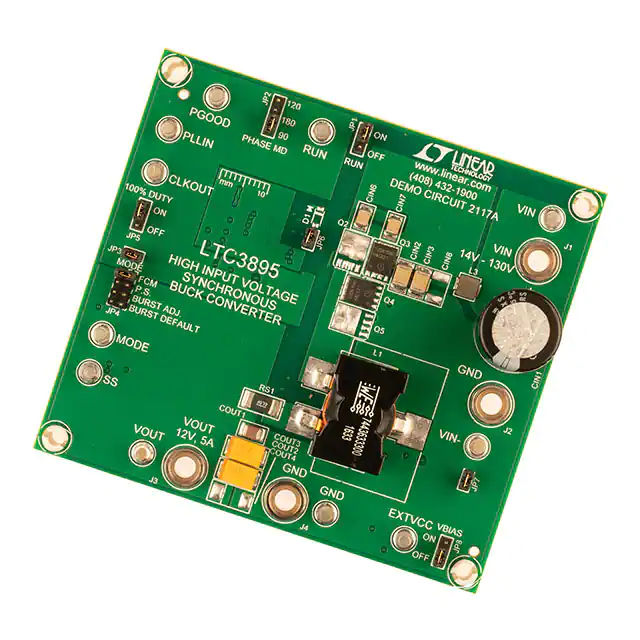

DC2117AEVAL BOARD FOR LTC3895 |
3 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 12V | 5A | 14V ~ 130V | Buck | 150kHz | Board(s) | LTC3895 |
|

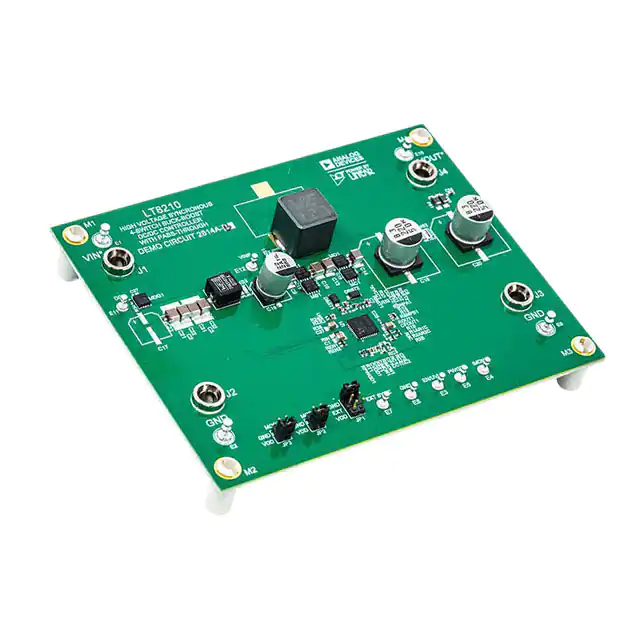

DC2814A-CEVAL BOARD FOR LT8210 |
3 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 36V ~ 56V | 2A | 26V ~ 80V | Boost, Buck | 350kHz | Board(s) | LT8210 |
