تابلوهای ارزیابی SMPS DC/DC و AC/DC (خارج از خط).
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | هدف اصلی | خروجی ها و نوع | ولتاژ - خروجی | جریان - خروجی | ولتاژ - ورودی | توپولوژی تنظیم کننده | فرکانس - سوئیچینگ | مطالب | آی سی / قطعه استفاده شده | قدرت - خروجی |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

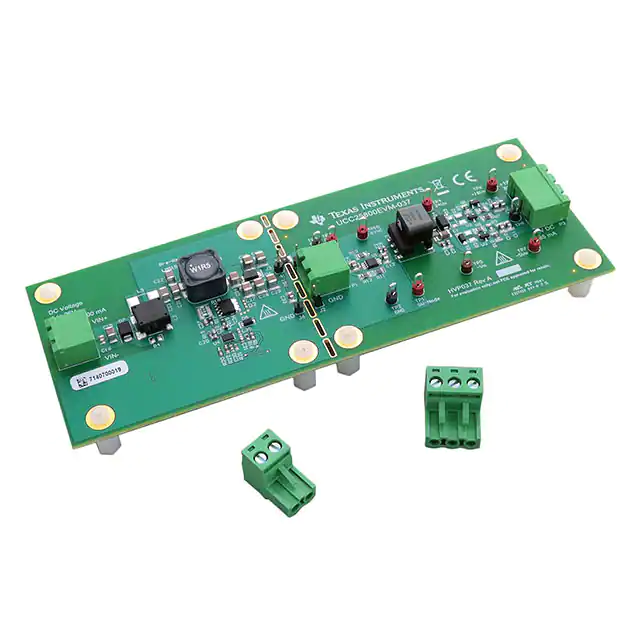

UCC25800EVM-037EVAL BOARD FOR UCC25800 |
7 |
|
برگه مشخصات |
- | Box | Active | DC/DC Converter | 2 Isolated Outputs | 2 W | -5V, 18V | - | 6V ~ 26V | - | 500kHz | Board(s) | UCC25800 |
|
UCC25660EVM-064EVAL BOARD FOR UCC25660X |
3 |
|
برگه مشخصات |
- | Box | Active | Power Supply with PFC | 1 Non-Isolated Output | - | 12V | 15A | 85 ~ 265 VAC, 365V ~ 410V | Half-Bridge | 100kHz | Board(s) | UCC25660x |
|

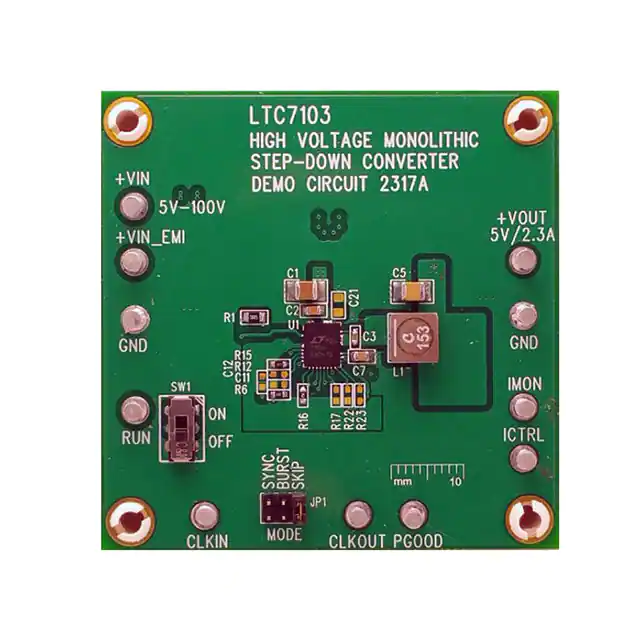

DC2317AEVAL BOARD FOR LTC7103 |
2 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 2.3A | 5V ~ 100V | Buck | 400kHz | Board(s) | LTC7103 |
|

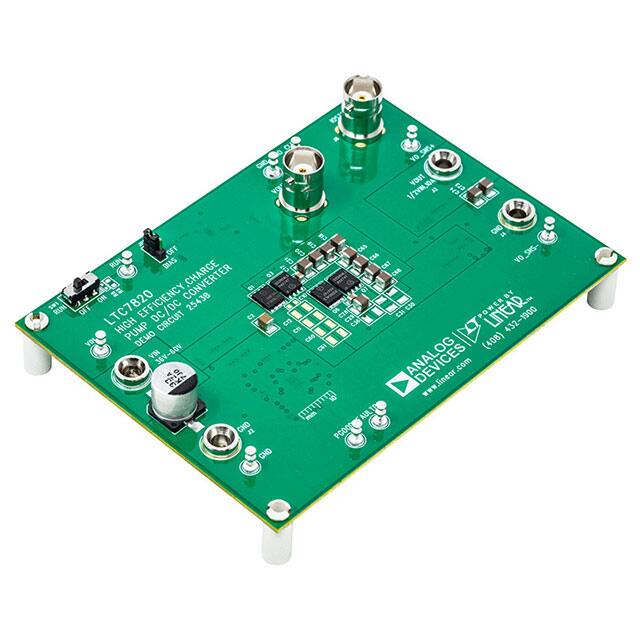

DC2543BEVAL BOARD FOR LTC7820 |
2 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | - | 10A | 36V ~ 60V | Buck | 200kHz | Board(s) | LTC7820 |
|

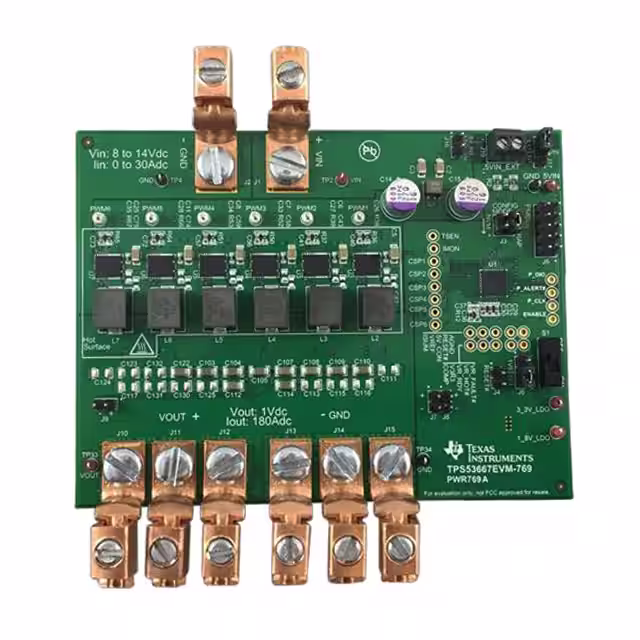

TPS53667EVM-769EVAL BOARD FOR TPS53667 |
3 |
|
برگه مشخصات |
D-CAP+™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 180A | 8V ~ 14V | Buck | 500kHz | Board(s) | TPS53667 |
|
LM5175EVM-HPEVAL BOARD FOR LM5175 |
2 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | 120 W | 12V | 10A | 6V ~ 36V | Buck-Boost | 260kHz | Board(s) | LM5175 |
|

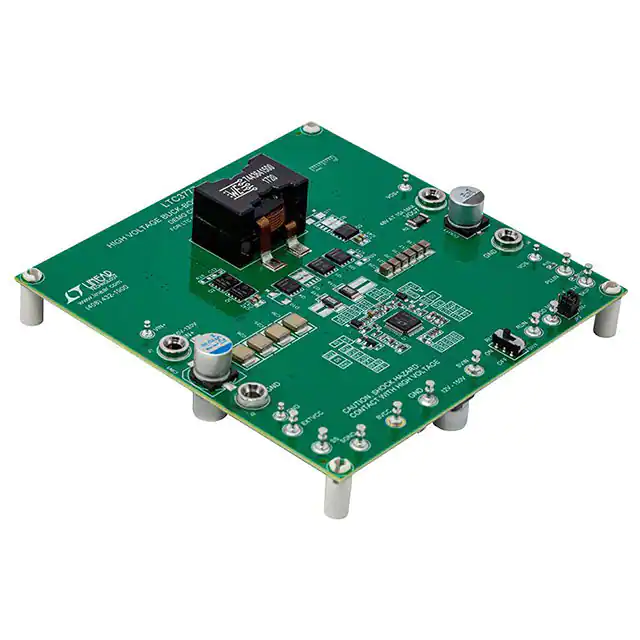

DC2519AEVAL BOARD FOR LTC3777 |
2 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 48V | 10A | 16V ~ 120V | Buck-Boost | 200kHz | Board(s) | LTC3777 |
|
|
EVL400W-80PLEVAL BOARD L4985A L6699 SRK2001 |
4 |
|
برگه مشخصات |
- | Bulk | Active | AC/DC Converter | 1 Non-Isolated Output | 400 W | 12V | 33A | 90 ~ 264 VAC | Half-Bridge | - | Board(s) | L4985A, L6699, SRK2001 |
|

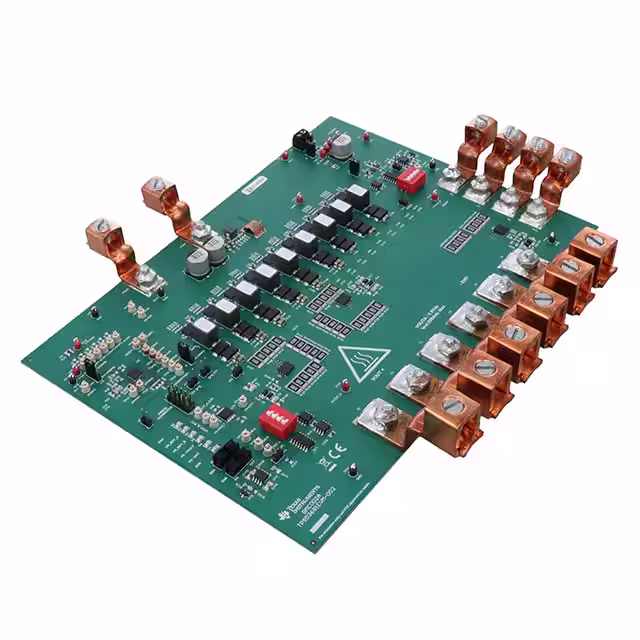

TPS53681EVM-002EVAL BOARD FOR TPS53681 |
6 |
|
برگه مشخصات |
D-CAP+™ | Bulk | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 0.9V | 294A | 10V ~ 14V | Buck | 500kHz | Board(s) | TPS53681 |
|

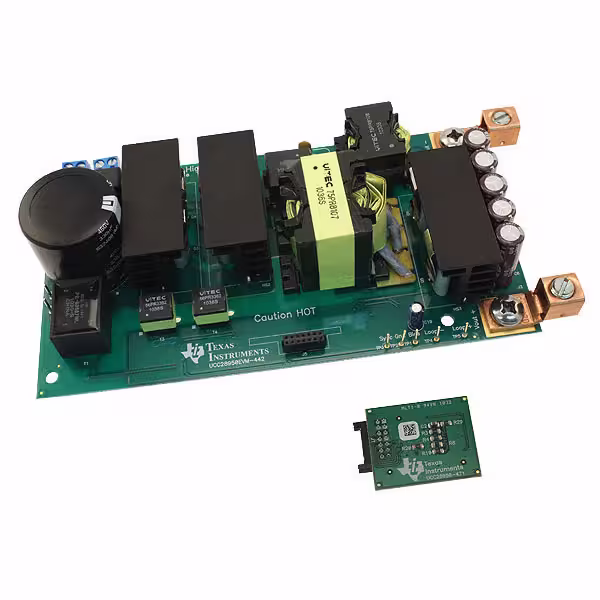

UCC28950EVM-442EVAL BOARD FOR UCC28950442 |
4 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Isolated Output | 600 W | 12V | 50A | 370V ~ 410V | Full-Bridge | - | Board(s) | UCC28950-442 |
|

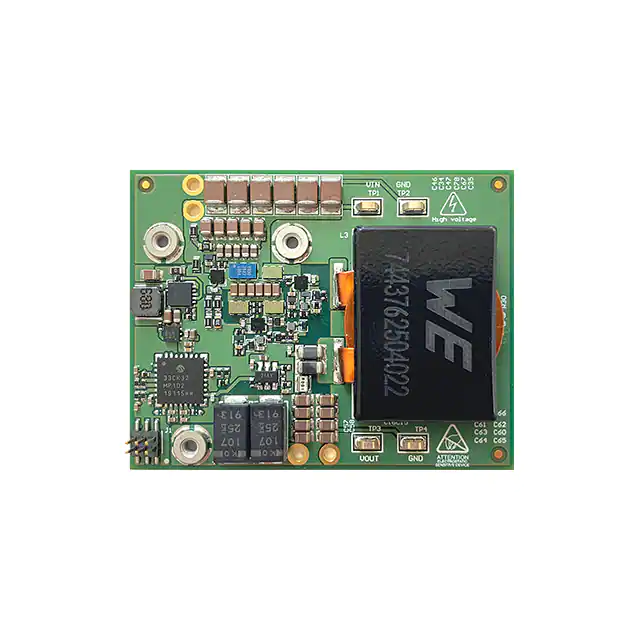

EPC9148EVAL BOARD FOR DSPIC33CK32MP102 |
12 |
|
برگه مشخصات |
eGaN® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 19V | 12.5A | 44V ~ 60V | Buck | 400kHz | Board(s) | dsPIC33CK32MP102, EPC2038, EPC2053, EPC2055 |
|

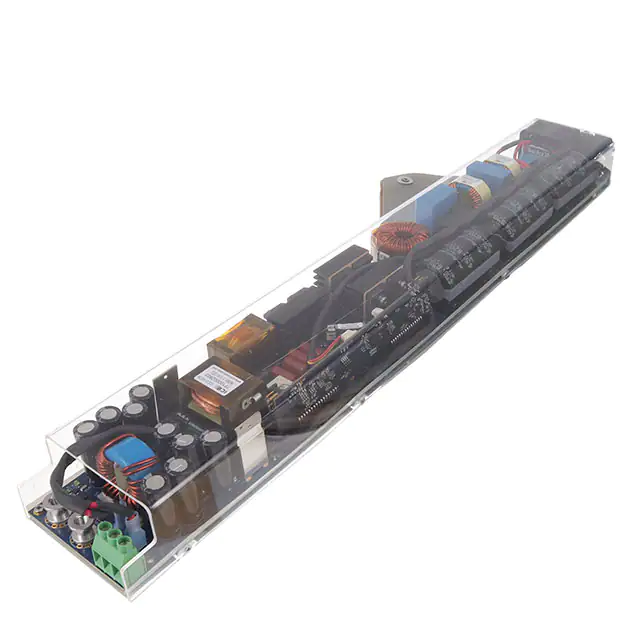

EVAL3KW50VPSUTOBO1EVAL BOARD ICE2QR2280G XMC1404 |
2 |
|
برگه مشخصات |
- | Bulk | Active | AC/DC, Primary and Secondary Side with PFC | 1 Isolated Output | 3 kW | 50V | 60A | 180 ~ 275 VAC | Flyback | - | Board(s) | ICE2QR2280G, XMC1404, XMC4200 |
|

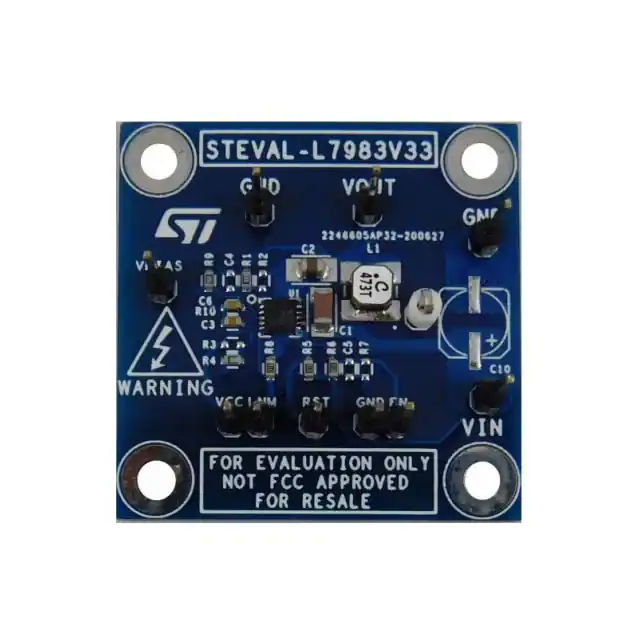

STEVAL-L7983V33EVAL BOARD FOR L7983PU33R |
7 |
|
برگه مشخصات |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 300mA | 3.5V ~ 60V | Buck | 1MHz | Board(s) | L7983PU33R |
|

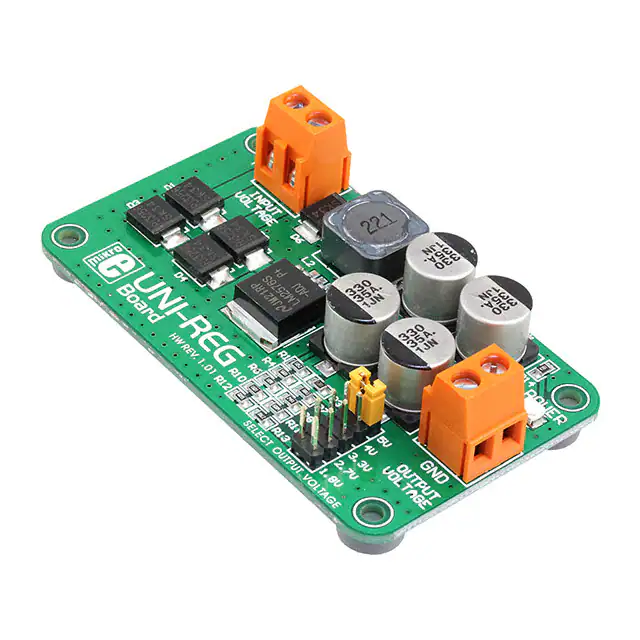

MIKROE-482EVAL BOARD FOR LM2576 |
13 |
|
برگه مشخصات |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V, 2.7V, 3.3V, 4V, 5V or 12V | 3A | 7 ~ 23 VAC, 9V ~ 32V | Buck | - | Board(s) | LM2576 |
|

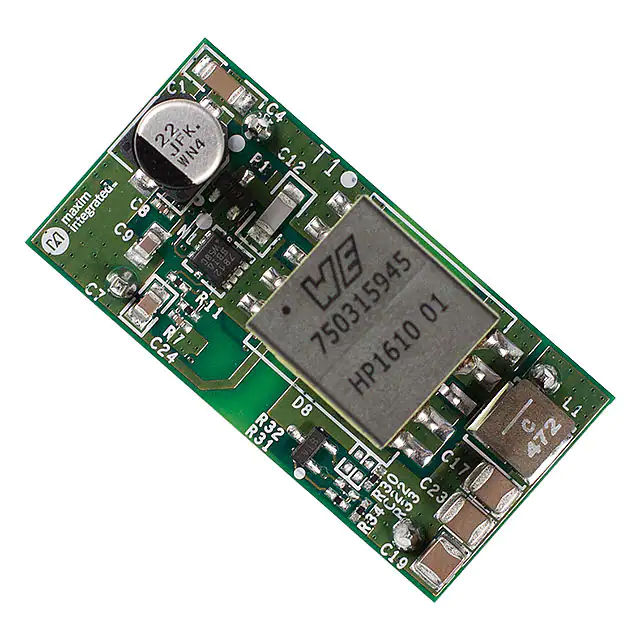

MAXREFDES114D#EVAL BOARD FOR MAX17599 |
6 |
|
برگه مشخصات |
- | Box | Active | DC/DC Converter | 1 Isolated Output | 10 W | 5V | 2A | 17V ~ 36V | Flyback | 350kHz | Board(s) | MAX17599 |
|

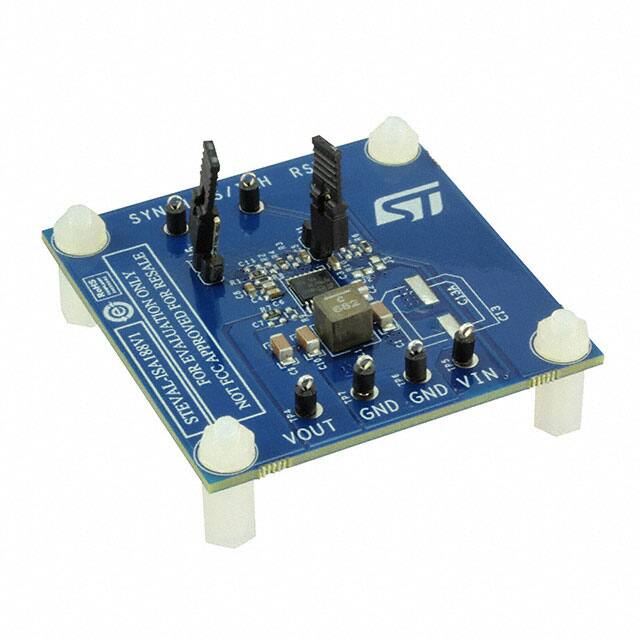

STEVAL-ISA188V1EVAL BOARD FOR A6986F3V3 |
55 |
|
برگه مشخصات |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 1.5A | 4V ~ 38V | Buck | 500kHz | Board(s) | A6986F3V3 |
|

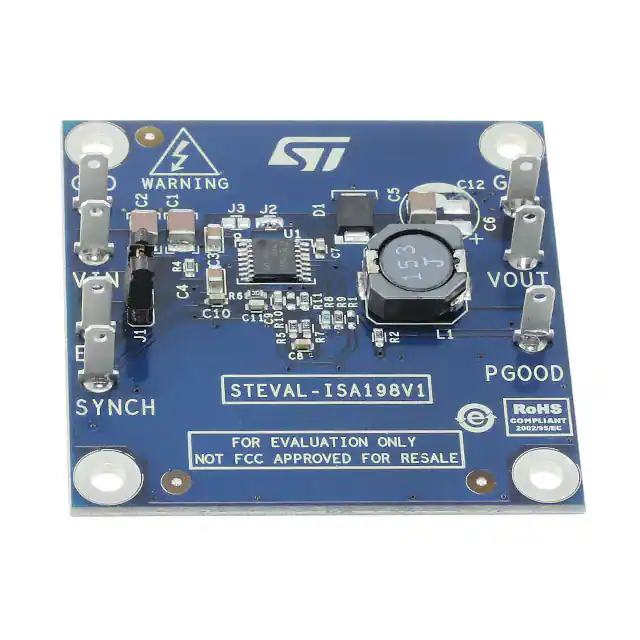

STEVAL-ISA198V1EVAL BOARD FOR L7987L |
20 |
|
برگه مشخصات |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 2A | 4.5V ~ 60V | Buck | 500kHz | Board(s) | L7987L |
|
LMR24220RB/NOPBEVAL BOARD FOR LMR24220 LMZ10501 |
14 |
|
برگه مشخصات |
SIMPLE SWITCHER® | Bulk | Active | DC/DC, Step Down | 3 Non-Isolated Outputs | - | 1.2V, 1.8V, 3.3V | 1A | 5V ~ 32V | Buck | - | Board(s) | LMR24220, LMZ10501 |
|

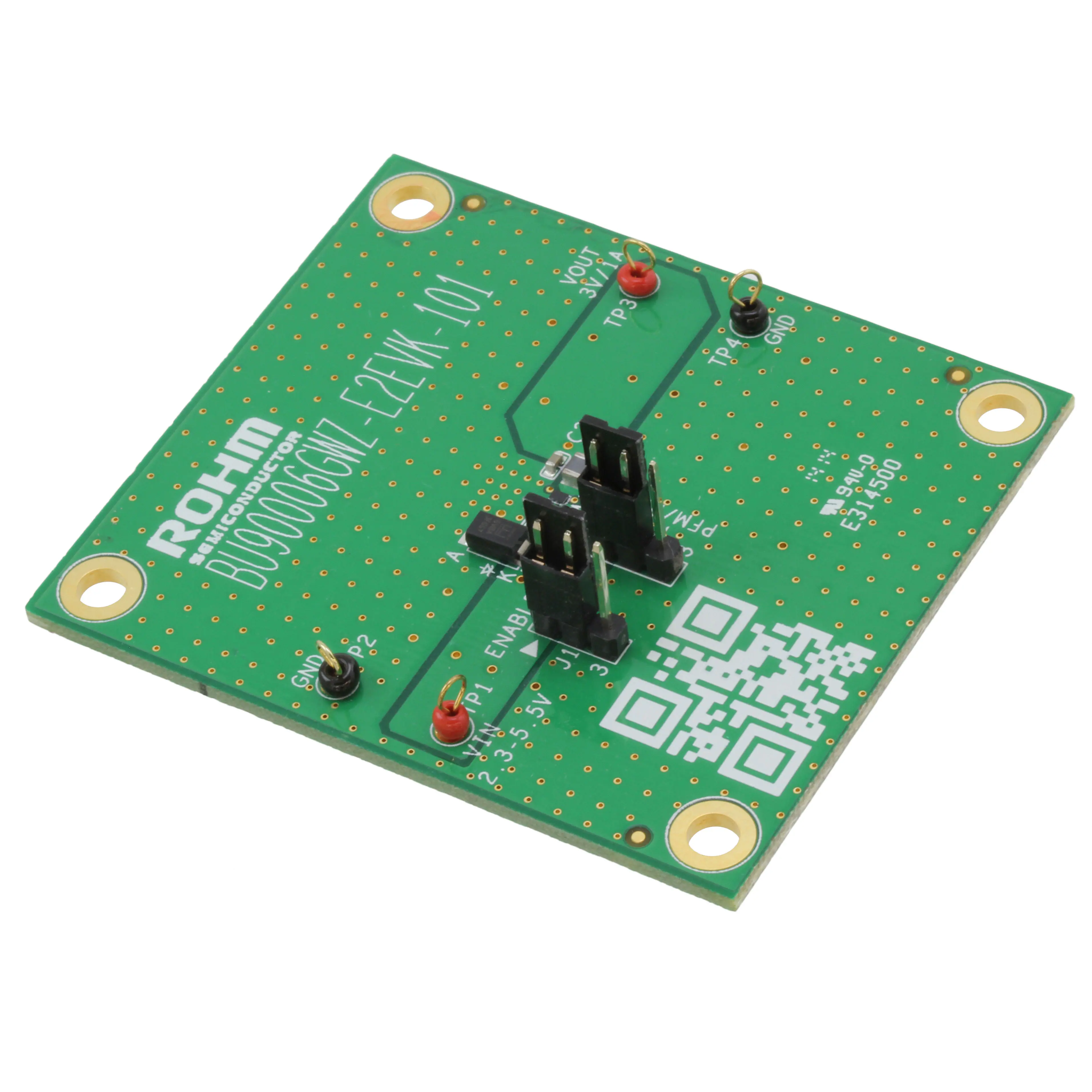

BU90006GWZ-E2-EVK-101EVAL BOARD FOR BU90006 |
16 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3V | 1A | 2.3V ~ 5.5V | Buck | 6MHz | Board(s) | BU90006 |
|

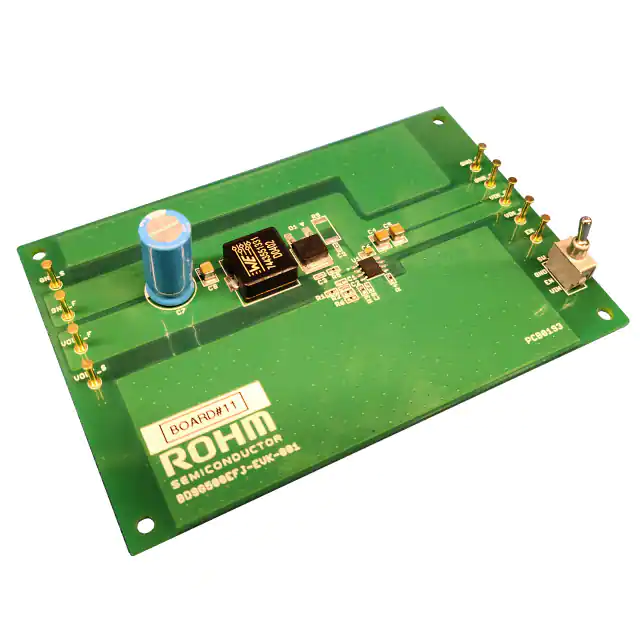

BD9G500EFJ-EVK-001EVAL BOARD FOR BD9G500 |
6 |
|
برگه مشخصات |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 5A | 7V ~ 48V | Buck | 200kHz | Board(s) | BD9G500 |
