تابلوهای ارزیابی SMPS DC/DC و AC/DC (خارج از خط).
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | هدف اصلی | خروجی ها و نوع | ولتاژ - خروجی | جریان - خروجی | ولتاژ - ورودی | توپولوژی تنظیم کننده | فرکانس - سوئیچینگ | مطالب | آی سی / قطعه استفاده شده | قدرت - خروجی |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CM3EVAL BOARD FOR C SERIES |
3 |
|
برگه مشخصات |
C | Box | Active | DC/DC Converter | - | - | - | - | - | - | - | Partially Populated Board(s) | C Series |
|
DC2993A-AEVAL BOARD FOR LTC7825 |
5 |
|
برگه مشخصات |
- | Box | Active | DC/DC Converter | 1 Non-Isolated Output | - | - | 12A | 4.5V ~ 24V | - | 380kHz | Board(s) | LTC7825 |
|
|
MAX25252EVKIT#EVAL BOARD FOR MAX25252 |
0 |
|
- |
- | Box | Active | DC/DC, Step Down with LDO | 5 Non-Isolated Outputs | - | 2.5V ~ 5V | 1.7A, 1.7A, 1A, 900mA, 400mA | 3.5V ~ 22V | - | 2.1MHz | Board(s) | MAX25252 |
|
|
I7C08A-CC3-EVK-P2EVAL BOARD FOR I7C4W008A120VP03R |
8 |
|
برگه مشخصات |
i7C | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | 300 W | 9.6V ~ 48V | 8A | 9V ~ 53V | Buck-Boost | - | Board(s) | i7C4W008A120V-P03-R |
|
|
I7C20A-CC3-EVK-P2EVAL BOARD FOR I7C2W020A120VP03R |
7 |
|
برگه مشخصات |
i7C | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | 300 W | 8V ~ 24V | 20A | 9V ~ 36V | Buck-Boost | - | Board(s) | i7C2W020A120V-P03-R |
|
|
I7C12A-CC3-EVK-P2EVAL BOARD FOR I7C4W012A050VP03R |
5 |
|
برگه مشخصات |
i7C | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | 300 W | 5V ~ 28V | 12.5A | 9V ~ 53V | Buck-Boost | - | Board(s) | i7C4W012A050V-P03-R |
|
|
EVM3695-100-BH-00CEVAL BOARD FOR MPM3695100 |
3 |
|
برگه مشخصات |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 400A | 3.3V ~ 16V | Buck | 600kHz | Board(s) | MPM3695-100 |
|
|
MAX20438EVKIT#EVKIT FOR THE MAX20438 |
0 |
|
- |
- | Box | Active | - | - | - | - | - | - | - | - | Board(s) | - |
|
|
MAX77857QEVKIT#EVAL BOARD FOR MAX77857Q |
0 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 4.5V ~ 15V | 7A | 2.5V ~ 16V | Buck-Boost | 1.8MHz | Board(s) | MAX77857Q |
|

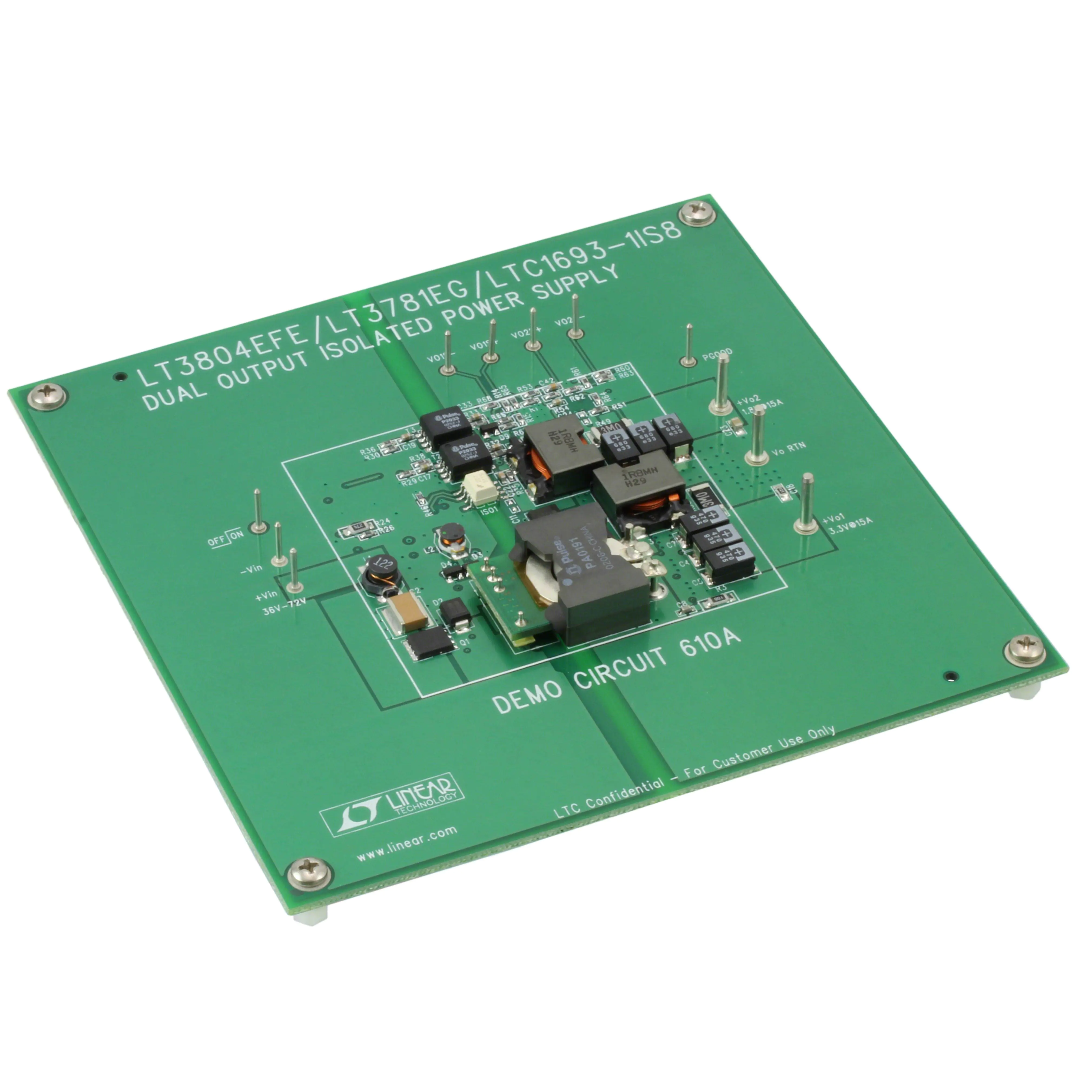

DC610AEVAL BOARD FOR LT3781 LT3804 |
1 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 2 Isolated Outputs | - | 1.8V, 3.3V | 15A, 15A | 36V ~ 72V | - | 230kHz | Board(s) | LT3781, LT3804, LTC1693-1 |
|
|
BM2SC124FP2-EVK-001EVAL BOARD FOR BM2SC124 |
2 |
|
برگه مشخصات |
- | Bulk | Active | AC/DC Converter | 1 Non-Isolated Output | 48 W | 24V | 2A | 210 ~ 480VAC, 300V ~ 900V | Flyback | - | Board(s) | BM2SC124 |
|
|
BM2SC122FP2-EVK-001EVAL BOARD FOR BM2SC122 |
2 |
|
برگه مشخصات |
- | Bulk | Active | AC/DC Converter | 1 Non-Isolated Output | 48 W | 24V | 2A | 210 ~ 480VAC, 300V ~ 900V | Flyback | - | Board(s) | BM2SC122 |
|
|
MAX77647EVKIT#EVAL BOARD FOR MAX77647 |
0 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Up or Down with LDO | 4 Non-Isolated Outputs | - | - | - | 1.8V ~ 3.3V | Buck-Boost | - | Board(s) | MAX77647 |
|
|
MAX20815EVKIT#EVAL BOARD FOR MAX20815 |
0 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 15A | 2.7V ~ 16V | Buck | 500kHz | Board(s) | MAX20815 |
|
MAX20058EVKIT#EVAL BOARD FOR MAX20058 |
0 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 1A | 6.5V ~ 60V | Buck | 400kHz | Board(s) | MAX20058 |
|
|
DC2263A-AEVAL BOARD FOR LTC3887EUJ |
2 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 0.8V ~ 1.8V | 25A | 7V ~ 14V | Buck | 425kHz | Board(s) | LTC3887EUJ |
|

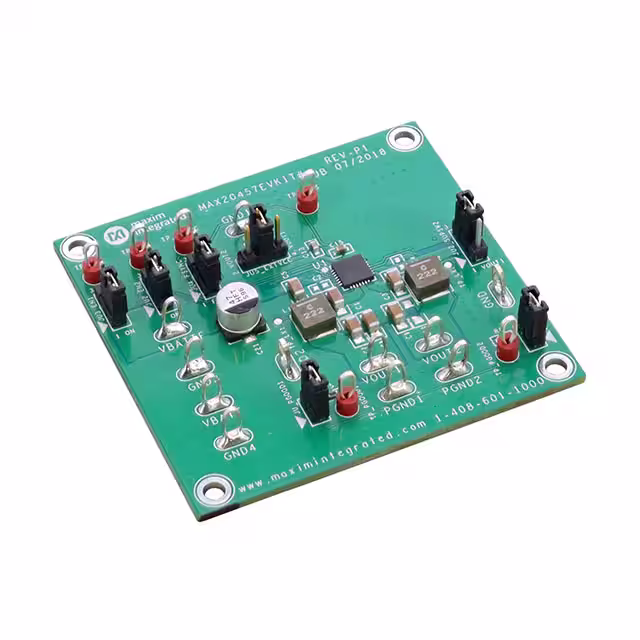

MAX20457EVKIT#EVAL BOARD FOR MAX20457 |
1 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 2 Isolated Outputs | - | 3.3V, 5V | 3.5A, 2A | 3.5V ~ 40V | Buck | 2.1MHz | Board(s) | MAX20457 |
|

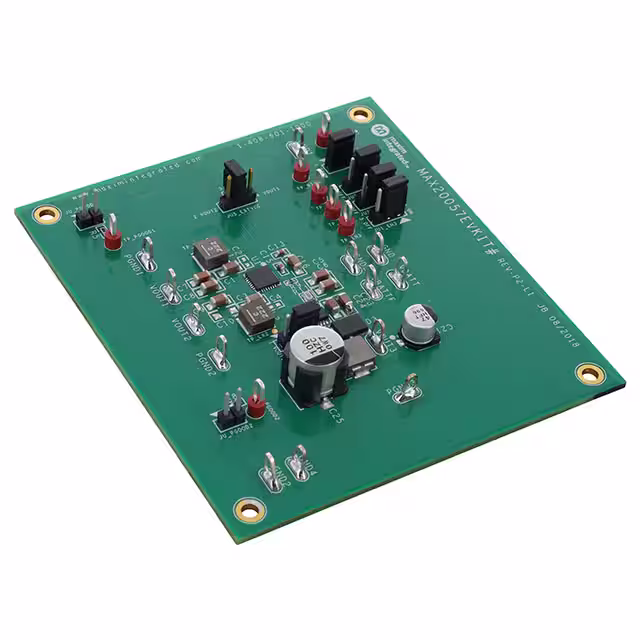

MAX20057EVKIT#EVAL BOARD FOR MAX20057 |
0 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Up | 2 Non-Isolated Outputs | - | 3.3V, 5V | 5A, 3.5A | 3.5V ~ 40V | Boost | 2.1MHz | Board(s) | MAX20057 |
|
MAX20458EVKIT#EVAL BOARD FOR MAX20458 |
0 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 3.3V or 5V | 3.5A | 3.5V ~ 40V | Boost | 2.1MHz | Board(s) | MAX20458 |
|

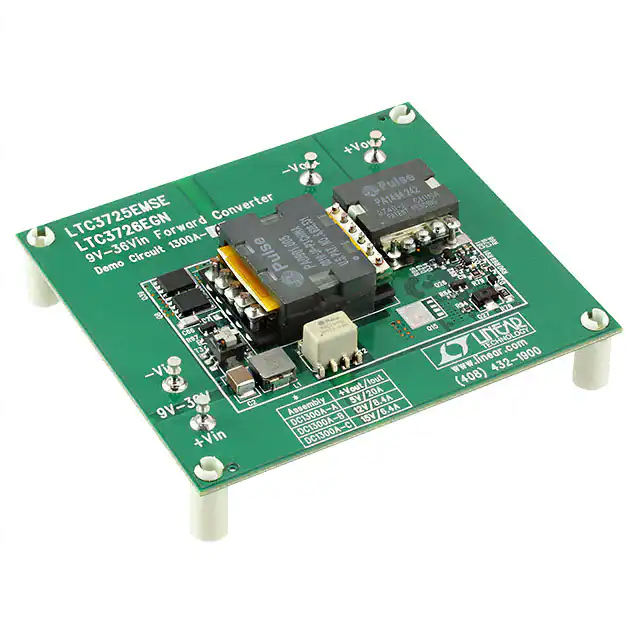

DC1300A-AEVAL BOARD FOR LTC3725 LTC3726 |
1 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 20A | 9V ~ 36V | Forward Converter | 200kHz | Board(s) | LTC3725, LTC3726 |
