تابلوهای ارزیابی SMPS DC/DC و AC/DC (خارج از خط).
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | هدف اصلی | خروجی ها و نوع | ولتاژ - خروجی | جریان - خروجی | ولتاژ - ورودی | توپولوژی تنظیم کننده | فرکانس - سوئیچینگ | مطالب | آی سی / قطعه استفاده شده | قدرت - خروجی |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

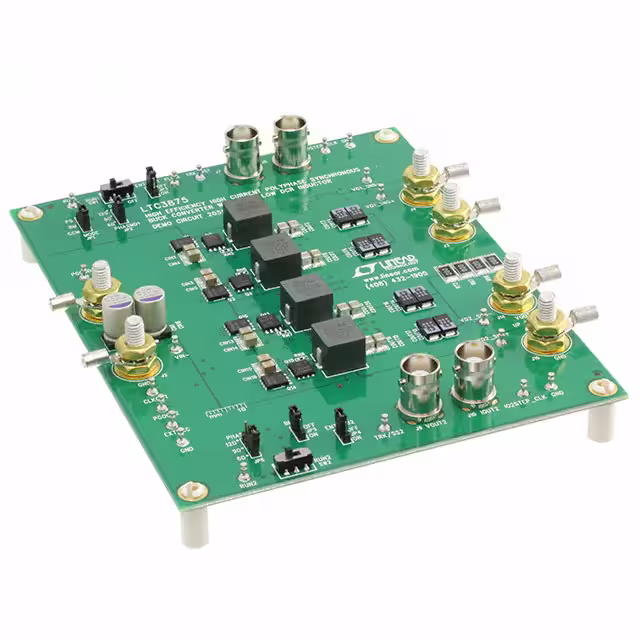

DC2055AEVAL BOARD FOR LTC3875 |
1 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 120A | 4.5V ~ 14V | Buck | 400kHz | Board(s) | LTC3875 |
|
EVAL-LTC3313EV-MULTI-A1ZEVAL BOARD FOR LTC3313 |
8 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 60A, 45A, 30A | 3V ~ 5.5V | Buck | 2MHz | Board(s) | LTC3313 |
|

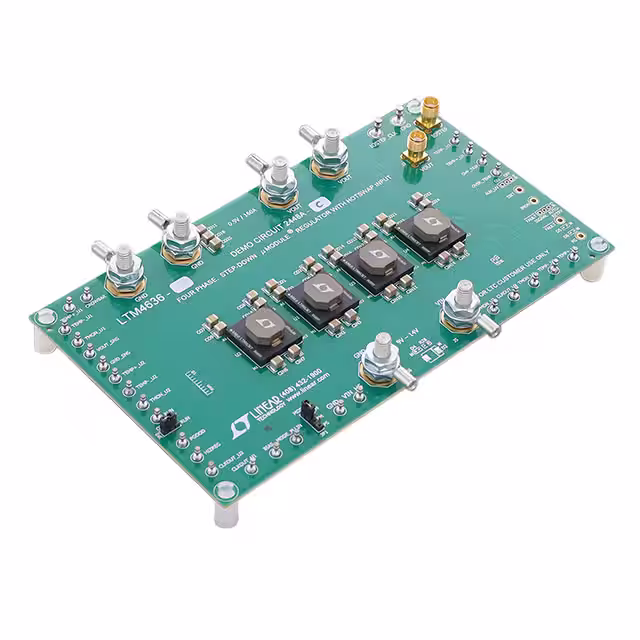

DC2448A-CEVAL BOARD FOR LTM4636 |
1 |
|
برگه مشخصات |
µModule® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.6V ~ 3.3V | - | 4.7V ~ 15V | Buck | - | Board(s) | LTM4636 |
|
|
DC553AEVAL BOARD FOR LTC3450EUD |
0 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Up | 3 Non-Isolated Outputs | - | 5.1V, 15V, -10V | 10mA, 500µA, 500µA | 1.5V ~ 4.6V | Boost | - | Board(s) | LTC3450EUD |
|
|
RTKA489800DE0000BUEVAL BOARD FOR RAA489800 |
3 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 2.4V ~ 20V | - | 3.8V ~ 24V | Buck-Boost | 1MHz | Board(s) | RAA489800 |
|
|
TPS65224Q1EVMEVAL BOARD FOR TPS65224Q1 |
3 |
|
- |
- | Box | Active | DC/DC, Step Down with LDO | 7 Non-Isolated Outputs | - | 0.75V, 0.75V, 0.85V, 1.2V, 1.8V, 1.8V, 3.3V | 10A, 2A, 2A, 400mA, 400mA, 300mA | 3V ~ 5.5V | Buck | - | Board(s) | TPS65224-Q1 |
|
|
DC2993A-BEVAL BOARD FOR LTC7825 |
3 |
|
برگه مشخصات |
- | Box | Active | DC/DC Converter | 1 Non-Isolated Output | - | - | 24A | 4.5V ~ 24V | - | 380kHz | Board(s) | LTC7825 |
|

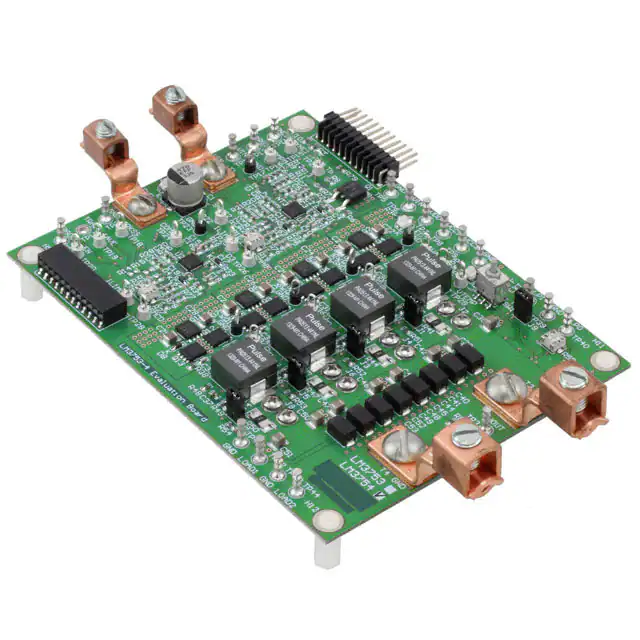

LM3754EVAL/NOPBEVAL BOARD FOR LM3754 |
6 |
|
برگه مشخصات |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 100A | 6V ~ 18V | Buck | 300kHz | Board(s) | LM3754 |
|
|
DC1381A-BEVAL BOARD FOR LTC3858 |
1 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 3.3V, 8.5V | 5A, 3A | 4.5V ~ 36V | Buck | 350kHz | Board(s) | LTC3858 |
|

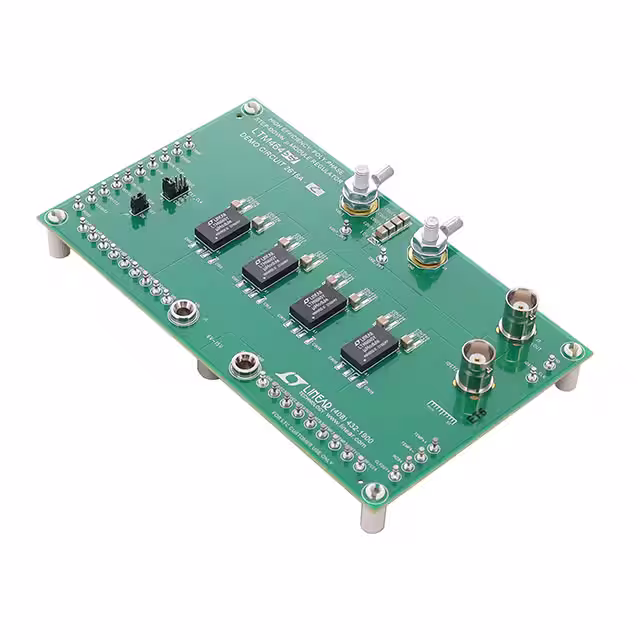

DC2616A-CEVAL BOARD FOR LTM4645 |
1 |
|
برگه مشخصات |
µModule® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 100A | 6V ~ 15V | Buck | 600kHz | Board(s) | LTM4645 |
|
|
DC1403AEVAL BOARD FOR LT3692A |
2 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 3.3V, 5V | 3A, 3A | 7V ~ 36V | Buck | 400kHz | Board(s) | LT3692A |
|

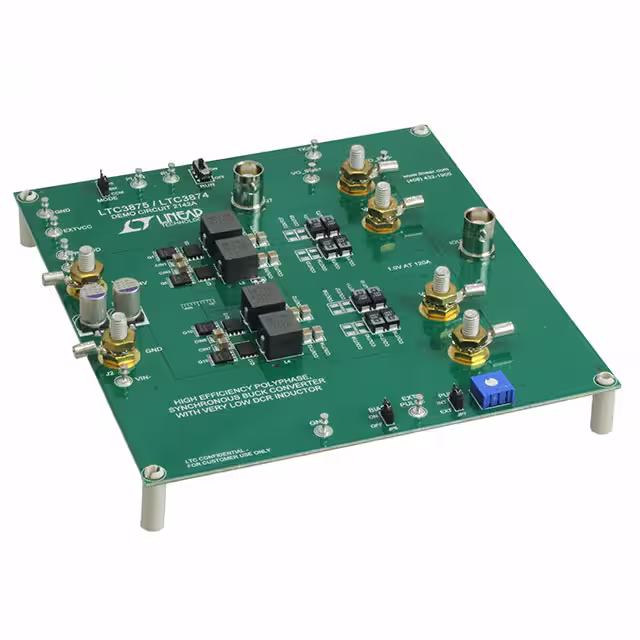

DC2142AEVAL BOARD FOR LTC3874 LTC3875 |
1 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 120A | 4.5V ~ 14V | Buck | 400kHz | Board(s) | LTC3874, LTC3875 |
|

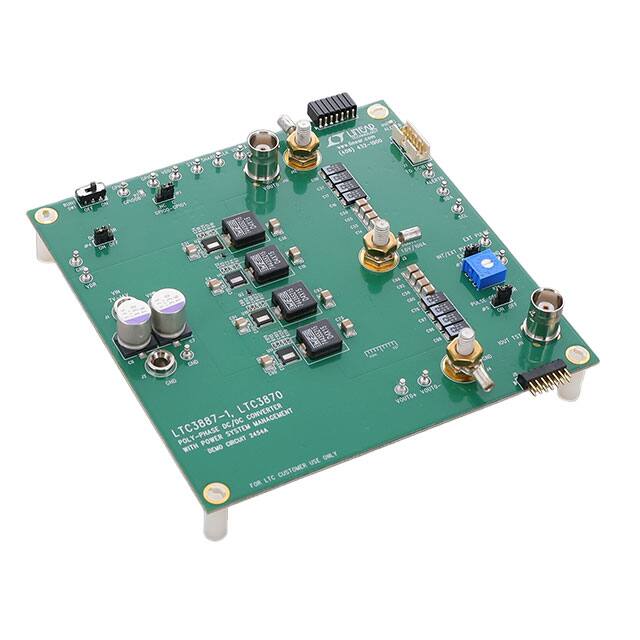

DC2454AEVAL BOARD FOR LTC38701 LTC38871 |
1 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 100A | 7V ~ 14V | Buck | 425kHz | Board(s) | LTC3870-1, LTC3887-1 |
|

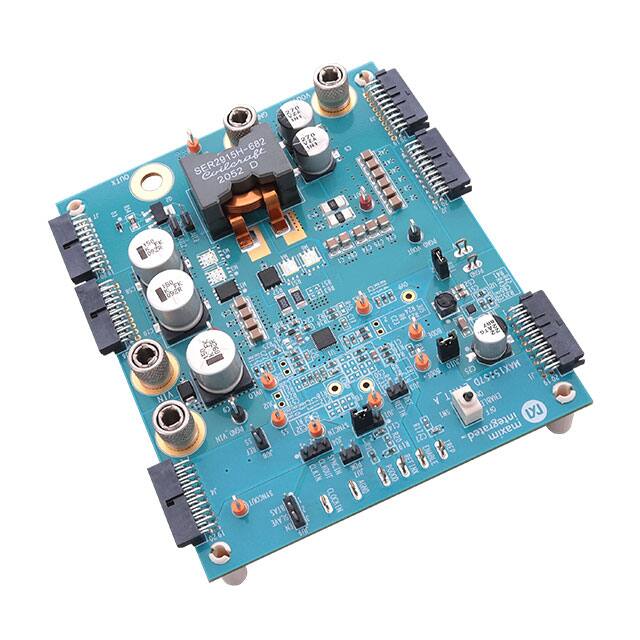

MAX15157DEVKIT#EVAL BOARD FOR MAX15157D |
0 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 12V | 20A | 40V ~ 60V | Buck | 150kHz | Board(s) | MAX15157D |
|
|
DC1317A-CEVAL BOARD FOR LT1952 |
2 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Isolated Output | - | 12V | 8A | 18V ~ 72V | Buck | 300kHz | Board(s) | LT1952 |
|
|
DC2959A-BEVAL BOARD FOR LTM4660 |
8 |
|
برگه مشخصات |
µModule® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 12V | 75A | 36V ~ 60V | Buck | 350kHz | Board(s) | LTM4660 |
|

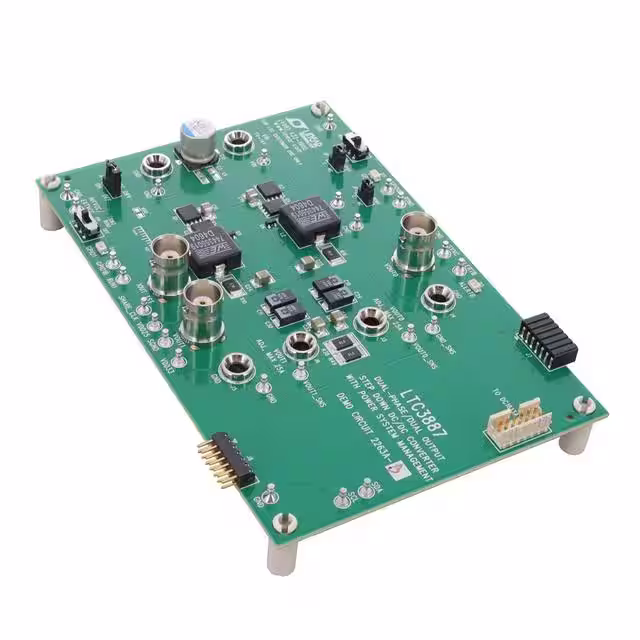

DC2263A-BEVAL BOARD FOR LTC3887EUJ |
1 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.8V ~ 1.8V | 50A | 7V ~ 14V | Buck | 425kHz | Board(s) | LTC3887EUJ |
|
|
LP877451Q1EVMEVAL BOARD FOR LP87745Q1 |
3 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Up or Down with LDO | 5 Non-Isolated Outputs | - | 1V, 1.2V, 1.8V, 3.3V, 5V | 3A, 3A, 3A, 300mA, 150mA | 3.04V ~ 3.56V | Boost, Buck | - | Board(s) | LP87745-Q1 |
|

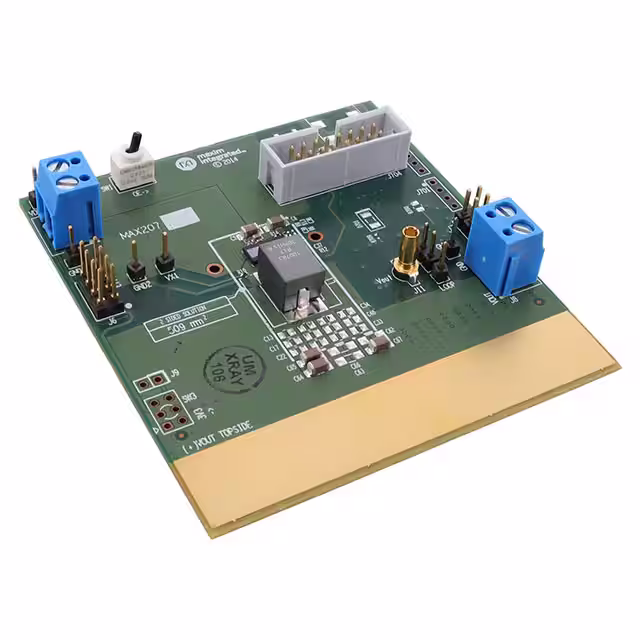

MAX20743EVKIT#EVAL BOARD FOR MAX20743 |
1 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.6V ~ 5.5V | 35A | 4.5V ~ 16V | Buck | - | Board(s) | MAX20743 |
|

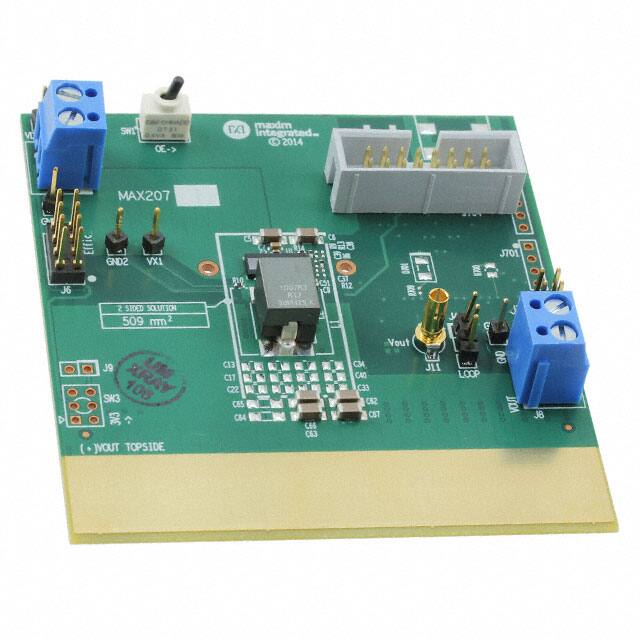

MAX20734EVKIT#EVAL BOARD FOR MAX20734 |
0 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 40A | 4.5V ~ 16V | Buck | 400kHz | Board(s) | MAX20734 |
