تابلوهای ارزیابی SMPS DC/DC و AC/DC (خارج از خط).
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | هدف اصلی | خروجی ها و نوع | ولتاژ - خروجی | جریان - خروجی | ولتاژ - ورودی | توپولوژی تنظیم کننده | فرکانس - سوئیچینگ | مطالب | آی سی / قطعه استفاده شده | قدرت - خروجی |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

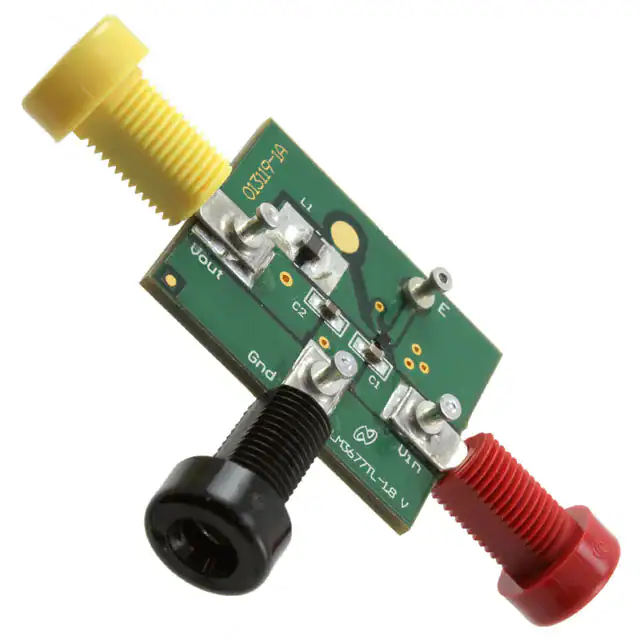

LM3677TL-1.8EVEVAL BOARD FOR LM3677 |
5 |
|
برگه مشخصات |
- | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 600mA | 2.7V ~ 5.5V | Buck | 3MHz | Board(s) | LM3677 |
|

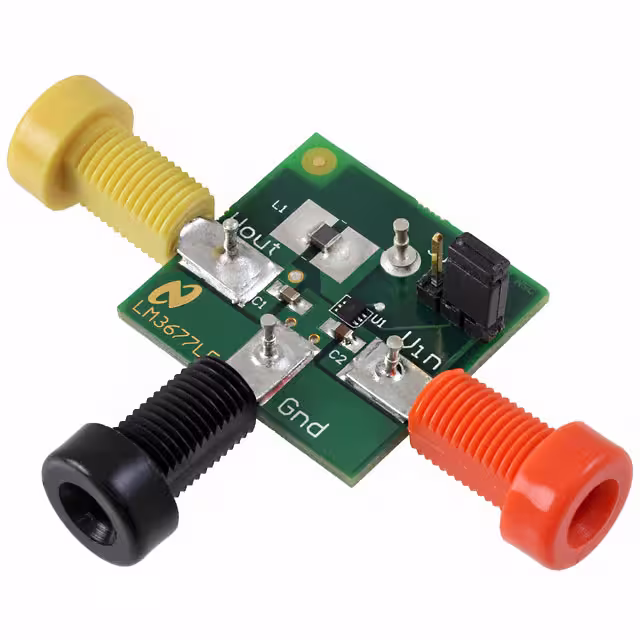

LM3677LE-1.8EVEVAL BOARD FOR LM3677 |
5 |
|
برگه مشخصات |
- | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 600mA | 2.7V ~ 5.5V | Buck | 3MHz | Board(s) | LM3677 |
|

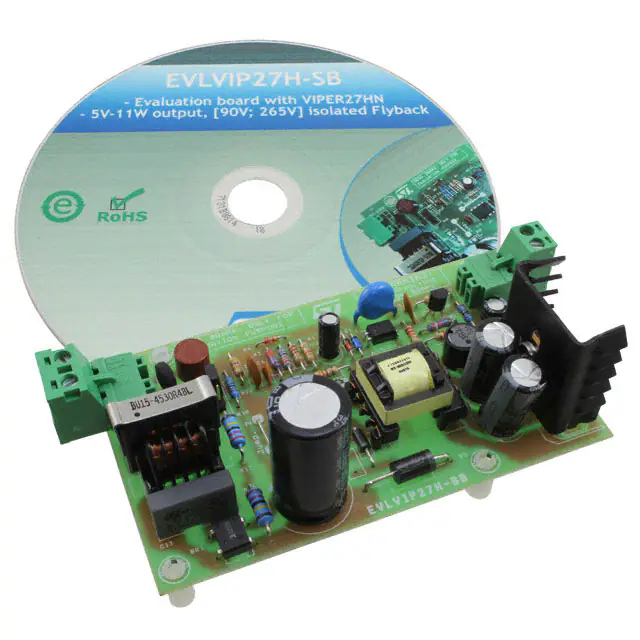

STEVAL-ISA122V1EVAL BOARD FOR VIPER27 |
3 |
|
برگه مشخصات |
VIPER™ | Box | Active | AC/DC, Primary Side | 1 Isolated Output | 11 W | 5V | 2.2A | 90 ~ 265 VAC | Flyback | 115kHz | Board(s) | VIPer27 |
|

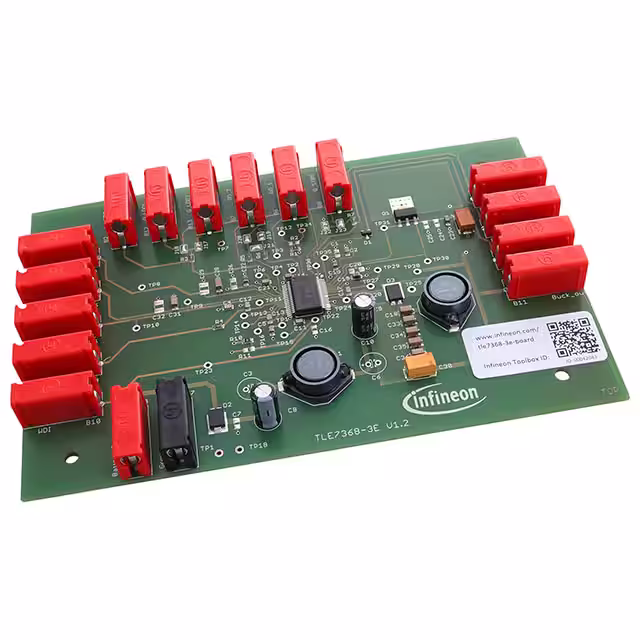

DEMOBOARDTLE73683ETOBO1EVAL BOARD FOR TLE73683E |
3 |
|
برگه مشخصات |
OPTIREG™ | Bulk | Discontinued | DC/DC, Step Down with LDO | 6 Non-Isolated Outputs | - | 1.3V, 2.6V, 3.3V, 5V, 5V, 5V | 800mA, 700mA, 105mA, 70mA, 50mA, 30mA | 4.5V ~ 45V | Buck | 370kHz | Board(s) | TLE7368-3E |
|

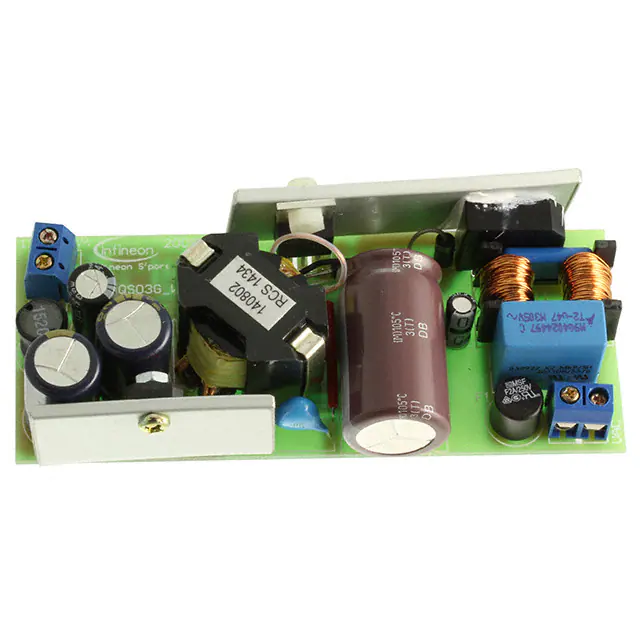

EVALQRSICE2QS03GTOBO1EVAL BOARD FOR ICE2QS03G |
2 |
|
برگه مشخصات |
- | Bulk | Discontinued | AC/DC, Primary Side | 1 Isolated Output | 36 W | 12V | 3A | 85 ~ 265 VAC | Flyback | 38kHz | Board(s) | ICE2QS03G |
|

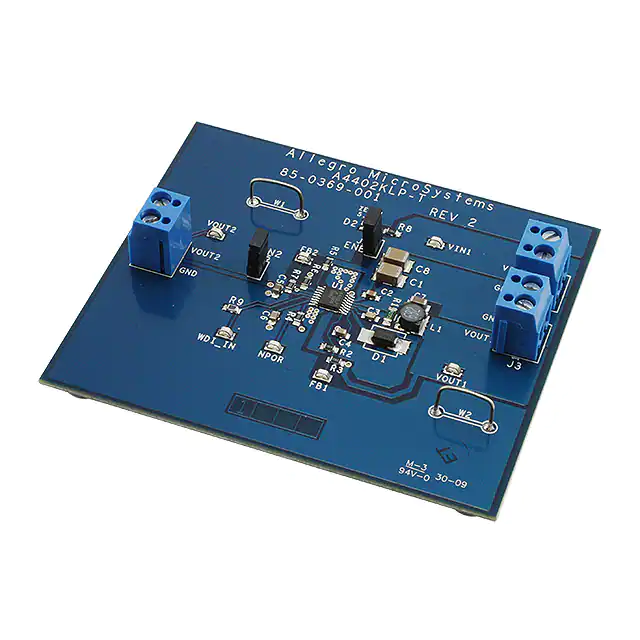

APEK4402KLP-01-T-DKEVAL BOARD FOR A4402 |
5 |
|
برگه مشخصات |
- | Bulk | Obsolete | DC/DC, Step Down with LDO | 2 Non-Isolated Outputs | - | - | - | 6V ~ 50V | Buck | 2MHz | Board(s) | A4402 |
|

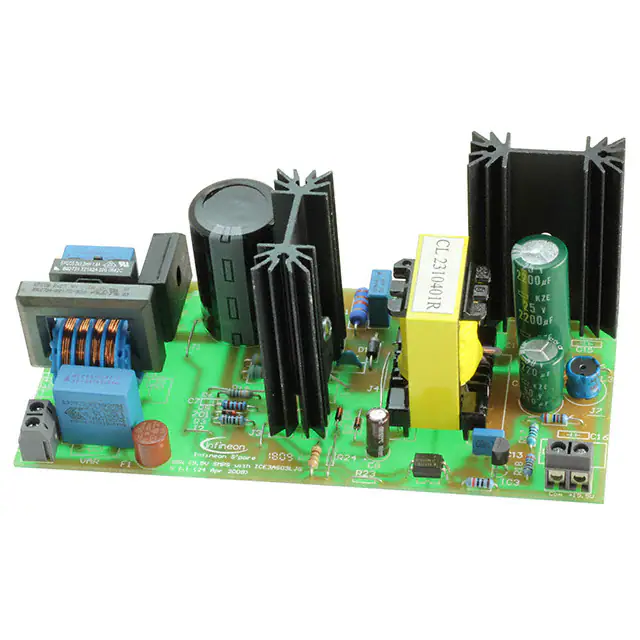

EVALSF3ICE3AS03LJGTOBO1EVAL BOARD FOR ICE3AS03LJG |
11 |
|
برگه مشخصات |
- | Bulk | Discontinued | AC/DC, Primary Side | 1 Isolated Output | 65 W | 19.5V | 3.34A | 85 ~ 265 VAC | Flyback | 100kHz | Board(s) | ICE3AS03LJG |
|

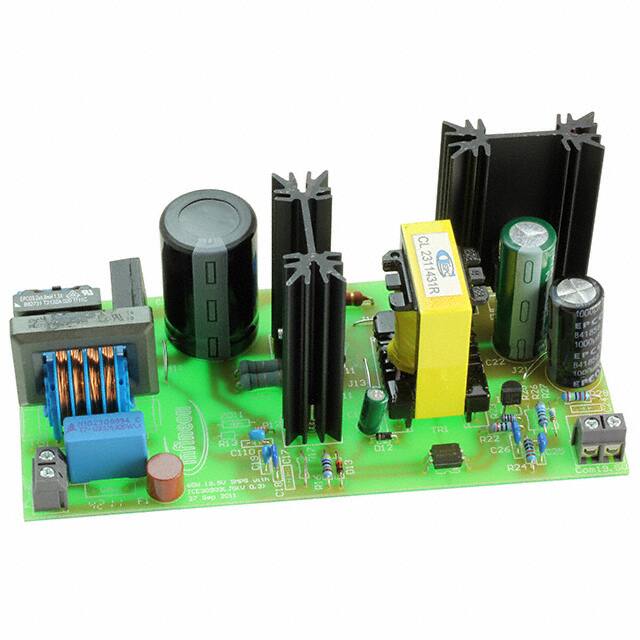

EVAL3GS03LJGTOBO1EVAL BOARD FOR ICE3GS03LJG |
4 |
|
برگه مشخصات |
- | Bulk | Discontinued | AC/DC, Primary Side | 1 Isolated Output | 65 W | 19.5V | 3.34A | 85 ~ 265 VAC | Flyback | 130kHz | Board(s) | ICE3GS03LJG |
|

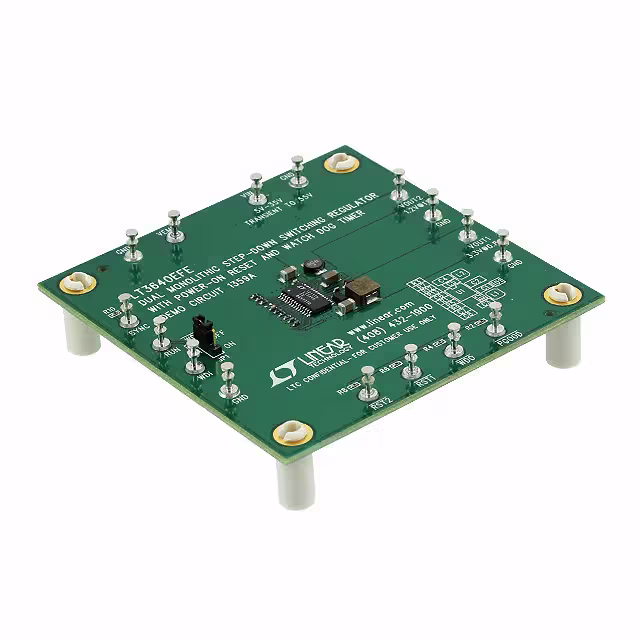

DC1359AEVAL BOARD FOR LT3640 |
2 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.2V, 3.3V | 1A, 800mA | 5V ~ 35V | Buck | 2MHz | Board(s) | LT3640 |
|
STR-NCP3235-EVKEVAL BOARD FOR NCP3235 |
2 |
|
برگه مشخصات |
Strata | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | - | 15A | 4.5V ~ 23V | Buck | - | Board(s) | NCP3235 |
|

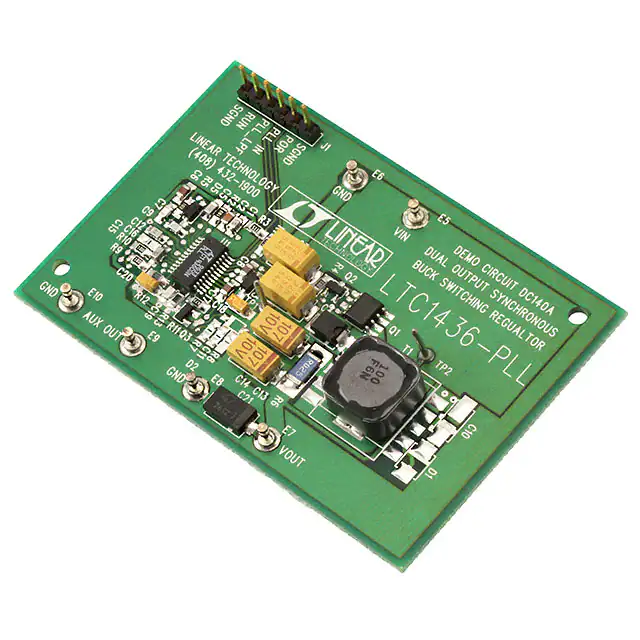

DC140A-AEVAL BOARD FOR LTC1436PLL |
2 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 3.3V, 5V | 3A, 100mA | 5.5V ~ 28V | Buck | 170kHz | Board(s) | LTC1436-PLL |
|

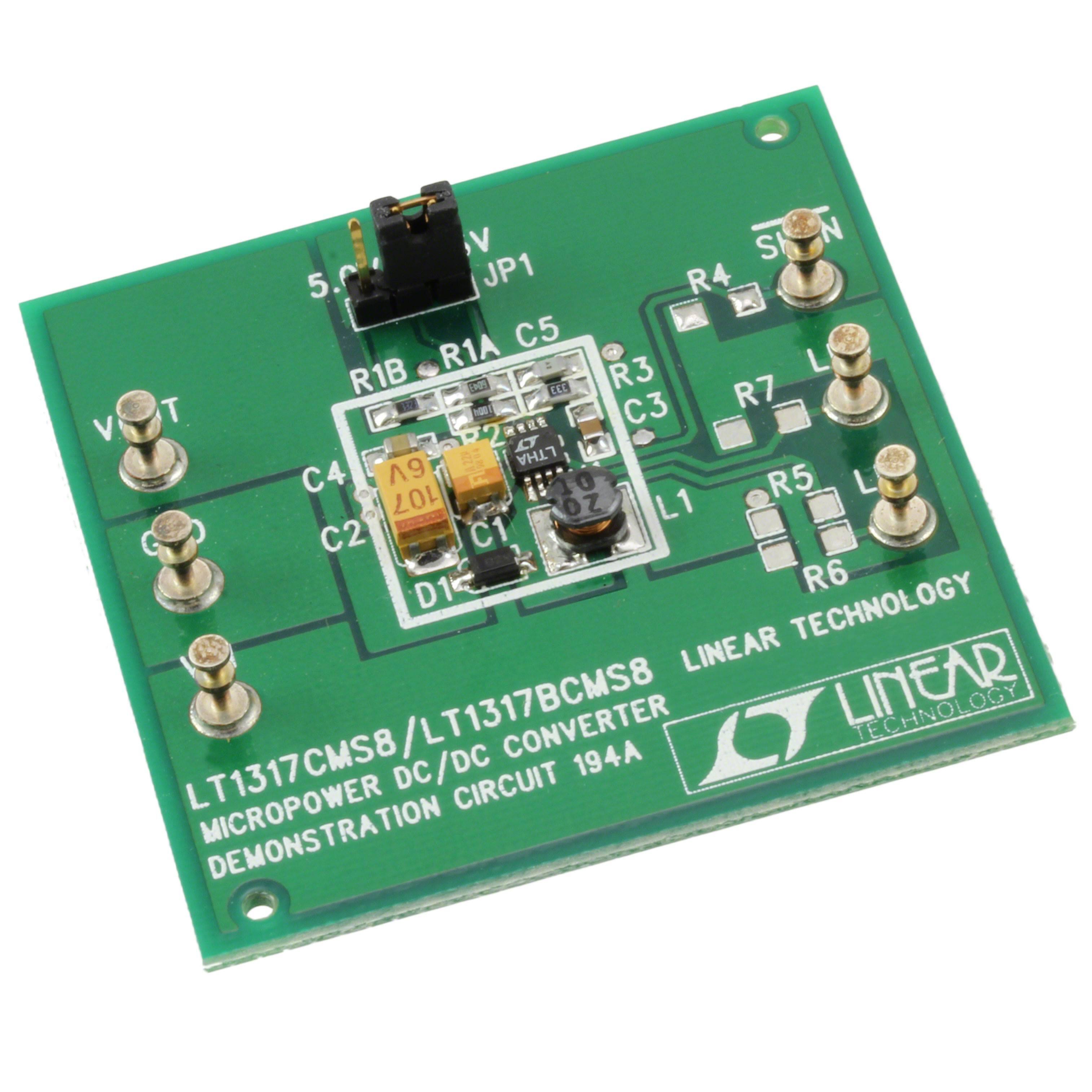

DC194A-AEVAL BOARD FOR LT1317 |
2 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 3.3V or 5V | 320mA | 1.5V ~ 5.3V | Boost | 600kHz | Board(s) | LT1317 |
|

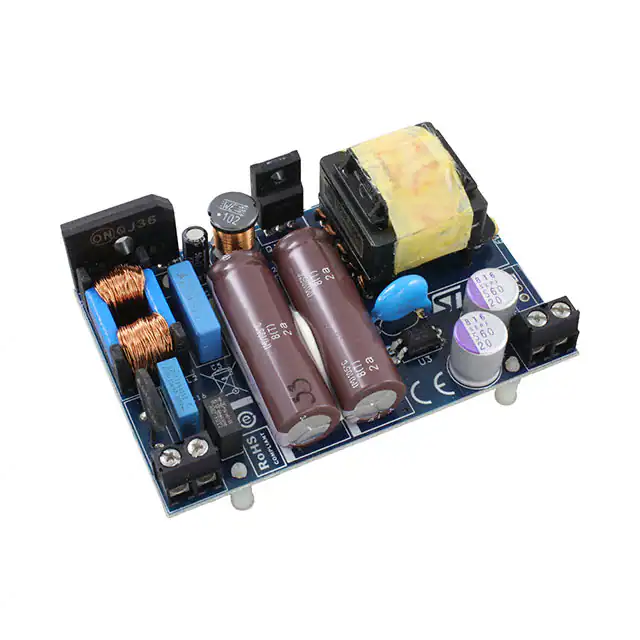

EVAL-STCH03-45WEVAL BOARD FOR STCH03 |
2 |
|
برگه مشخصات |
- | Bulk | Active | AC/DC, Primary and Secondary Side | 1 Isolated Output | 45 W | 12V | 3.75A | 90 ~ 265VAC | Flyback | 154kHz | Board(s) | STCH03 |
|

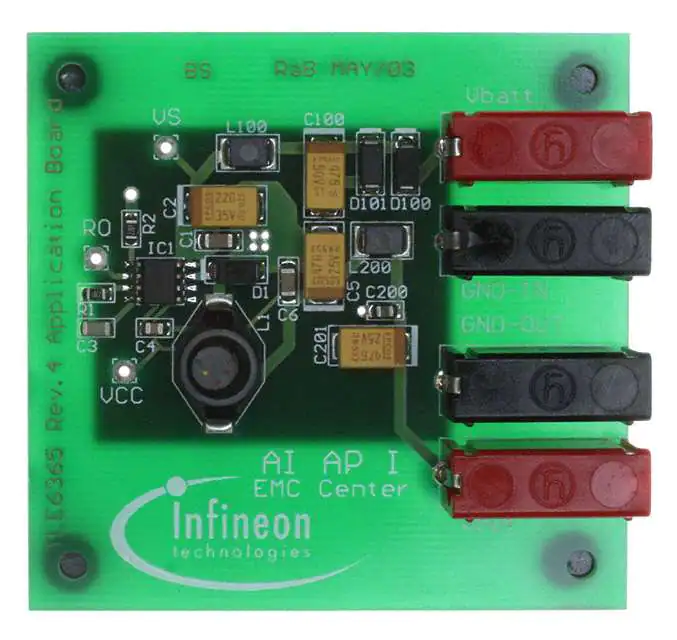

DEMOBOARD TLE 6365 GEVAL BOARD FOR TLE6365 |
5 |
|
برگه مشخصات |
- | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | - | - | 5V ~ 35V | Buck | - | Board(s) | TLE6365 |
|

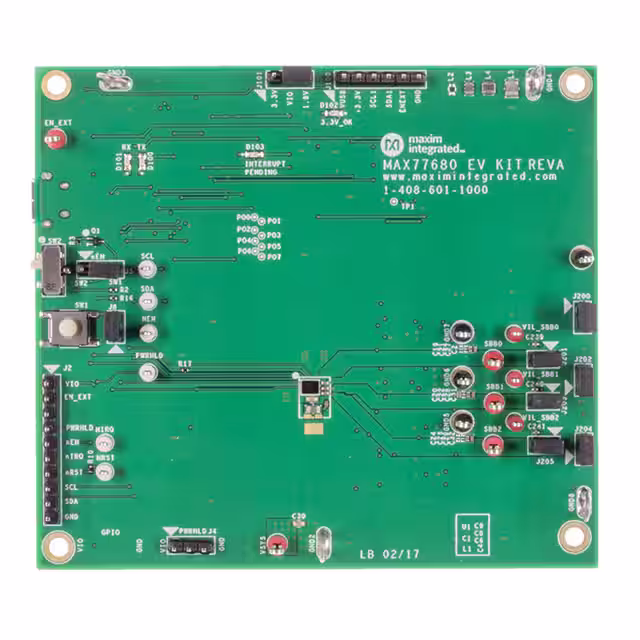

MAX77681EVKIT#EVAL BOARD FOR MAX77681 |
2 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Up or Down | 3 Non-Isolated Outputs | - | 1.8V, 3.3V, 5V | - | 2.7V ~ 5.5V | Buck-Boost | - | Board(s) | MAX77681 |
|

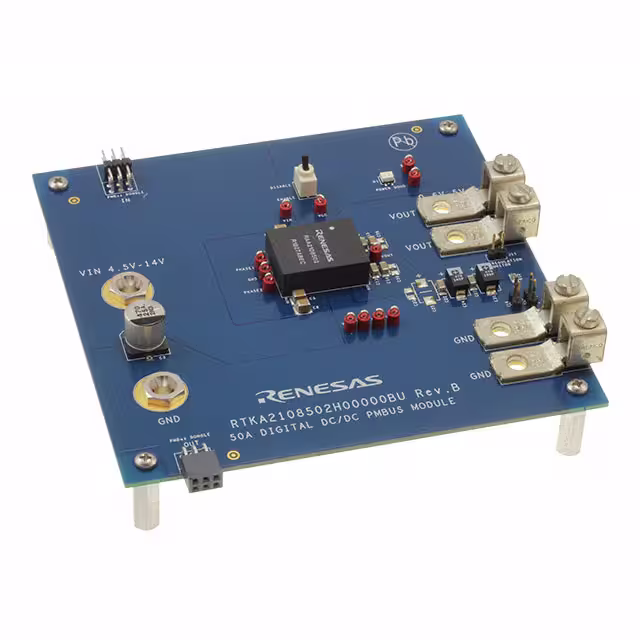

RTKA2108502H00000BUEVAL BOARD FOR RAA210850 |
2 |
|
برگه مشخصات |
- | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 50A | 4.5V ~ 12V | Buck | 421kHz | Board(s), Cable(s) | RAA210850 |
|
MAX15049EVKIT+EVAL BOARD FOR MAX15049 |
4 |
|
برگه مشخصات |
- | Box | Obsolete | DC/DC, Step Down | 3 Non-Isolated Outputs | - | 1.2V, 1.8V, 3.3V | 6A, 3A, 3A | 5V ~ 16V | Buck | 500kHz | Board(s) | MAX15049 |
|

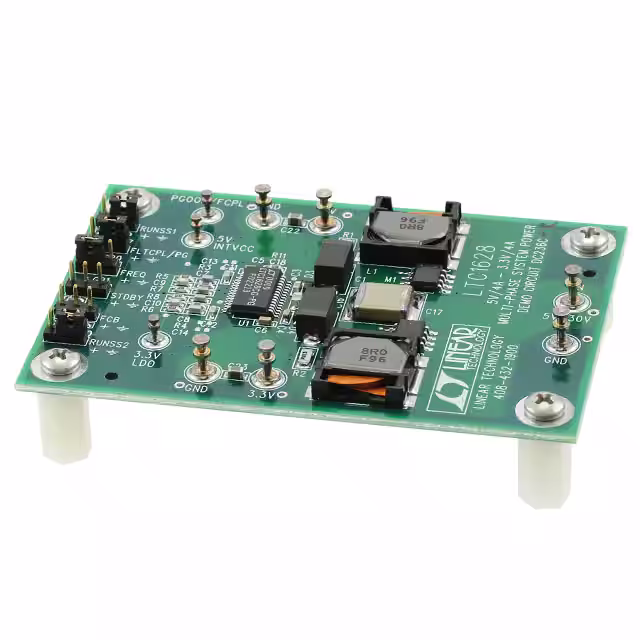

DC236C-CEVAL BOARD FOR LTC1628 |
2 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down with LDO | 4 Non-Isolated Outputs | - | 3.3V, 3.3V, 5V, 5V | 4A, 4A, 50mA, 25mA | 5.2V ~ 30V | Buck | 300kHz | Board(s) | LTC1628 |
|

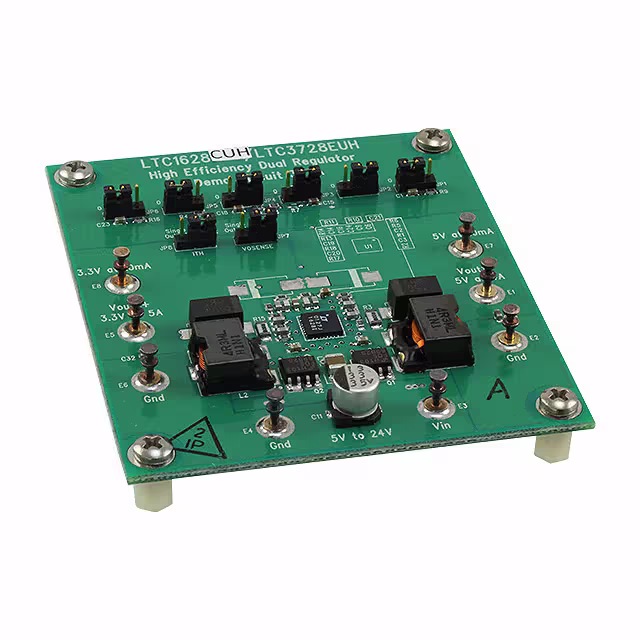

DC392A-AEVAL BOARD FOR LTC1628 |
2 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 3.3V, 5V | 5A, 4A | 5V ~ 24V | Buck | - | Board(s) | LTC1628 |
|

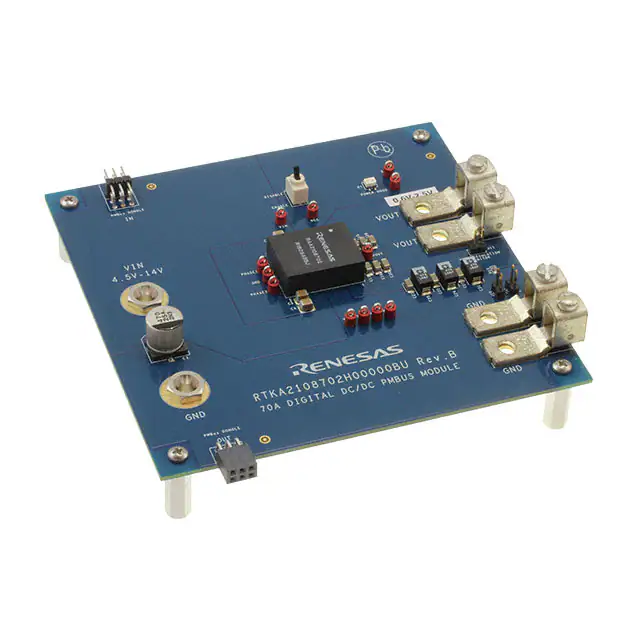

RTKA2108702H00000BUEVAL BOARD FOR RAA210870 |
2 |
|
برگه مشخصات |
- | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.93V | 70A | 4.5V ~ 12V | Buck | 320kHz | Board(s), Cable(s) | RAA210870 |
