تابلوهای ارزیابی SMPS DC/DC و AC/DC (خارج از خط).
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | هدف اصلی | خروجی ها و نوع | ولتاژ - خروجی | جریان - خروجی | ولتاژ - ورودی | توپولوژی تنظیم کننده | فرکانس - سوئیچینگ | مطالب | آی سی / قطعه استفاده شده | قدرت - خروجی |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EVAL12W3PHSMP7TOBO1EVAL BOARD ICE5QSAG IPD95R1K2P7 |
3 |
|
برگه مشخصات |
CoolMOS™ P7 | Bulk | Active | AC/DC, Primary Side | 1 Isolated Output | 12 W | 12V | 1A | 185 ~ 460 VAC | Flyback | - | Board(s) | ICE5QSAG, IPD95R1K2P7 |
|

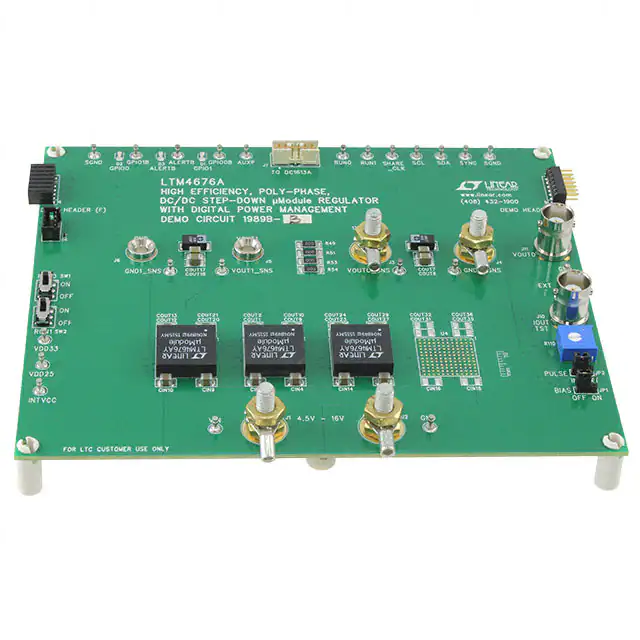

DC1989B-BEVAL BOARD FOR LTM4676A |
2 |
|
برگه مشخصات |
µModule® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 75A | 4.5V ~ 17V | Buck | 350kHz | Board(s) | LTM4676A |
|

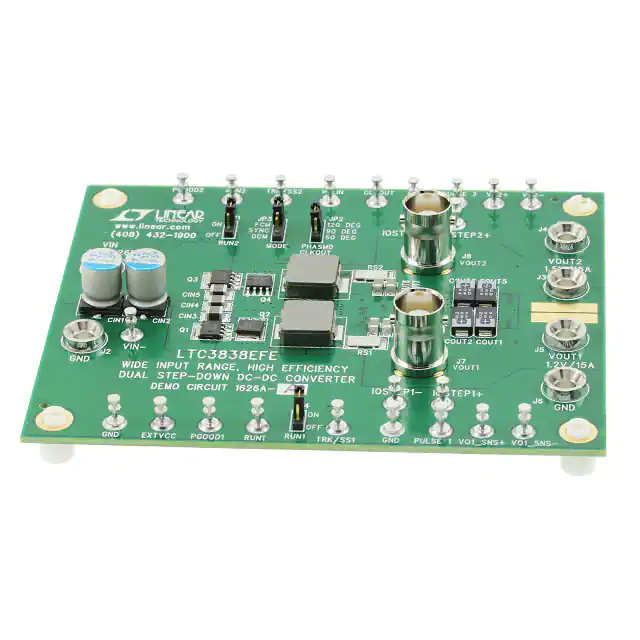

DC1626A-AEVAL BOARD FOR LTC3838 |
2 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.2V, 1.5V | 15A, 15A | 4.5V ~ 26V | Buck | 300kHz | Board(s) | LTC3838 |
|

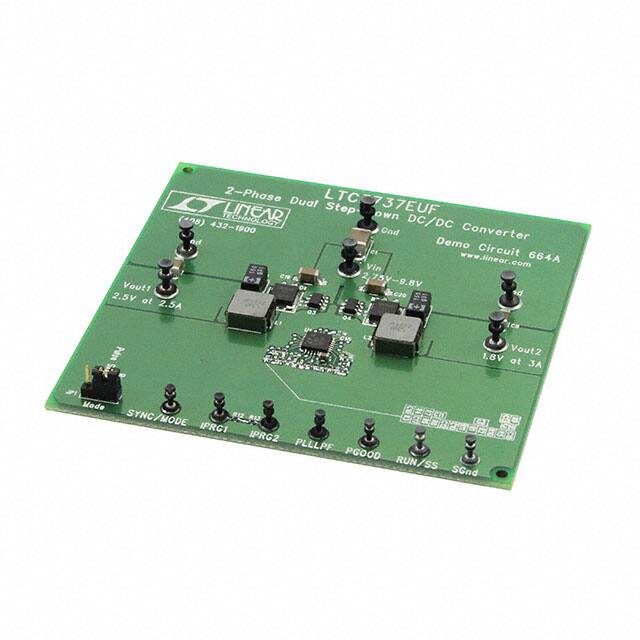

DC664AEVAL BOARD FOR LTC3737 |
2 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.8V, 2.5V | 3A, 2.5A | 2.75V ~ 9.8V | Buck | 550kHz | Board(s) | LTC3737 |
|
MAX15032EVKIT+EVAL BOARD FOR MAX15032 |
2 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 30V | 20mA | 2.9V ~ 5.5V | Boost | 500kHz | Board(s) | MAX15032 |
|
LM3679TL-1.8EVEVAL BOARD FOR LM3679 |
3 |
|
برگه مشخصات |
- | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 350mA | 2.5V ~ 5.5V | Buck | 3MHz | Board(s) | LM3679 |
|
LP8731YZREVMEVAL BOARD FOR LP8731Q1 |
2 |
|
برگه مشخصات |
- | Box | Obsolete | DC/DC, Step Down with LDO | 4 Non-Isolated Outputs | - | - | - | 2.8V ~ 5.5V | Buck | 2.1MHz | Board(s) | LP8731-Q1 |
|

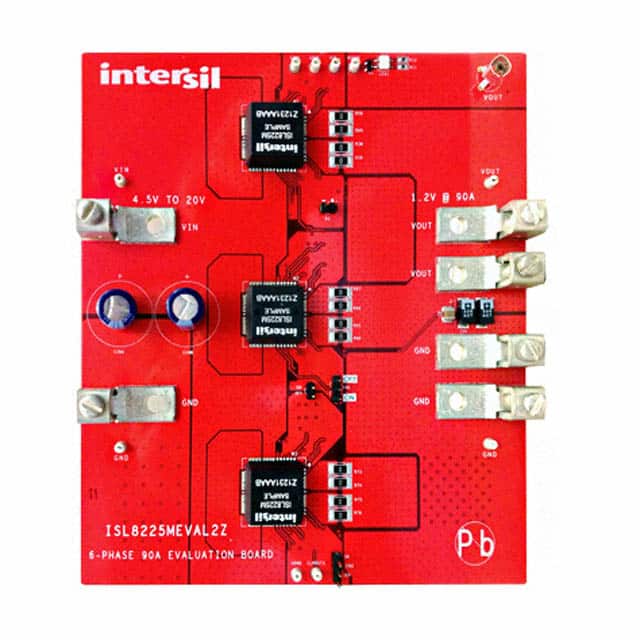

ISL8225MEVAL2ZEVAL BOARD FOR ISL8225M |
2 |
|
برگه مشخصات |
- | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 90A | 4.5V ~ 20V | Buck | - | Board(s) | ISL8225M |
|

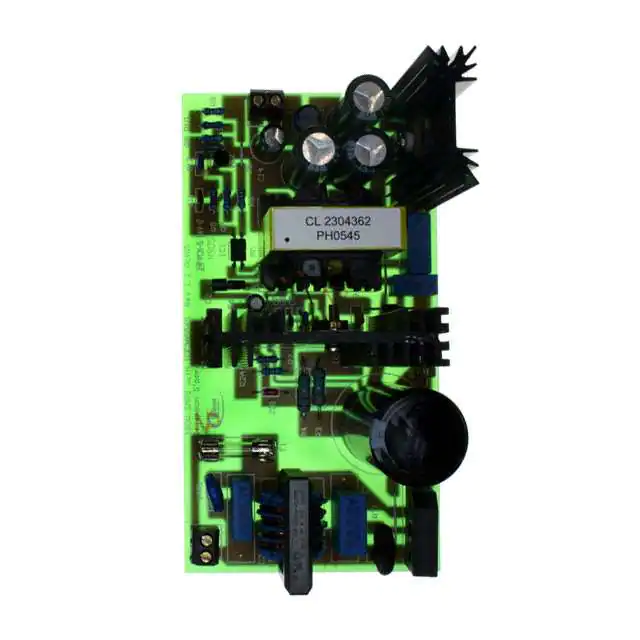

EVALSF3-ICE3A5565PEVAL BOARD FOR ICE3A5565 |
2 |
|
برگه مشخصات |
CoolSET®F3 | Box | Obsolete | AC/DC, Primary Side | 1 Isolated Output | 100 W | 18V | 5.56A | 85 ~ 265 VAC | Flyback | 100kHz | Board(s) | ICE3A5565 |
|

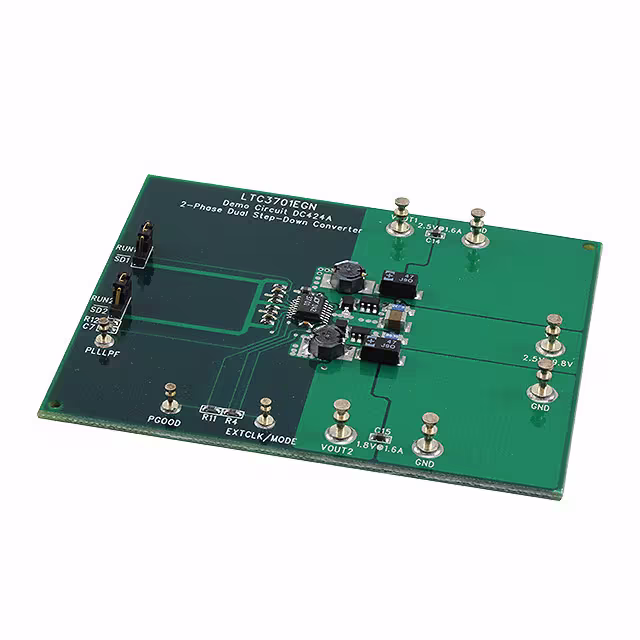

DC424AEVAL BOARD FOR LTC3701 |
2 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.8V, 2.5V | 1.6A, 1.6A | 2.5V ~ 9.8V | Buck | 550kHz | Board(s) | LTC3701 |
|

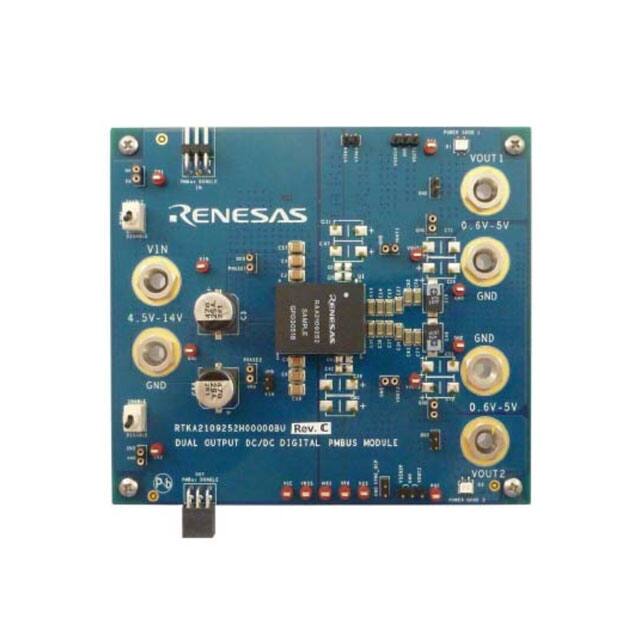

RTKA2109252H00000BUEVAL BOARD FOR RAA210925 |
2 |
|
برگه مشخصات |
- | Bulk | Obsolete | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.5V, 1.5V | 25A, 25A | 5V ~ 12V | Buck | 889kHz | Board(s), Cable(s) | RAA210925 |
|

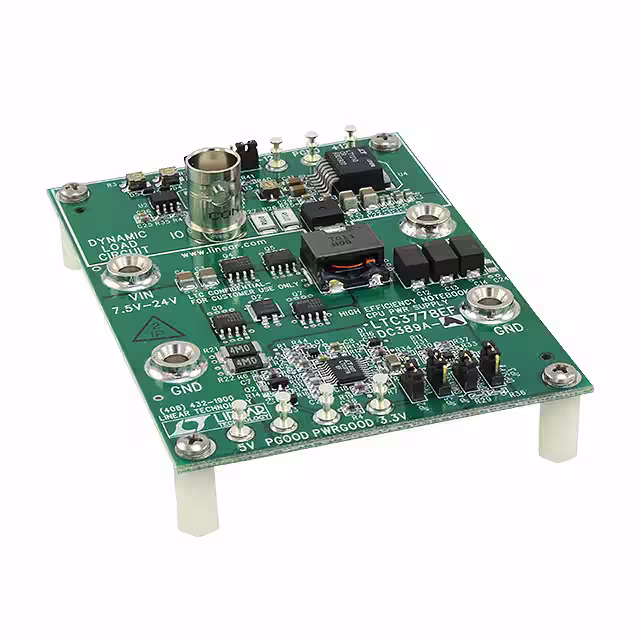

DC389A-AEVAL BOARD FOR LTC3778 |
2 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | - | 23A | 7.5V ~ 24V | Buck | 300kHz | Board(s) | LTC3778 |
|

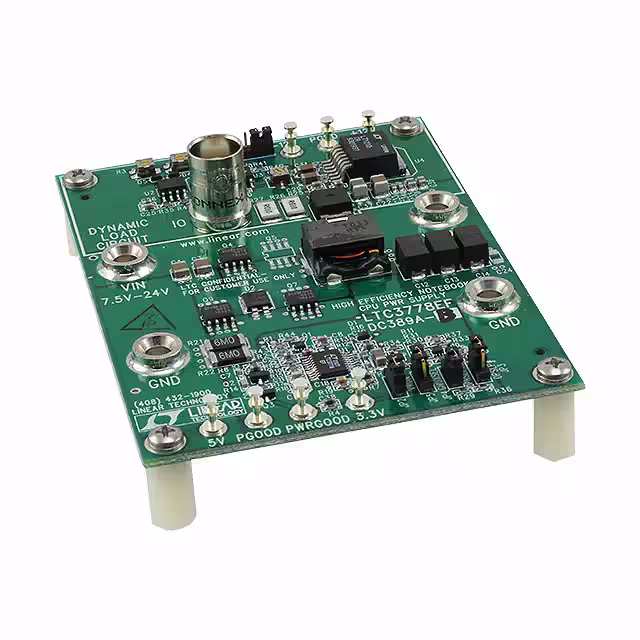

DC389A-BEVAL BOARD FOR LTC3778 |
2 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | - | 15A | 7.5V ~ 24V | Buck | 300kHz | Board(s) | LTC3778 |
|

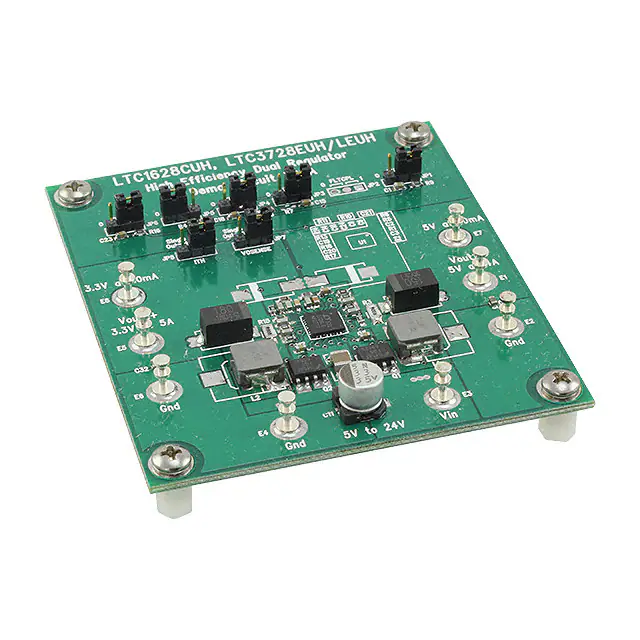

DC392A-CEVAL BOARD FOR LTC3728L |
2 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 3.3V, 5V | 5A, 4A | 5V ~ 24V | Buck | - | Board(s) | LTC3728L |
|

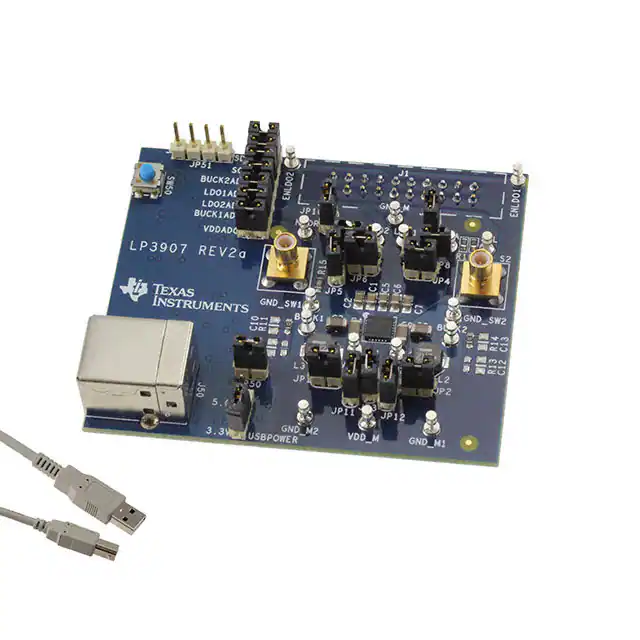

LP3907SQ-JXQXEV/NOPBEVAL BOARD FOR LP3907 |
4 |
|
برگه مشخصات |
- | Box | Obsolete | DC/DC, Step Down with LDO | 4 Non-Isolated Outputs | - | - | 1A, 600mA, 300mA, 300mA | 2.8V ~ 5.5V | Buck | 2.1MHz | Board(s), Cable(s) | LP3907 |
|

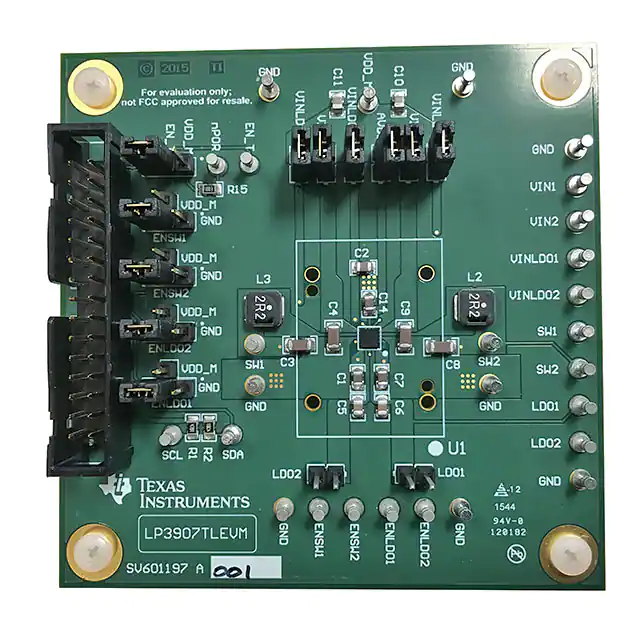

LP3907TLEVMEVAL BOARD FOR LP3907 |
3 |
|
برگه مشخصات |
- | Bulk | Obsolete | DC/DC, Step Down with LDO | 4 Non-Isolated Outputs | - | - | 1A, 600mA, 300mA, 300mA | 2.8V ~ 5.5V | Buck | 2.1MHz | Board(s), Cable(s) | LP3907 |
|
DC1425AEVAL BOARD FOR LTC3859 |
2 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Up or Down | 3 Non-Isolated Outputs | - | - | - | 4.5V ~ 36V | Boost, Buck | 350kHz | Board(s) | LTC3859 |
|
|
KITPF5300FRDMEVMEVAL BOARD FOR MPF5302AMBA0ES |
3 |
|
برگه مشخصات |
- | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | - | 15A | 2.7V ~ 5.5V | Buck | - | Board(s) | MPF5302AMBA0ES |
|
DC377B-AEVAL BOARD FOR LTC3716 |
2 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.6V ~ 1.75V | 25A | 7V ~ 24V | Buck | - | Board(s) | LTC3716 |
|

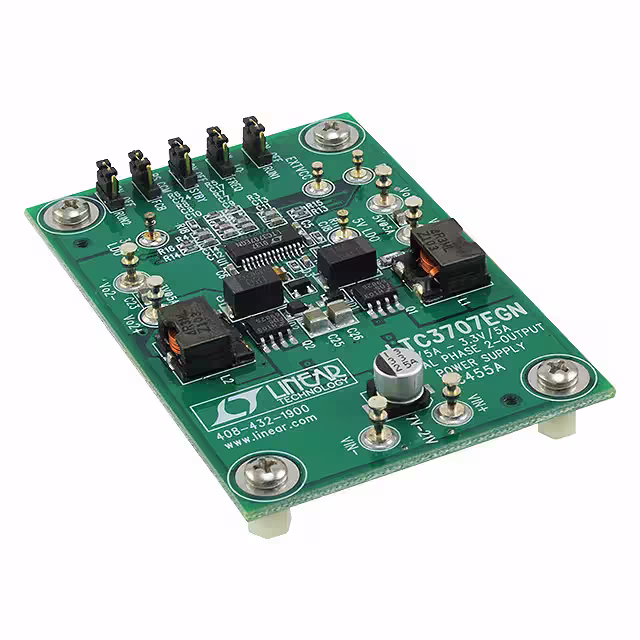

DC455AEVAL BOARD FOR LTC3707 |
2 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 3.3V, 5V | 5A, 5A | 7V ~ 21V | Buck | - | Board(s) | LTC3707 |
