تابلوهای ارزیابی SMPS DC/DC و AC/DC (خارج از خط).
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | هدف اصلی | خروجی ها و نوع | ولتاژ - خروجی | جریان - خروجی | ولتاژ - ورودی | توپولوژی تنظیم کننده | فرکانس - سوئیچینگ | مطالب | آی سی / قطعه استفاده شده | قدرت - خروجی |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

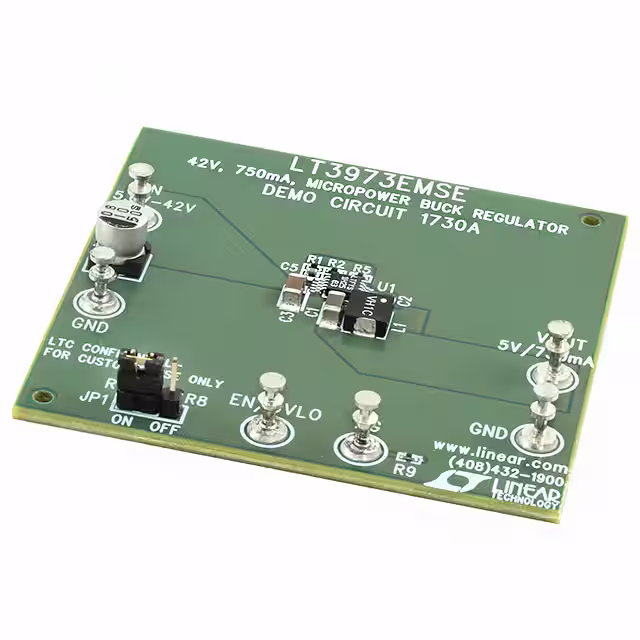

DC1730AEVAL BOARD FOR LT3973 |
1 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 750mA | 5.6V ~ 42V | Buck | 600kHz | Board(s) | LT3973 |
|

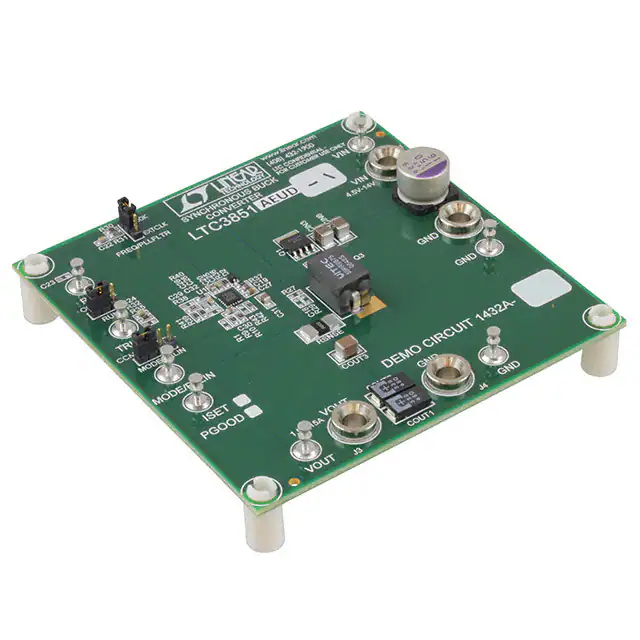

DC1432A-AEVAL BOARD FOR LTC3851A |
1 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.5V | 15A | 4.5V ~ 14V | Buck | 350kHz | Board(s) | LTC3851A |
|

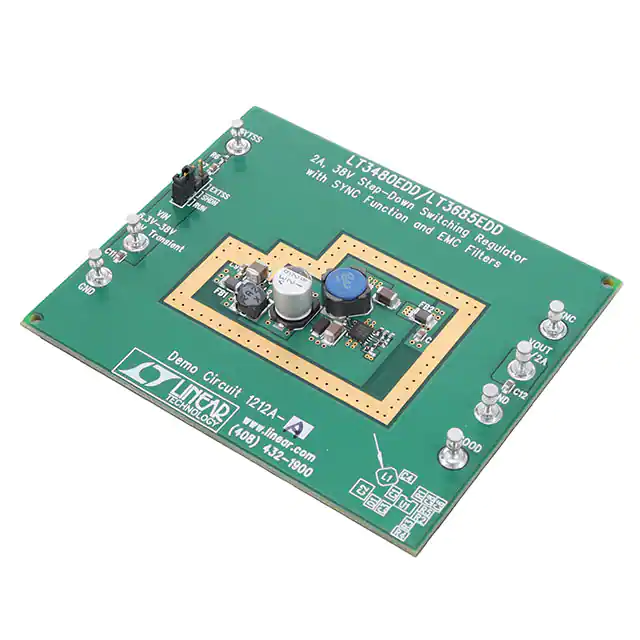

DC1212A-AEVAL BOARD FOR LT3480 |
1 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 2A | 6.3V ~ 38V | Buck | 800kHz | Board(s) | LT3480 |
|

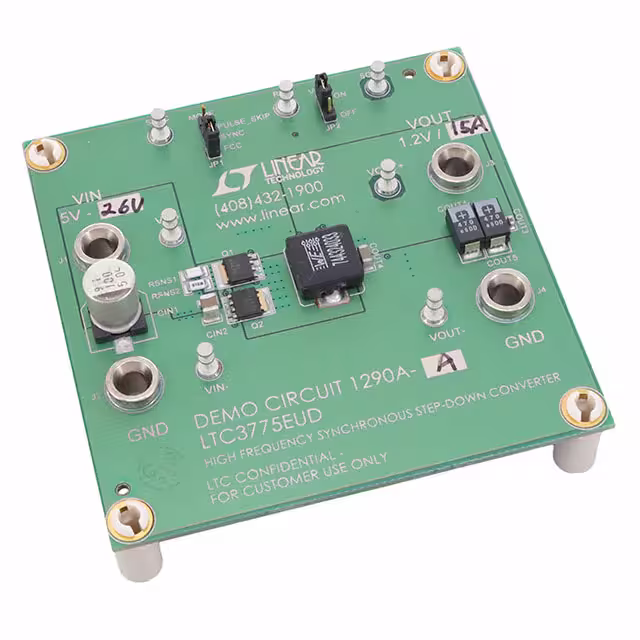

DC1290A-AEVAL BOARD FOR LTC3775 |
1 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 15A | 5V ~ 26V | Buck | 500kHz | Board(s) | LTC3775 |
|

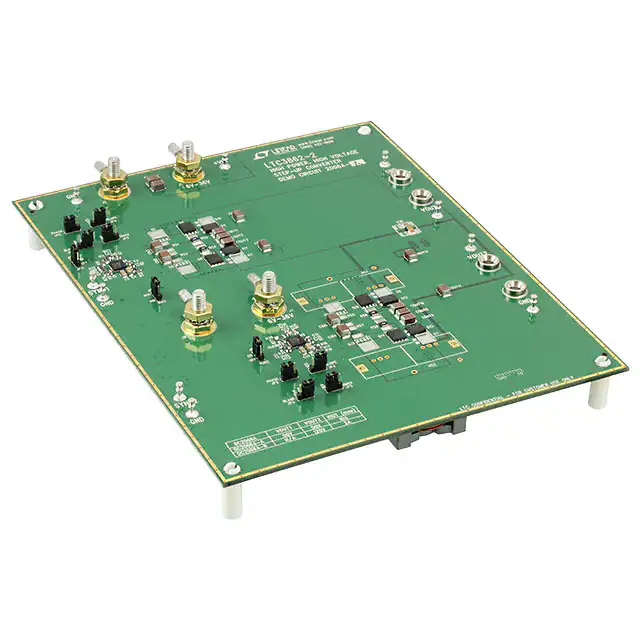

DC2006A-AEVAL BOARD FOR LTC38622 |
0 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 50V | 10A | 6V ~ 36V | Boost | 200kHz | Board(s) | LTC3862-2 |
|
BD7F200EFJ-EVK-002EVAL BOARD FOR BD7F200 |
1 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Isolated Output | - | 5V | 2A | 24V | Flyback | 400kHz | Board(s) | BD7F200 |
|

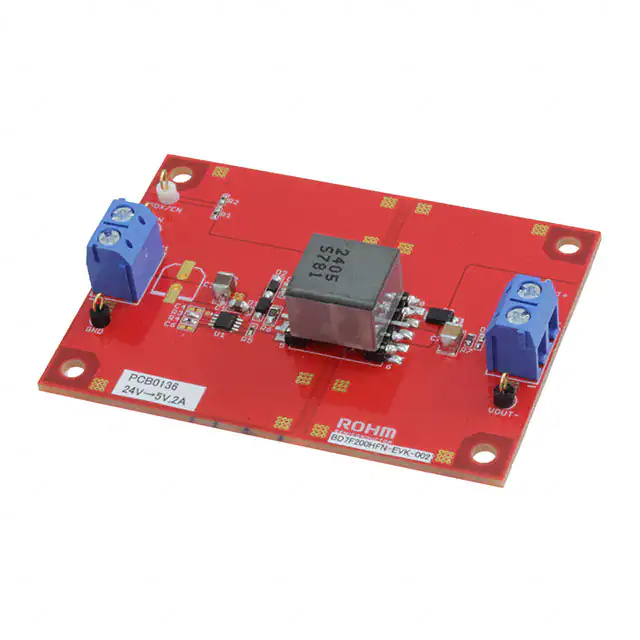

BD7F200HFN-EVK-002EVAL BOARD FOR BD7F200 |
1 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Isolated Output | - | 5V | 2A | 24V | Flyback | 400kHz | Board(s) | BD7F200 |
|

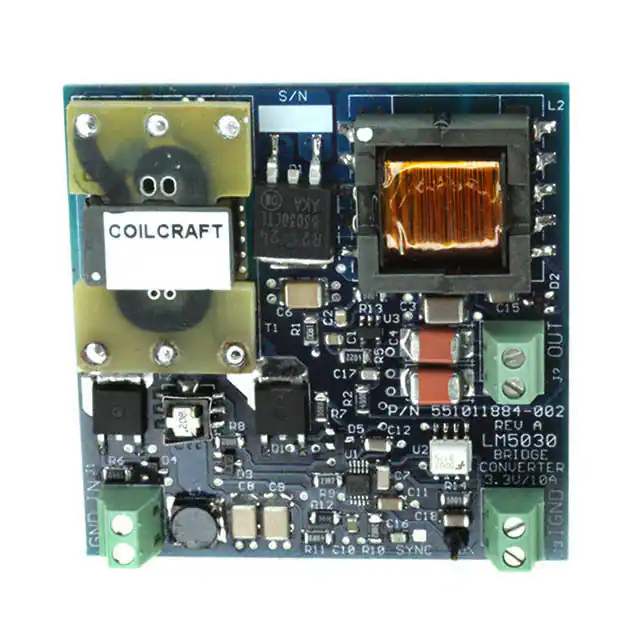

LM5030EVALEVAL BOARD FOR LM5030 |
1 |
|
برگه مشخصات |
- | Bulk | Active | DC/DC, Step Down | 1 Isolated Output | - | 3.3V | 10A | 36V ~ 75V | Buck | - | Board(s) | LM5030 |
|

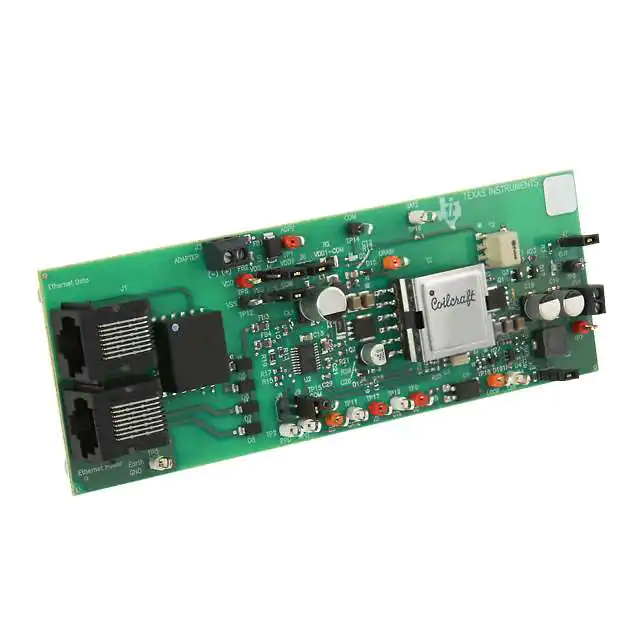

TPS23754EVM-420EVAL BOARD FOR TPS23754 |
1 |
|
برگه مشخصات |
- | Box | Active | Special Purpose DC/DC, Power Over Ethernet | 1 Isolated Output | 25 W | 5V | 5A | 30V ~ 57V | Buck | 250kHz | Board(s) | TPS23754 |
|
UCC28250EVM-501EVAL BOARD FOR UCC28250 |
1 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Isolated Output | 75 W | 3.3V | 23A | 36V ~ 72V | Buck | 1MHz | Board(s) | UCC28250 |
|
UCC28250EVM-564EVAL BOARD FOR UCC28250 |
1 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Isolated Output | 100 W | 3.3V | 30A | 36V ~ 75V | Buck | 200kHz | Board(s) | UCC28250 |
|

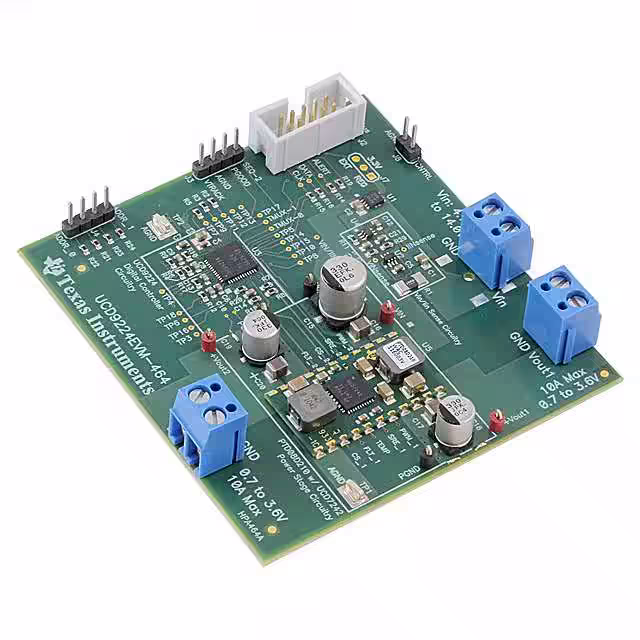

UCD9224EVM-464EVAL BOARD FOR UCD9224 |
1 |
|
برگه مشخصات |
Powertrain™ | Box | Active | DC/DC, Step Up | 2 Non-Isolated Outputs | - | 0.7V ~ 3.6V | 10A, 10A | 4.5V ~ 14V | Buck | - | Board(s) | UCD9224 |
|

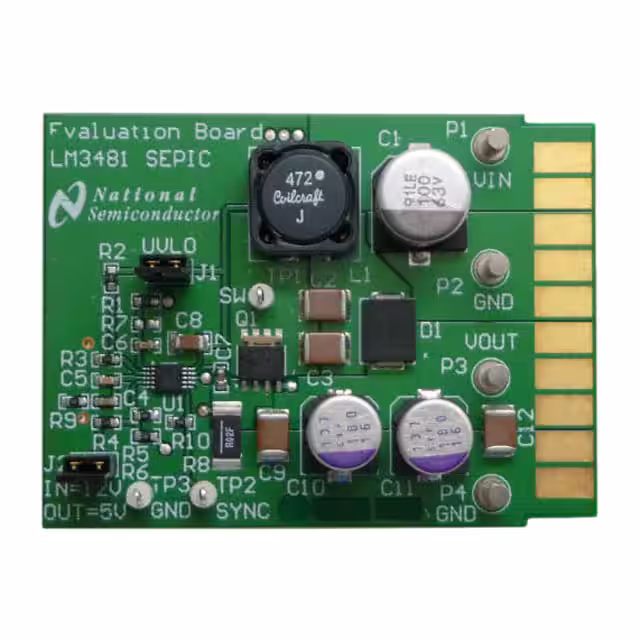

LM3481SEPICEVAL/NOPBEVAL BOARD FOR LM3481 |
1 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 5V, 12V | 3A, 1.25A | - | Buck-Boost | 500kHz | Board(s) | LM3481 |
|
UCC28910FBEVM-526EVAL BOARD FOR UCC28910 |
1 |
|
برگه مشخصات |
- | Box | Active | AC/DC, Primary Side | 1 Isolated Output | 6 W | 5V | 1.2A | 85 ~ 265 VAC | Flyback | - | Board(s) | UCC28910 |
|
TPS61280EVM-585EVAL BOARD FOR TPS61280A |
1 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 3.15V or 3.35V | - | 2.3V ~ 4.8V | Boost | 2.3MHz | Board(s), Cable(s) | TPS61280A |
|
TPS54362BEVMEVAL BOARD FOR TPS54362BQ1 |
1 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 3A | 6V ~ 48V | Buck | 500kHz | Board(s) | TPS54362B-Q1 |
|

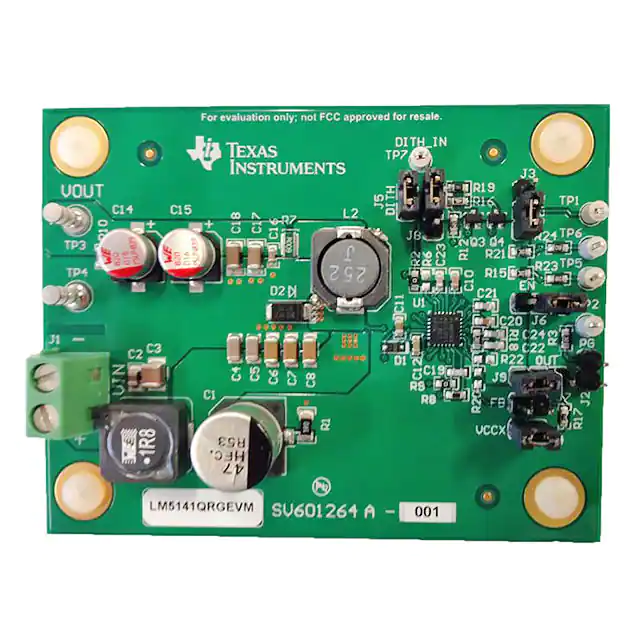

LM5141QRGEVMEVAL BOARD FOR LM5141Q1 |
1 |
|
برگه مشخصات |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 5A | 5.5V ~ 42V | Buck | 2.2MHz | Board(s) | LM5141-Q1 |
|

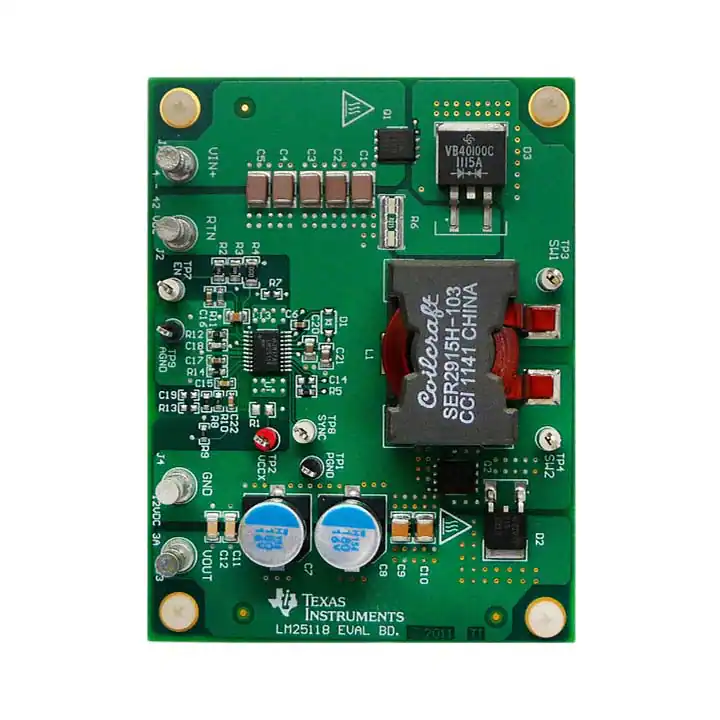

LM25118EVAL/NOPBEVAL BOARD FOR LM25118 |
0 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 12V | 3A | 5V ~ 42V | Buck-Boost | 300kHz | Board(s) | LM25118 |
|

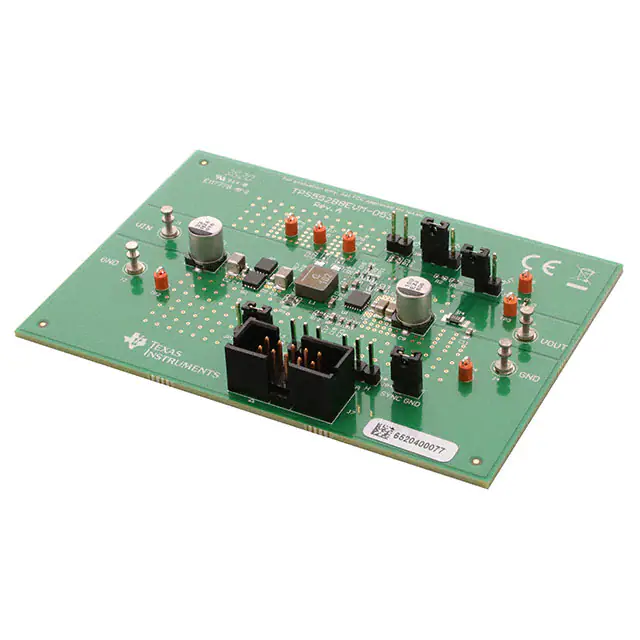

TPS55288EVM-053EVAL BOARD FOR TPS55288 |
0 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 0.8V ~ 22V | 16A | 2.7V ~ 36V | Boost, Buck | 2MHz | Board(s) | TPS55288 |
|

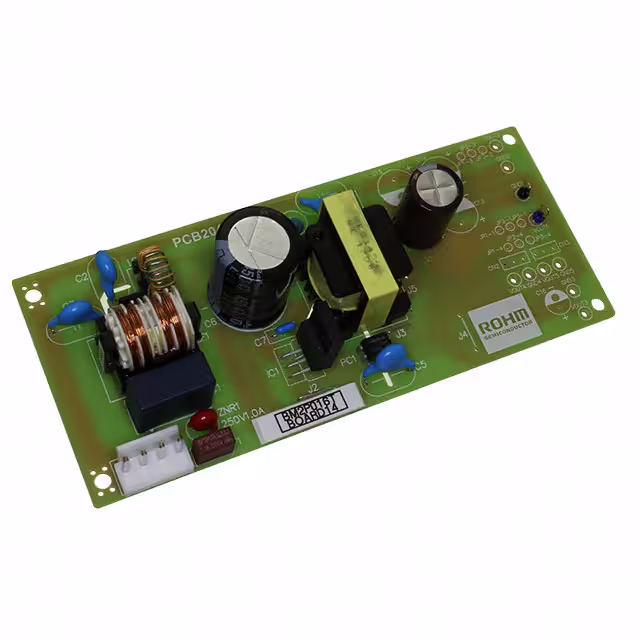

BM2P016T-EVK-001EVAL BOARD FOR BM2P016T |
1 |
|
برگه مشخصات |
- | Box | Active | AC/DC, Primary Side | 1 Isolated Output | 30 W | 24V | 1.25A | 85 ~ 264 VAC | Flyback | 65kHz | Board(s) | BM2P016T |
