تابلوهای ارزیابی SMPS DC/DC و AC/DC (خارج از خط).
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | هدف اصلی | خروجی ها و نوع | ولتاژ - خروجی | جریان - خروجی | ولتاژ - ورودی | توپولوژی تنظیم کننده | فرکانس - سوئیچینگ | مطالب | آی سی / قطعه استفاده شده | قدرت - خروجی |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

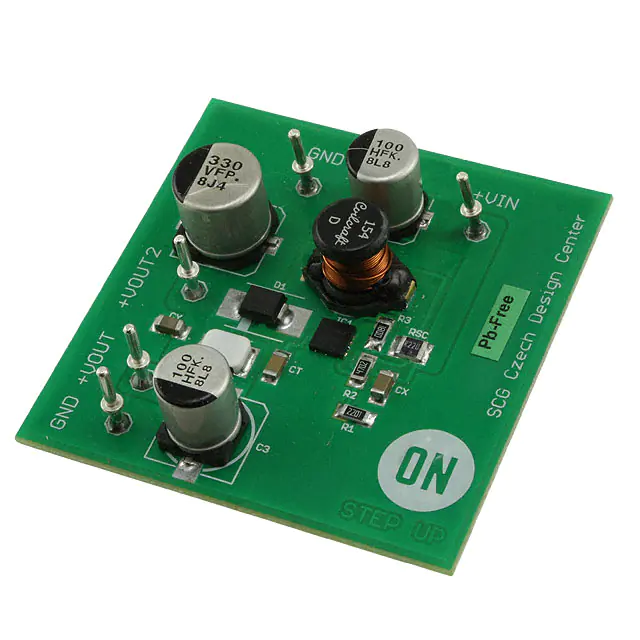

MC33063DFBSTGEVBEVAL BOARD FOR MC33063 |
0 |
|
برگه مشخصات |
- | Bulk | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 28V | 1.5A | 12V | Boost | 100kHz | Board(s) | MC33063 |
|

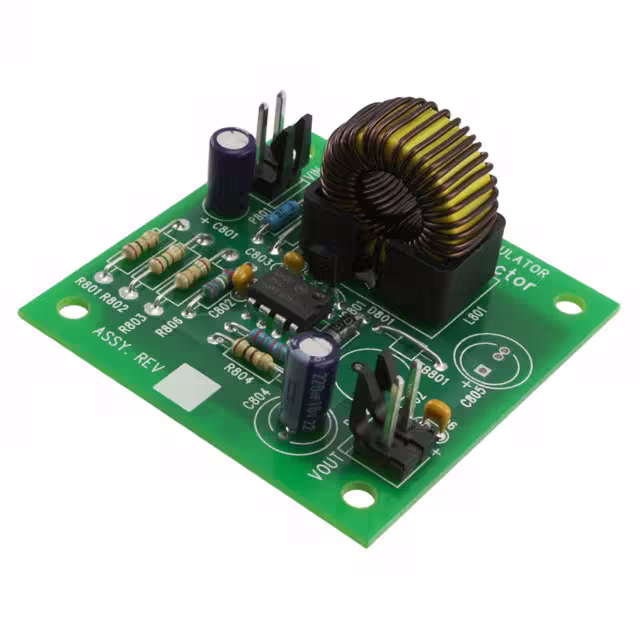

MC34063LBKEVBEVAL BOARD FOR MC34063 |
0 |
|
برگه مشخصات |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 100mA | 12V | Buck | 100kHz | Board(s) | MC34063 |
|

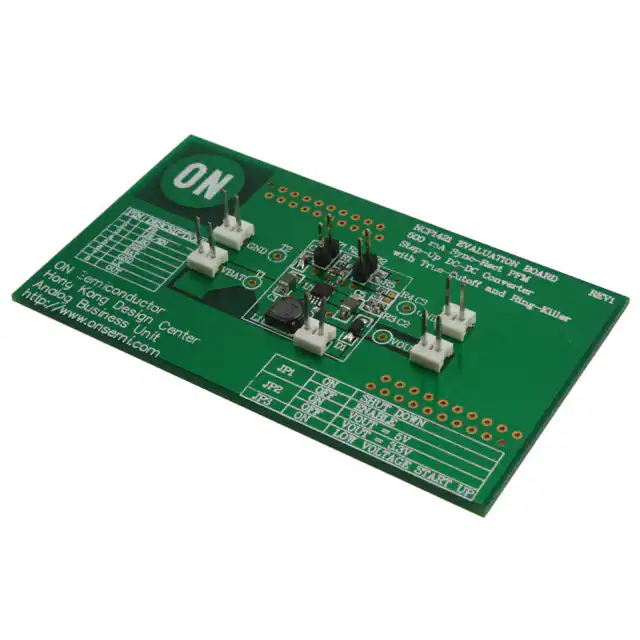

NCP1421EVBEVAL BOARD FOR NCP1421 |
0 |
|
برگه مشخصات |
- | Bulk | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 3.3V or 5V | 600mA | 3V | Boost | 1.2MHz | Board(s) | NCP1421 |
|

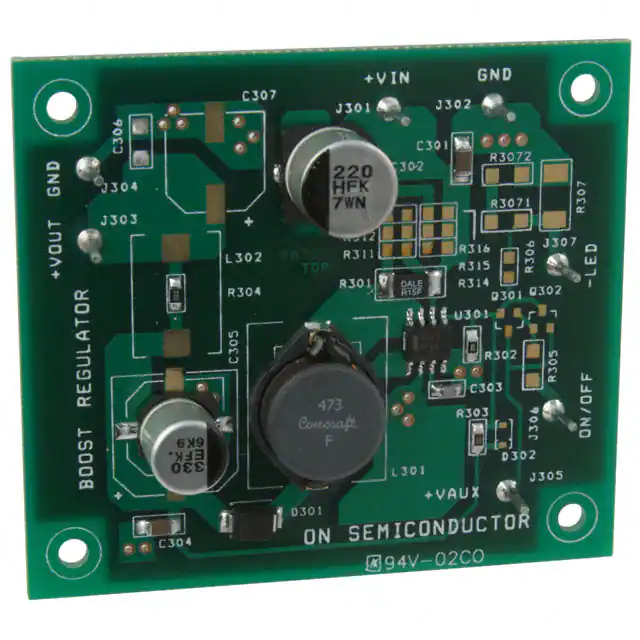

NCP3063SMDBSTEVBEVAL BOARD FOR NCP3063 |
0 |
|
برگه مشخصات |
- | Bulk | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 24V | 350mA | 9V ~ 15V | Boost | 250kHz | Board(s) | NCP3063 |
|

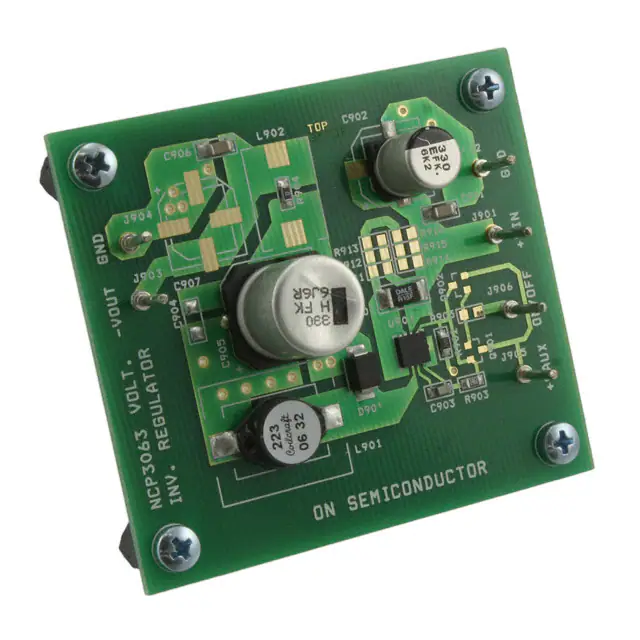

NCP3063SMINVGEVBEVAL BOARD FOR NCP3063 |
0 |
|
برگه مشخصات |
- | Bulk | Active | DC/DC, Negative Inverter | 1 Non-Isolated Output | - | -12V | 100mA | 5V | Inverting | - | Board(s) | NCP3063 |
|

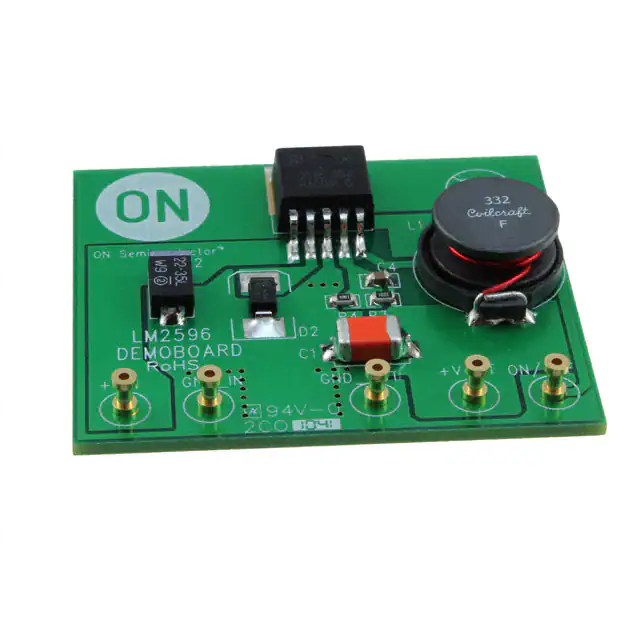

LM2596ADPBCKGEVBEVAL BOARD FOR LM2596 |
0 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 3A | 4.5V ~ 40V | Buck | 150kHz | Board(s) | LM2596 |
|

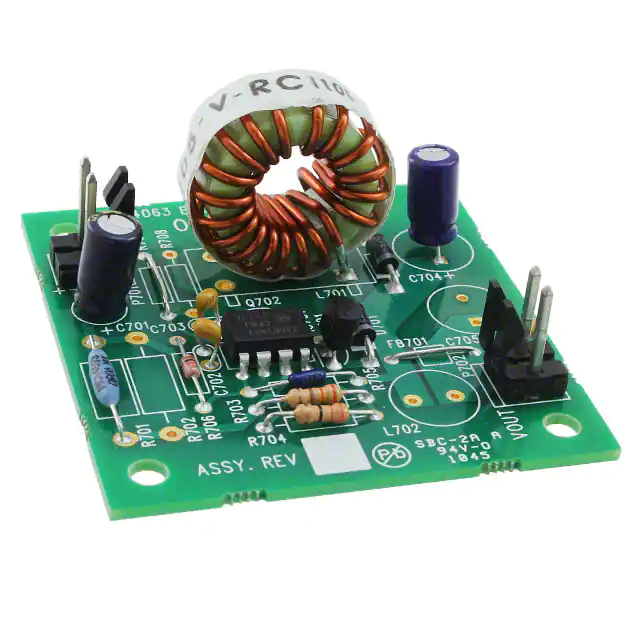

MC34063LBBGEVBEVAL BOARD FOR MC34063A |
0 |
|
برگه مشخصات |
- | Bulk | Active | DC/DC, Negative Inverter | 1 Non-Isolated Output | - | -12V | 1.5A | 3V ~ 40V | Inverting | 100kHz | Board(s) | MC34063A |
|

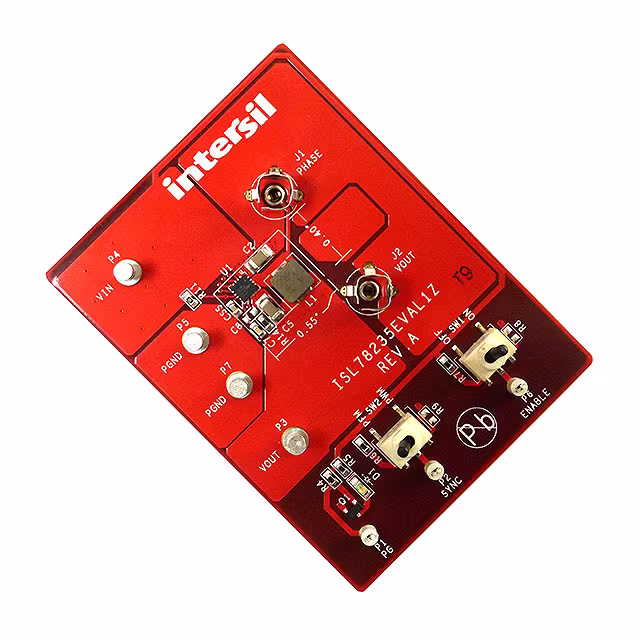

ISL78233EVAL1ZEVAL BOARD FOR ISL78233 |
1 |
|
برگه مشخصات |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 4A | 2.7V ~ 5.5V | Buck | 2MHz | Board(s) | ISL78233 |
|
|
ISL78234EVAL1ZEVAL BOARD FOR ISL78234 |
1 |
|
برگه مشخصات |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 4A | 2.7V ~ 5.5V | Buck | 2MHz | Board(s) | ISL78234 |
|
|
ISL78235EVAL1ZEVAL BOARD FOR ISL78235 |
1 |
|
برگه مشخصات |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 5A | 2.7V ~ 5.5V | Buck | 2MHz | Board(s) | ISL78235 |
|
ISL78234EVAL2ZEVAL BOARD FOR ISL78234 |
1 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 4A | 2.7V ~ 5.5V | Buck | 2MHz | Board(s) | ISL78234 |
|
|
ISL78233EVAL2ZEVAL BOARD FOR ISL78233 |
1 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 3A | 2.7V ~ 5.5V | Buck | 2MHz | Board(s) | ISL78233 |
|

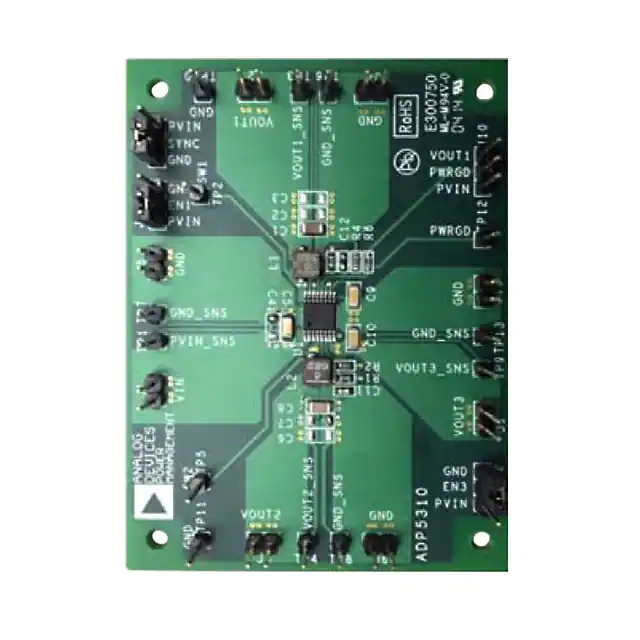

ADP5310READJ-EVALZEVAL BOARD FOR ADP5310 |
1 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | - | 800mA, 300mA | 2.7V ~ 15V | Buck | - | Board(s) | ADP5310 |
|

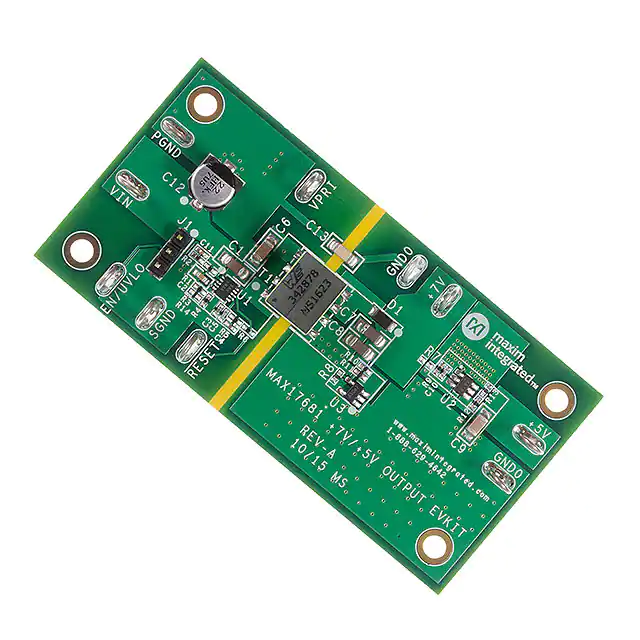

MAX17681EVKITD#EVAL BOARD 750342878 MAX17681 |
1 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 2 Isolated Outputs | - | 7V | 200mA | 17V ~ 36V | Buck | 200kHz | Board(s) | 750342878, MAX17681 |
|

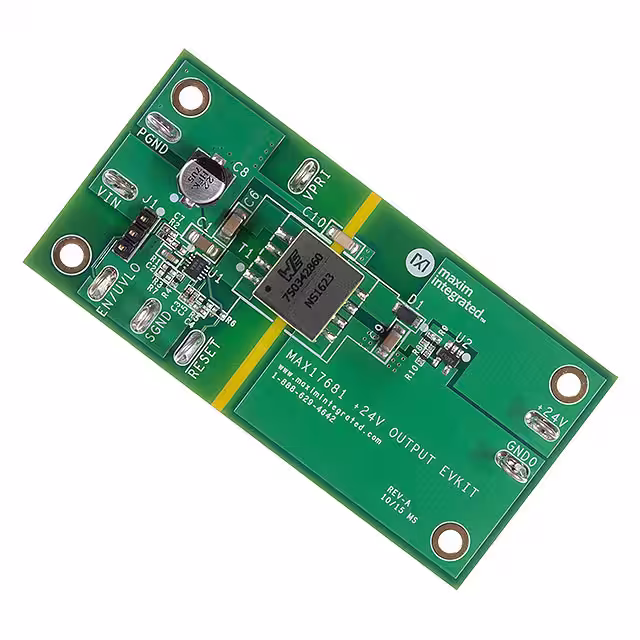

MAX17681EVKITF#EVAL BOARD 750342860 MAX17681 |
1 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Isolated Output | - | 24V | 100mA | 17V ~ 36V | Buck | 200kHz | Board(s) | 750342860, MAX17681 |
|
MAX5022EVKITEVAL BOARD FOR MAX5022 |
1 |
|
برگه مشخصات |
- | Box | Active | AC/DC, Primary Side | 1 Isolated Output | 5 W | 5V | 1A | 85 ~ 265 VAC | Flyback | 262kHz | Board(s) | MAX5022 |
|

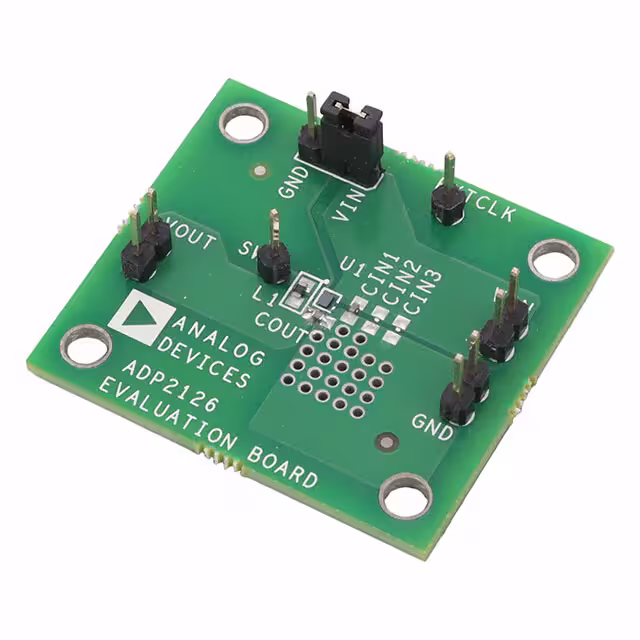

ADP2126-1.2-EVALZEVAL BOARD FOR ADP2126 |
1 |
|
برگه مشخصات |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 500mA | 2.1V ~ 5.5V | Buck | 6MHz | Board(s) | ADP2126 |
|
ADP2325-EVALZEVAL BOARD FOR ADP2325 |
1 |
|
برگه مشخصات |
- | Bulk | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 0.6V, 0.6V | 5A, 5A | 4.5V ~ 20V | Buck | 600kHz | Board(s) | ADP2325 |
|
ISL9113ERAZ-EVZEVAL BOARD FOR ISL9113 |
0 |
|
برگه مشخصات |
- | Bulk | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 5V | 500mA | 0.8V ~ 4.7V | Boost | - | Board(s) | ISL9113 |
|
|
ISL85003ADEMO1ZEVAL BOARD FOR ISL85003 |
1 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 3A | 4.5V ~ 18V | Buck | 500kHz | Board(s) | ISL85003 |
