تابلوهای ارزیابی SMPS DC/DC و AC/DC (خارج از خط).
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | هدف اصلی | خروجی ها و نوع | ولتاژ - خروجی | جریان - خروجی | ولتاژ - ورودی | توپولوژی تنظیم کننده | فرکانس - سوئیچینگ | مطالب | آی سی / قطعه استفاده شده | قدرت - خروجی |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

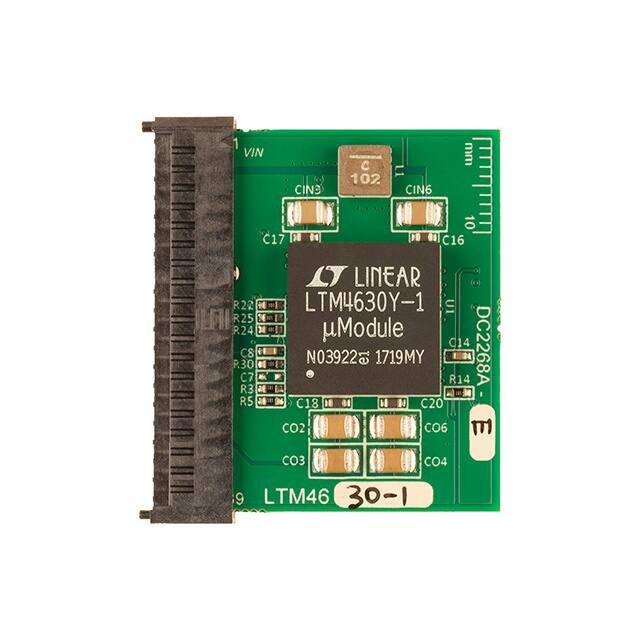

DC2268A-EEVAL BOARD FOR LTM46301 |
1 |
|
برگه مشخصات |
µModule® | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1V, 1.5V | 18A, 18A | 4.5V ~ 15V | Buck | 500kHz | Board(s) | LTM4630-1 |
|

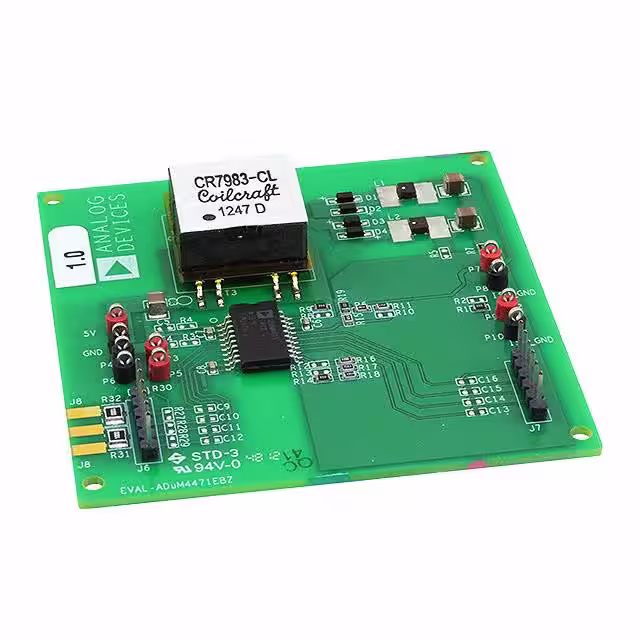

EVAL-ADUM4471EBZEVAL BOARD FOR ADUM4471 |
1 |
|
برگه مشخصات |
iCoupler® | Box | Active | DC/DC Isolated Power Supply | 1 Isolated Output | 2.5 W | 5V | 500mA | 5V | - | 500kHz | Board(s) | ADuM4471 |
|
ADP2108-1.2-EVALZEVAL BOARD FOR ADP2108 |
1 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 600mA | 2.3V ~ 5.5V | Buck | 3MHz | Board(s) | ADP2108 |
|
ADP5055-EVALZEVAL BOARD FOR ADP5055 |
0 |
|
برگه مشخصات |
- | Bulk | Active | DC/DC, Step Down | 3 Non-Isolated Outputs | - | 0.4V, 1.2V | 14A, 7A, 3.5A, 3A, 1.5A | 2.75V ~ 18V | Buck | 600kHz | Board(s) | ADP5055 |
|

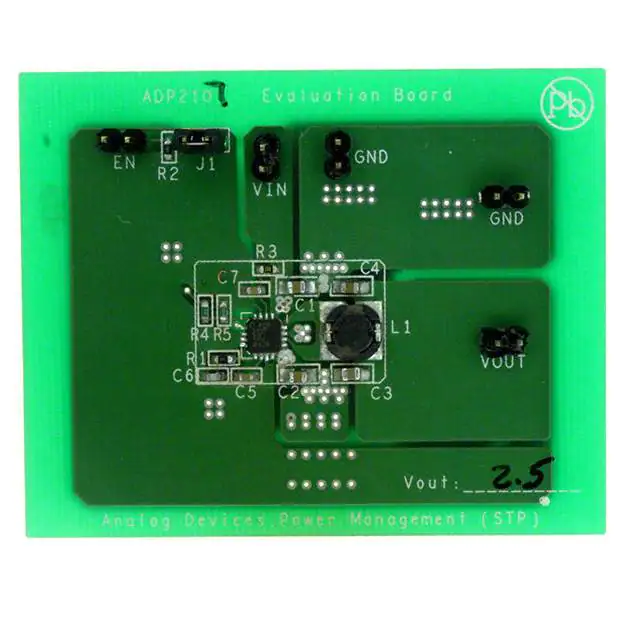

ADP2107-EVALZEVAL BOARD FOR ADP2107 |
1 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 2.5V | 2A | 2.7V ~ 5.5V | Buck | 1.2MHz | Board(s) | ADP2107 |
|

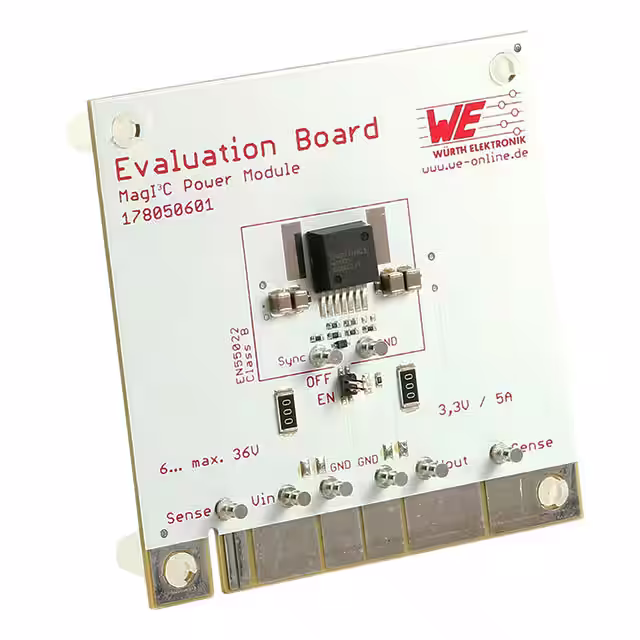

178050601EVAL BOARD FOR WPMDM1500602 |
1 |
|
برگه مشخصات |
MagI3C | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.8V ~ 6V | 5A | 6V ~ 36V | Buck | - | Board(s) | WPMDM1500602 |
|
CS5171BSTGEVBEVAL BOARD FOR CS5171 |
0 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 5V | 400mA | 3.3V ~ 5V | Boost | 260kHz | Board(s) | CS5171 |
|

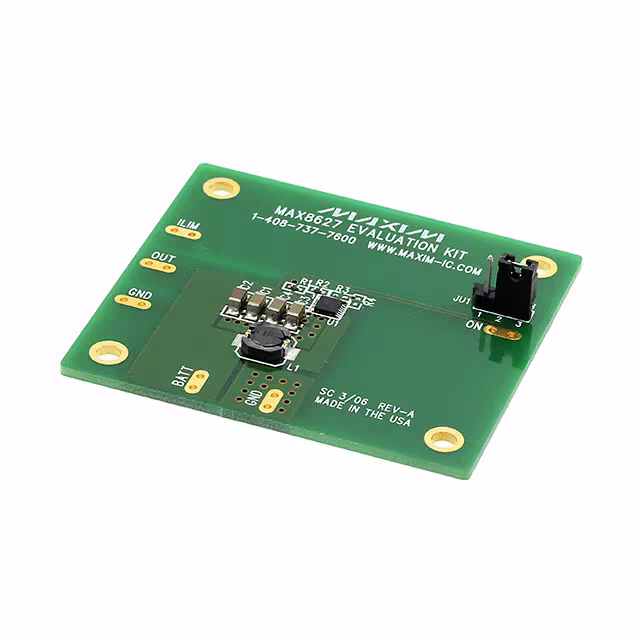

MAX8627EVKITEVAL BOARD FOR MAX8627 |
1 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 5V | 1A | 1.8V ~ 5.5V | Boost | 1MHz | Board(s) | MAX8627 |
|

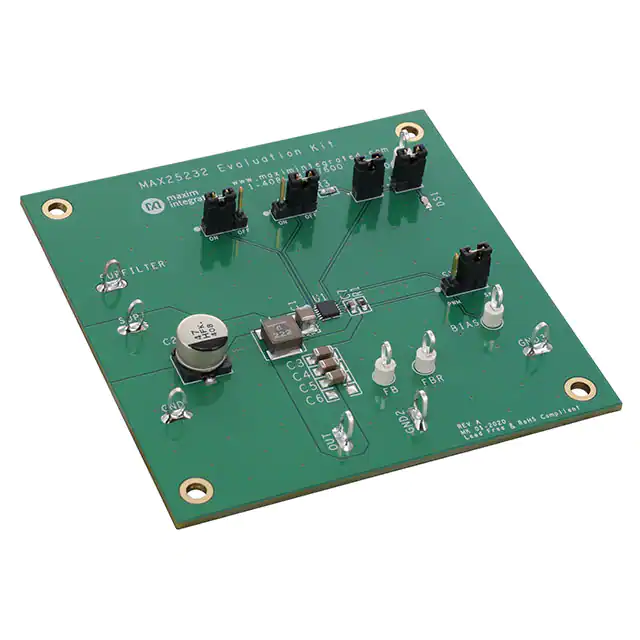

MAX25232EVKIT#EVAL BOARD FOR MAX25232 |
1 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 2.5A | 3.5V ~ 36V | Buck | 2.1MHz | Board(s) | MAX25232 |
|
MAX17690EVKITB#EVAL BOARD FOR MAX17690 |
0 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Isolated Output | - | 5V | 1A | 18V ~ 36V | Flyback | 180kHz | Board(s) | MAX17690 |
|

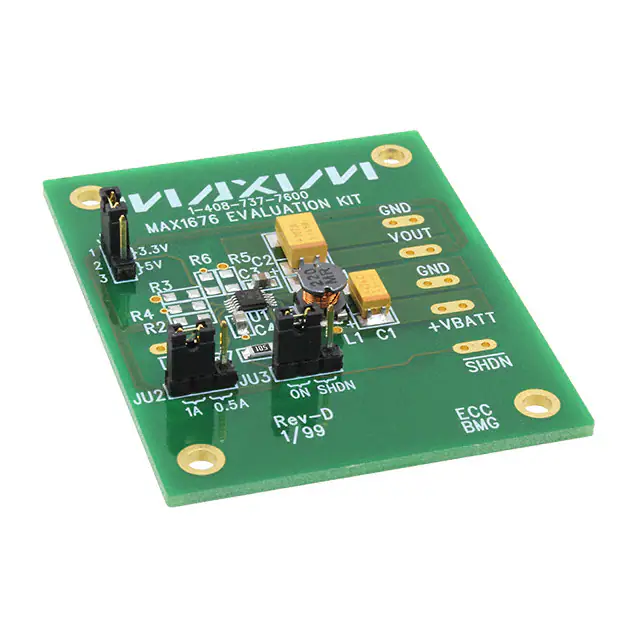

MAX1676EVKITEVAL BOARD FOR MAX1676 |
0 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 3.3V or 5V | - | 0.7V ~ 5.5V | Boost | - | Board(s) | MAX1676 |
|
NCP10671B05GEVBEVAL BOARD FOR NCP10671 |
0 |
|
برگه مشخصات |
- | Bulk | Active | AC/DC, Primary Side | 1 Non-Isolated Output | - | 5V | 50mA | 90 ~ 265 VAC | Flyback | - | Board(s) | NCP10671 |
|
ISL85005EVAL1ZEVAL BOARD FOR ISL85005 |
1 |
|
برگه مشخصات |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 5A | 7V ~ 15V | Buck | 500kHz | Board(s) | ISL85005 |
|

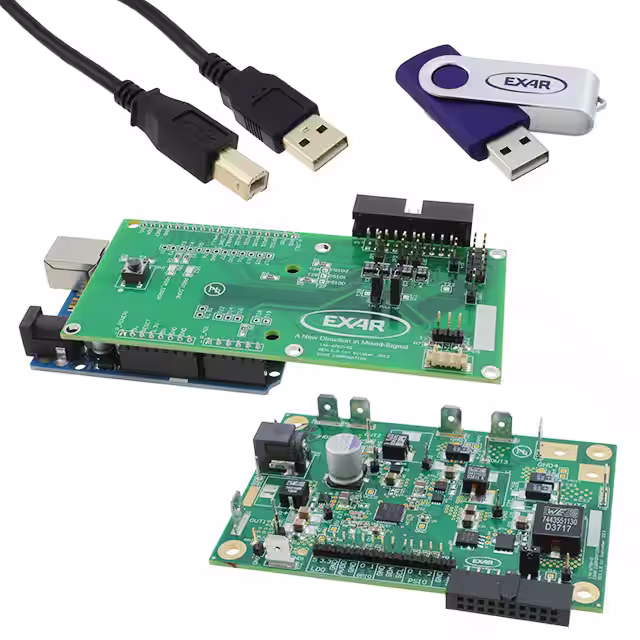

XRP7725EVB-DEMO2KITAEVAL BOARD FOR XRP7725 |
0 |
|
برگه مشخصات |
- | Box | Not For New Designs | DC/DC, Step Up or Down with LDO | 4 Non-Isolated Outputs | - | 1V, 1.5V, 2.5V, 3.3V | 10A, 5A, 3A, 3A | 5.5 ~ 25V | Buck | 1.23MHz | Board(s), Accessories | XRP7725 |
|

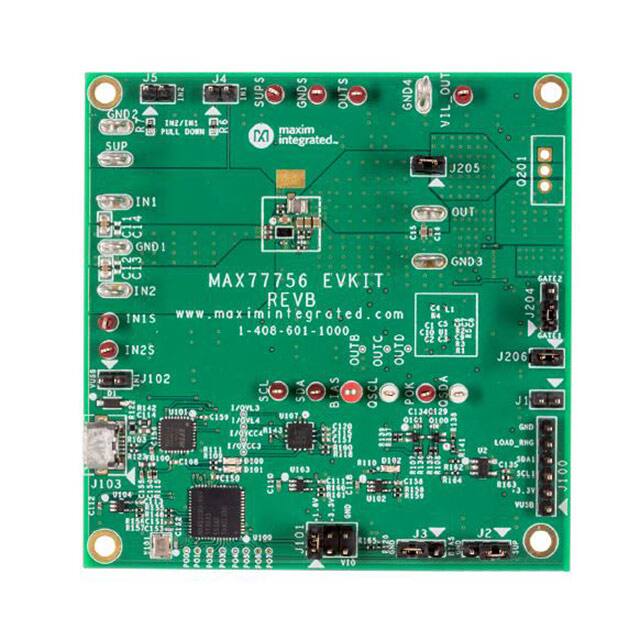

MAX77756EVKIT#EVAL BOARD FOR MAX77756 |
1 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 500mA | 3V ~ 24V | Buck | - | Board(s) | MAX77756 |
|

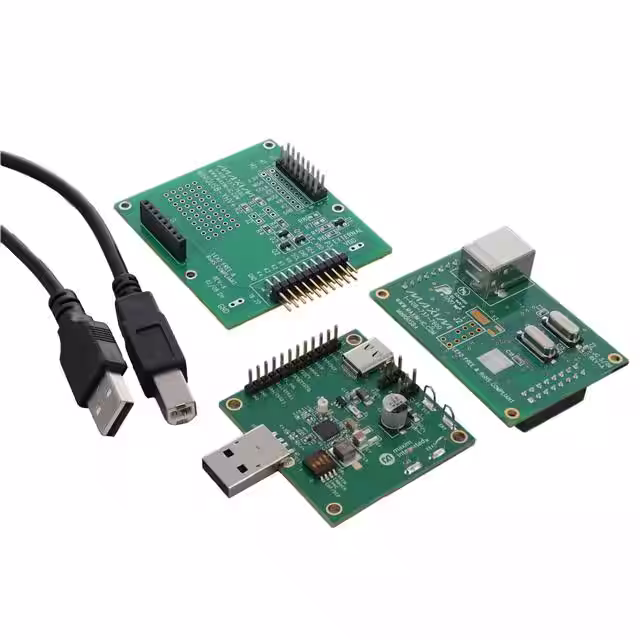

MAX20461EVKIT#EVAL BOARD FOR MAX20461 |
1 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V ~ 7V | 3A | 4.5V ~ 28V | Buck | 2.2MHz | Board(s) | MAX20461 |
|
NCP1063BUCKGEVBEVAL BOARD FOR NCP1063 |
0 |
|
برگه مشخصات |
- | Box | Active | AC/DC, Primary Side | 1 Non-Isolated Output | - | 12V | 350mA | 90 ~ 264 VAC | Buck | 100kHz | Board(s) | NCP1063 |
|
|
DC1025AEVAL BOARD FOR LTC3560 |
1 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | - | 800mA | 2.5V ~ 5.5V | Buck | 2.25MHz | Board(s) | LTC3560 |
|

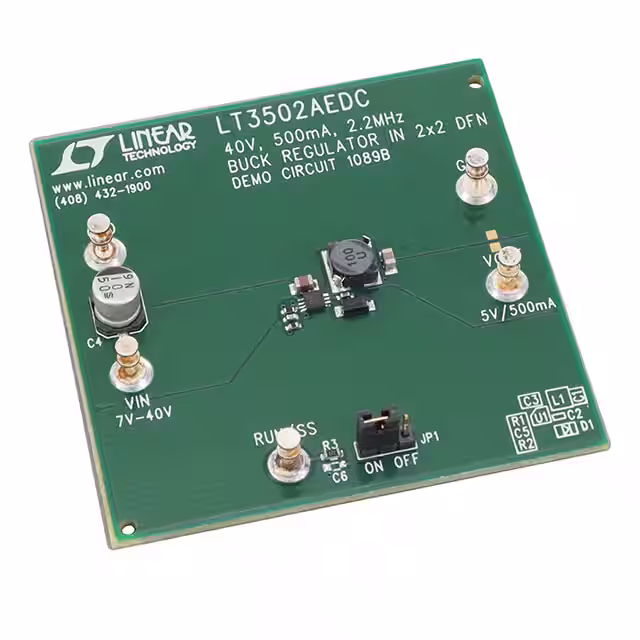

DC1089BEVAL BOARD FOR LT3502A |
1 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 500mA | 7V ~ 40V | Buck | 2.25MHz | Board(s) | LT3502A |
|

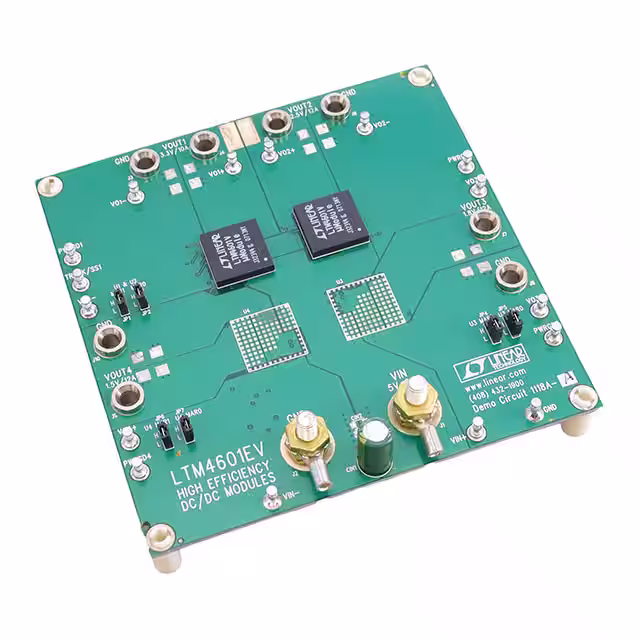

DC1118A-AEVAL BOARD FOR LTM4601 |
1 |
|
برگه مشخصات |
µModule® | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 2.5V, 3.3V | 12A, 10A | 5V ~ 20V | Buck | 750kHz | Board(s) | LTM4601 |
