تابلوهای ارزیابی SMPS DC/DC و AC/DC (خارج از خط).
| عکس | شماره قطعه تولیدکننده | موجودی | تعداد | برگه مشخصات | سری | بسته بندی | وضعیت محصول | هدف اصلی | خروجی ها و نوع | ولتاژ - خروجی | جریان - خروجی | ولتاژ - ورودی | توپولوژی تنظیم کننده | فرکانس - سوئیچینگ | مطالب | آی سی / قطعه استفاده شده | قدرت - خروجی |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

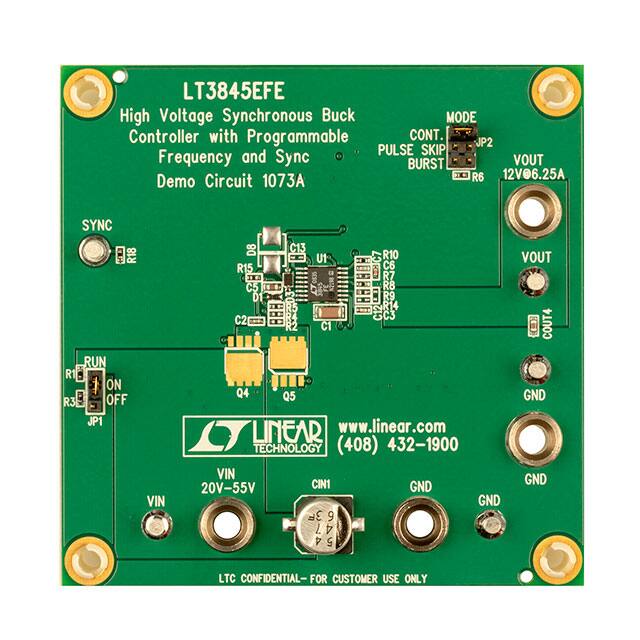

DC1073AEVAL BOARD FOR LT3845 |
0 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 12V | 6.25A | 20V ~ 55V | Buck | 300kHz | Board(s) | LT3845 |
|

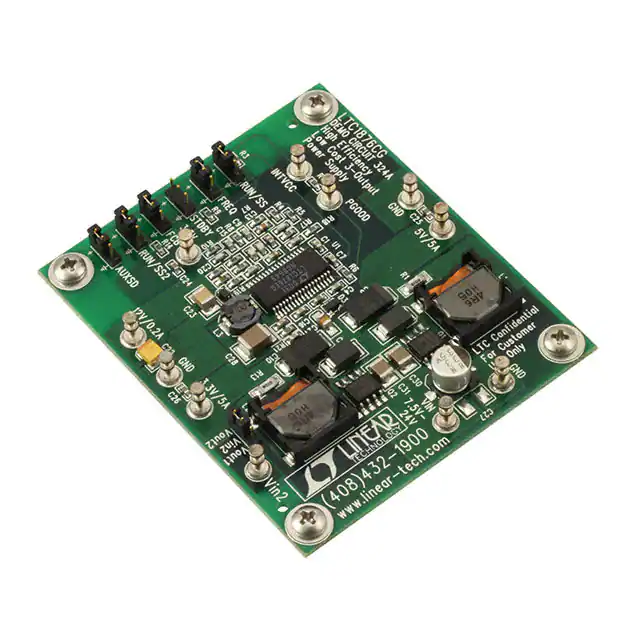

DC324AEVAL BOARD FOR LTC1876 |
0 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Up or Down | 3 Non-Isolated Outputs | - | 3.3V, 5V, 12V | 5A, 5A, 200mA | 7.5V ~ 24V | Boost, Buck | - | Board(s) | LTC1876 |
|
DC625AEVAL BOARD FOR LTC3441 |
1 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 3.3V | 1A | 2.4V ~ 5.5V | Buck-Boost | 1MHz | Board(s) | LTC3441 |
|
DC755AEVAL BOARD FOR LTC3443 |
1 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 3.3V | 1A | 2.4V ~ 5.5V | Buck-Boost | 600kHz | Board(s) | LTC3443 |
|

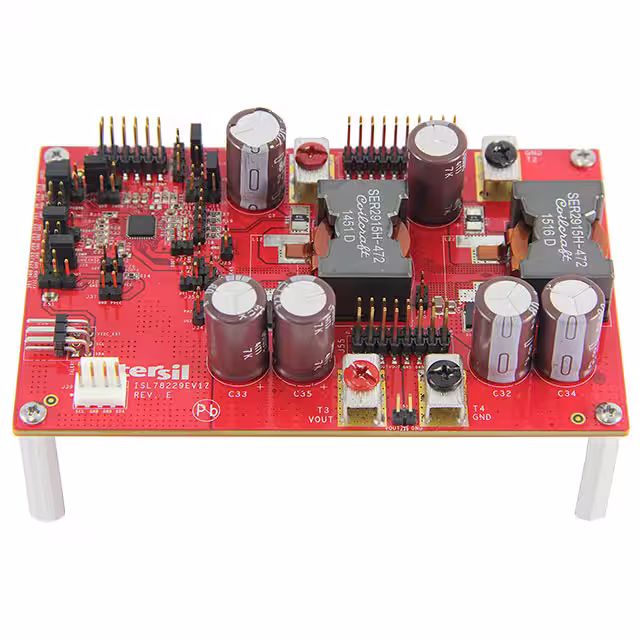

ISL78229EV1ZEVAL BOARD FOR ISL78229 |
1 |
|
برگه مشخصات |
- | Bulk | Active | DC/DC, Step Up | - | - | - | - | - | Boost | - | Board(s) | ISL78229 |
|

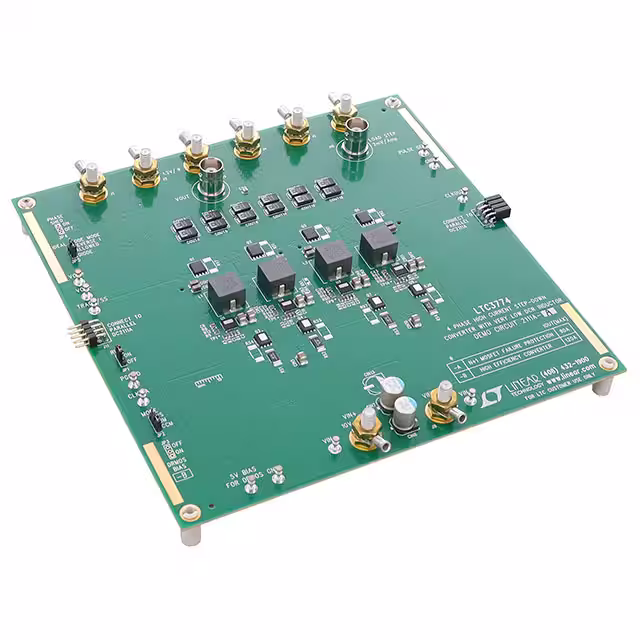

DC2111A-AEVAL BOARD FOR LTC3774 |
0 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 90A | 10V ~ 14V | Buck | 400kHz | Board(s) | LTC3774 |
|

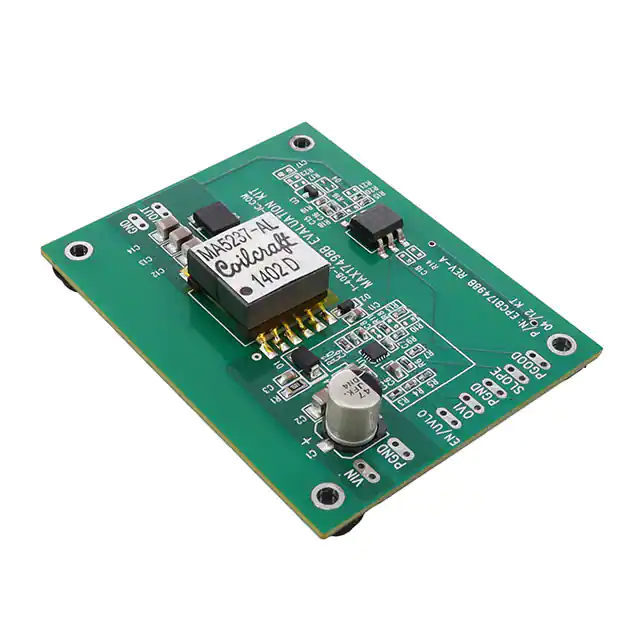

MAX17498BEVKIT#EVAL BOARD FOR MAX17498B |
1 |
|
- |
- | Box | Active | DC/DC, Step Down | 1 Isolated Output | - | 5V | 1.5A | 18V ~ 36V | Flyback | 500kHz | Board(s) | MAX17498B |
|

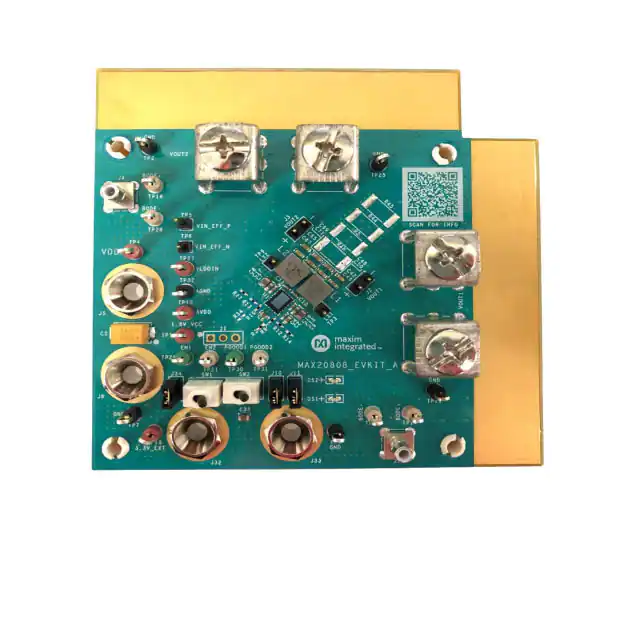

MAX20808EVKIT#EVAL BOARD FOR MAX20808 |
0 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1V, 1.8V | 4A, 4A | 2.7V ~ 16V | Buck | - | Board(s) | MAX20808 |
|

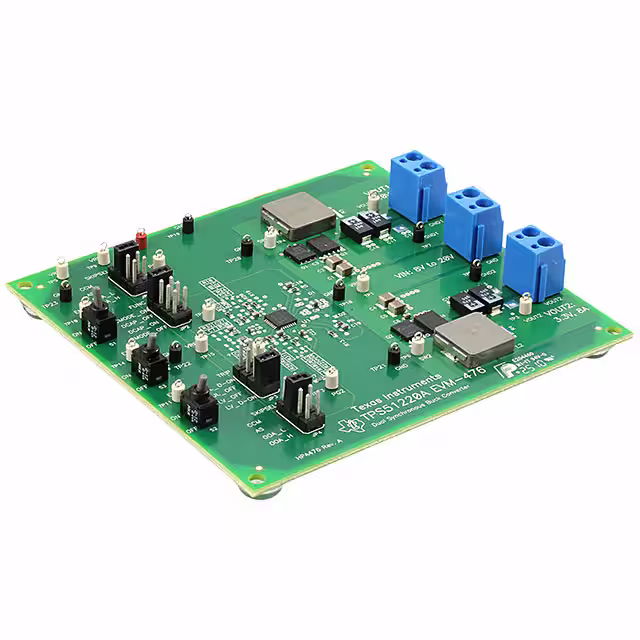

TPS51220AEVM-476EVAL BOARD FOR TPS51220A |
1 |
|
برگه مشخصات |
D-CAP™ | Box | Active | DC/DC, Step Down with LDO | 2 Non-Isolated Outputs | - | 3.3V, 5V | 8A, 8A | 8V ~ 20V | Buck | 330kHz | Board(s) | TPS51220A |
|
LM26400YEVAL/NOPBEVAL BOARD FOR LM26400Y |
1 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.2V, 2.5V | 2A, 2A | 5V ~ 20V | Buck | 500kHz | Board(s) | LM26400Y |
|

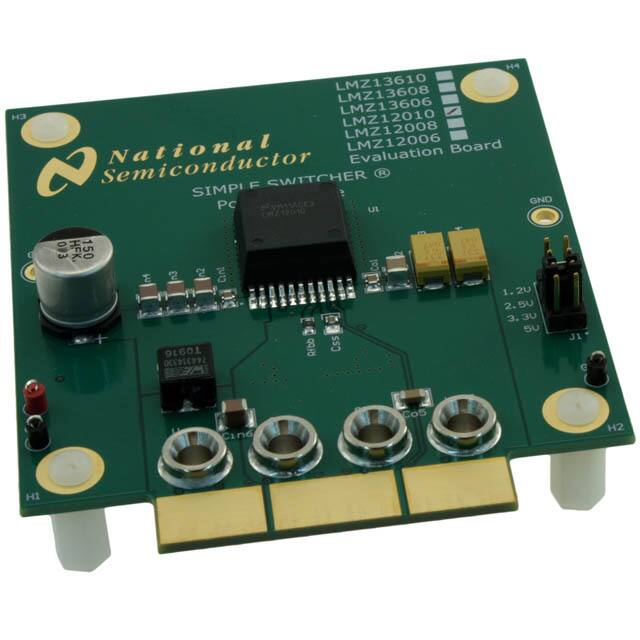

LMZ12010EVAL/NOPBEVAL BOARD FOR LMZ12010 |
1 |
|
برگه مشخصات |
SIMPLE SWITCHER® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V, 2.5V, 3.3V, 5V | 10A | 6V ~ 20V | Buck | 350kHz | Board(s) | LMZ12010 |
|

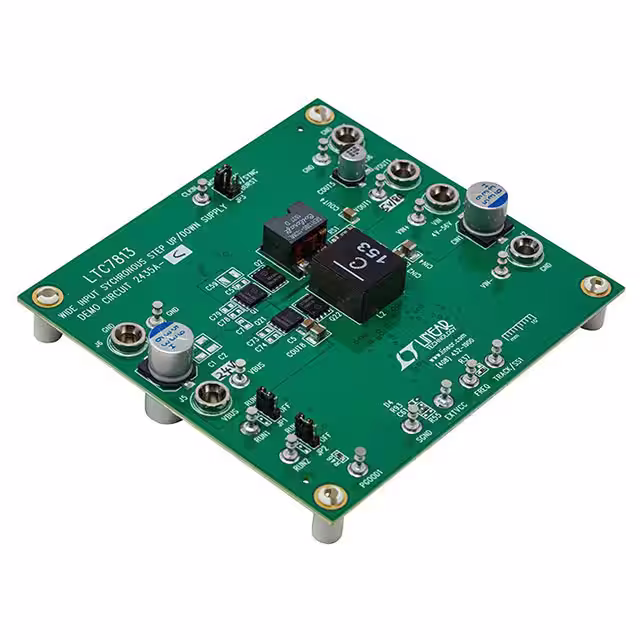

DC2435A-CEVAL BOARD FOR LTC7813EUH |
1 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Up or Down | 2 Non-Isolated Outputs | - | 5V, 24V | - | 4V ~ 56V | Boost, Buck | 200kHz | Board(s) | LTC7813EUH |
|

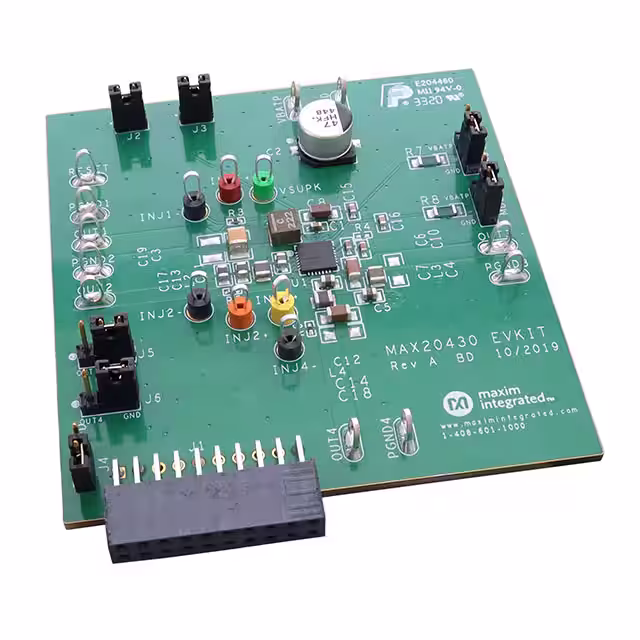

MAX20430EVKIT#EVAL BOARD FOR MAX20430 |
0 |
|
برگه مشخصات |
- | Box | Active | DC/DC Converter | 4 Non-Isolated Outputs | - | 1V, 1.2V, 3.3V, 5V | 3A, 3A, 2.5A, 500mA | 3.5V ~ 36V | - | 2.1MHz | Board(s) | MAX20430 |
|
NCP12700LOWVINGEVBEVAL BOARD FOR NCP12700 |
0 |
|
برگه مشخصات |
- | Bulk | Active | DC/DC, Step Up or Down | 1 Isolated Output | 15 W | 12V | - | 9V ~ 36V | Flyback | - | Board(s) | NCP12700 |
|
DC1753B-BEVAL BOARD FOR LTC3880 |
1 |
|
برگه مشخصات |
PolyPhase® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 40A | 6.5V ~ 24V | Buck | 425kHz | Board(s) | LTC3880 |
|

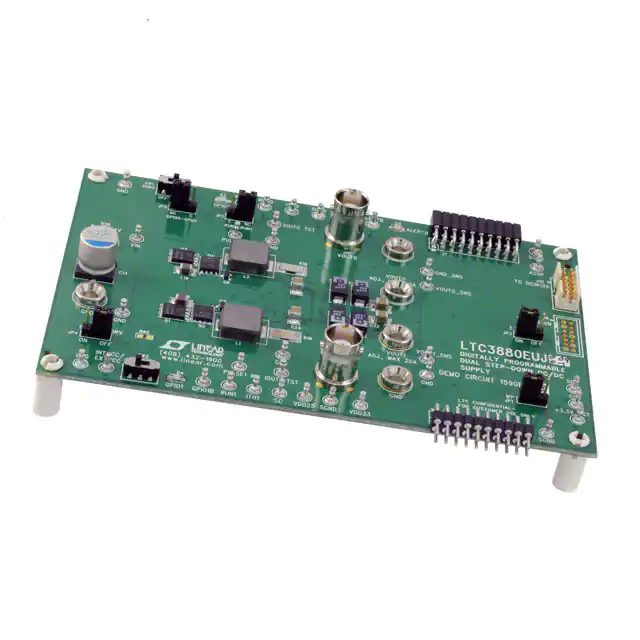

DC1590B-BEVAL BOARD FOR LTC3880 |
0 |
|
برگه مشخصات |
PolyPhase® | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.8V, 1.8V | 20A, 20A | 6.5V ~ 24V | Buck | 425kHz | Board(s) | LTC3880 |
|

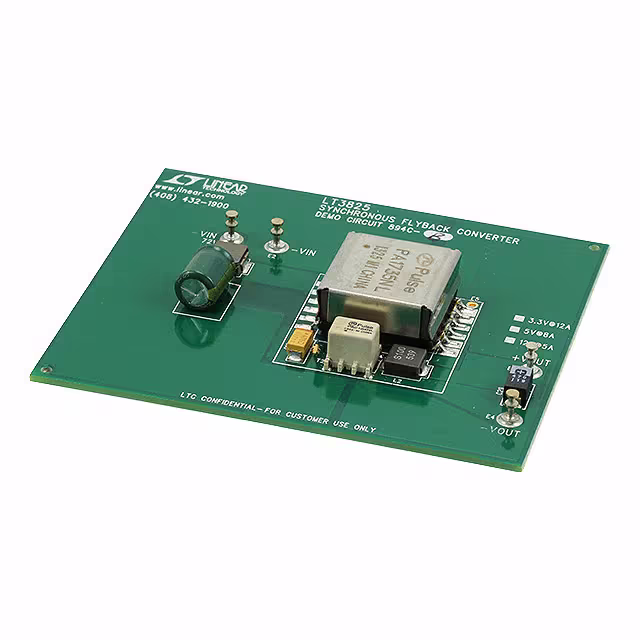

DC894C-BEVAL BOARD FOR LT3825 |
1 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Isolated Output | - | 5V | 8A | 36V ~ 72V | Flyback | 200kHz | Board(s) | LT3825 |
|
|
DC1340AEVAL BOARD FOR LTC3569 |
1 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 3 Non-Isolated Outputs | - | 1.2V, 1.5V, 1.8V | 1.2A, 600mA | 2.5V ~ 5.5V | Buck | 2.25MHz | Board(s) | LTC3569 |
|

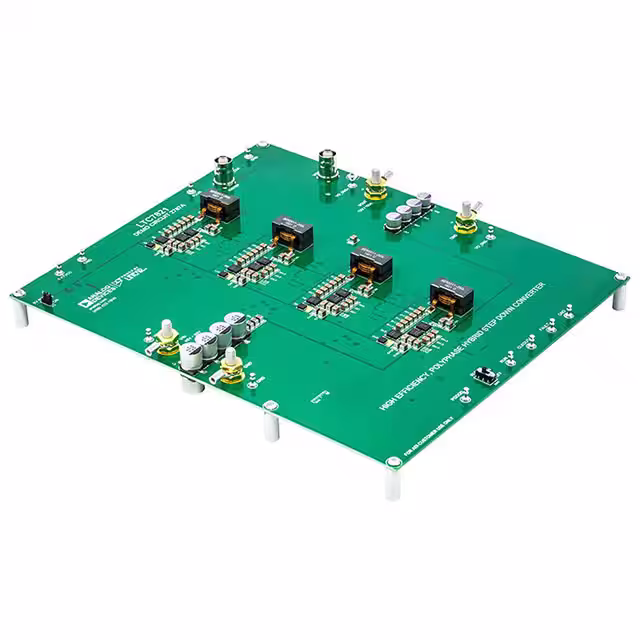

DC2787AEVAL BOARD FOR LTC7821 |
0 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 12V | 100A | 40V ~ 60V | Buck | 400kHz | Board(s) | LTC7821 |
|

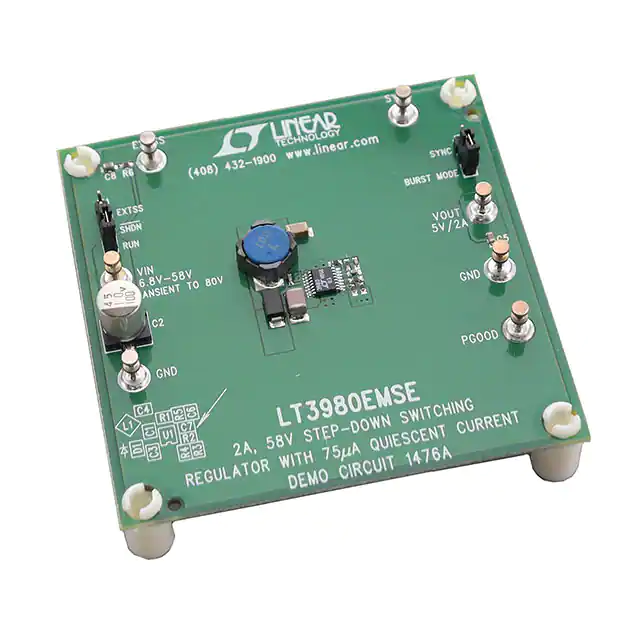

DC1476AEVAL BOARD FOR LT3980 |
1 |
|
برگه مشخصات |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 2A | 6.8V ~ 58V | Buck | 650kHz | Board(s) | LT3980 |
